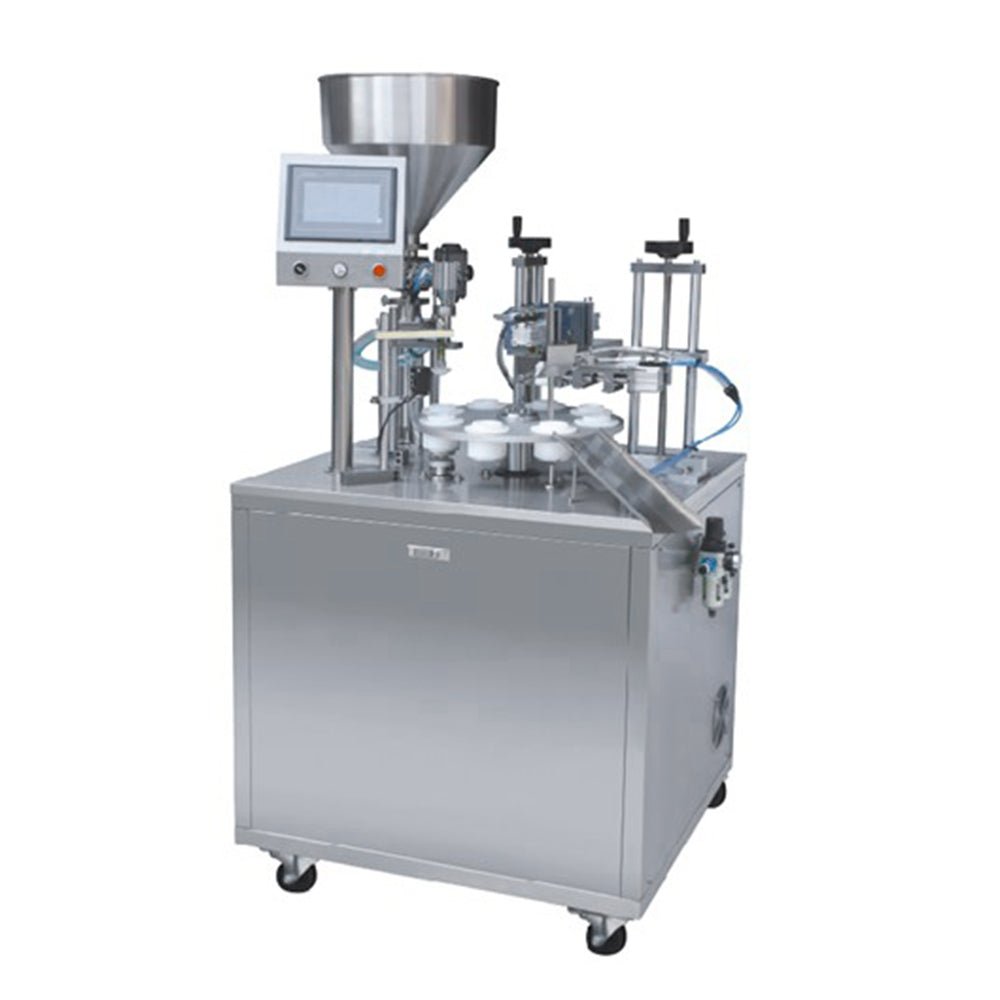

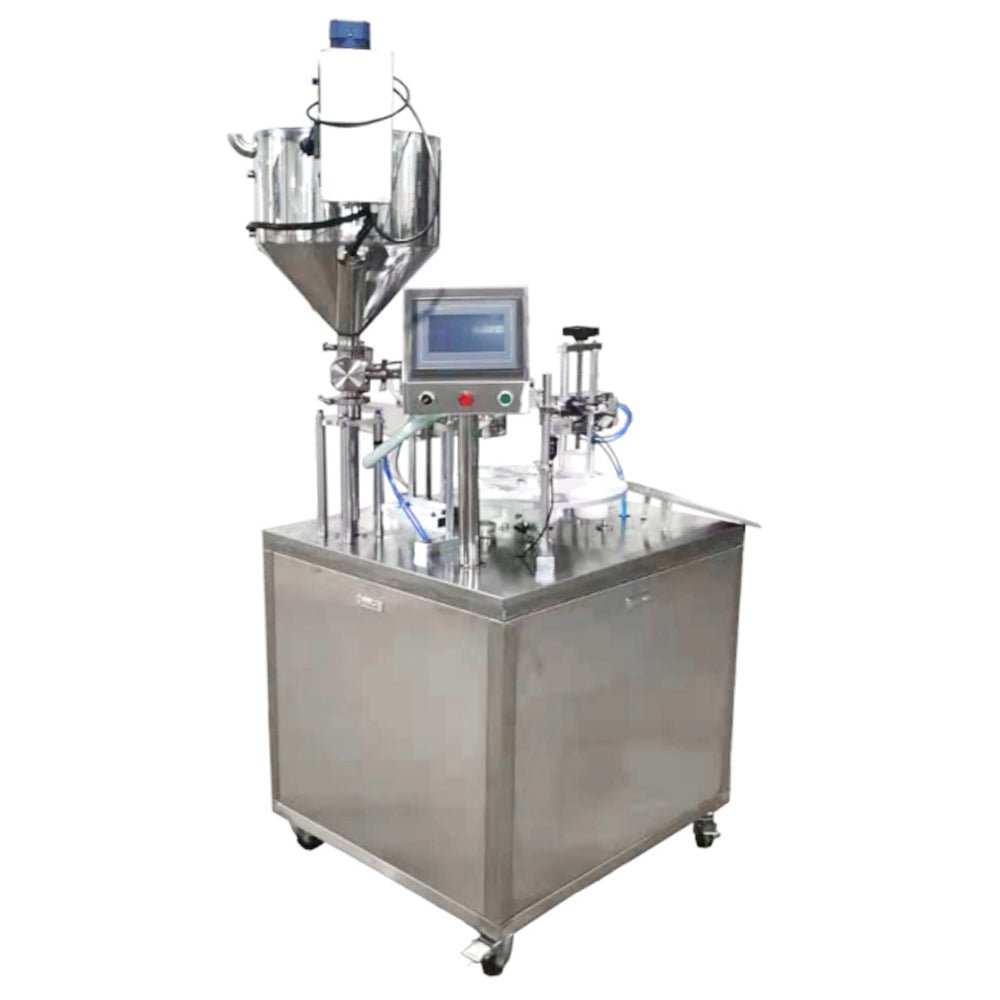

FW-006 Mini Tube Filling Sealing Machine for Tubes (Pneumatic Drive)

$8,999.00 USD

~~$1,500.00 USD~~ $8,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Plug AU/EU/US/UK

Voltage 110V/220V

Shipping method by sea to port(18-30 days) by sea to door(25-40 days)

Quick Answer: The CECLE FW-006 is a semi-automatic 304 stainless steel tube filling and sealing machine designed for automated packaging in cosmetics, pharmaceuticals, food, and adhesive industries.

CECLE FW-006 vs. Traditional / Generic Alternative

Where the CECLE FW-006 stands out against manual or generic tube filling sealing machines — measured on the dimensions buyers care about most.

Precision & Consistency

CECLE FW-006High-Precision Intelligent Control : Adopts a PLC control system combined with a touchscreen human-machine interface (HMI) for intuitive operation, controlling the filling accuracy deviation within ±1%

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Sealing / Transfer Quality

CECLE FW-006Premium Brand Core Configurations : Orientation System : Utilizes a highly sensitive Panasonic (Japan) photoelectric eye to ensure precise positioning of the tail sealing pattern

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Pressure Consistency

CECLE FW-006Pneumatic Components : Uses AirTAC or Xinchen cylinders, ensuring smooth operation and a long service life

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Operational Mechanism & Drive

CECLE FW-006Electrical Protection : Equipped with Omron relays and Delta inverters to guarantee system stability

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Specification	Value & Unit
Tube Diameter	Φ 10 - 50 mm
Tube Height	50 - 200 mm
Hopper Capacity	40 L
Filling Accuracy	≤ ±1%
Production Capacity	20 - 23 pcs/min
Air Supply	0.5 MPA (72.5 psi)
Motor Power	2.6 kW
Voltage	220V 50-60Hz
Net Weight	350 KG (771.6 lb)
Dimensions	160cm × 110cm × 90cm
Material	304 Stainless Steel

Pre-installation requirements: Motor Power: 2.6 kW; Voltage: 220V 50-60Hz; Net Weight: 350 KG (771.6 lb); Dimensions: 160cm × 110cm × 90cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Tube Filling Sealing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

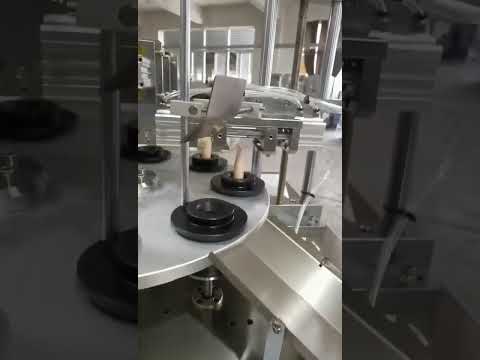

Manual Loading : Operators manually insert the tubes into the turntable fixtures
Marking (Orientation) : The sensor detects the tube color code, and the rotary motor automatically calibrates the sealing direction
Filling : The piston pump automatically executes quantitative filling
the filling head features an anti-drip design
Sealing : The ultrasonic system excites high-frequency vibrations to instantly weld the inner wall of the tube tail
Coding : The sealing mold synchronously embosses the production date or batch number
Cutting : The automatic cutter trims off the excess, uneven residual material at the tube tail

Engineering FAQ

What power supply does the FW-006 require?
A: The FW-006 runs on 2.6 KW Motor Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the FW-006?
A: Beyond the rated 220V 50-60Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the FW-006 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FW-006 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
