CECLE packaging machinery

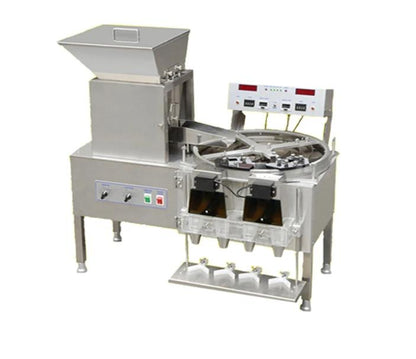

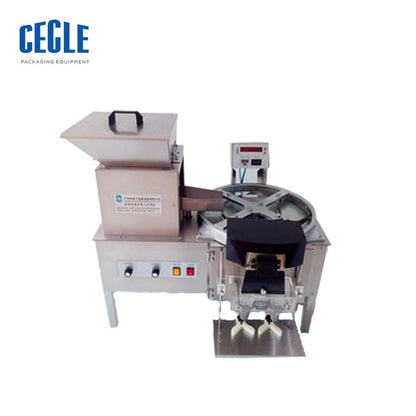

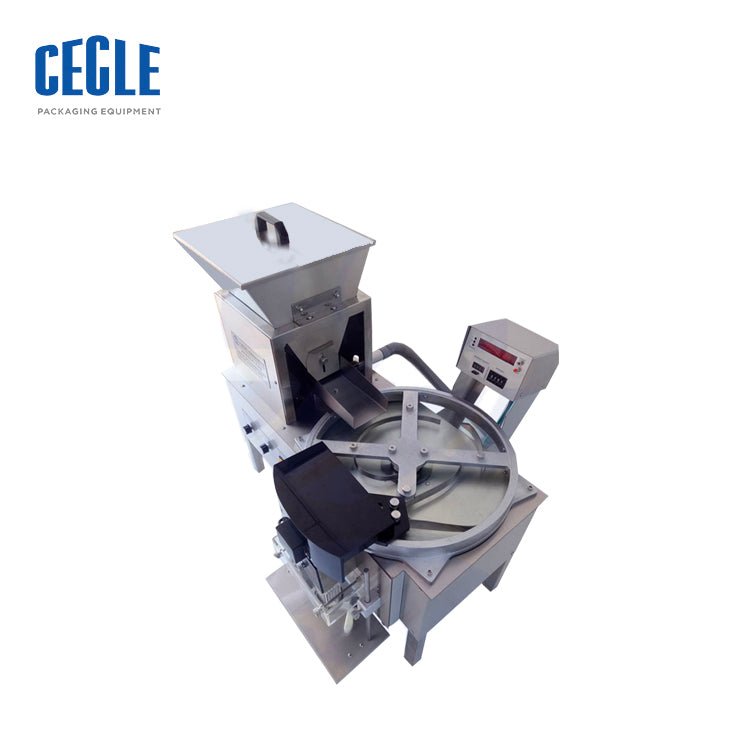

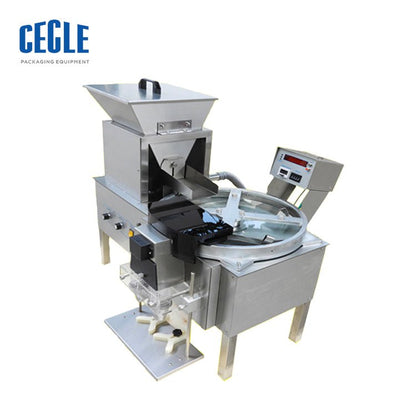

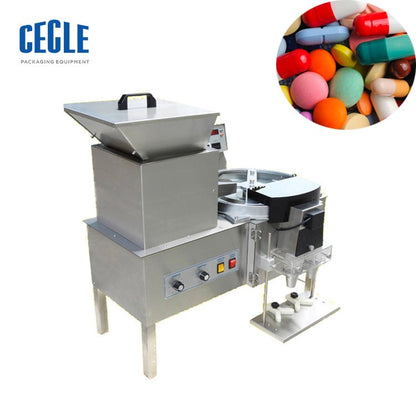

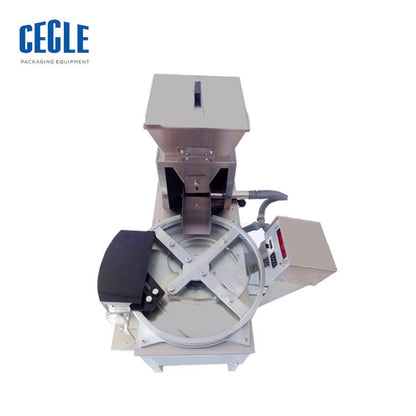

YL Series Rotary High-Speed Small Fully Counting Machine for Pharmaceutical

Name: YL Series
Brand: CECLE
Price: 7950.0 USD
Availability: InStock

$7,950.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YL-2 YL-4

Quick Answer: The CECLE YL Series Capsule/Tablet Counter Machine (comprising two main models, YL-2 and YL-4) is a high-efficiency automated counting and filling device specifically designed for the pharmaceutical.

CECLE YL Series vs. Traditional / Generic Alternative

Where the CECLE YL Series stands out against manual or generic counting machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE YL SeriesThe YL Series Fully Automatic Capsule/Tablet Counter Machine employs an advanced rotary counting and vibratory feeding design, delivering high-speed and exceptionally stable operation. The machine features a.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Pressure Consistency

CECLE YL SeriesThe CECLE Counting Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE YL SeriesIt is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Chassis Rigidity & Vibration Resistance

CECLE YL SeriesThe frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Technical Indicator & Parameter	YL-2 Specification	YL-4 Specification
Production Capacity	1,000 - 1,800 Tabs/Min	2,000 - 3,500 Tabs/Min
Counting Channel Design	Single Channel (single-bottle alternating counting)	Dual Channel (dual-bottle simultaneous counting)
Counting Setting Range	0 ~ 9,999 pieces adjustable	0 ~ 9,999 pieces adjustable
Power Supply & Rating	110V-220V / 50HZ-60HZ / 0.15KW	110V-220V / 50HZ-60HZ / 0.15KW
Dimensions	810 × 720 × 840 mm	920 × 740 × 880 mm
Net Weight (N.W.)	65 kg	78 kg

Compatible Applications & Materials

industrial products — primary target products for this Counting Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What are the main differences between the YL-2 and YL-4, and how should I choose?
A: The YL-2 is a single-channel counter that counts one bottle at a time, with a capacity of 1,000-1,800 tablets/min. The YL-4 features a dual-channel design that can simultaneously count two bottles at once, doubling the capacity to 2,000-3,500 tablets/min. If your production line requires higher bottling speeds, the YL-4 is the recommended choice.

How does the YL Series ensure counting accuracy and prevent dust interference?
A: The machine is equipped with a special photoelectric eye protection device, ensuring every single tablet/capsule is precisely detected. Meanwhile, an integrated dust extraction device inside the machine effectively removes pharmaceutical powder and dust generated during the conveying process, preventing dust from obscuring the photoelectric eye or affecting operation.

What is the after-sales service and warranty policy?
A: The machine is manufactured by Wenzhou Tongda Packaging Machinery Factory (registered trademark CECLE) and comes with a one-year free warranty. During the warranty period, if faults occur under normal use as per the manual, free repairs or parts replacement will be provided (the customer bears shipping costs). After the warranty period, lifetime maintenance support continues to be offered.

What routine maintenance keeps the YL Series stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YL Series handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
