Fully Automatic Roll to Roll Screen Printing Machine | TD-R4060 / TD-R5080 Industrial Flatbed Printing Line
Fully Automatic Roll to Roll Screen Printing Machine | TD-R4060 / TD-R5080 Industrial Flatbed Printing Line
Couldn't load pickup availability
At a Glance (TL;DR)
- All-In-One Automated Line: Integrates web feeding, automatic dust removal, flatbed screen printing, continuous inline oven drying, and automated rewinding into a single seamless workflow.
- Ultra-Precise Multi-Color Alignment: Powered by a Japanese Mitsubishi PLC and German SK color code sensors for optical multi-color registration.
- Deformation-Free Web Pulling: Suction-pulling head technology maintains uniform web tension—preventing material distortion, scratching, and edge damage on sensitive films or foil (0.035–0.4mm).
- High Factory Throughput: Achieves continuous industrial printing speeds up to 500–1,000 meters per hour with servo-driven squeegee control and automated off-grid function.
Key Benefits & Industrial Features

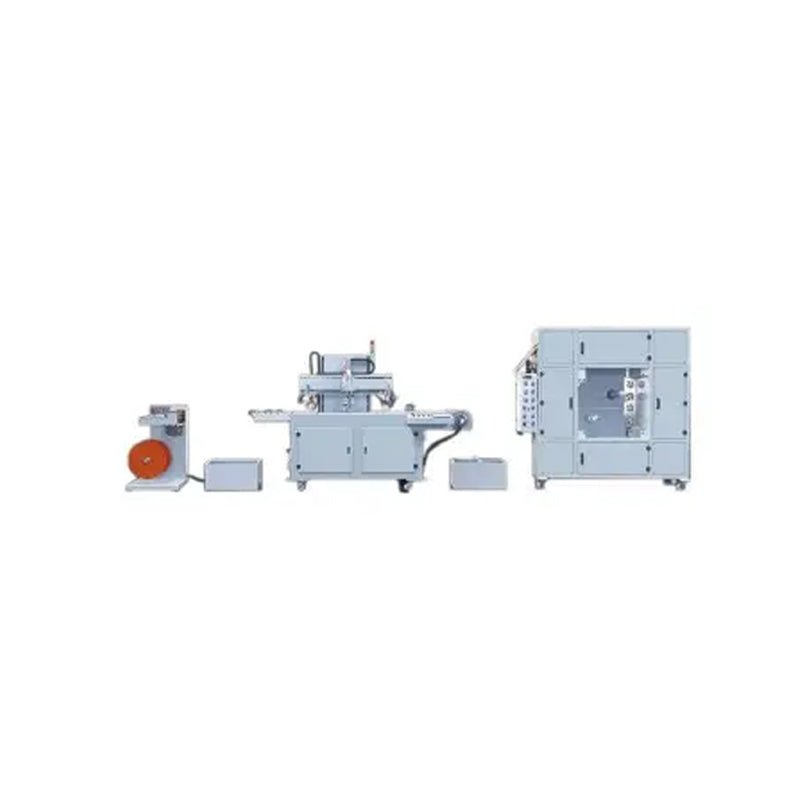

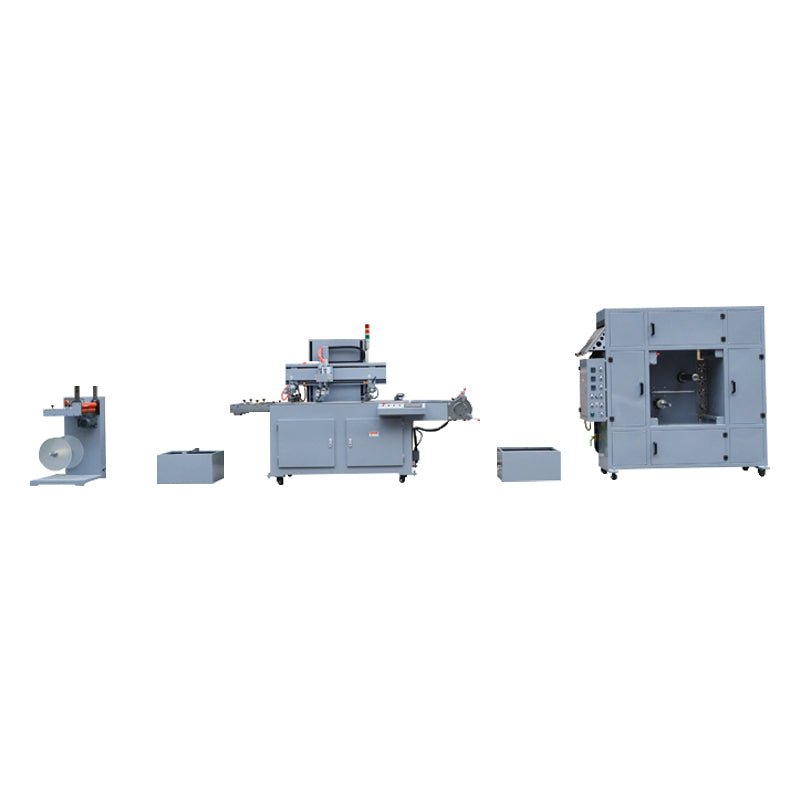

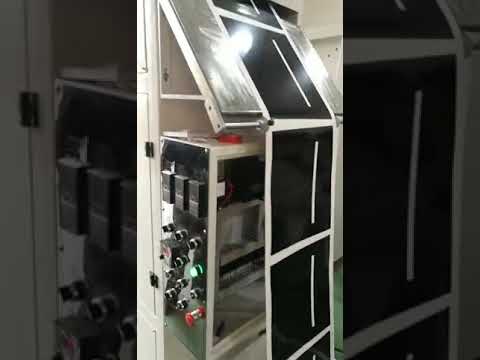

The TD-R4060 and TD-R5080 series represent heavy-duty, floor-standing fully automatic flatbed roll-to-roll screen printing lines engineered for continuous web material processing. Designed to drastically reduce labor costs and maximize production yields, this line allows single-operator management from raw roll loading to finished rewound product.
- Precision Multi-Color Registration: Combines Japanese Mitsubishi PLC logic with high-precision German SK color sensors to ensure flawless optical tracking and multi-pass alignment across long production runs.
- Servo-Driven Squeegee System: Independent stroke and speed adjustments provide consistent squeegee pressure and ink flooding, significantly reducing color variance, ghosting, and missed print dots.
- Engineered for Delicate Substrates: Features a suction pulling head instead of traditional pinch rollers, eliminating material drifting, surface scratches, and edge deformation on delicate substrates like aluminum foil, PVC, OPP, and thin polyester film.
- Advanced Off-Grid (Peel-Off) Mechanism: The screen frame lifts in synchronicity with the squeegee angle during printing. This prevents fine lines, small text, and halftone dots from sticking to the mesh during high-speed printing—ideal for heavy solid background coverage, heat transfer glue, and specialty inks.
- Integrated Safety & Production Monitoring: Automatic shutdown alarms for material depletion, mechanical errors, and preset batch counts keep operations smooth and unattended.
Technical Specifications
Choose between two heavy-duty configurations tailored to your substrate dimensions and factory throughput targets:

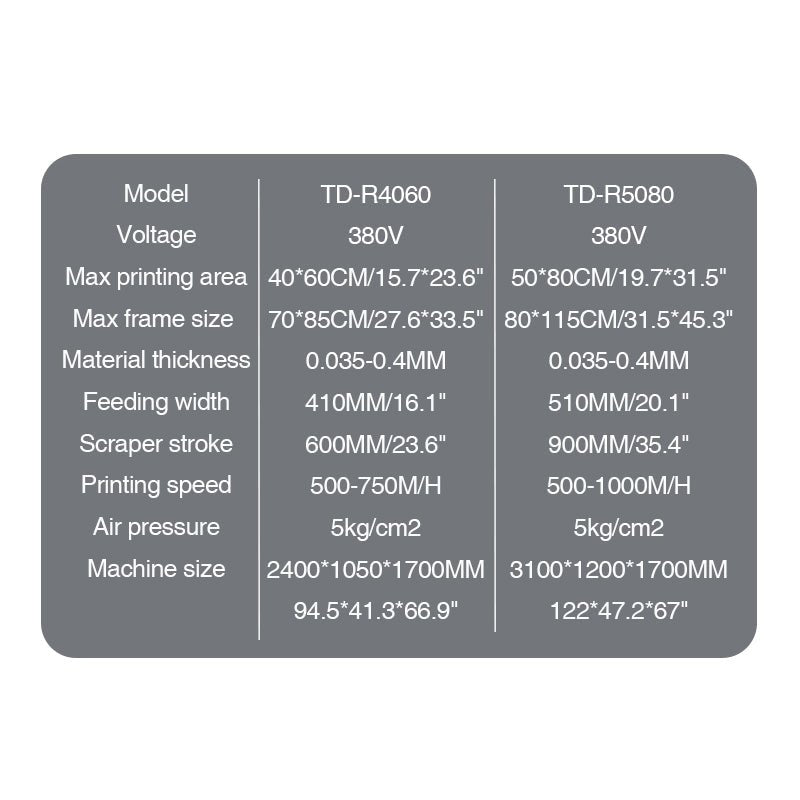

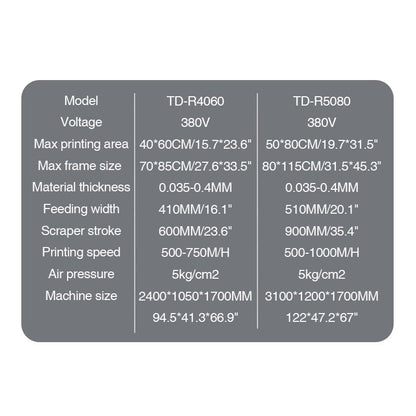

| Specification | TD-R4060 | TD-R5080 |
|---|---|---|
| Max Printing Area | 40 × 60 cm (15.7″ × 23.6″) | 50 × 80 cm (19.7″ × 31.5″) |
| Max Screen Frame Size | 70 × 85 cm (27.6″ × 33.5″) | 80 × 115 cm (31.5″ × 45.3″) |
| Material Thickness Range | 0.035 – 0.4 mm | |
| Feeding Width | 410 mm (16.1″) | 510 mm (20.1″) |
| Squeegee Stroke | 600 mm (23.6″) | 900 mm (35.4″) |
| Printing Speed | 500 – 750 m/h | 500 – 1,000 m/h |
| Dryer Length & Power | 32 Meters / 12 kW | 40 Meters / 13.5 kW |
| Dryer Max Rewind Diameter | 500 mm (19.7″) | |
| Air Pressure | 5 kg/cm² (External Air Compressor Required) | |
| Power Requirement | 380V (Custom voltage configurations available upon request) | |
📖 Need Detailed Engineering Specs or Maintenance Instructions?
View Full Technical Documentation & User Manual
Applications & Compatible Substrates
This automated roll-to-roll silk screen printer is optimized for industrial factory production across packaging and label industries:
- Target Industries: Anti-counterfeiting trademarks, heat transfer stickers, security labels, electronic adhesive labels.
- Compatible Materials: Roll materials from 0.035 mm to 0.4 mm thickness, including PVC, OPP,etc.
Frequently Asked Questions
Q: Can this machine print on easily deformed roll materials like thin aluminum foil or soft films?
A: Yes. The system employs a specialized vacuum suction pulling head for web transport instead of pressure rollers. This guarantees uniform pulling tension without scratching or causing edge deformation on easily distorted substrates.
Q: How long does it take for operators to learn how to run this production line?
A: The machine is engineered with an intuitive operational workflow. Operators with basic screen printing experience can typically master screen installation, registration adjustments, and daily maintenance within 2 to 3 days of hands-on training.
Q: What are the installation and auxiliary equipment requirements?
A: Because this is an integrated line (feeding, printing, oven, and rewinding), adequate linear workshop space is required. An external air compressor (minimum 5 kg/cm² pressure) and customized screens matching your design parameters are required prior to operation.
Q: What warranty and technical support coverage are provided?
A: We offer a standard 1-year warranty. Replacement parts damaged under normal operating conditions per the official user manual are provided free of charge during the warranty period (buyer covers international courier fees from China).
