Pallet Stretch Wrapping Machine TP1650F-L | 2000KG Pre-Stretch Pallet Wrapper
Pallet Stretch Wrapping Machine TP1650F-L | 2000KG Pre-Stretch Pallet Wrapper
Couldn't load pickup availability
⚡ At a Glance (TL;DR)
- Core Function: High-efficiency, floor-standing turntable pallet stretch wrapping machine engineered for standard logistics and export pallet packing.
- 30%–50% Film Cost Savings: Features advanced 250% powered pre-stretch technology that drastically lowers film consumption while increasing load containment force.

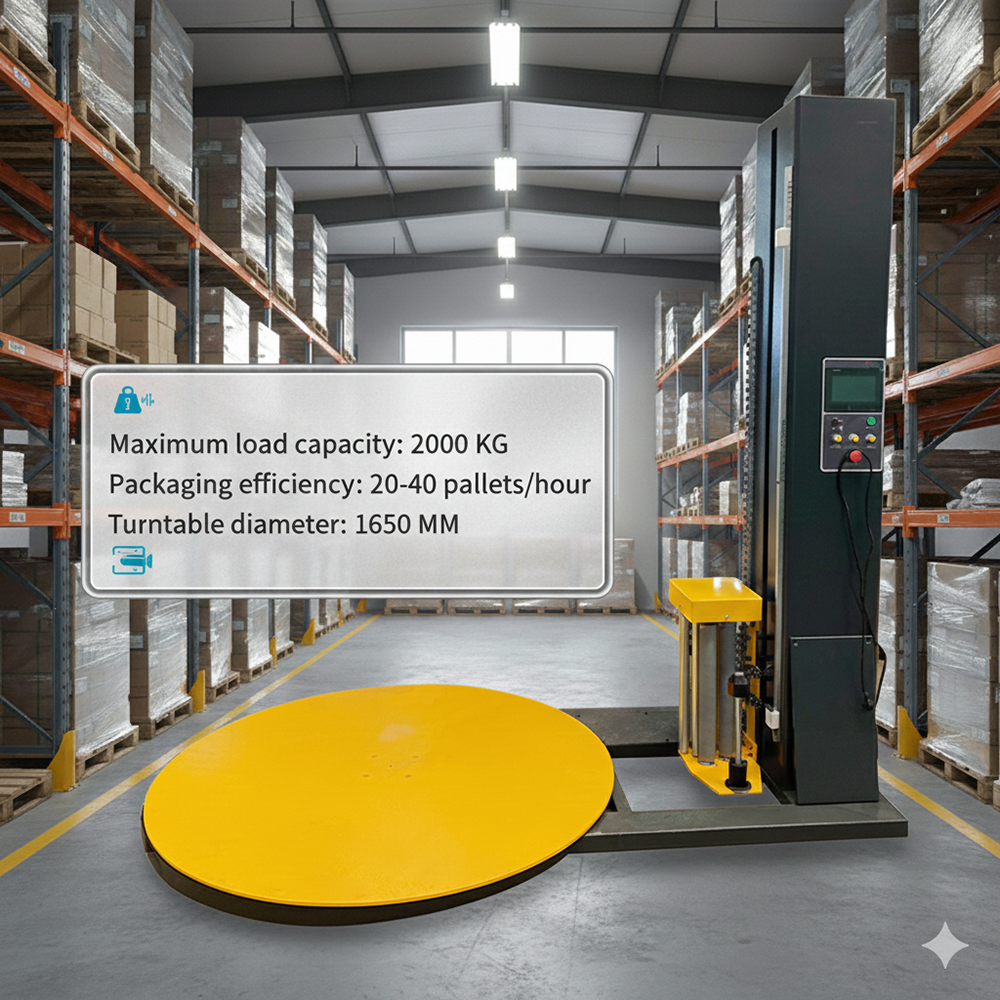

- Heavy-Duty Performance: Supports up to 2000KG (4409 lbs) load capacity and achieves output speeds of 20–40 pallets per hour.
- User-Friendly & Safe: Equipped with a PLC touch screen interface, an 85mm low-profile turntable for easy forklift loading, and automatic homing reset.
Key Benefits & Core Features
The TP1650F-L Pallet Stretch Wrapping Machine provides an optimal balance of operational efficiency, load safety, and material cost reduction for medium-to-high intensity logistics and manufacturing facilities. Designed for industries such as chemicals, electronics, food and beverage, and international freight forwarding.

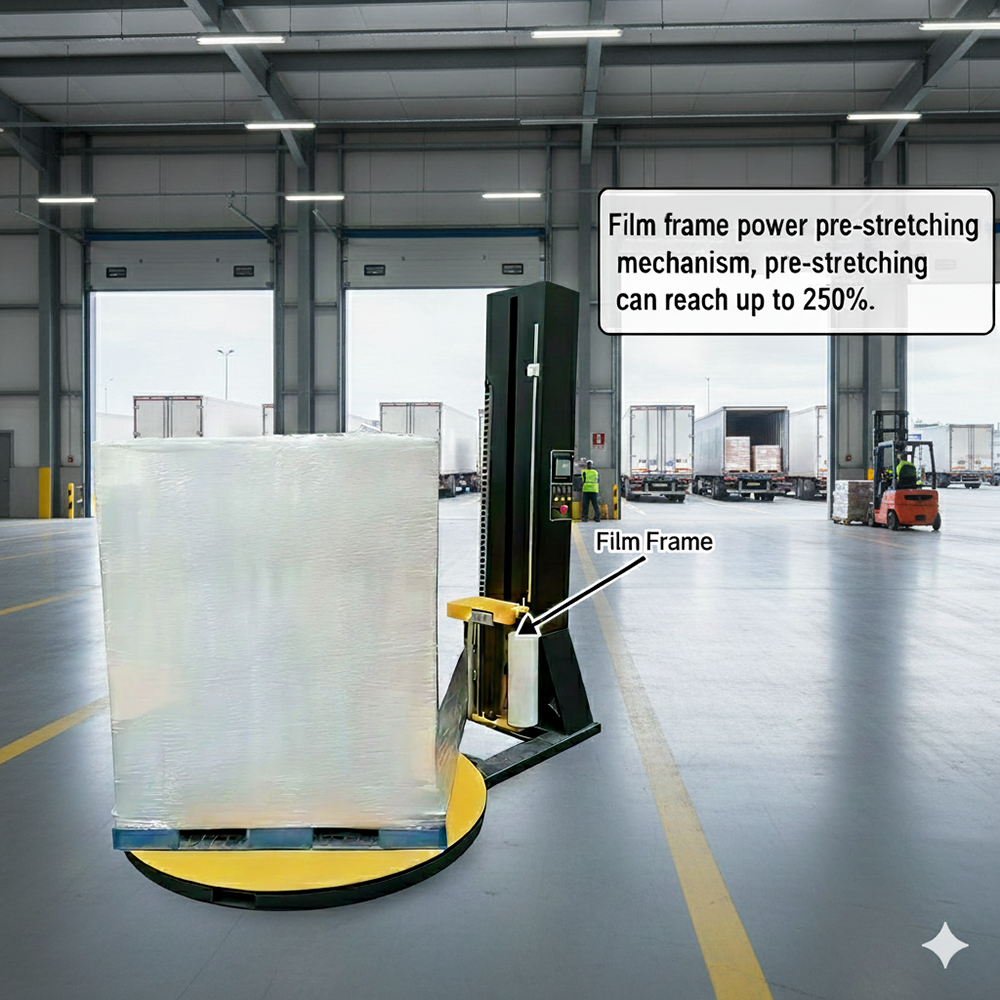

- 250% Powered Pre-Stretch Mechanism: Unlike standard manual or basic stretch wrappers, the motorized pre-stretch film carriage elongates the stretch film by 250% before application, dramatically reducing film costs by 30% to 50% while tightening cargo stability.
- Heavy-Duty 2000KG Turntable: Built with a robust base and frequency conversion drive (0–12 RPM adjustable speed), handling everything from light carton boxes to heavy raw materials with auto-reset precision.

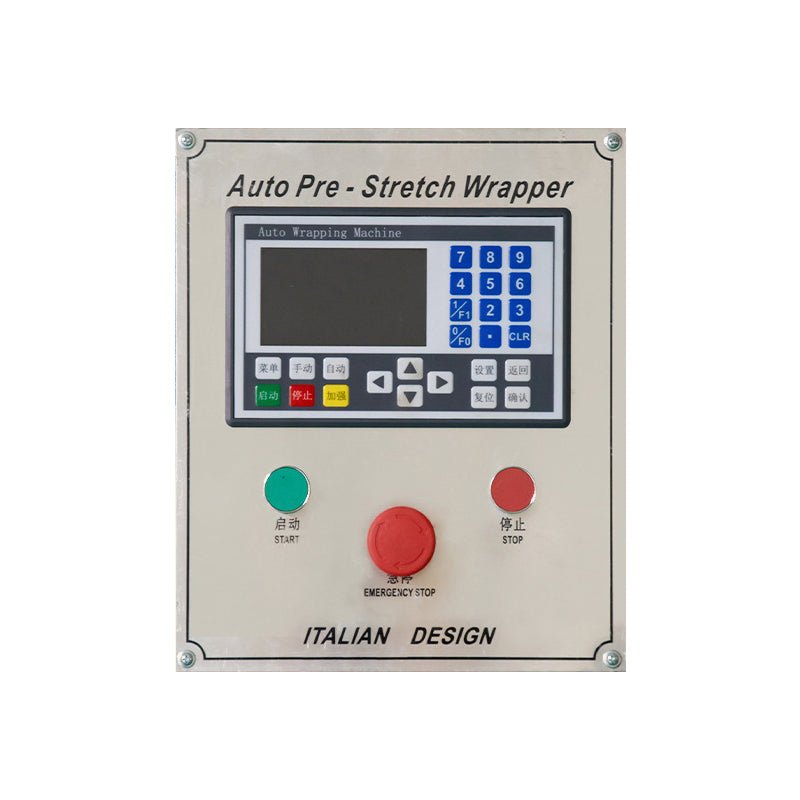

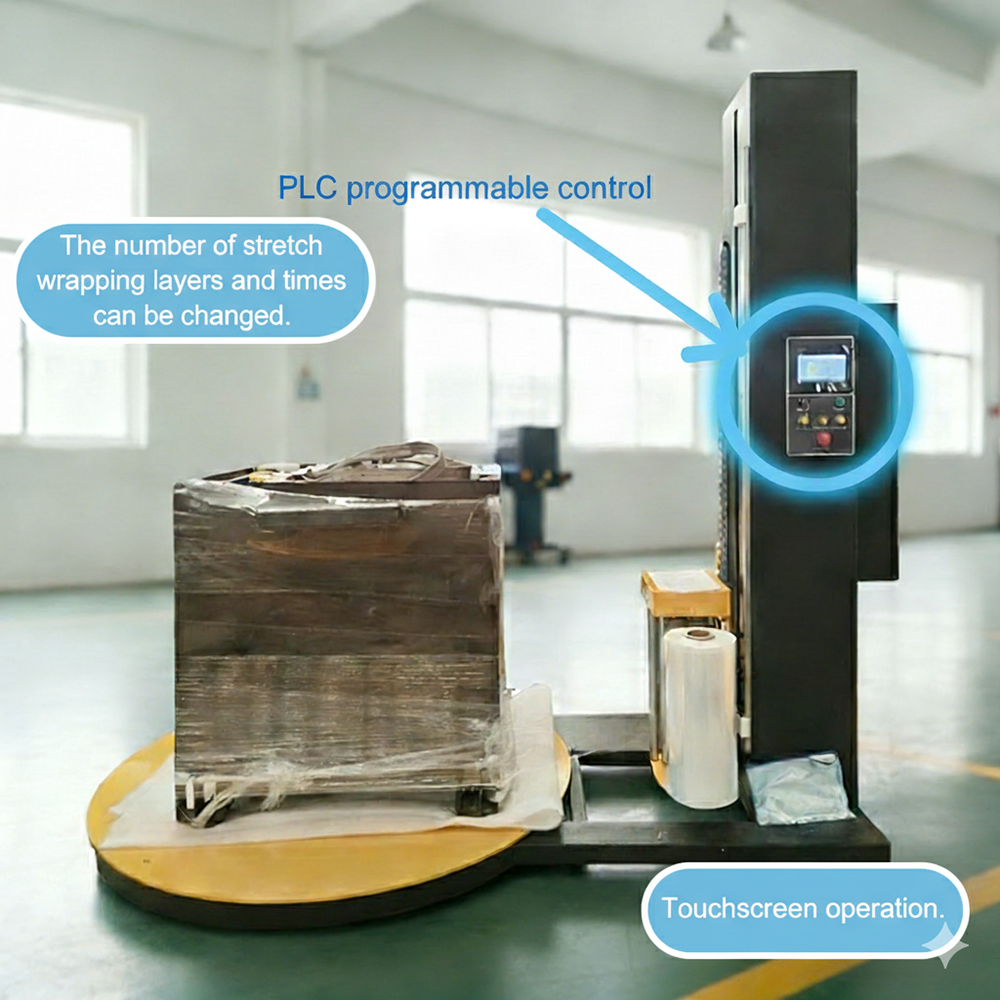

- Programmable PLC Touch Screen Control: Intuitive interface allows operators to customize wrapping layers, carriage speed, over-top wrapping time, and auto-film tension settings with minimal training.
Technical Specifications
| Specification Item | Details & Parameters |
|---|---|
| Model | TP1650F-L |
| Max Load Capacity | 2000 KG / 4409 LBS |
| Turntable Diameter | 1650 MM / 65 INCH |
| Turntable Height | 85 MM / 3.3 INCH |
| Max Packing Height | 2000 MM / 78.7 INCH |
| Column Height | 2400 MM / 94.5 INCH |
| Max Pallet Dimension | 1200 × 1100 MM / 47.2 × 43.3 INCH |
| Turntable Speed | 0 – 12 RPM (Adjustable) |
| Voltage | 220V Single Phase 50Hz/60Hz (110V customizable) |
| Gross Weight & Dimensions | 700 KG / 1543 LBS | 260 × 165 × 250 CM |
📖 Looking for setup guides, maintenance schedules, or operational specifications?
View Full Technical Documentation & User Manual
Frequently Asked Questions
Q: What are the benefits of 250% pre-stretch?
A: It greatly reduces packaging costs while providing stronger shrinkage force, making the goods more stable during transportation.
Q: What if my pallet height exceeds 2 meters, or the pallet is extra wide?
A: We can provide customized services.Both the column height and turntable diameter can be customized according to your pallet size.Please inform us of your maximum pallet size before placing an order.
Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).
