CECLE Machine
Full Automatic Remote Control Pallet Stretch Wrapping Machine, With Automatic Film Attaching and Cutting Function
Full Automatic Remote Control Pallet Stretch Wrapping Machine, With Automatic Film Attaching and Cutting Function
Couldn't load pickup availability

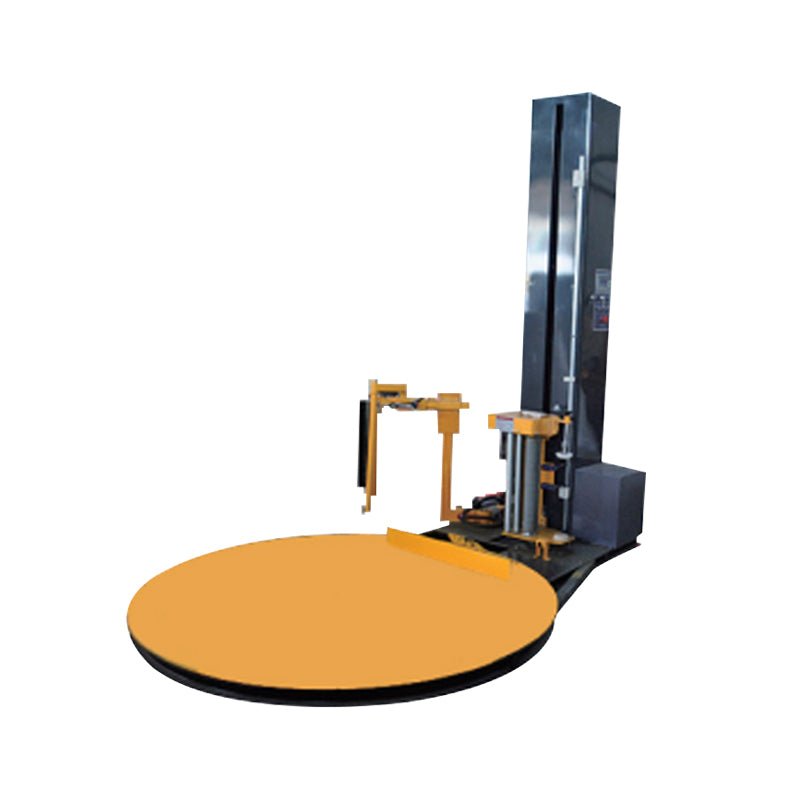

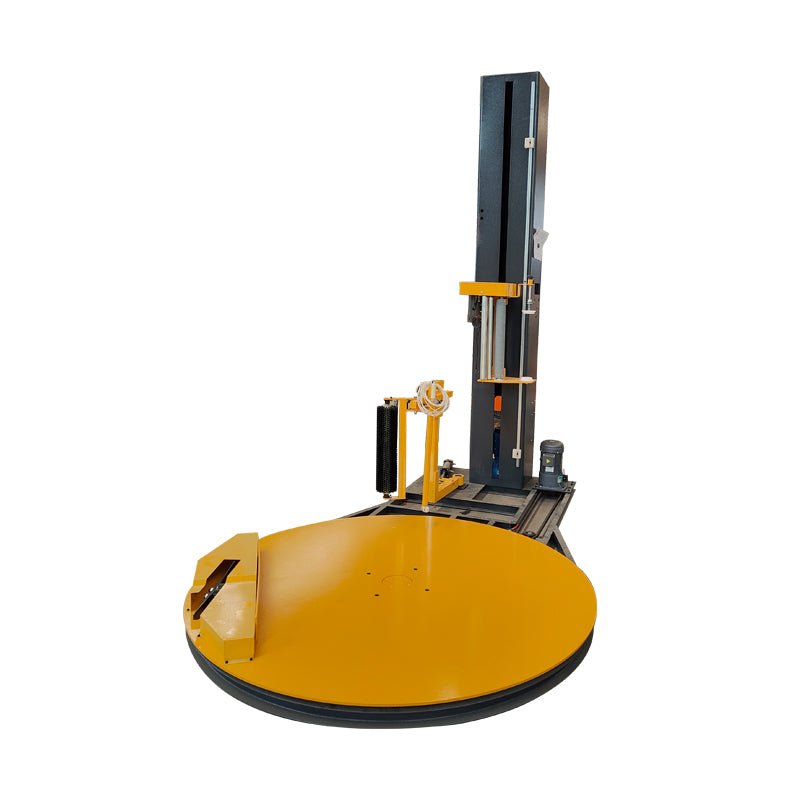

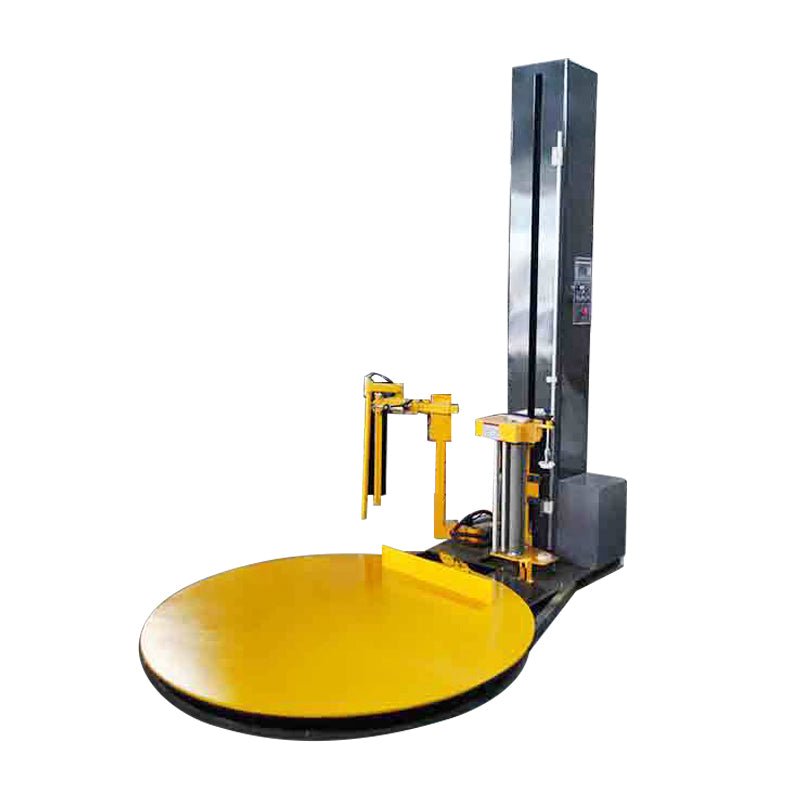

QTP1800F-L Full Automatic Remote Control Pallet Stretch Wrapping Machine
Premium Zero-Intervention Pallet Wrapper with Automatic Film Attach, Hot-Wire Cut & Tail Sweeping
The QTP1800F-L Full Automatic Remote Control Pallet Stretch Wrapping Machine is our flagship, high-end packaging solution engineered for high-volume warehouses, automated factories, and maximum-safety logistics hubs. Designed to achieve **zero manual intervention**, this machine automates the entire packaging cycle from start to finish.
Equipped with an advanced infrared remote controller, a pneumatic film-attaching mechanism, and an electric hot-wire cutting system, forklift operators can initiate and pause wrapping cycles directly from their seats. This eliminates the need for a dedicated film-attaching worker, improves wrapping efficiency by over 30% compared to standard models, and dramatically enhances overall operational workplace safety.
🚀 Streamlined Workflow: Keep Your Operators in the Cab
With the QTP1800F-L, your forklift driver simply places the pallet on the 1800mm turntable and presses start on the remote control. The machine pneumatically clamps, wraps, runs height detection, cuts the film via an electric heating wire, and automatically smooths down the film tail. The operator never steps foot off the forklift.
🌟 Core Advantages & Technologies
- Automatic Film Attaching & Cutting System: Made of high-quality rectangular tubes and Jinan Steel plates; pickled, phosphated, and plastic-sprayed after production. Uses pneumatic cylinder control for film attaching and clamping, and electric heating wire for film cutting.
- Tail Rope-making Device*: The special rope-making function effectively solves the problem of tail film residue, making the packaging more aesthetic and firm.
- Infrared Remote Control System: High-penetration remote control transmitter allows operators to safely control the machine's start and pause sequences from inside the forklift cabin.

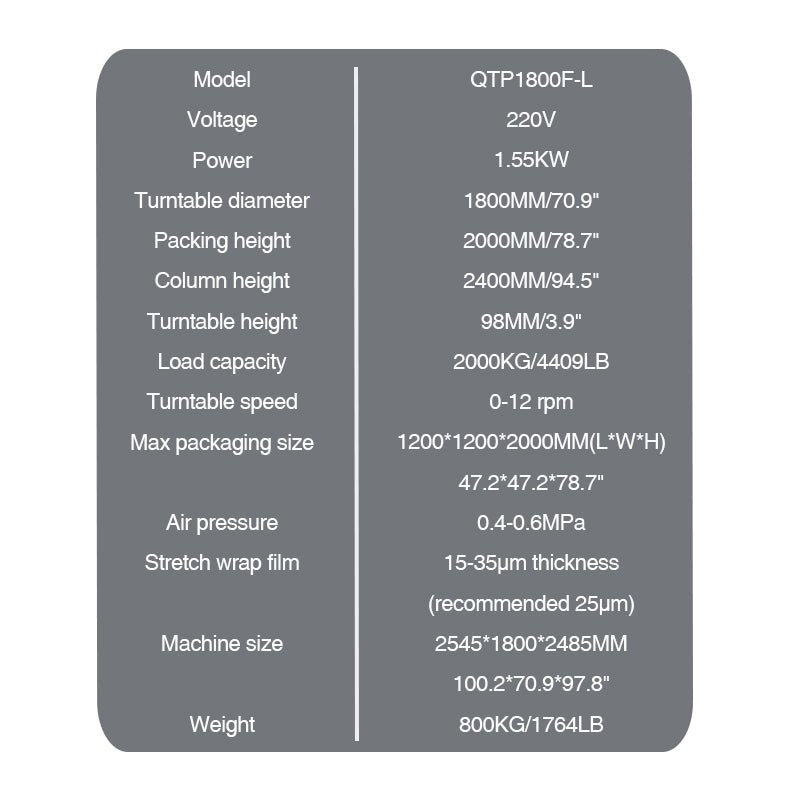

📐 Technical Specifications
| Specification Item | Details (Metric & Imperial) |
|---|---|
| Model | QTP1800F-L |
| Operation Automation | Fully Automatic |
| Turntable Diameter | 1800 mm (70.9") |
| Packing Height | 2000 mm (78.7") |
| Column Height | 2400 mm (94.5") |
| Turntable Height | 98 mm (3.9") |
| Maximum Load Capacity | 2000 KG (4409 LB) |
| Max Pallet Dimensions (L×W×H) | 1200 × 1200 × 2000 mm (47.2" × 47.2" × 78.7") |
| Turntable Speed | 0–12 rpm (Frequency adjustable) |
| Air Pressure | 0.4 - 0.6 MPa |
| Voltage | 110V / 220V (Customized upon order) |
| Weight | 800 KG (1764 LB) |
| Machine Dimensions | 254.5 × 180 × 248.5 cm (100.2" × 70.9" × 97.8") |
📦 Operational Prerequisites & Setup Requirements
- ⚠️ External Air Compressor (Mandatory): The QTP1800F-L machine involves pneumatic cylinder control for film clamping and attaching. You must connect the machine to an external air compressor providing a stable 0.4-0.6 MPa air pressure.
- Stretch Film Specification: Designed for standard 15μm to 35μm pre-stretch machine film rolls (25μm is recommended) with standard widths.
❓ Frequently Asked Questions (FAQ)
Q: Will the film tail loosen or unravel after the automatic hot-wire cutting?
A: No. The QTP1800F-L is equipped with a specialized pneumatic film-sweeping arm and automated smoothing device. After the hot-wire cleanly cuts the film, the pneumatic arm immediately presses and smooths the film tail firmly against the wrapped pallet to ensure a highly compact, secure seal.
Q: Is an air compressor absolutely mandatory for this machine to function?
A: Yes. The QTP1800F-L machine involves pneumatic cylinder control for film clamping and attaching, which requires a stable air source (0.4-0.6MPa) to support.
Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).

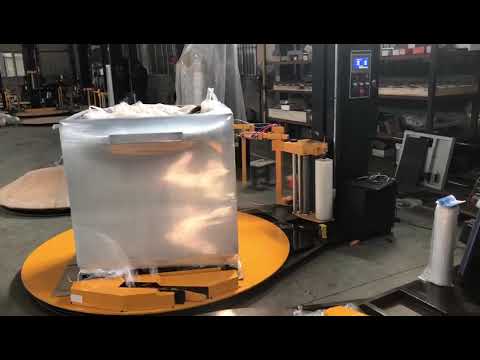

🎥 Demonstration Video
📚 Technical Resources & Support
For complete installation guidelines, pneumatic connection diagrams, remote control calibration, and PLC programming parameters, please visit our official knowledge base:
👉 QTP1800F-L Fully Automatic Wrapper Technical Documentation (doc.cecle.net)
