CECLE packaging machinery

FF6B Filling Butter Cream Hopper Drive Mixer for Pastes & Mixing (Pneumatic Drive)

$1,738.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size FF6B-50 FF6B-100 FF6B-300 FF6B-500 FF6B-1000 FF6B-2500 FF6B-5000

Shipping method by sea to door with tax(18-40 days) by express to door without tax(7-10 days)

Place of shipment shipping from China

Quick Answer: The CECLE FF6B mixer Filling Machine Model : FF6B Series (FF6B-50 / FF6B-100 / FF6B-300 / FF6B-500 / FF6B-1000 / FF6B-2500 / FF6B-5000) Supplier : Wenzhou T&D Packaging Machinery.

CECLE FF6B vs. Traditional / Generic Alternative

Where the CECLE FF6B stands out against manual or generic mixer — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

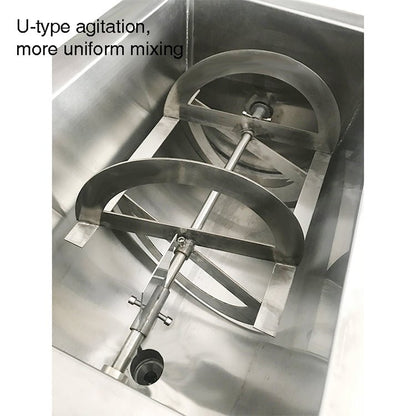

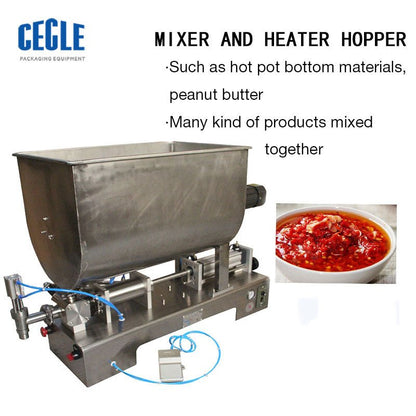

CECLE FF6BLarge U-Type Mixing Hopper (30 L Standard, Up to 80 L), Uniform Paste Every Time : Equipped with a horizontal U-type mixing hopper (30 L standard; 40/60/80 L optional) with a bigger electric stirring motor.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Precision & Consistency

CECLE FF6BHigh Filling Precision : Piston-type quantitative filling with accuracy controlled within ±1%, delivering consistent fill weights across the whole batch

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Chassis Rigidity & Vibration Resistance

CECLE FF6BAnti-Drip Nozzle Design : Filling volume and speed are adjustable; bottom close positive shutoff nozzles ensure drip-free operation, with nozzle diameter selectable from 3–32 mm. Full Stainless Steel Body.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Output Speed & Throughput

CECLE FF6BFlexible Filling Head Options : Standard machines can be configured with single-head or double-head filling; 4-head and 6-head versions can be customized for higher output, letting customers match capacity to.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Specification	Value & Unit
Series	FF6B Mi × er Filling Machine
Voltage / Frequency	220 V 50/60 Hz
Power	120 W
Hopper Volume	30 L standard (40/60/80 L optional), with electric stirring
Filling Accuracy	≤1%
Air Pressure	0.4–0.6 MPa
Nozzle Diameter	3–32 mm (Optional)
Moq	1 set
Payment	T/T (100%)
Delivery Time	Goods in stock / within 7 days
Quantity	1 set (MOQ)
Unit Packaging	1 machine per case (thickened carton)

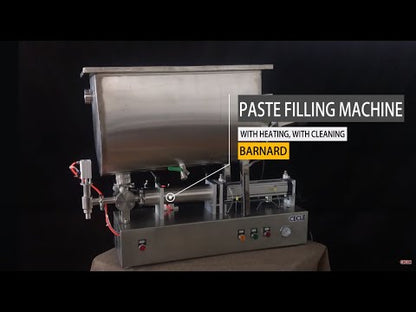

Workflow Video	https://youtu.be/A304aBWbA6w
Ff6B-1000 Demo Video	https://www.youtube.com/watch?v=miaZtIIEjSI

Shared across models: Filling Speed: 10–40 times/min

Model	Filling Range	G.W. / N.W.
FF6B-50	5–50 ml	65 / 60 kg
FF6B-100	10–100 ml	65 / 60 kg
FF6B-300	30–300 ml	65 / 60 kg
FF6B-500	50–500 ml	65 / 60 kg
FF6B-1000	100–1000 ml	65 / 60 kg
FF6B-2500	250–2500 ml	70 / 63 kg
FF6B-5000	500–5000 ml	100 / 90 kg

Media & Resources

Workflow Video: https://youtu.be/A304aBWbA6w

FF6B-1000 Demo Video: https://www.youtube.com/watch?v=miaZtIIEjSI

Pre-installation requirements: Voltage / Frequency: 220 V 50/60 Hz; Power: 120 W; Air Pressure: 0.4–0.6 MPa. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Mixer line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Connect utilities : Connect the air compressor (0.4–0.6 MPa) and plug in the 220 V power supply for the mixer motor
Load material : Add the paste or liquid into the U-type mixing hopper
Mix continuously : The electric stirrer keeps the material homogeneous and prevents settling or separation throughout the whole filling run
Set parameters : Adjust the filling volume and filling speed as required
Choose the operation mode : Step on the foot pedal for single-shot semi-automatic filling, or switch to the automatic timer for continuous cyclic filling
Quantitative filling : The piston draws the exact amount of paste and the nozzle fills the container (on multi-head machines, all heads fill simultaneously)
Anti-drip cut-off : The bottom close positive shutoff nozzle cuts off instantly, leaving zero drips

Engineering FAQ

What power supply does the FF6B require?
A: The FF6B runs on 220 V 50/60 Hz Voltage / Frequency. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the FF6B?
A: Beyond the rated 220 V 50/60 Hz Voltage / Frequency supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the FF6B stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FF6B handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
