CECLE packaging machinery

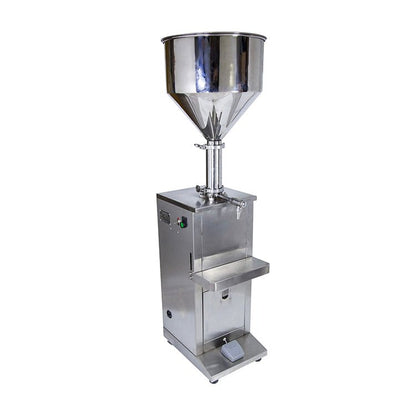

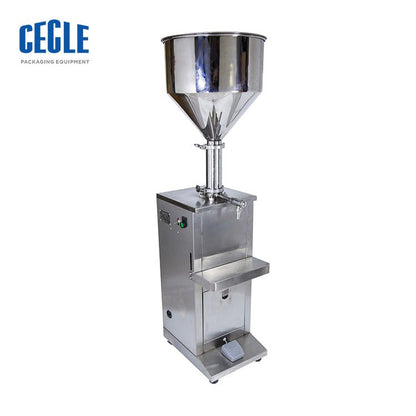

FF5-500 Liquid Filling Machine for Liquids (Electric Drive)

$1,750.00 USD

~~$1,850.00 USD~~ $1,750.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Voltage 110V 220V

Shipping method by express(7-10 days) By sea to port(18-30 days) By sea to door with tax(25-40 days)

Quick Answer: The CECLE FF5-500 model : FF5-1000.

CECLE FF5-500 vs. Traditional / Generic Alternative

Where the CECLE FF5-500 stands out against manual or generic liquid filling machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE FF5-500Fully Electric Drive, Plug and Play : Simply connect to a 220 V outlet; no air compressor or air line is needed, making it ideal for sites without a stable air supply. Simple Operation, High Filling Accuracy .

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Adaptability & Changeover

CECLE FF5-500Food-Grade Stainless Steel : The machine body uses 201/304 stainless steel, and product-contact parts are available in 304 or 316 stainless steel, meeting food safety requirements. Liquid and Paste Compatible.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE FF5-500The CECLE Liquid Filling Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE FF5-500Rated 20–60 times/min (depends on model and material viscosity) Filling speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Category	Description
Equipment Type	Vertical semi-automatic piston filling machine (electric drive)
Product Series	FF5 series
English Product Name	FF5 electric vertical liquid and paste filling machine
Available Models	FF5-100 / FF5-300 / FF5-500 / FF5-1000
Control Mode	Electric drive, foot pedal or automatic timer
Automation Grade	Semi-auto / automatic switchable
Power Supply	220 V / 50–60 Hz, 500 W
Standard Material	201/304 stainless steel, product-contact parts optional 304/316 stainless steel
Certification	CE

Parameter	Specification
Material	201/304 stainless steel, product-contact parts optional 304/316 stainless steel
Voltage/Frequency	220 V / 50–60 Hz
Power	500 W
Filling accuracy	within ±1%
Filling speed	20–60 times/min (depends on model and material viscosity)
Control mode	Electric
Automatic grade	Semi-auto / automatic switchable
Hopper volume	30 L
Filling nozzle diameter	3–12 mm (optional)
Packing Size (L×W×H)	49 × 45 × 155 cm
Packing	Plywood case

Option	Description
Filling head quantity	Single head / double head
Product-contact material	304 stainless steel (standard) / 316 stainless steel (corrosion resistant)
Sealing ring material	Silicone O-ring (200 °C rated) / rubber sealing ring (corrosion resistant)
Filling nozzle diameter	3–12 mm optional
Filling mode	Foot pedal / automatic timer

Model	Filling Range	Recommended Scenario
FF5-100	10–100 mL	Samples, reagents, oral liquids, essential oils
FF5-300	30–300 mL	Personal care products, seasonings, cosmetic samples
FF5-500	50–500 mL	Edible oil, honey, detergent liquid
FF5-1000	100–1000 mL	Large-volume sauces, lubricating oil, emulsion

Shared across models: Packing Size: 49 × 45 × 155 cm

Model	Filling Range	Weight
FF5-100	10–100 mL	approx. 45 kg
FF5-300	30–300 mL	approx. 45 kg
FF5-500	50–500 mL	approx. 45 kg
FF5-1000	100–1000 mL	approx. 50 kg

Media & Resources

Resource:

Pre-installation requirements: Power Supply: 220 V / 50–60 Hz, 500 W; Voltage/Frequency: 220 V / 50–60 Hz; Power: 500 W.

Compatible Applications & Materials

industrial products — primary target products for this Liquid Filling Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Requirement Confirmation : The customer provides the filling range, material viscosity, capacity requirement, and target market
Model Recommendation : Recommend FF5-100/300/500/1000 based on filling volume and material characteristics
Quotation &amp
Contract : Provide an EXW Wenzhou or FOB Ningbo quotation, packing, and payment terms
confirm the order
Production &amp
Stock Preparation : Standard models are in stock

Engineering FAQ

What power supply does the FF5-500 require?
A: The FF5-500 runs on 220 V / 50–60 Hz, 500 W Power Supply. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the FF5-500?
A: Beyond the rated 220 V / 50–60 Hz Voltage/Frequency supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the FF5-500 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FF5-500 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
