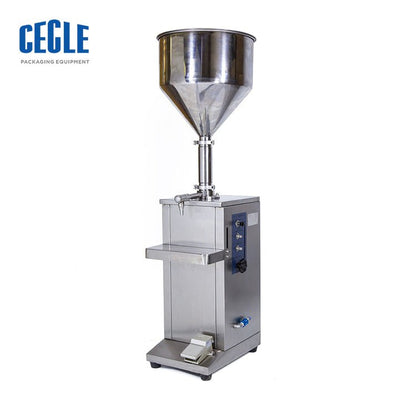

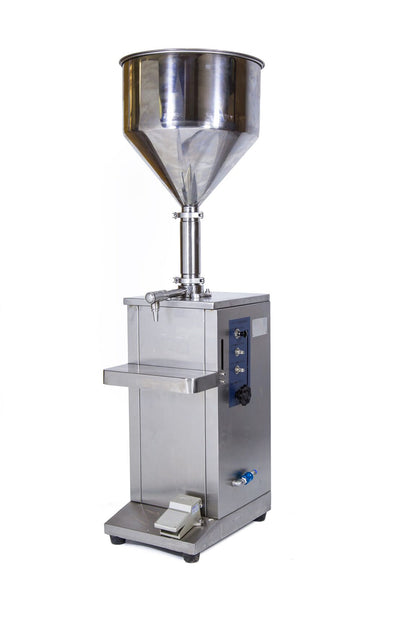

FF4-500 Paste Filling Machine for Pastes & Liquids (Pneumatic Drive)

$1,750.00 USD

~~$1,850.00 USD~~ $1,750.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Plug FF4-500

Voltage none

Shipping method by express(7-10 days) By sea to port(18-30 days) By sea to door with tax(25-40 days)

Quick Answer: The CECLE FF4-500 FF4 full pneumatic vertical liquid and paste filling machine is a pneumatic piston-type semi-automatic filler produced by Wenzhou T&D Packing Machinery Factory, covering filling volumes from.

CECLE FF4-500 vs. Traditional / Generic Alternative

Where the CECLE FF4-500 stands out against manual or generic paste filling machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE FF4-500Fully Pneumatic Drive, Explosion-Proof and Safe : No power supply needed; simply connect an air compressor. Suitable for explosion-proof workshops, humid environments, and sites with strict electrical safety requirements

Manual Lever / Foot UnitsOutput depends on operator strength and drifts between shifts; no stable drive control.

Adaptability & Changeover

CECLE FF4-500Food-Grade Stainless Steel : The machine body uses 201/304 stainless steel, and product-contact parts are available in 304 or 316 stainless steel, meeting food safety requirements. Liquid and Paste Compatible.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Precision & Consistency

CECLE FF4-500High Filling Accuracy : Piston metering with within ±1% accuracy and good repeatability

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Pressure Consistency

CECLE FF4-500Stable 0.4–0.6 MPa Air pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Technical Specifications

Category	Description
Equipment Type	Vertical semi-automatic piston filling machine (fully pneumatic)
Product Series	FF4 series
English Product Name	FF4 full pneumatic vertical liquid and paste filling machine
Available Models	FF4-100 / FF4-200 / FF4-300 / FF4-500 / FF4-1000
Control Mode	Full pneumatic drive, foot valve or automatic timer
Automation Grade	Semi-auto / automatic switchable
Standard Material	201/304 stainless steel, product-contact parts optional 304/316 stainless steel
Certification	CE

Parameter	Specification
Material	201/304 stainless steel, product-contact parts optional 304/316 stainless steel
Voltage/Frequency	No power supply required (fully pneumatic)
Power	None
Filling accuracy	within ±1%
Filling speed	10–40 times/min (depends on model and material viscosity)
Air pressure	0.4–0.6 MPa
Air consumption	100–150 L/min
Control mode	Full pneumatic drive
Automatic grade	Semi-auto / automatic switchable
Hopper volume	30 L
Filling nozzle diameter	3–12 mm (optional)
Weight	approx. 50 kg
Packing Size (L×W×H)	49 × 45 × 155 cm
Packing	Plywood case

Option	Description
Filling head quantity	Single head / double head
Product-contact material	304 stainless steel (standard) / 316 stainless steel (corrosion resistant)
Sealing ring material	Silicone O-ring (200 °C rated) / rubber sealing ring (corrosion resistant)
Filling nozzle diameter	3–12 mm optional
Filling mode	Foot valve / automatic timer

Model	Filling Range	Recommended Scenario
FF4-100	5–100 mL	Samples, reagents, essential oils, travel packs
FF4-200	10–200 mL	Oral liquids, cosmetic samples, sauces
FF4-300	20–300 mL	Beverages, personal care products, seasonings
FF4-500	50–500 mL	Edible oil, honey, detergent liquid
FF4-1000	100–1000 mL	Large-volume sauces, lubricating oil, emulsion

Shared across models: Weight: approx. 50 kg; Packing Size: 49 × 45 × 155 cm

Model	Filling Range
FF4-100	5–100 mL
FF4-200	10–200 mL
FF4-300	20–300 mL
FF4-500	50–500 mL
FF4-1000	100–1000 mL

Media & Resources

Resource:

Pre-installation requirements: Air Pressure: 0.4–0.6 MPa; Net Weight: appro × . 50 kg. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Paste Filling Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Requirement Confirmation : The customer provides the filling range, material viscosity, capacity requirement, and target market
Model Recommendation : Recommend FF4-100/200/300/500/1000 based on filling volume and material characteristics
Quotation &amp
Contract : Provide an FOB Ningbo or EXW Wenzhou quotation, packing, and payment terms
confirm the order
Production &amp
Stock Preparation : Standard models are in stock

Engineering FAQ

Why is the 10–40 times/min (depends on model and material viscosity) Filling speed rating important for the FF4-500?
A: The 10–40 times/min (depends on model and material viscosity) Filling speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

Does the FF4-500 need an external air compressor?
A: Yes. The FF4-500 is pneumatically driven and requires a stable external air supply at the specified pressure. CECLE recommends a compressor sized for continuous duty to hold stable output.

What routine maintenance keeps the FF4-500 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FF4-500 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
