Farm Wheat Rapeseed Cottonseed Corn Rice Suction Machine Portable Grain Screw Conveyor System

PGSC Series Flexible Screw Conveyor - Portable Grain & Material Handling System

Click here for full technical specifications and detailed documentation

Product Overview

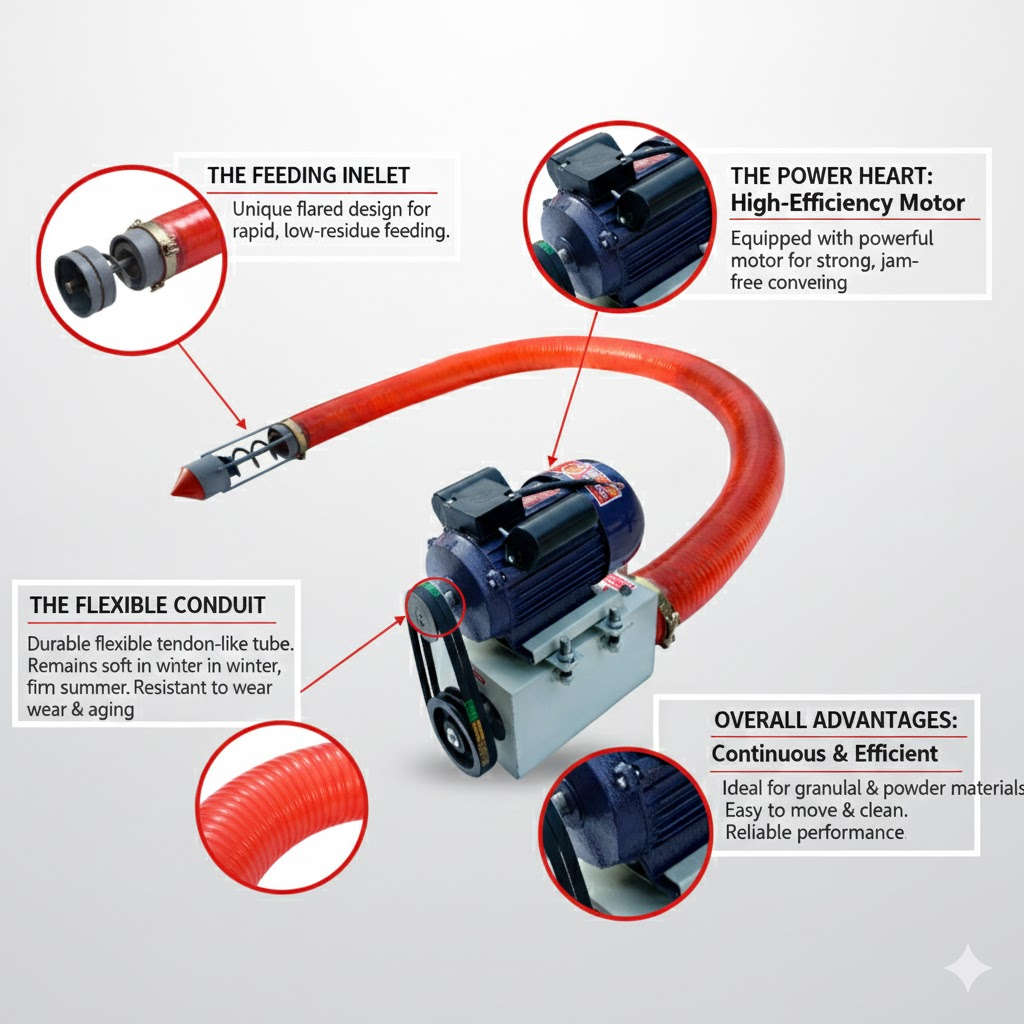

The PGSC Series Flexible Screw Conveyor is a highly versatile material handling solution designed for agricultural and industrial applications. It is engineered to efficiently transport bulk agricultural products such as wheat, corn, rice, soybeans, and rapeseed, as well as industrial dry bulk materials like plastic pellets, animal feed, sand, and wood chips. By utilizing a high-elasticity spring screw, the system generates powerful mechanical thrust combined with micro-airflow, enabling smooth horizontal, inclined, and vertical conveying.

Core Advantages

• Customizable Length: Standard models are available, and we provide flexible customization options based on your specific operational distance and storage height requirements.
• High Flexibility: The conveyor pipe features a high-quality flexible design, allowing it to bend freely to navigate complex site environments, narrow spaces, and corners.
• Multi-Angle Versatility: Excels in horizontal conveying, inclined transport, and vertical lifting with powerful adaptability.
• Portable & Efficient: Weighing only 100kg and equipped with a mobile base, the machine can be easily deployed and operated by a single person.
• Enclosed & Dust-Free: Materials are conveyed within an enclosed soft pipe, minimizing dust pollution and protecting the integrity of grains via a scientific flexible clearance.

Operation Process

1. Deployment: Position the suction machine at the operation point and arrange the flexible pipe according to your site layout.
2. Setup: Connect to the power supply and verify the rotation direction before beginning.
3. Suction: Insert the suction inlet into the material bin or grain pile to initiate continuous transport.
4. Maintenance: Run the equipment empty for 1–2 minutes after operation to clear residual material before shutting down.

Technical Specifications

Frequently Asked Questions (FAQ)

• Q: Will bending the pipe affect efficiency?
  A: It can be bent freely, though we recommend maintaining a gentle arc to ensure the smoothest screw operation.
• Q: Does the machine cause grain breakage?
  A: No. The designed elastic clearance between the spring screw and the pipe wall ensures minimal extrusion damage to grains.

Business Terms

• Trade Support: Supports EXW, FOB, CIF, DDP.
• Lead Time: 3–5 working days for standard items; 7–10 working days for customized units.
