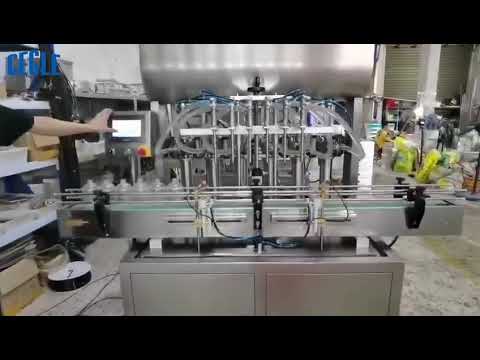

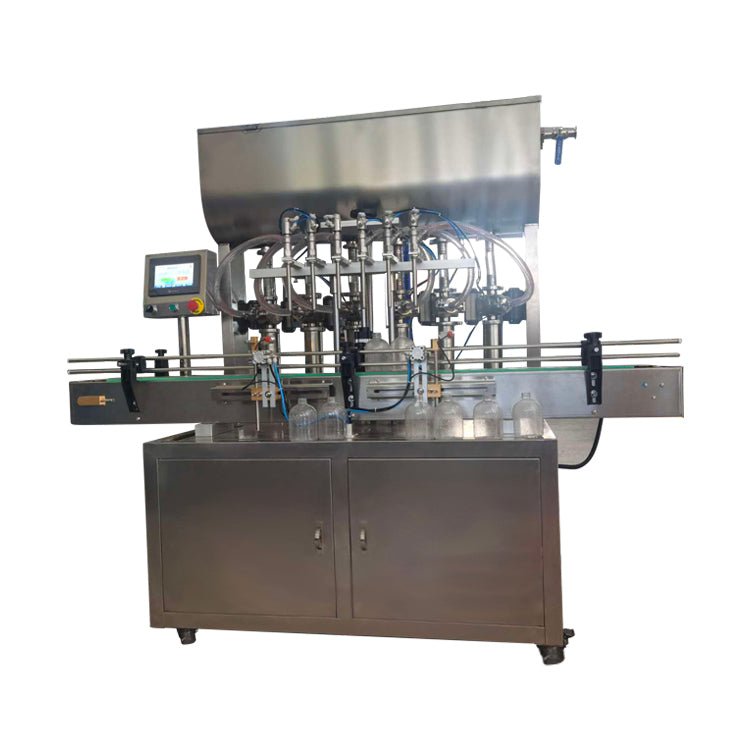

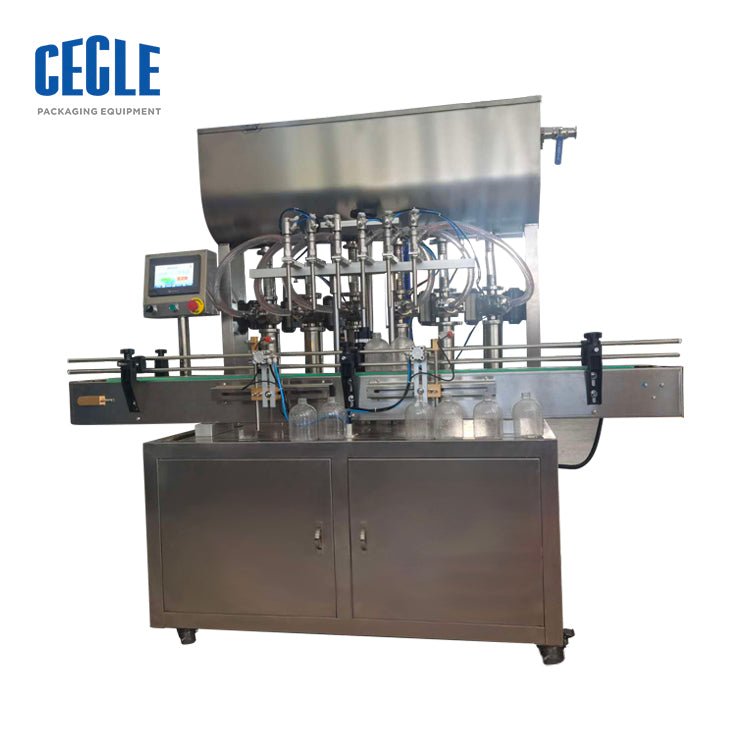

FA6-5 Paste Filling Machine for Pastes (Pneumatic Drive)

$7,699.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size FA6-100 FA6-500 FA6-1000 FA6-2500 FA6-5000

Shipping method shipping by sea to door(25-40 days)

Place of shipment shipping from China

Quick Answer: The CECLE FA6-5 english Product Name: FA6 automatic 6 nozzles paste filling machine Model Lineup: FA6-100 · FA6-300 · FA6-500 · FA6-1000 · FA6-2500 · FA6-3000 · FA6-5000 Category: Automatic Paste Filling Machine.

CECLE FA6-5 vs. Traditional / Generic Alternative

Where the CECLE FA6-5 stands out against manual or generic paste filling machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE FA6-5Seven models, one platform — 10 ml to 5000 ml on a single chassis

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Sealing / Transfer Quality

CECLE FA6-5conveyor length customizable Food-grade sealing — silica gel O-ring rated 200 °C

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Forming Area & Batch Capacity

CECLE FA6-5rubber sealing ring option for corrosive products Flexible OEM — nozzle count (2 / 4 / 6 / 8) and material configuration can be customised on the same platform

Restricted Table SizeLimits packaging to single small items and cuts hourly throughput.

Pressure Consistency

CECLE FA6-5Stable 0.6–0.8 MPa, 300–400 L/min Working air pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Technical Specifications

Industry	Typical Products Filled
Food & beverage	Sauce, ketchup, chilli sauce, salad dressing, cream, honey, yogurt, juice, milk, condiments
Daily chemicals	Liquid detergent, hand sanitiser, shampoo, body wash, disinfectant, sanitising gel
Cosmetics	Face cream, cleanser, hair conditioner, gel, trial-size packs
Chemical / industrial	Lubricating grease, anti-rust paste, paint, epoxy resin (optional rubber sealing ring)
Pharmaceutical	Ointment, syrup (optional 304/316 food-grade / pharma-grade contact parts)

Aspect	FA4 Series	FA6 Series
Filling nozzles	4	6 (50% more)
Peak speed	up to 160 fills/min	up to 240 fills/min (50% more)
Models in series	7 (FA4-100 … FA4-5000)	7 (FA6-100 … FA6-5000)
Hopper, power, air supply, dimensions	Same as FA6	Same as FA4
Best fit	Lower-output lines, small batches	Mid-to-high output lines, large batches

Parameter	Specification
Number of filling nozzles	6 (six)
Hopper volume	80 L
Filling speed	10–40 cycles/min × 6 = up to 240 fills/min
Filling accuracy	within ±1%
Voltage	220 V, 50/60 Hz, 660 W
Working air pressure	0.6–0.8 MPa, 300–400 L/min
Control mode	Pneumatic + electric (PLC)
Packaging size	210 × 110 × 150 cm
Automation level	Fully automatic
Operator skill	Basic training sufficient

Component	Material	Notes
Frame / body	201 stainless steel	Standard
Contact parts	304 stainless steel	Standard, food-grade
Contact parts (optional)	316 stainless steel	Recommended for pharma / highly corrosive applications
Valve system	Stainless steel	Integrated design
Sealing ring (standard)	Silica gel O-ring	Rated 200 °C, food-grade
Sealing ring (optional)	Rubber	Recommended for corrosive products
Conveyor belt	Standard 2 m	Length customizable

Component	Brand / Specification
PLC	Taiwan brand
Touch screen	Integrated with PLC
Pneumatic components	Airtac
Photoelectric sensor	Germany SICK (no bottle, no fill)
Drive	Pneumatic + electric dual drive

Model	Filling Range	Best-Fit Applications
FA6-100	10–100 ml	Ultra-small doses — samples, essential oils, eye drops, mini ampoules
FA6-300	30–300 ml	Small bottles 30–300 ml — sauce sachets, cosmetic trial sizes
FA6-500	50–500 ml	Mid-small bottles — condiments, honey, jam
FA6-1000	100–1000 ml	Standard 1-litre bottles — cooking oil, juice, milk, shampoo
FA6-2500	250–2500 ml	Mid-large containers — detergent, lotion, bulk sauce
FA6-3000	300–3000 ml	Large containers — bulk detergent, cooking oil, syrup
FA6-5000	500–5000 ml	Largest containers — industrial liquids, bulk paste, drum top-up

Pre-installation requirements: Voltage: 220 V, 50/60 Hz, 660 W; Working Air Pressure: 0.6–0.8 MPa, 300–400 L/min. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

Component Material Notes Frame / body 201 stainless steel Standard Contact parts 304 stainless steel Standard, food-grade Contact parts (optional) 316 stainless steel Recommended for pharma / highly corrosive applications Valve system Stainless steel Integrated design Sealing ring (standard) Silica gel O-ring Rated 200 °C, food-grade Sealing ring (optional) Rubber Recommended for corrosive products Conveyor belt Standard 2 m Length customizable

Standard Operating Procedure (SOP)

┌──────────────────────────┐ │
Air On │ 220 V power + 0.6-0.8 MPa compressed air └─────────────┬────────────┘ ▼ ┌──────────────────────────┐ │
HMI Setup │ Set filling volume, speed and parameters │ │ on the PLC touch screen (Taiwan brand) └─────────────┬────────────┘ ▼ ┌──────────────────────────┐ │
Hopper Loading │ Pour paste/liquid into the 80 L │ │ stainless steel hopper └─────────────┬────────────┘ ▼ ┌──────────────────────────┐ │
Bottle Infeed │ Bottles enter the 2 m conveyor
│ │ SICK sensors detect each bottle position └─────────────┬────────────┘ ▼ ┌──────────────────────────┐ │
6-Head Filling │ 6 piston cylinders dose in parallel │ │ (10-40 cycles/min, up to 240 fills/min) └─────────────┬────────────┘ ▼ ┌──────────────────────────┐ │

Engineering FAQ

Why is the 10–40 cycles/min × 6 = up to 240 fills/min Filling speed rating important for the FA6-5?
A: The 10–40 cycles/min × 6 = up to 240 fills/min Filling speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the FA6-5?
A: Beyond the rated 220 V, 50/60 Hz, 660 W Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the FA6-5 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FA6-5 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
