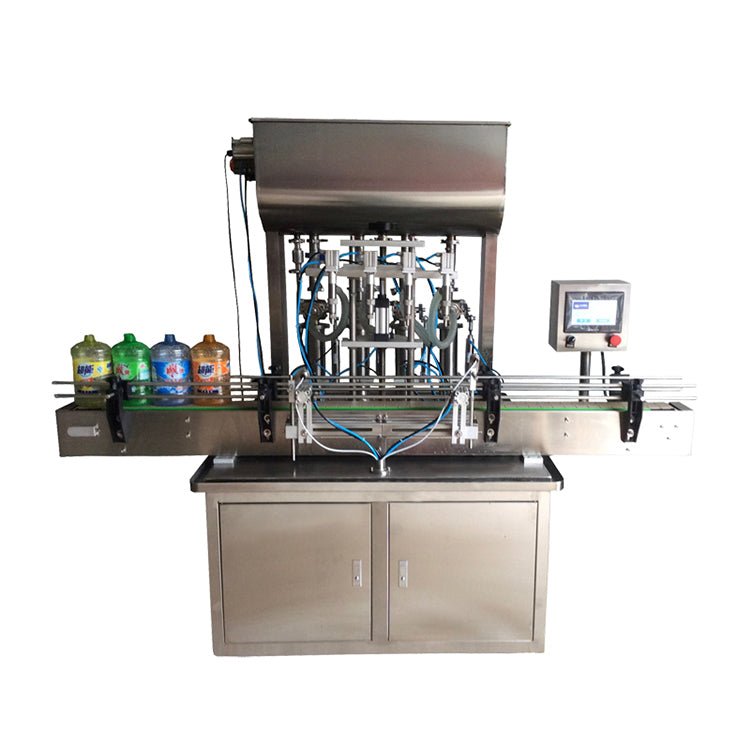

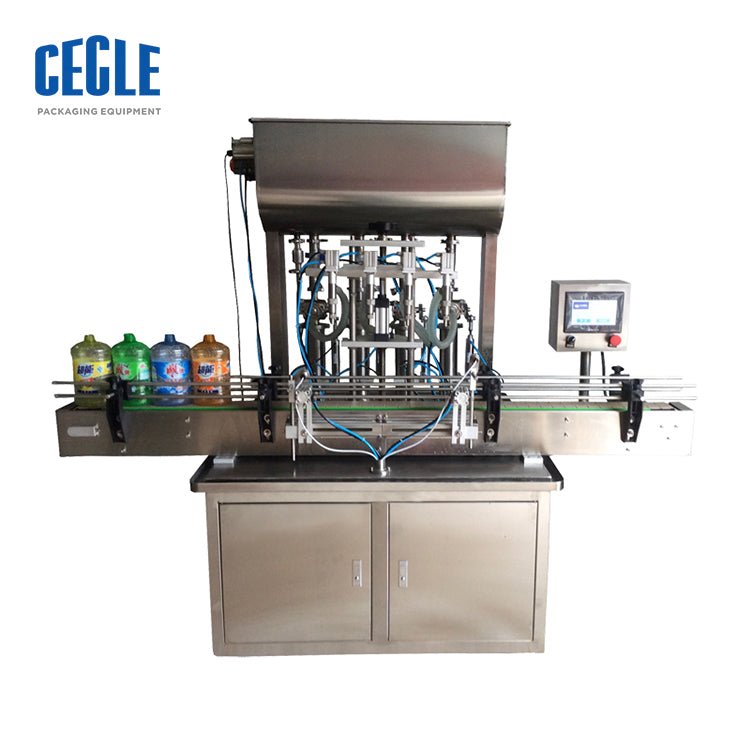

FA4-5-500/0ML-FOUR Heads Filling Cream Machine for Pastes (Pneumatic Drive)

Name: FA4-5-500/0ML-FOUR
Brand: CECLE
Price: 5999.0 USD
Availability: InStock

$5,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size FA4-100 FA4-500 FA4-1000 FA4-2500 FA4-5000

Shipping method shipping by sea to door(25-40 days)

Place of shipment shipping from China

Quick Answer: The CECLE FA4-5-500/0ML-FOUR product Name (EN) : Automatic 4 Nozzles Paste Filling Machine Model Series : FA4-100 / FA4-300 / FA4-500 / FA4-1000 / FA4-2500 / FA4-3000 / FA4-5000.

CECLE FA4-5-500/0ML-FOUR vs. Traditional / Generic Alternative

Where the CECLE FA4-5-500/0ML-FOUR stands out against manual or generic machine — measured on the dimensions buyers care about most.

Precision & Consistency

CECLE FA4-5-500/0ML-FOURHigh-Precision Control : Digital PLC touchscreen display and setting, quality guaranteed by Taiwan-brand PLC touchscreen control combined with Airtac pneumatic components. Piston-type filling with.

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Chassis Rigidity & Vibration Resistance

CECLE FA4-5-500/0ML-FOURStable Conveyor with Fixing Device : The conveyor is equipped with a bottle-fixing device for excellent filling stability. A 2 m conveyor belt is configured as standard, and the specification can be customized.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Adaptability & Changeover

CECLE FA4-5-500/0ML-FOURHigh-Temperature Food-Grade Seals : Silicone gel O-rings withstand up to 200 °C and comply with food-safety requirements. Silicone rings or rubber sealing rings are optionally available — rubber rings are.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Forming Area & Batch Capacity

CECLE FA4-5-500/0ML-FOURWide Model Coverage on One Platform : The FA4 series comprises 7 models — FA4-100 (10-100 ml) / FA4-300 (30-300 ml) / FA4-500 (50-500 ml) / FA4-1000 (100-1000 ml) / FA4-2500 (250-2500 ml) / FA4-3000 (300-3000.

Restricted Table (<150 × 80 mm)Limits packaging to single small items, cutting hourly throughput by over 40%.

Technical Specifications

Parameter	Specification
Model	FA4
Filling Range	10 – 5000 ml
Filling Nozzle	4 filling nozzles
Hopper Volume	80 L
Filling Speed	10 – 40 times/min × 4
Filling Accuracy	Within 1%
Voltage	220 V 50/60 Hz, 660 W
Air Pressure	0.6 – 0.8 MPa, 300 – 400 L/min
Control Mode	Pneumatic and Electric
Automatic Grade	Automatic
Conveyor Belt	2 m (specification customizable)
G.W. / N.W.	400 kg
Packaging Dimension	210 × 110 × 150 cm

Model	Filling Range	Typical Application
FA4-100	10 – 100 ml	Essential oil, serum, samples, sample bottles
FA4-300	30 – 300 ml	Shampoo, hand soap, cream, lotion
FA4-500	50 – 500 ml	Sauce, yoghurt, detergent
FA4-1000	100 – 1000 ml	Juice, milk, edible oil (standard model of this datasheet)
FA4-2500	250 – 2500 ml	Large bottles, bulk sauce
FA4-3000	300 – 3000 ml	Large-volume sauce, industrial paste
FA4-5000	500 – 5000 ml	Edible oil drums, industrial liquid

Pre-installation requirements: Voltage: 220 V 50/60 Hz, 660 W; Air Pressure: 0.6 – 0.8 MPa, 300 – 400 L/min; Packaging Dimension: 210 × 110 × 150 cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect power at the rated voltage (220 V 50/60 Hz, 660 W) and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

Why is the 10 – 40 times/min × 4 Filling Speed rating important for the FA4-5-500/0ML-FOUR?
A: The 10 – 40 times/min × 4 Filling Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the FA4-5-500/0ML-FOUR?
A: Beyond the rated 220 V 50/60 Hz, 660 W Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the FA4-5-500/0ML-FOUR stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FA4-5-500/0ML-FOUR handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
