Core Abstract

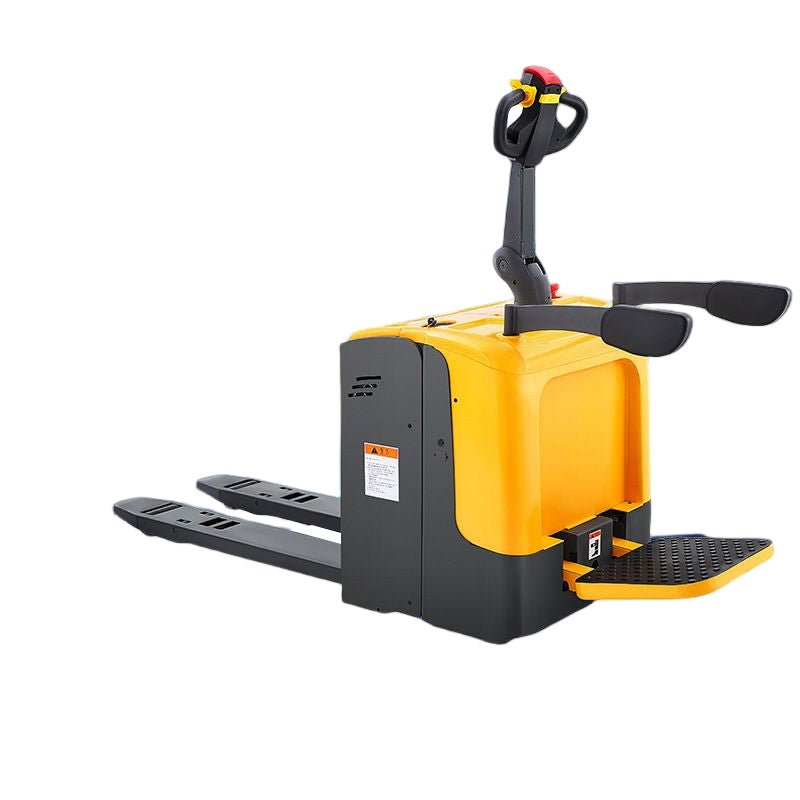

The Stand-on Electric Pallet Truck (Models: AET20 / AET30) is an efficient warehousing solution designed specifically for modern large-scale facilities. Combining electric drive with a stand-on operating design, this model significantly increases travel speed and operator comfort for long-distance material handling. Featuring a sturdy chassis, high load capacity (2.0 to 3.0 tons), and flexible foldable protective guards, it transitions seamlessly between wide warehouse aisles and narrow work areas. For technical wiring diagrams, maintenance manuals, and detailed specifications, please explore our official Stand-on Electric Pallet Truck Technical Documentation.
I. Product Overview
- Product Category: Material Handling Equipment / Electric Pallet Truck
- Usage Scenarios: Large warehouses, logistics distribution centers, fulfillment centers, and busy manufacturing workshops.
- Core Functions: Electric travel and lifting, stand-on operation, long-distance material transfer, and heavy-duty cargo handling.
II. Core Advantages
- High-Efficiency Stand-on Design: Equipped with a foldable platform and protective guardrails so operators can ride while driving, significantly boosting productivity.
- Reduced Labor Intensity: Fully motorized driving and lifting eliminate physical pushing or pulling, greatly reducing operator fatigue.

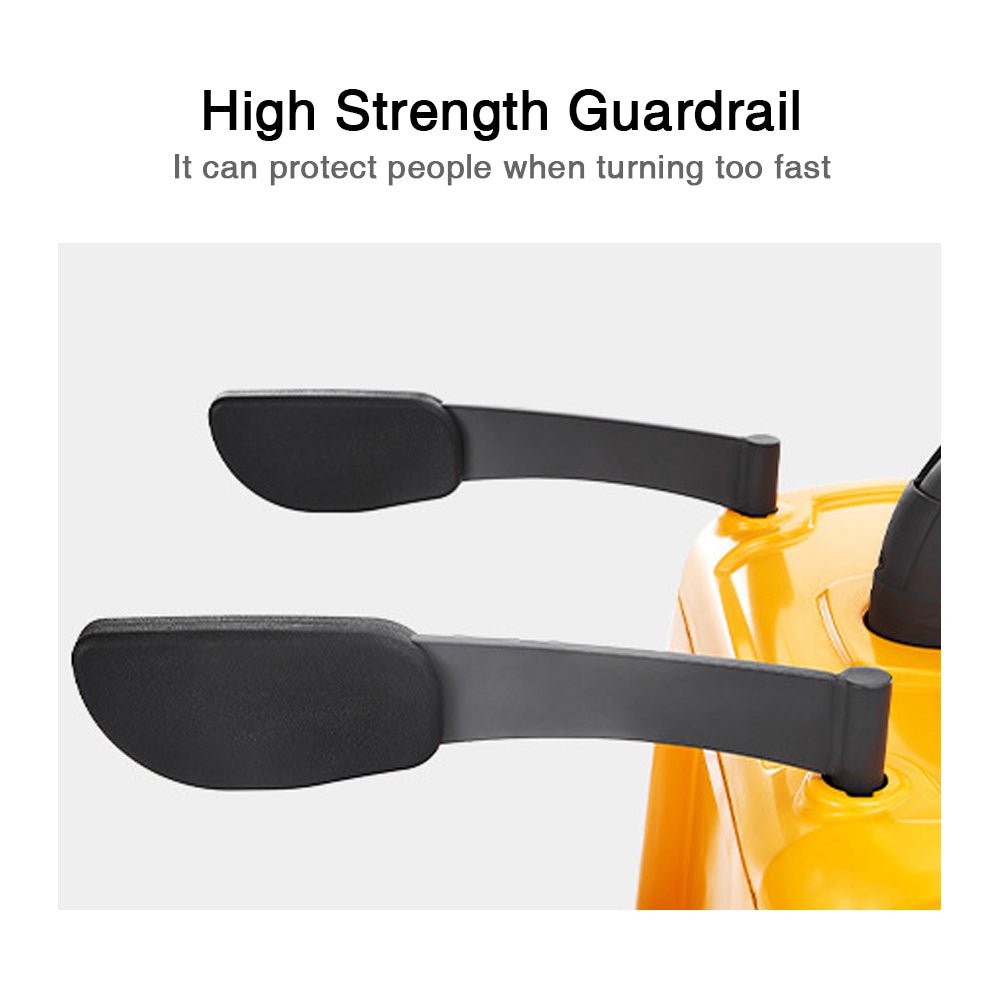

- Safe & Reliable: Sturdy protective guardrails ensure operator stability and safety during sharp turns or high-speed travel.
- Flexible Operation: Platform and guardrails can be folded away to operate like a standard walkie pallet truck in tight spaces. Further guidelines are detailed in our technical documentation hub.
- Ideal for Long-Distance Transport: Designed for long-haul transport in large warehouses, keeping operators energetic throughout their shifts.

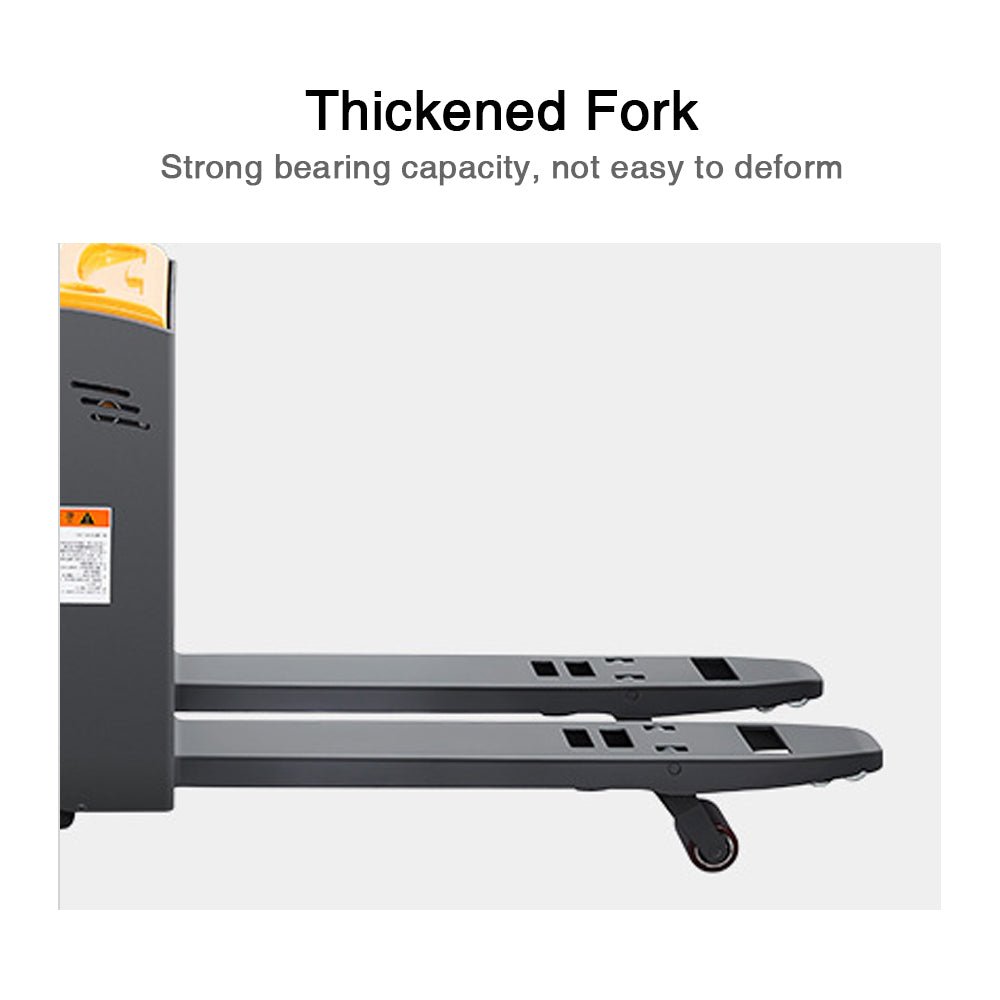

- High Load Capacity: Handles heavy loads ranging from 2.0 to 3.0 tons with an exceptionally stable and robust chassis.
III. Operation Workflow
- Pre-Operation Inspection: Check battery levels, guardrail status, and the emergency stop button.

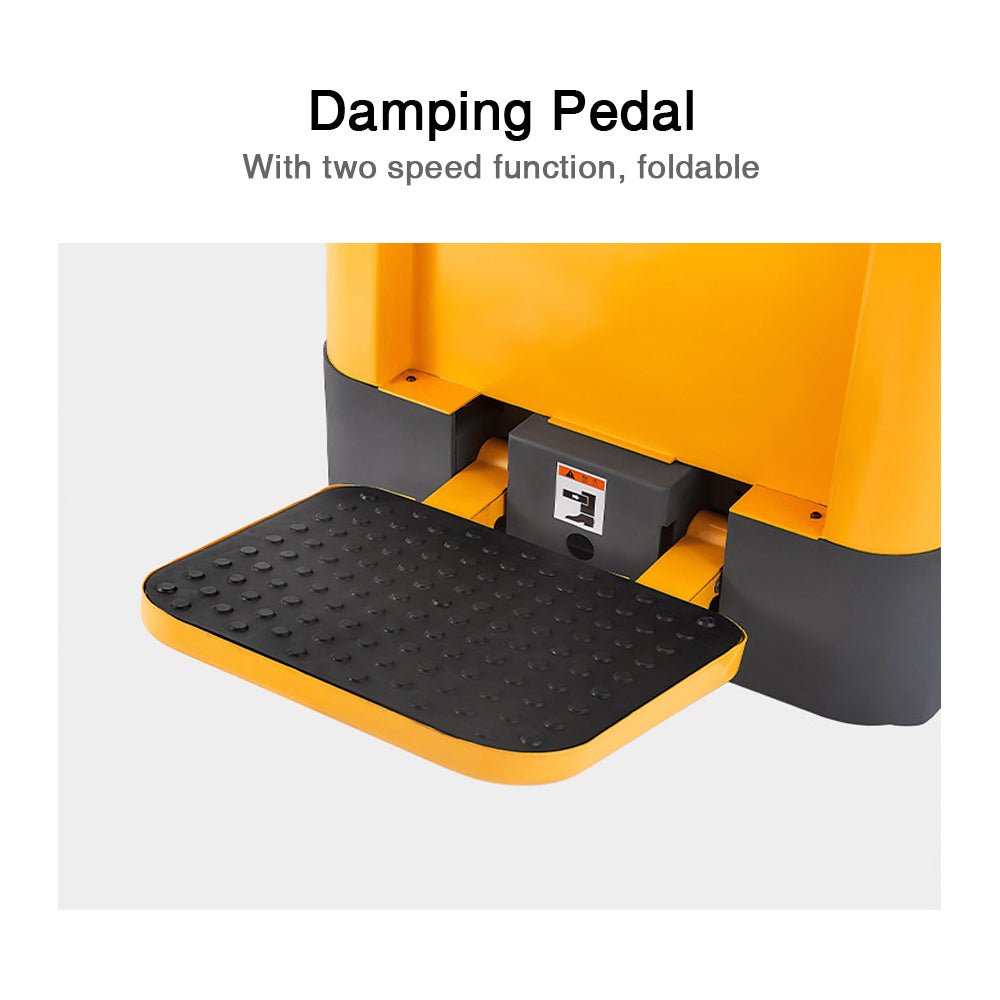

- Deploy Stand-on Mode: Unfold the foot platform and guardrails, and have the operator step onto the platform.

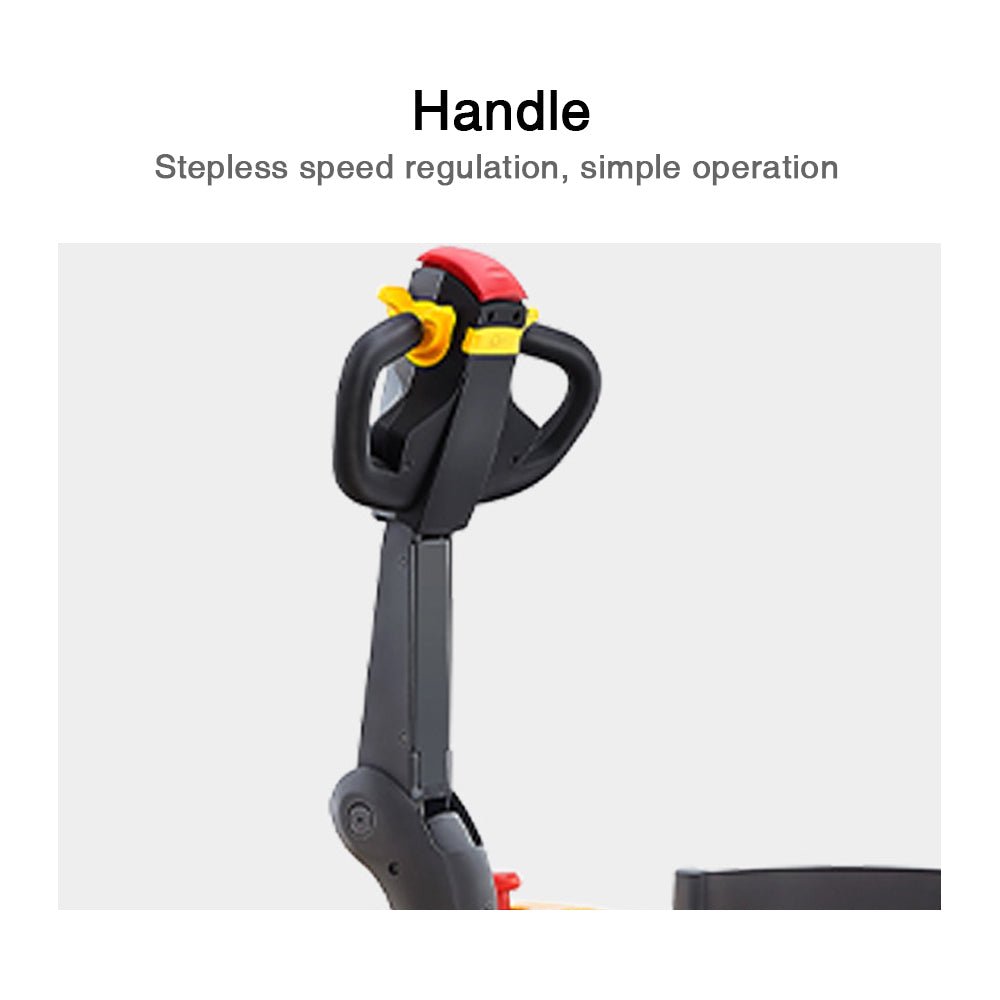

- Position & Insert: Drive the truck smoothly using the control handle to fully insert the forks into the pallet.
- Electric Lifting: Press the lifting button to let the hydraulic system raise the forks smoothly.
- Efficient Transport: Drive the truck for rapid transport, relying on safety guardrails for stable travel.
- Lowering & Unloading: Smoothly lower the forks and back out the truck upon reaching the destination.
IV. Technical Parameters
| Item | AET20 (550) | AET20 (685) | AET30 (550) | AET30 (685) |
|---|---|---|---|---|
| Model | AET20 | AET20 | AET30 | AET30 |
| Rated Load (kg) | 2000 | 2000 | 3000 | 3000 |
| Lifting height (mm) | 200 | 200 | 200 | 200 |
| Load center distance (mm) | 600 | 600 | 600 | 600 |
| Fork length (mm) | 1150 | 1200 | 1150 | 1200 |
| Outside width of fork (mm) | 550 | 685 | 550 | 685 |
| Min ground clearance (mm) | 85 | 85 | 85 | 85 |
| Full load speed (km/h) | 5 | 5 | 5 | 5 |
| Full load lifting speed (mm/min) | 90 | 90 | 90 | 90 |
| Full load climbing slope | 10° | 10° | 10° | 10° |
| Turning radius (mm) | 1250 | 1250 | 1250 | 1250 |
| Weight (kg) | 500 | 500 | 520 | 520 |
| Overall Dimensions (mm) | 1800*860*1420 | |||
V. Sales Suggestions & FAQ
Sales Suggestions
- For Large Warehouse Clients: Emphasize productivity gains of long-distance transport via the stand-on design.
- For High-Intensity Operations: Highlight 3-ton capacity and reinforced chassis for enhanced durability.
- For Space-Constrained Settings: Demonstrate the foldable platform feature as a walk-behind pallet truck alternative.
Q: Is this truck flexible enough for narrow aisles?
A: Yes, extremely flexible. The foldable guardrail and platform design allow operators to fold them up and run the truck in walk-behind mode within tight aisles.
Q: Are the guardrails easy to operate?
A: Yes, they are designed for quick and efficient folding/unfolding, ensuring safety without slowing down operation changes.
Q: Is this stand-on model more durable than standard walkie trucks?
A: Yes, the AET series is built specifically for high-frequency, heavy-load environments, featuring a stronger chassis framework and high-performance motors for an extended service life. Check additional insights on our online troubleshooting portal.
VI. Media & Materials Library
👉 Operation Demo Video: Stand-on Electric Pallet Truck Operation Guide on YouTube
VII. Business Terms
Domestic Terms
- Warranty: Long-term warranty coverage for core motors and hydraulic systems with dedicated technical support.
- Delivery: Fast dispatch from stock; bulk orders support doorstep delivery and on-site commissioning services.
International Trade Terms
- Trading Terms: Supports various global logistics solutions such as FOB, CIF, and DDP.
- Compliance: Complies with mainstream international export standards, with CE certification and testing documentation available upon request.
- Payment Methods: Flexible support for multiple international payment channels.
