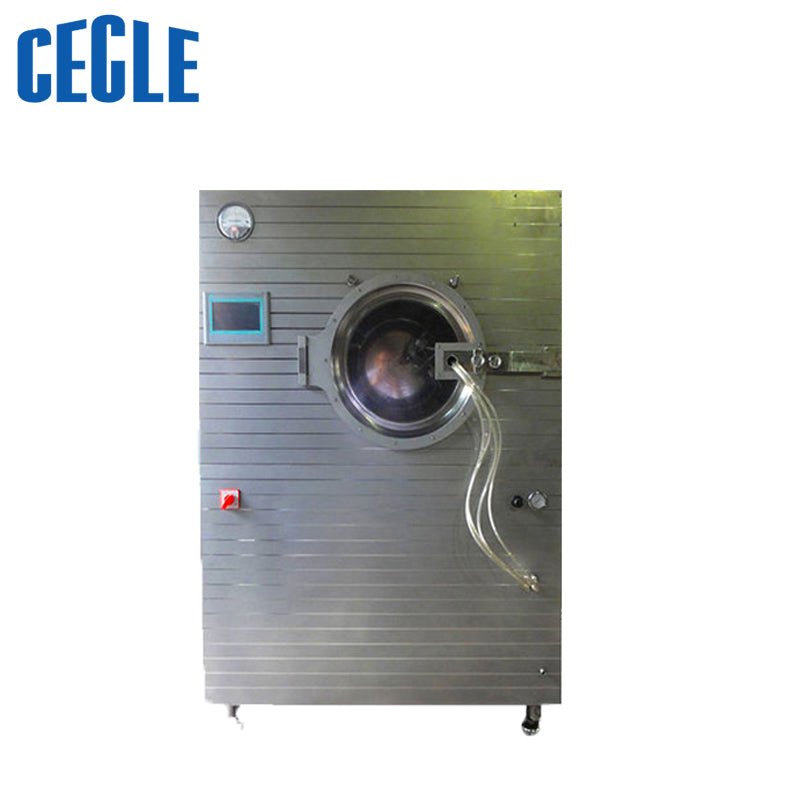

BG Series Film Coating Machine for Pharmaceutical

Name: BG Series
Brand: CECLE
Price: 28500.0 USD
Availability: InStock

$28,500.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model BG-10 BG-40 BG-80

Quick Answer: The CECLE BG series efficient intelligent coating machine is high-efficiency processing equipment specially designed for film and sugar coating of tablets, pills, and candies.

CECLE BG Series vs. Traditional / Generic Alternative

Where the CECLE BG Series stands out against manual or generic film coating machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE BG SeriesThe CECLE Film Coating Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak adhesion, wrinkled labels or misalignment.

Output Speed & Throughput

CECLE BG SeriesIt is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE BG SeriesIts drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE BG SeriesThe frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and drifting label placement.

Technical Specifications

Technical Indicators and Parameters	BG-10	BG-40	BG-80
Production Capacity	10 kg	40 kg	80 kg
Roller Speed	4-30 r/min	4-28 r/min	4-24 r/min
Host Power	0.55 kw	1.1 kw	1.5 kw
Dimensions	9507501530 mm	12109201830 mm	148010301920 mm
Coating Drum Diameter	Φ600 mm	Φ780 mm	Φ930 mm
Exhaust Motor Power (kw)	0.75 kw	2.2 kw	3 kw
Exhaust Motor Displacement (m³/h)	1285 m³/h	3517 m³/h	5268 m³/h
Hot Air Motor Power	0.37 kw	0.75 kw	1.1 kw
Heater Flow	816 m³/h	1285 m³/h	1685 m³/h
Clean Air Pressure	≥0.4 MPa	≥0.4 MPa	≥0.4 MPa
Air Consumption	≤60 kg/h	≤74 kg/h	≤85 kg/h
Host Weight	200 kg	500 kg	600 kg

Compatible Applications & Materials

industrial products — primary target products for this Film Coating Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What are the features of the control system in the BG series coating machine?
A: The equipment adopts a PLC human-machine interface intelligent control system, which is flexibly programmed and reasonably designed. It can adapt to various complex pharmaceutical process requirements, working extremely reliably with stable performance, and fully complies with GMP production requirements.

How do the spray and drying systems of the equipment perform?
A: The machine utilizes two Japan-imported spray guns, providing not only uniform atomization but also a large spray coverage. Its matching hot air drying system undergoes primary, intermediate, and high-level three-stage filtration, achieving a 100,000-class cleanliness standard to enable high-efficiency drying without dust pollution.

What are the after-sales and warranty policies?
A: The standard warranty period for the entire machine is one year. During the warranty period, as long as any equipment damage occurs under normal operation according to the instruction manual, we will provide free repair services or free replacement of damaged parts, and the customer only needs to bear the shipping cost from China to their local area. After the warranty period expires, we will continue to provide lifelong maintenance services. If you need our engineers for on-site assistance, the round-trip travel expenses will be borne by the customer.

What routine maintenance keeps the BG Series stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the BG Series handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
