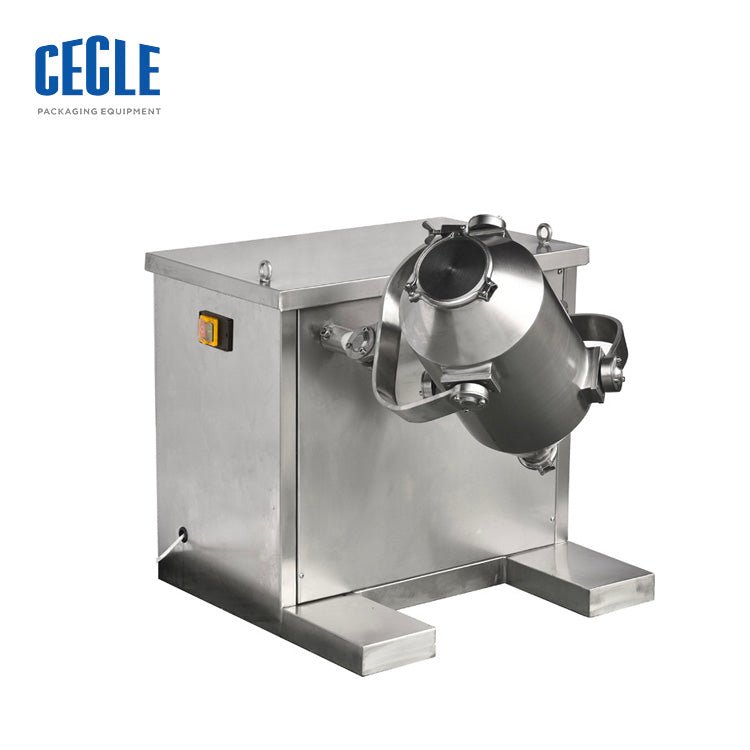

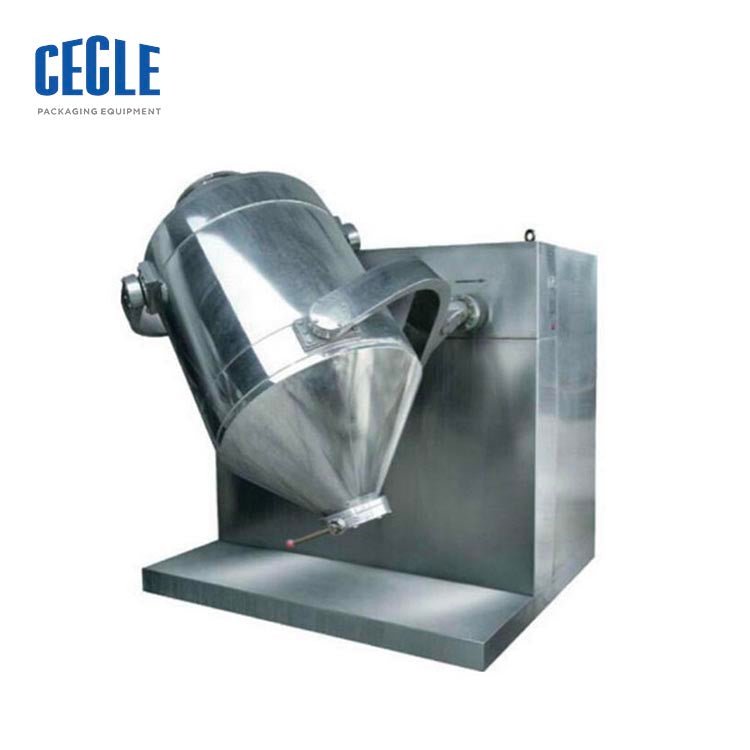

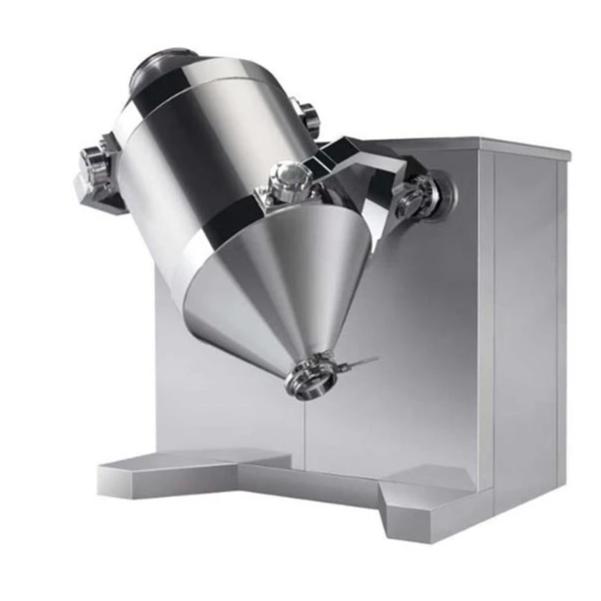

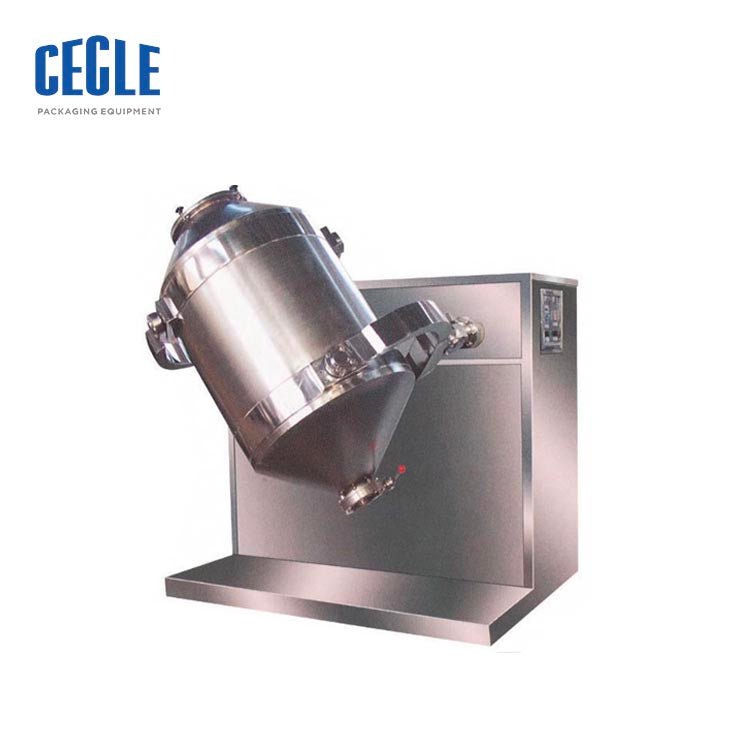

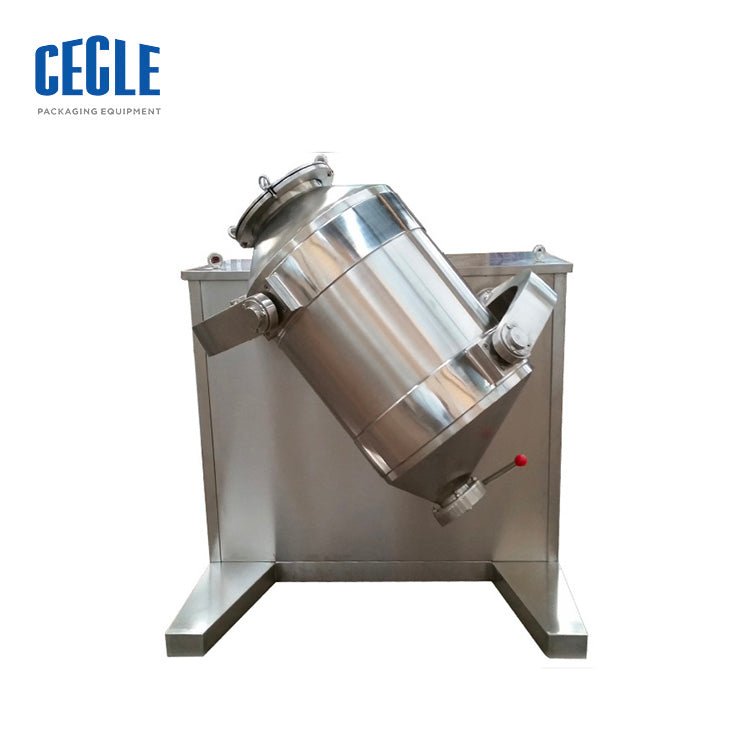

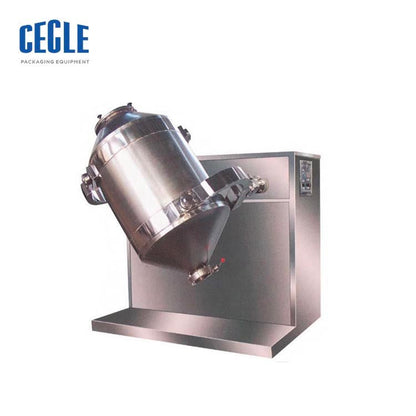

SYH Series 3D Blender Mixer for Pharmaceutical Powder

Name: SYH Series
Brand: CECLE
Price: 2500.0 USD
Availability: InStock

Quick Answer: The CECLE SYH Series Three-dimensional Mixer is highly efficient multi-directional powder and granule mixing equipment, specially designed for high-standard production lines in the pharmaceutical.

CECLE SYH Series vs. Traditional / Generic Alternative

Where the CECLE SYH Series stands out against manual or generic blender mixer — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE SYH SeriesUltra-High Working Efficiency : The loading coefficient can reach up to 80% (compared to only 40% for ordinary mixers), which means higher output and shorter mixing time under the same volume

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE SYH SeriesIt is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE SYH SeriesIts drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE SYH SeriesThe frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

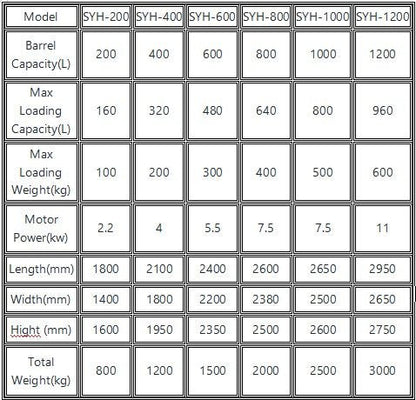

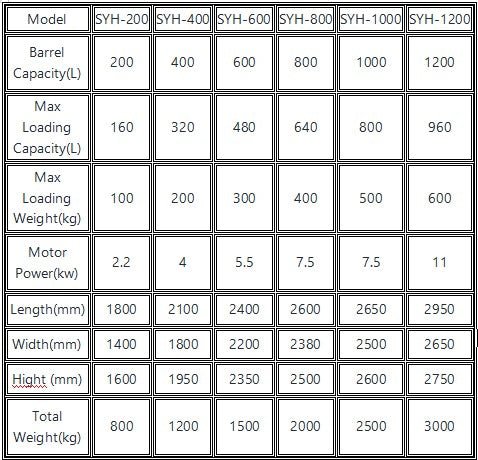

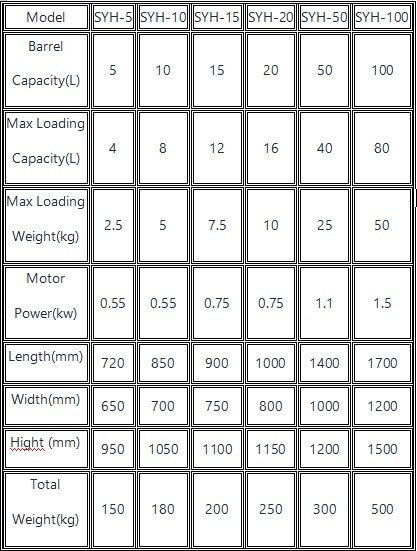

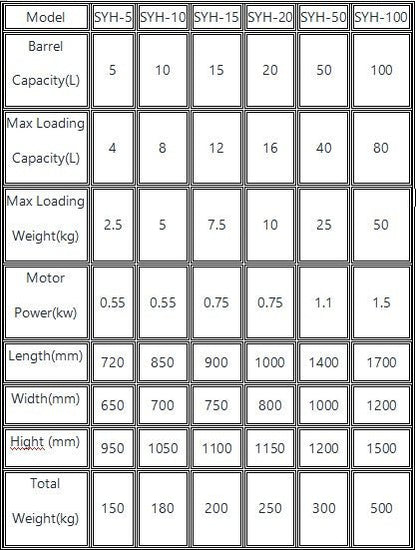

Technical Specifications

Model	Barrel Vol (L)	Max Load (L)	Max Wt (kg)	Speed (r/min)	Power (kw)	Weight (kg)	Dimensions (mm)
SYH-1	1	0.8	0.5	12	0.55	120	650×500×650
SYH-5	5	4	2.5	12	0.55	150	720×650×950
SYH-10	10	8	5	12	0.55	180	850×750×1050
SYH-15	15	12	7.5	12	0.75	200	900×750×1100
SYH-20	20	16	10	12	1.1	250	1000×800×1150
SYH-50	50	40	25	12	1.1	300	1200×850×1100
SYH-100	100	80	50	12	1.5	460	1700×1200×1500
SYH-200	180	100	100	12	2.2	760	1800×1400×1600
SYH-400	360	200	200	12	4	1200	2100×1800×1950
SYH-600	600	480	300	12	7.5	1500	2400×2200×2350
SYH-800	800	640	400	0-8	7.5	2000	2600×2380×2000
SYH-1000	1000	800	500	0-8	7.5	2500	2650×2500×2600
SYH-1200	1200	960	600	9-8	11	3000	2950×2650×2750
SYH-1500	1500	1200	750	0-8	15	3500	2950×2850×3000

Compatible Applications & Materials

industrial products — primary target products for this Blender Mixer line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

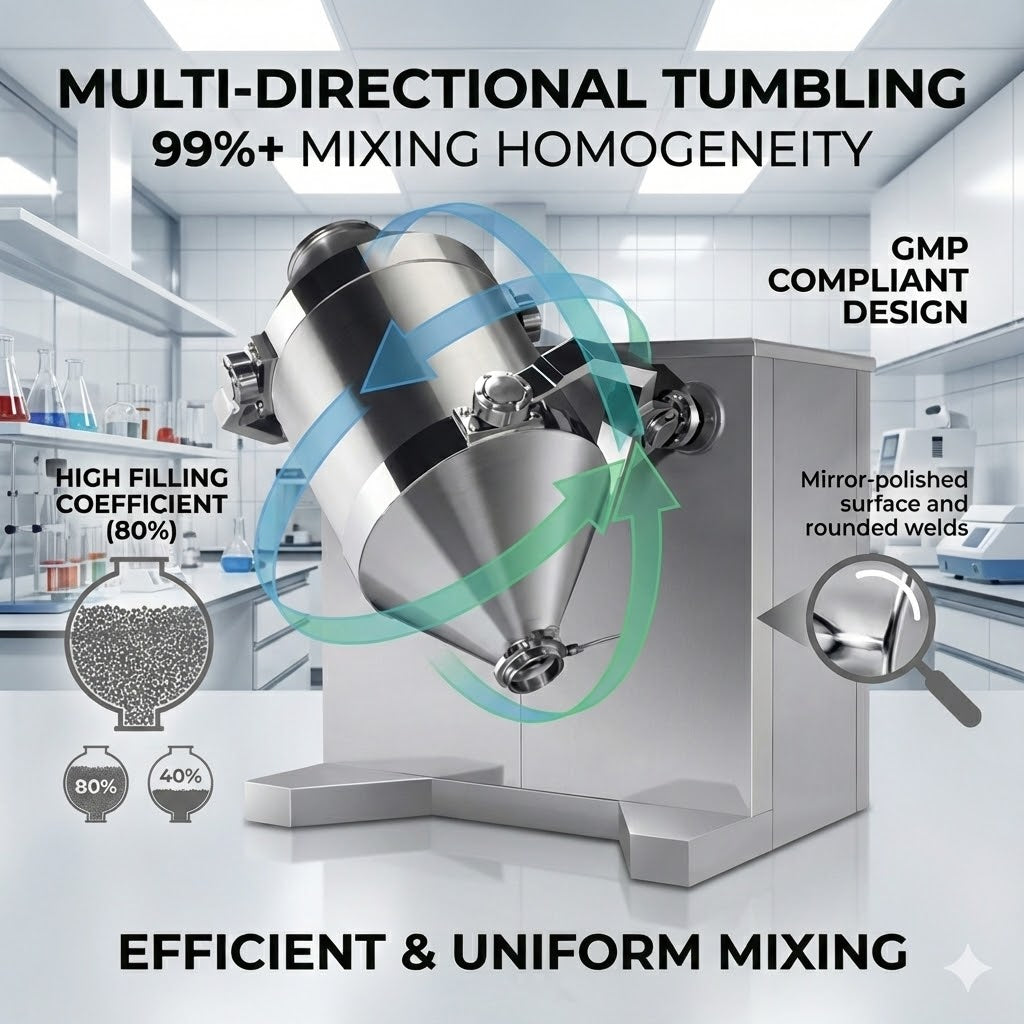

How is the mixing uniformity of the three-dimensional mixer?
A: Since there is no centrifugal force acting on the materials during the mixing process, specific gravity segregation, stratification, or accumulation will not occur. Even if the weight ratio of each component varies greatly, the mixing uniformity can still reach 99.9%.

What is the loading rate and working efficiency of the equipment?
A: The maximum loading coefficient of this equipment can reach 80% (while ordinary mixers are usually only 40%), which means higher output, shorter mixing time, and significantly improved efficiency under the same volume.

What is the packaging standard for international export orders?
A: All export equipment is uniformly packed in export-specific fumigation-free plywood cases. Standard spare parts and special tools required for machine operation will be included in the packaging.

What is the warranty and after-sales policy of the equipment?
A: The standard warranty period for the whole machine is one year. During the warranty period, as long as any equipment damage occurs within the normal operation scope of the manual, we will provide free repair services or free replacement of damaged parts (the customer only needs to bear the shipping cost from China). After the warranty period expires, we will continue to provide lifelong maintenance services.
