Automatic Liquid Blister Packing Machine for Perfume & Cosmetics | DPP-80L

$7,900.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model DPP-80L

Automatic Liquid Blister Packing Machine - DPP-80L for Honey, Jam & Oils

The Professional Choice for Liquid Portion Packaging.

The DPP-80L is a high-performance, fully automatic alu-plastic blister packing machine specifically engineered for liquids, pastes, and semi-fluids. Unlike standard models, the "L" (Long) version features an extended chassis designed to accommodate professional filling systems such as peristaltic pumps or piston fillers. Whether you are producing honey spoons, jam portions, sauce cups, or essential oil blisters, the DPP-80L ensures drip-free filling, airtight sealing, and industrial-grade output.

The DPP-80L is the ideal automated solution for fragrance samples and cosmetic portion packs. Its extended chassis allows for the integration of high-precision micro-pumps, ensuring each perfume blister is filled with exactly 0.5ml to 10ml of liquid without leakage, maintaining the brand's premium quality.

🚀 Key Advantages for Liquid Packaging

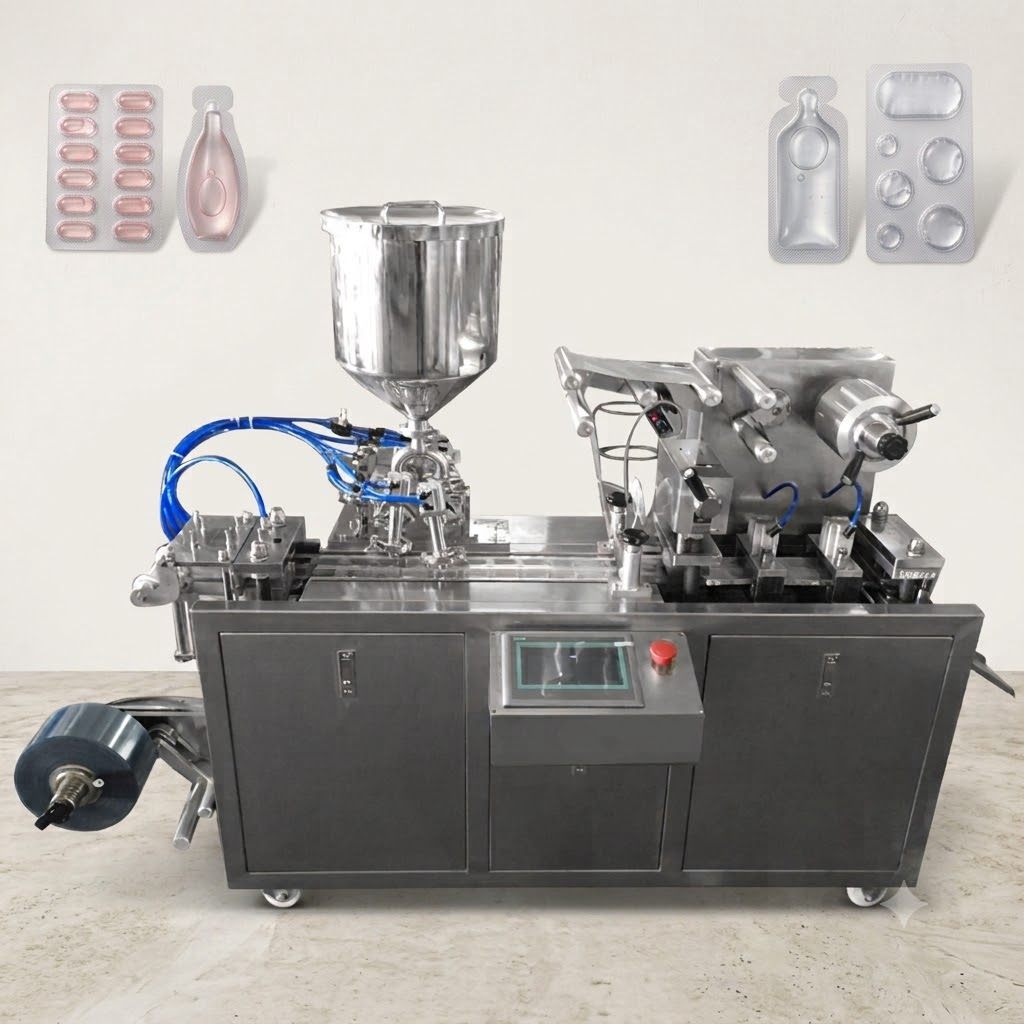

🔹 Extended Chassis for Liquids: The elongated design provides the necessary space for high-precision liquid pumps and dedicated filling stations, preventing splashes and ensuring clean seals.
🔹 Integrated 5-in-1 Workflow: Automatically completes: Film Forming → Liquid Filling → Heat Sealing → Batch Coding → Punching in one seamless process.
🔹 Food-Grade Hygiene: All liquid-contact parts are manufactured from 316L Stainless Steel, ensuring corrosion resistance and full compliance with GMP/FDA standards.

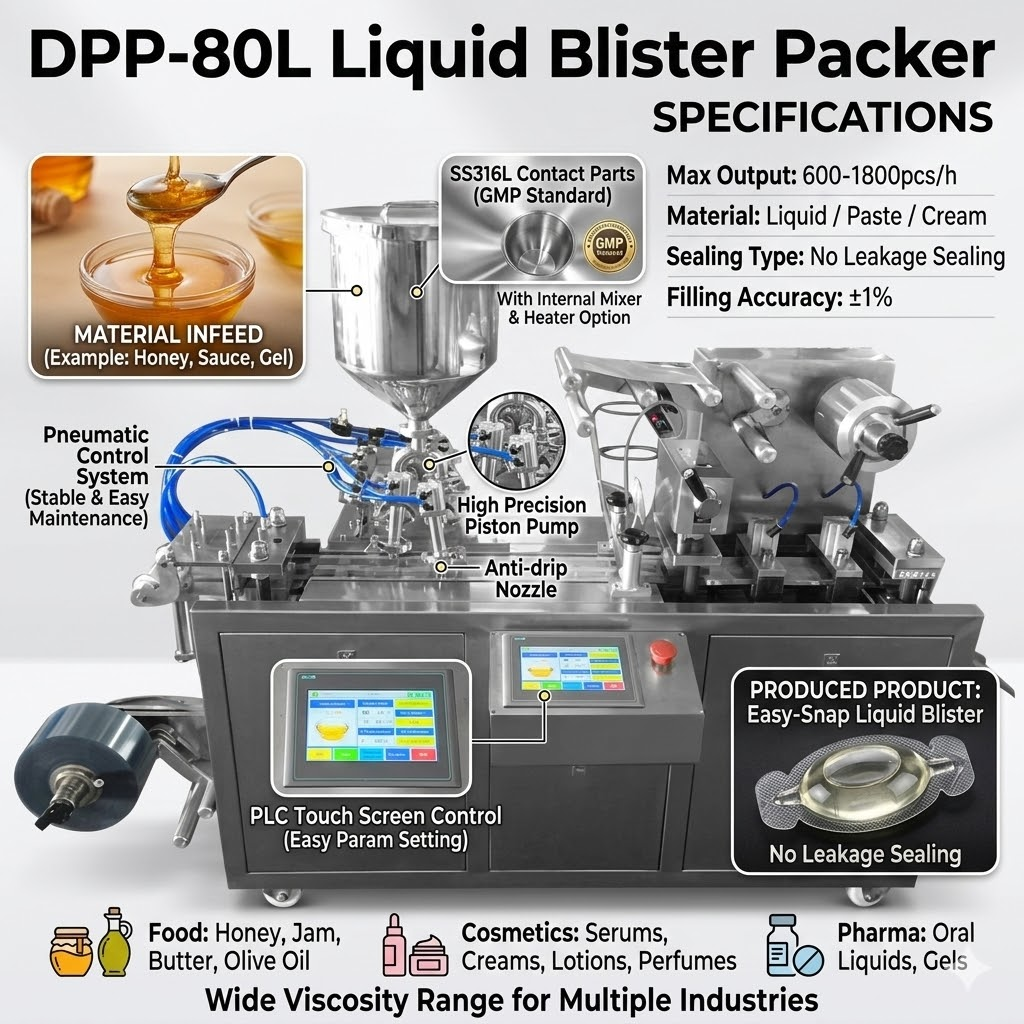

🔹 Anti-Drip Filling Technology: Compatible with multiple filling systems (Peristaltic, Piston, or Rotary Valve) tailored to your liquid's viscosity—from water-thin oils to thick honey.
🔹 PLC & Servo Precision: An intuitive touch screen allows for digital adjustment of filling volumes and stroke lengths, significantly reducing material waste and downtime.

📊 Technical Specifications (DPP-80L)

Item	Specification
Model	DPP-80L (Liquid/Paste Version)
Applicable Materials	PVC / PET / PS + Pharmaceutical Aluminum Foil
Max Forming Area	80 × 100 mm
Packaging Speed	10–33 cycles/min
Filling Range	0.5ml – 25ml (Customizable)
Filling Accuracy	± 0.5% - 1%
Working Air Pressure	0.6–0.8 MPa
Main Motor Power	2.8 kW
Machine Size	188 × 78 × 120 cm
Gross Weight	520 KG

📘 Technical Support & Documentation

Need detailed installation SOPs, liquid pump calibration guides, or maintenance manuals for the DPP-80L?

👉 View Full Technical Documentation on doc.cecle.net →

❓ FAQ (Frequently Asked Questions)

Q: Can this machine handle high-viscosity liquids like thick honey?
A: Yes. For viscous liquids, we equip the DPP-80L with a piston pump and a jacketed hopper with heating and stirring functions to ensure a smooth, consistent flow.

Q: Is it suitable for making "Honey Spoons"?
A: Absolutely. The DPP-80L is the industry standard for honey spoon packaging. We provide custom-shaped molds specifically designed for spoon-style blisters.

Q: Is an air compressor mandatory?
A: Yes. The machine requires a stable external air supply of 0.6–0.8MPa to power the pneumatic forming and punching stations.

Q: Can you customize the mold for a specific portion size?
A: Yes. We offer fully customizable mold making based on your samples or drawings. Typically, one set of molds is designed for one specific portion size.

🎬 Media & Materials

Watch Operation Video: DPP-80L Liquid Packaging Linkage Demo
Warranty: 1-year warranty for the whole machine (excluding consumables) and lifetime technical maintenance.
