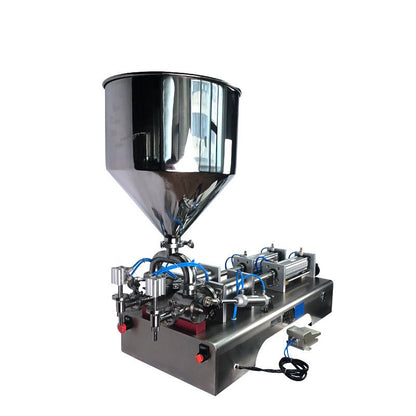

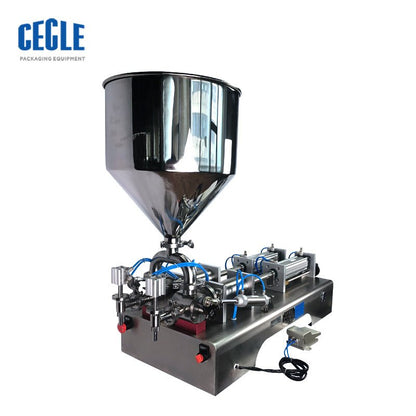

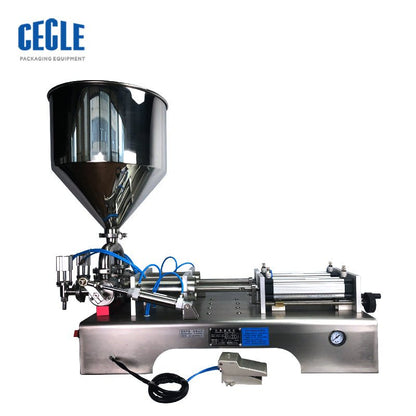

DFF6-2 Filling Hand Sanitizer Alcohol Machine for Pastes (Pneumatic Drive)

$1,650.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size DFF6-100 DFF6-150 DFF6-300 DFF6-500 DFF6-1000 DFF6-2500 DFF6-5000

Quick Answer: The CECLE DFF6-2 semi-automatic Fully-Pneumatic Paste Filling.

CECLE DFF6-2 vs. Traditional / Generic Alternative

Where the CECLE DFF6-2 stands out against manual or generic machine — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE DFF6-2Fully-pneumatic / no electricity is the biggest selling point of this series — the first five advantages below all center on it. Explosion-proof safety is the headline benefit. No electricity at all —.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Pressure Consistency

CECLE DFF6-2Stable 0.4–0.6 MPa Air Pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Output Speed & Throughput

CECLE DFF6-2It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Chassis Rigidity & Vibration Resistance

CECLE DFF6-2The frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Parameter	FF6-50	FF6-100	FF6-300	FF6-500	FF6-1000	FF6-2500	FF6-3000	FF6-5000
Filling Range	5–50 ml	10–100 ml	30–300 ml	50–500 ml	100–1000 ml	250–2500 ml	300–3000 ml	500–5000 ml
Filling Speed	5–30 cycles/min	5–30 cycles/min	5–30 cycles/min	5–30 cycles/min	5–30 cycles/min	5–30 cycles/min	5–30 cycles/min	5–30 cycles/min
G.W. / N.W.	30/22 kg	30/22 kg	30/22 kg	30/22 kg	30/22 kg	40/32 kg	40/32 kg	30/22 kg
Packaging Dimension L×W×H	101×33×35 cm	101×33×35 cm	101×33×35 cm	101×33×35 cm	101×33×35 cm	120×40×39 cm	120×40×39 cm	101×33×35 cm

Customer Filling Format	Recommended Model	Customer Filling Format	Recommended Model
Sample-size cosmetic jars / vials (5–50 ml)	FF6-50	Large jars / bottles (100–1000 ml)	FF6-1000
Small jars / trial-size (10–100 ml)	FF6-100	Bucket-level (250–2500 ml)	FF6-2500
Regular cosmetic / food jars (30–300 ml)	FF6-300	Large pails / cans (300–3000 ml)	FF6-3000
Household-size jars / large bottles (50–500 ml)	FF6-500	Large pails / cans (500–5000 ml)	FF6-5000

No.	Model	Filling Range
1	FF6-50	5–50 ml
2	FF6-100	10–100 ml
3	FF6-300	30–300 ml
4	FF6-500	50–500 ml
5	FF6-1000	100–1000 ml
6	FF6-2500	250–2500 ml
7	FF6-3000	300–3000 ml
8	FF6-5000	500–5000 ml

Pre-installation requirements: Power: 0 W (no electrical power consumption); Air Pressure: 0.4–0.6 MPa. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Requirement confirmation: fill volume per cycle (ml), speed requirement, product type (paste / liquid / both, AND whether flammable / solvent-based / solvent-based) — drives model range, nozzle size and the FF6 vs
whether the workshop has electrical power (no power → confirm FF6
stable power + non-flammable → FF2 may suffice)
whether the workshop is in an explosion-proof zone (yes → FF6 only)
whether the customer already has an air compressor (the FF6 still requires one)
Model recommendation: if explosion-proof / no-electricity / flammable / solvent-based / solvent-based paste (or paste + liquid) → recommend FF6-50 ~ FF6-5000 per the 4.1 table
if stable power + non-flammable paste → recommend the FF2 series instead

Engineering FAQ

What power supply does the DFF6-2 require?
A: The DFF6-2 runs on 0 W (no electrical power consumption) Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

Does the DFF6-2 need an external air compressor?
A: Yes. The DFF6-2 is pneumatically driven and requires a stable external air supply at the specified pressure. CECLE recommends a compressor sized for continuous duty to hold stable output.

What routine maintenance keeps the DFF6-2 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the DFF6-2 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
