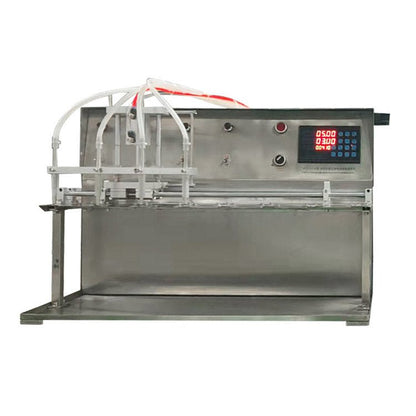

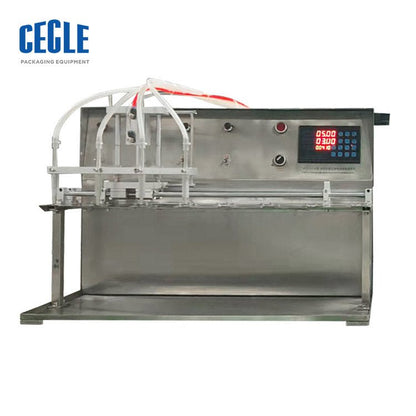

DF4-1000 Filling Nozzles Spout Pouch Stand Machine for Pouches (Automatic)
DF4-1000 Filling Nozzles Spout Pouch Stand Machine for Pouches (Automatic)
Couldn't load pickup availability
CECLE DF4-1000 vs. Traditional / Generic Alternative
Where the CECLE DF4-1000 stands out against manual or generic machine — measured on the dimensions buyers care about most.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DF4-1000 |
| Filling Range | 20–1000 ml |
| Filling Nozzles | 4 nozzles (standard; 1 / 2 head optional) |
| Nozzle Type | Bottom anti-drip positive shut-off nozzle |
| Nozzle Diameter | 3–12 mm optional (selected to order) |
| Single-Nozzle Flow | approx. 20 ml/s |
| Peak Output | To be confirmed (estimated from 4 nozzles at 20 ml/s each; subject to actual working conditions) |
| Filling Accuracy | ≤ 0.5% |
| Volume Adjustment | Adjustable piston stroke (continuous adjustment) |
| Speed Adjustment | Adjustable (continuous adjustment) |
| Filling Type | Piston type, one cylinder per head |
| Control Mode | Pneumatic operation + electric control (pneumatic-operated + electric-controlled) |
| Operation | Foot pedal / auto timer, switchable |
| Automation Grade | Semi-auto / automatic, switchable |
| Suitable Liquids | Free-flowing liquids — water, oil, juice (no particles), liquid detergent, sauce, beverage, liquid cream, etc. |
| Parameter | Specification |
|---|---|
| Voltage | 220 V 50/60 Hz |
| Pneumatic Components | Taiwan Airtac |
| Air Source | An air compressor is required; air pressure to be confirmed |
| Electrical Module | Includes timer, foot-pedal signal, and semi-auto/automatic switching module |
| Head Lifting Device | Special configuration — filling head can be pushed and lifts automatically (adapted to flexible pouch mouths) |
| Parameter | Specification |
|---|---|
| Contact Parts | Food-grade 304 stainless steel (316 optional) |
| Valve System | Stainless steel valve system design |
| Standard Seal | Silicone O-ring, rated to 200°C, food-safety compliant |
| Optional Seal | Rubber sealing ring, for corrosive liquids |
| Hygiene Grade | Food grade / food-safety compliant |
| Category | Details |
|---|---|
| Suitable Liquids | Free-flowing liquids such as water, oil, juice (no particles), liquid detergent, sauce, beverage, liquid cream |
| Not Suitable | Liquids with particles, high-viscosity pastes, strongly corrosive liquids (special seal configuration required) |

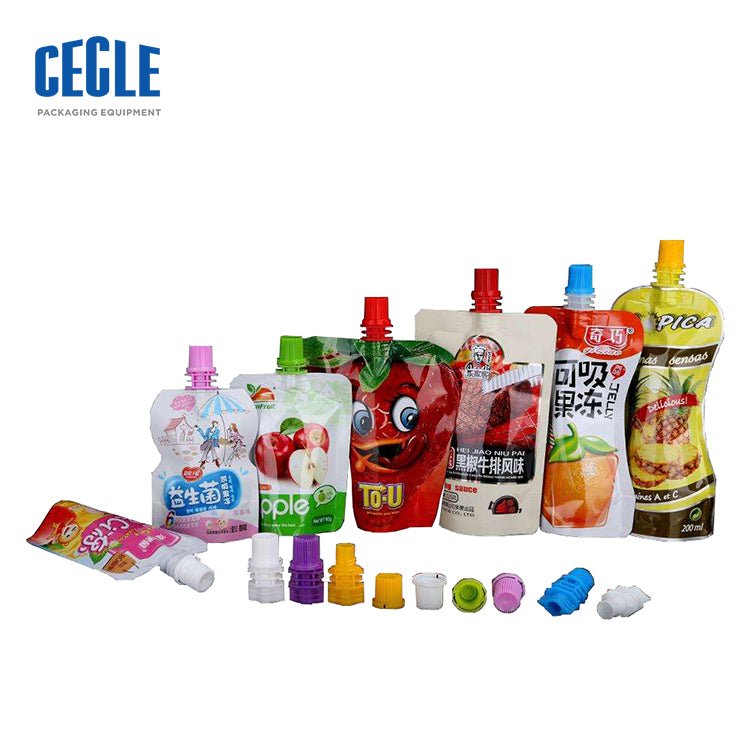

| Pouch Types | Stand-up pouch, spout pouch, Doypack, regular flexible pouch bag |
| Special Use | The filling head has an automatic lifting device, friendly to flexible pouch mouths |
Media & Resources

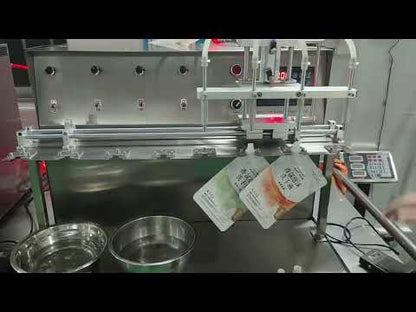

Resource: https://youtu.be/Gk-akHZNx0o
Pre-installation requirements: Voltage: 220 V 50/60 Hz.
Compatible Applications & Materials
- industrial products — primary target products for this Machine line
- Standard industrial materials compatible with the machine's rated spec range
- B2B production lines and contract manufacturing workshops
Standard Operating Procedure (SOP)
- Setup: connect power at the rated voltage (220 V 50/60 Hz) and verify the control display.
- Parameter preset: set speed / temperature / pressure per the product spec.
- Material loading: place the product in the correct fixture / mold slot.
- Execution: start the cycle; monitor for stable, repeatable output.
- Quality check: inspect the first units; adjust if deviation appears.
- Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.
Engineering FAQ
What power supply does the DF4-1000 require?
A: The DF4-1000 runs on 220 V 50/60 Hz Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.
What peripheral equipment should be prepared for the DF4-1000?
A: Beyond the rated 220 V 50/60 Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.
What routine maintenance keeps the DF4-1000 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
Which product sizes and formats can the DF4-1000 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
Full Documentation & Drawings
Complete technical manual, parameters and engineering drawings: CECLE Docs — DF4-1000
