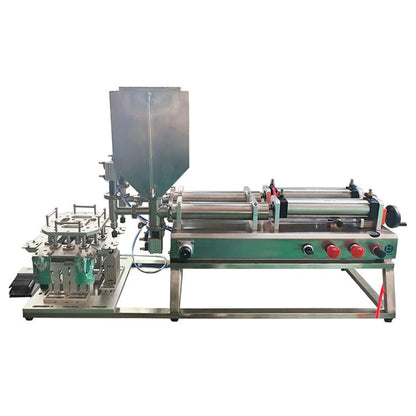

DFF4 Spout Pouch Filling Machine for Stand-Up Pouches (Pneumatic Drive)
DFF4 Spout Pouch Filling Machine for Stand-Up Pouches (Pneumatic Drive)
Couldn't load pickup availability
CECLE DFF4 vs. Traditional / Generic Alternative
Where the CECLE DFF4 stands out against manual or generic spout pouch filling machines — measured on the dimensions buyers care about most.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DFF4 (source file title reads DFF4-1000; shipped as "DFF4" per the user's standard) |
| Filling Range | 50–250 ml (standard range); optional models cover 20–1000 ml |
| Filling Nozzles | 2 nozzles (standard, 1 head optional) |
| Nozzle Type | Bottom close positive shutoff nozzle |
| Nozzle Diameter | 3–12 mm optional (selected per order) |
| Filling Speed | 300–600 bags/hour |
| Peak Output | 300–600 bags/hour ( to be confirmed for upper-limit working conditions) |
| Filling Accuracy | ≤ 1 g (absolute value) |
| Volume Adjustment | Piston stroke adjustable (continuously adjustable) |
| Speed Adjustment | Adjustable (continuously adjustable) |
| Filling Type | Piston type, one cylinder per head |
| Control Mode | Pure pneumatic , no electrical power required |
| Operation | Foot pedal / auto timer, switchable |
| Automation Grade | Semi automatic / automatic, switchable |
| Suitable Liquids | Free-flowing liquids plus low-viscosity pastes (water, oil, juice, liquid detergent, sauce, beverage, liquid cream, thin sauces, hand cream, etc.) |
| Parameter | Specification |
|---|---|
| Power Supply | None required (none) — full pneumatic drive |
| Pneumatic Components | Taiwan Airtac |
| Air Source | An air compressor must be connected; air pressure to be confirmed |
| Electrical Module | No electrical control module (pure pneumatic) — simpler than the DF4-1000, fewer failure points |
| Head Drive | Special configuration — the filling head can be pushed and can rise/fall automatically (adapted to soft pouch mouths) |
| Parameter | Specification |
|---|---|
| Contact Parts | Food grade 304 stainless steel (316 optional) |
| Valve System | Stainless steel valve system design |
| Standard Seal | Silicone O-ring, rated to 200°C, food safe |
| Optional Seal | Rubber sealing ring, for corrosive liquids |
| Hygiene Grade | Food grade / food safety compliant |
| Parameter | Specification |
|---|---|
| Machine Size | 1850 × 550 × 1000 mm (horizontal layout) |
| N.W. | approx. 95 kg |
| G.W. | approx. 100 kg |
| Packing Size | To be confirmed (not listed in the source file) |
| Packaging | Reinforced carton (extra carton thickness), one machine per carton |
| Spare Parts in Carton | Tools, parts |
| Parameter | Specification |
|---|---|
| Delivery Term | EXW Wenzhou |
| Payment Term | T/T 100% |
| MOQ | 1 set |
| Delivery Time | Within 10 days |
| Warranty | One-year whole-machine warranty |
| Warranty Coverage | Faults not caused by human error and arising from normal use per the manual are repaired or replaced free of charge; the customer bears the freight from China to the destination |
| Engineer On-site | The customer bears the engineer's round-trip travel expenses |
| Lifetime Maintenance | Paid lifetime maintenance service provided after the warranty period |
| Category | Details |
|---|---|
| Suitable Liquids | Water, oil, juice (no particles), liquid detergent, sauce, beverage, liquid cream and other free-flowing liquids |
| Suitable Pastes | Thin sauces, hand cream, facial cleanser, liquid cream, condiments and other low-viscosity pastes (viscosity ceiling for high-viscosity pastes to be confirmed ) |
| Not Suitable | Liquids with particles, high-viscosity pastes, strongly corrosive liquids (require a special sealing configuration) |

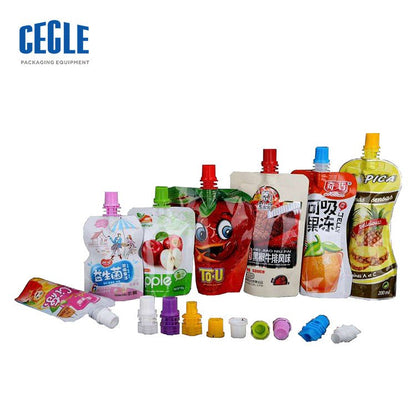

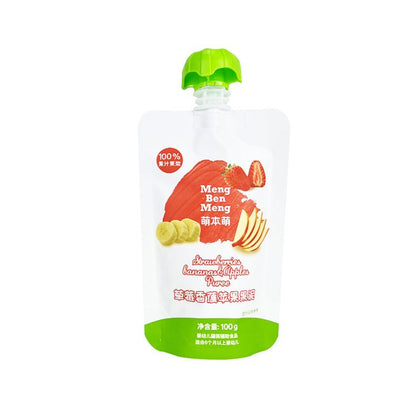

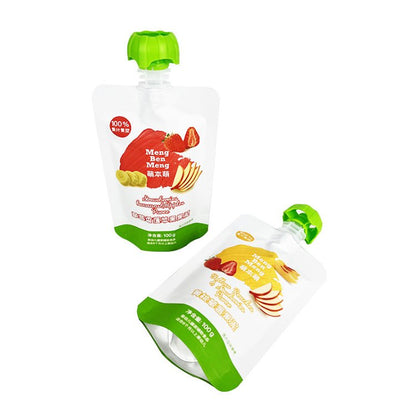

| Pouch Types | Stand-up pouch, spout pouch, Doypack spout pouch, common flexible pouch bag |
| Special | The filling head carries an automatic lift device, gentle on soft pouch mouths; integrated capping module completes filling + capping on one machine |
Media & Resources

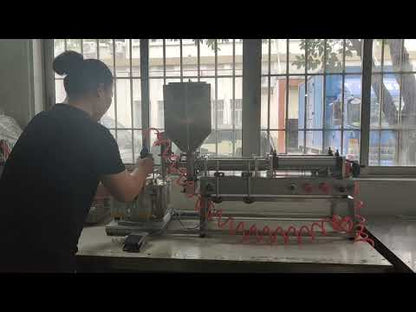

Resource: https://youtu.be/Gk-akHZNx0o
Pre-installation requirements: Power Supply: None required (none) — full pneumatic drive.
Compatible Applications & Materials
- industrial products — primary target products for this Spout Pouch Filling Machine line
- Standard industrial materials compatible with the machine's rated spec range
- B2B production lines and contract manufacturing workshops
Standard Operating Procedure (SOP)
- Setup: connect the required power / air supply and verify the control display.
- Parameter preset: set speed / temperature / pressure per the product spec.
- Material loading: place the product in the correct fixture / mold slot.
- Execution: start the cycle; monitor for stable, repeatable output.
- Quality check: inspect the first units; adjust if deviation appears.
- Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.
Engineering FAQ
Which liquids is the DFF4 suitable for?
A: Is it really dual-purpose for liquid and paste? Yes, the DFF4 is genuinely dual-purpose — it fills liquids (water, oil, juice without particles, liquid detergent, sauce, beverage, liquid cream, etc.) as well as low-viscosity pastes (thin sauces, hand cream, facial cleanser, liquid cream, etc.). Liquids with particles, high-viscosity pastes and strongly corrosive liquids are not suitable (strongly corrosive liquids require rubber sealing rings plus a 316 stainless steel configuration). The viscosity threshold for high-viscosity pastes is to be confirmed — please check with Andrea before ordering.
Does the DFF4 need a power supply?
A: Is the control electric or pneumatic? The DFF4 is fully pneumatic and needs no power supply — connect an air compressor and it works, with no motor and no electric spark. It is simpler than the DF4-1000 (electric control + pneumatic): no electrical control module, fewer failure points and easier maintenance, making it especially suitable for solvent-based products and filling workshops with high explosion-proof requirements.
Does the DFF4 include capping?
A: What are the capping specifications? An integrated capping module completes filling and capping on one machine, saving a separate pouch-clamping capping station. The detailed capping specifications (torque, cap size, capping speed, etc.) are not listed in the PDF quotation and are to be provided by Andrea .
How many nozzles come as standard?
A: Can I choose just one? 2 nozzles as standard. You can specify 1 head or 2 heads per order — fewer heads means a lower machine price, while 2 nozzles markedly increase small pouch output.
How do I choose the nozzle diameter?
A: Selectable within 3–12 mm. For general liquids (water, oil, juice, detergent) a 6 mm nozzle head is most common; thin sauces, beverage and cosmetics use an 8 mm nozzle head; thicker liquids use 10–12 mm. Confirm the pouch mouth size and liquid viscosity before ordering and Andrea will recommend the diameter.
How accurate is the filling?
A: What can it achieve? Filling accuracy ≤ 1 g (absolute value) , typical for a piston volumetric machine. Note that this is an absolute value, not a percentage — 1 g on 50 ml equals ±2%, and 1 g on 100 ml equals ±1%. We recommend weighing and calibrating 2–3 pouches before full-scale production.
Full Documentation & Drawings
Complete technical manual, parameters and engineering drawings: CECLE Docs — DFF4
Related CECLE Machines
Request a Quote
Send your product specifications, target output and format details to CECLE for a tailored configuration, lead time and factory-direct quotation.
