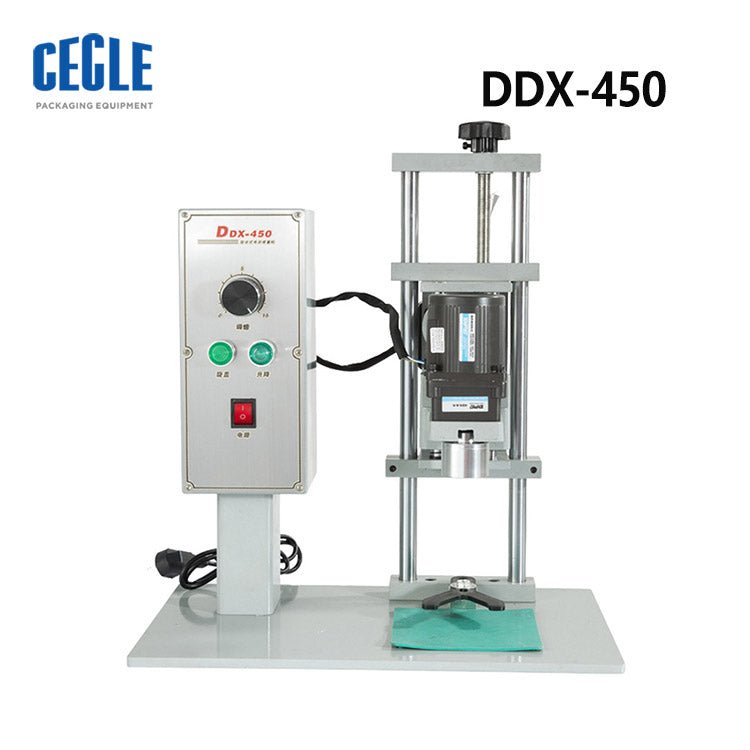

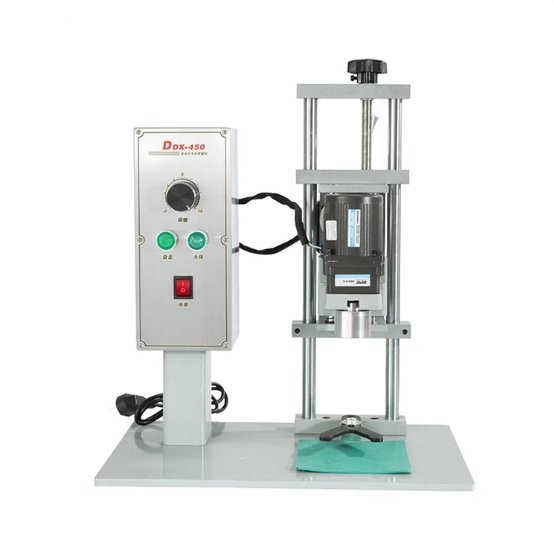

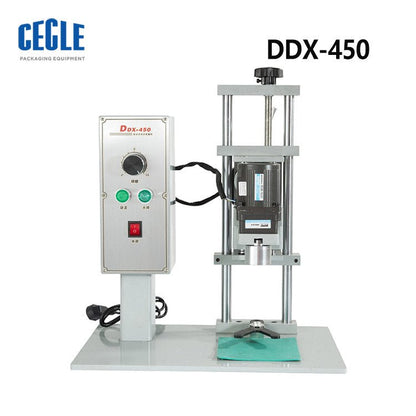

DDX-450 Capping Machine for Bottles (Semi-Automatic)

$999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

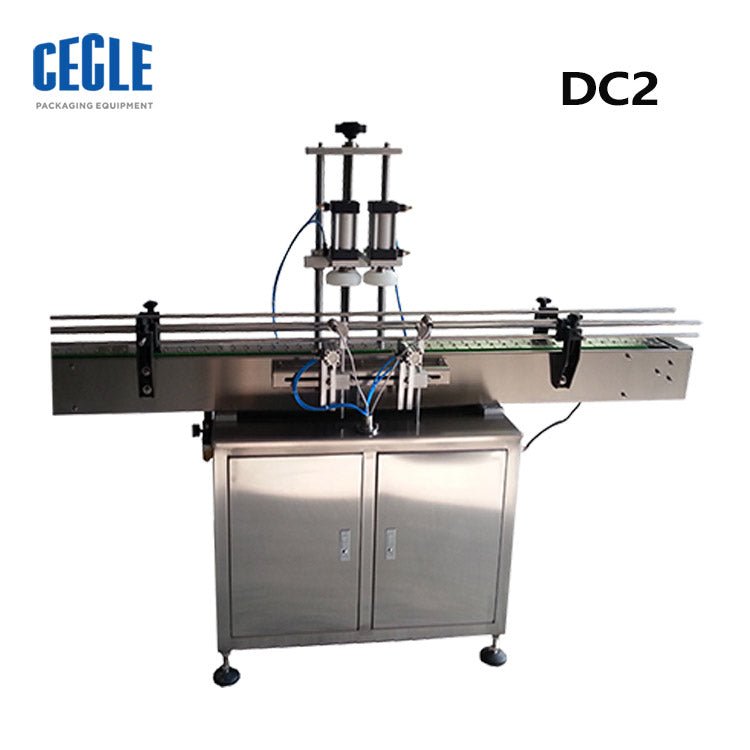

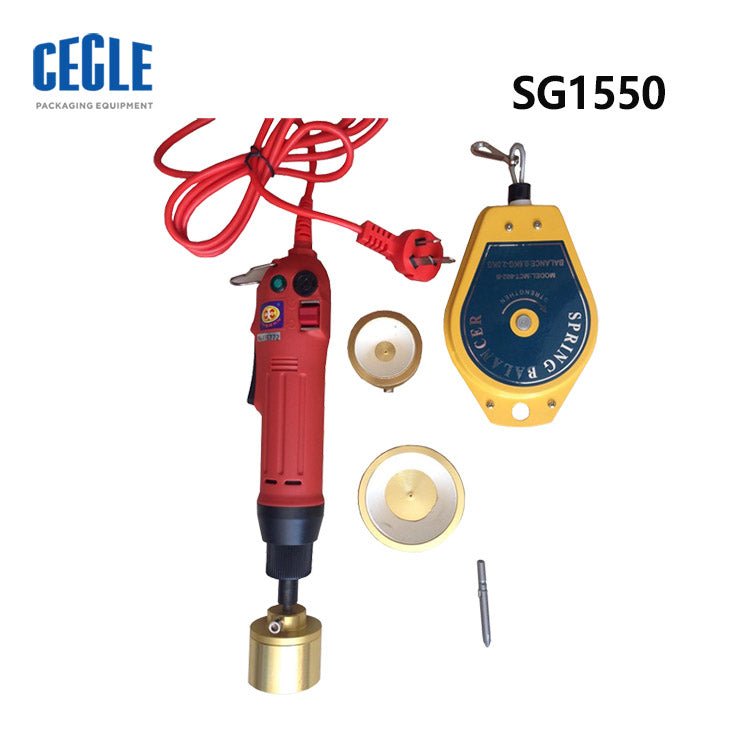

Model DDX-450 DC2 SG-1550

Shipping method by express(7-10 days)

Place of shipment shipping from China

Quick Answer: The CECLE DDX-450 is a semi-automatic electric desktop capping machine designed for tightening plastic screw caps (10–50 mm diameter) on bottles ranging from 40 to 200 mm in height.

CECLE DDX-450 vs. Traditional / Generic Alternative

Where the DDX-450 stands out against manual or generic alternatives — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE DDX-450Pure Electric Drive : No external air compressor required. Ready to use upon plugging in, reducing peripheral costs and ensuring quieter operation. Compact & Lightweight Desktop Design : Small footprint.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Sealing / Transfer Quality

CECLE DDX-450High Compatibility : Suitable for various high-strength bottle caps, providing stable capping torque and tight sealing

Uncontrolled Contact ConditionsEdges wrinkle and labels drift because feed speed and label peel are not synchronized.

Adaptability & Changeover

CECLE DDX-450Intuitive Operation : Equipped with a dedicated control panel for quick height adjustment of the machine head according to different bottle heights and cap diameters

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE DDX-450Torque-Locked Capping Head: Each cap is tightened to a repeatable torque setting, so sealing quality does not depend on operator strength.

Inconsistent Contact PressureForce drifts part to part, causing weak adhesion, loose caps, leakage and rework.

Technical Specifications

Specification	Value & Unit
Screw Cap Dimension	10 - 50 mm
Speed	20 - 40 times/min
Bottle Height	40 - 200 mm
Voltage	AC 220V 50/60Hz
Power	0.5 kW
G.W. / N.W.	33 kg / 28 kg
Packaging Dimension	520 × 300 × 530 mm (20.5 × 11.8 × 20.9 in)

Pre-installation requirements: Screw Cap Dimension: 10 - 50 mm; Voltage: AC 220V 50/60Hz; Power: 0.5 kW; Packaging Dimension: 520 × 300 × 530 mm (20.5 × 11.8 × 20.9 in).

Compatible Applications & Materials

industrial products — primary target products for this Capping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Equipment Adjustment : Manually adjust the stroke height and positioning base according to the bottle height and cap size to be processed
Positioning the Bottle : The operator manually places the bottle (with cap pre-placed) at the positioning block on the work table
Capping Operation : The machine moves up and down at a constant speed
the capping head descends to engage the cap and tightens it via friction
Manual Turnover : During continuous operation, the operator manually removes the sealed finished product and loads a new bottle according to the machine's operational rhythm.

Engineering FAQ

Why is the 20 - 40 times/min Speed rating important for the DDX-450?
A: The 20 - 40 times/min Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the DDX-450?
A: Beyond the rated AC 220V 50/60Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the DDX-450 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the DDX-450 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
