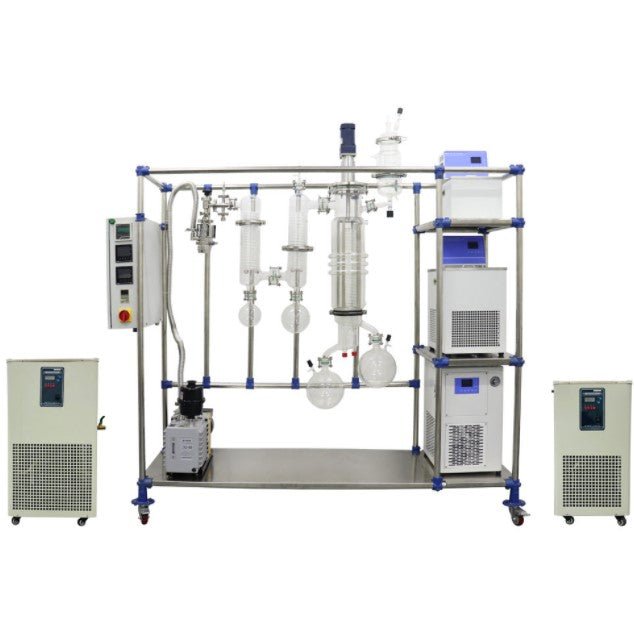

QYMD Glass Short Path Molecular Distillation Equipment for Crude Oil Separation (Vacuum)

QYMD Glass Short Path Molecular Distillation Equipment for Crude Oil Separation (Vacuum)

$26,700.00 USD
$26,700.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping method
Quick Answer: The CECLE QYMD glass Short Path Molecular Distillation Equipment (QYMD Series) is a highly precise thermodynamic separation system operating under deep vacuum conditions (up to 0.1Pa).

CECLE QYMD vs. Traditional / Generic Alternative

Where the CECLE QYMD stands out against manual or generic short path molecular distillation equipment — measured on the dimensions buyers care about most.

Vacuum Flow & Adhesion
CECLE QYMDThe QYMD Series Short Path Distillation system operates by minimizing the distance vapor must travel before condensing, ensuring high-purity separation at significantly lower boiling points under high vacuum conditions
Weak Vacuum SourceInsufficient suction leaves film lifted, bubbles trapped and seals loose under load.
Thermal Response & Heating System
CECLE QYMDIts core advantages include: High Purity & Non-Destructive Separation : The system enables distillation at much lower temperatures. This perfectly preserves heat-sensitive compounds, such as active.
Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.
Pressure Consistency
CECLE QYMDThe CECLE Short Path Molecular Distillation Equipment holds working pressure steady across batches, cutting weak-output rejects.
Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.
Output Speed & Throughput
CECLE QYMDIt is tuned for continuous commercial throughput with minimal idle time.
Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Technical Specifications

Model Main Evaporator Dia (mm) Evaporation Efficiency (m²) Crude Oil Processing Capacity (kg/hr) Feed Tank Volume (L) Power (W) / Speed (RPM) Operating Temperature
QYMD-60D 60 0.06 0.1 - 2 1.0 L 90W / 450 RPM -90°C to 200°C
QYMD-80D 80 0.10 0.3 - 4 1.5 L 120W / 450 RPM -90°C to 200°C

Compatible Applications & Materials

  • industrial products — primary target products for this Short Path Molecular Distillation Equipment line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Setup: connect the required power / air supply and verify the control display.
  2. Parameter preset: set speed / temperature / pressure per the product spec.
  3. Material loading: place the product in the correct fixture / mold slot.
  4. Execution: start the cycle; monitor for stable, repeatable output.
  5. Quality check: inspect the first units; adjust if deviation appears.
  6. Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What materials are most suitable for processing with the QYMD series distillation equipment?
A: It is highly favored for the purification and separation of high-boiling-point, heat-sensitive, and easily oxidizable materials. It is widely used in botanical extraction (such as crude oil and essential oil purification), pharmaceuticals, and fine chemicals, as it extracts pure compounds without degrading their active ingredients.

Can this equipment run continuously, or is it batch-only?
A: The QYMD-60D and QYMD-80D models are designed with automatic continuous feeding and discharging mechanisms. This allows for continuous processing (up to 4 kg/hr on the 80D model) without needing to stop the machine to empty or refill tanks, greatly improving production efficiency.

What vacuum level can this system achieve, and why is it important?
A: The system is equipped with a high-performance diffusion pump setup that can achieve a deep vacuum level of 0.1Pa. This extreme vacuum environment drastically lowers the boiling point of the target materials, ensuring that heat-sensitive compounds can be safely evaporated and separated at much lower temperatures.

What routine maintenance keeps the QYMD stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the QYMD handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — QYMD

Related CECLE Machines

Request a Quote

Send your product specifications, target output and format details to CECLE for a tailored configuration, lead time and factory-direct quotation.
