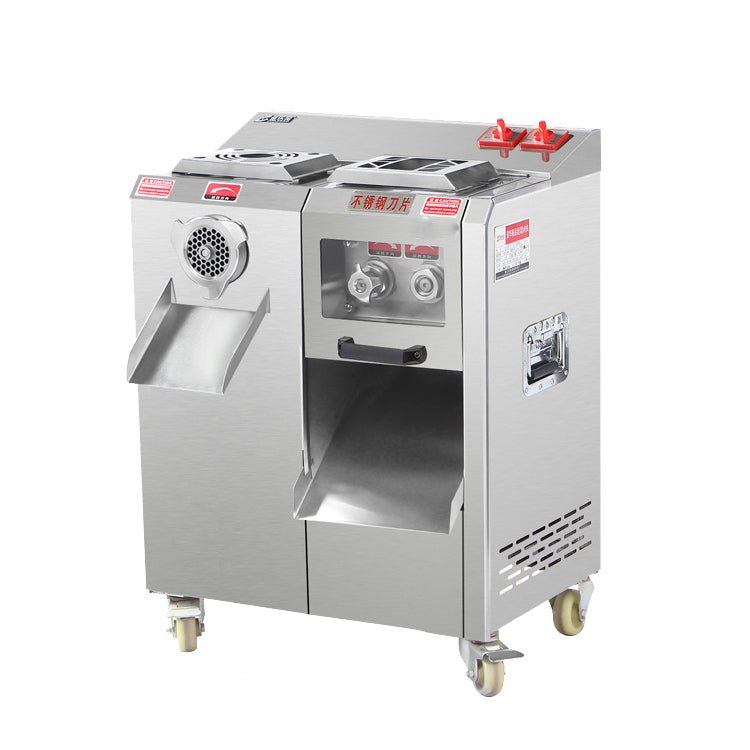

VMG-2200 Vertical Meat Grinder for Food Processing (Electric Drive)

Name: VMG-2200
Brand: CECLE
Price: 3499.0 USD
Availability: InStock

$3,499.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model VMG-2200

Voltage 110V 220V

Shipping Method By sea to door

Quick Answer: The CECLE VMG-2200 to maintain machine stability, operator safety, and extended blade life during continuous commercial operation, adhere strictly to the following.

CECLE VMG-2200 vs. Traditional / Generic Alternative

Where the CECLE VMG-2200 stands out against manual or generic grinder — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE VMG-2200The CECLE Grinder holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE VMG-2200Rated 300 kg/h (Approx. 660 lbs/h) Grinding Capacity: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE VMG-2200Purpose-Built Rated Motor Power: 2.2 kW Pure Copper High-Torque Motor drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE VMG-2200Industrial-Reinforced Frame: 92 kg (Heavy-duty floor chassis, anti-vibration) Net Weight chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<60 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Key Technical Parameter	VMG-2200 Detailed Specification
Model	VMG-2200
Equipment Name	Commercial Vertical Electric Meat Grinder & Slicer Combo
Rated Motor Power	2.2 kW Pure Copper High-Torque Motor
Operating Voltage	110V / 220V (50Hz / 60Hz; optional regional plug configurations)
Grinding Capacity	300 kg/h (Approx. 660 lbs/h)
Slicing Capacity	400 kg/h (Approx. 880 lbs/h)
Standard Slicing Thickness	3.5 mm (2nd pass for shreds, 3rd pass for dice)
Dimensions (L × W × H)	65 × 52 × 78 cm
Net Weight	92 kg (Heavy-duty floor chassis, anti-vibration)
Construction Material	Food-Grade Heavy Stainless Steel Body / Hardened Alloy Cutters

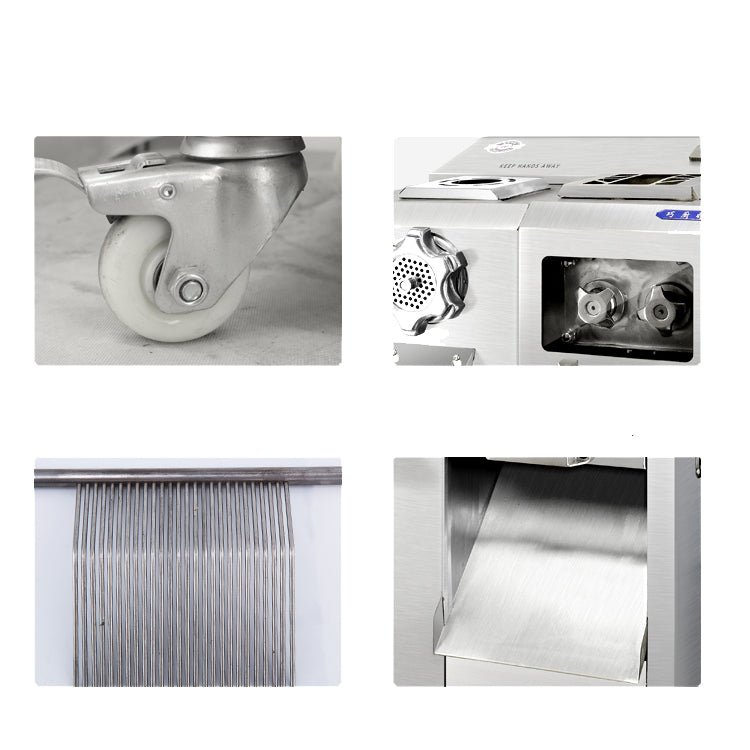

Mobility & Locking	4 Heavy-Duty Industrial Swivel Casters with Dual Pedal Brakes

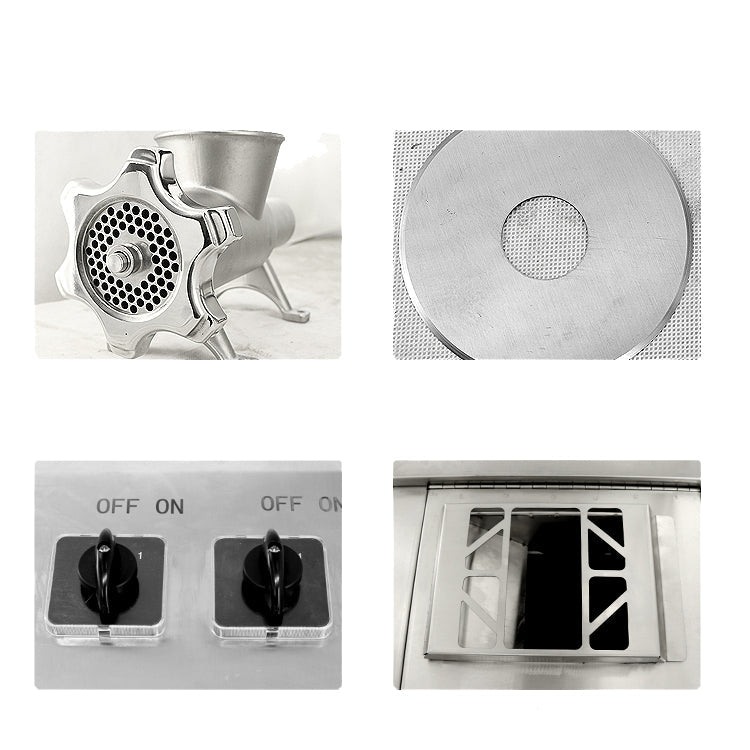

Safety Control System	Waterproof/Dustproof Mechanical Switch, Safety Guard, Safety Pusher Plunger

Pre-installation requirements: Rated Motor Power: 2.2 kW Pure Copper High-Torque Motor; Dimensions (L × W × H): 65 × 52 × 78 cm; Net Weight: 92 kg (Heavy-duty floor chassis, anti-vibration).

Compatible Applications & Materials

industrial products — primary target products for this Grinder line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

To maintain machine stability, operator safety, and extended blade life during continuous commercial operation, adhere strictly to the following procedures:

Engineering FAQ

Can the slicing and grinding stations operate at the same time? Does it require constant tool swapping?
A: Yes, they can run simultaneously without changing tools. The VMG-2200 features an integrated dual-station head driven by a robust single transmission system. Both zones are physically separated, allowing one operator to slice fresh stir-fry meat while an assistant simultaneously grinds burger or dumpling mince on the other side, greatly accelerating multi-dish prep workflows.

Can this machine handle meat with light sinew? Does the ground meat heat up or turn pale?
A: Yes. Powered by a 2.2 kW high-torque motor combined with hardened rotary blades and a razor-ground cross cutter, the VMG-2200 cleanly cuts through light connective tissue and trimmed cuts without dragging or stalling. The mincing barrel features progressive flighting that extrudes product quickly, keeping dwell time low and limiting temperature rise to a negligible range. This locks in moisture and fat integrity, keeping the meat fresh, bright, and springy.

Weighing 92 kg, is the machine difficult to move and clean after shifts?
A: Not at all. The base is fitted with 4 heavy-duty industrial swivel casters, allowing a single person to roll the unit across flat kitchen floors easily. When cleaning is needed, release the wheel brakes to roll it aside. For teardown, the left grinding components (ring, plate, knife, auger) detach by hand without tools; the right slicing section cleans rapidly using a spray wand and long-handled brush. Routine maintenance is straightforward and fast.

What power supply does the VMG-2200 require?
A: The VMG-2200 runs on 2.2 kW Pure Copper High-Torque Motor Rated Motor Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What routine maintenance keeps the VMG-2200 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the VMG-2200 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
