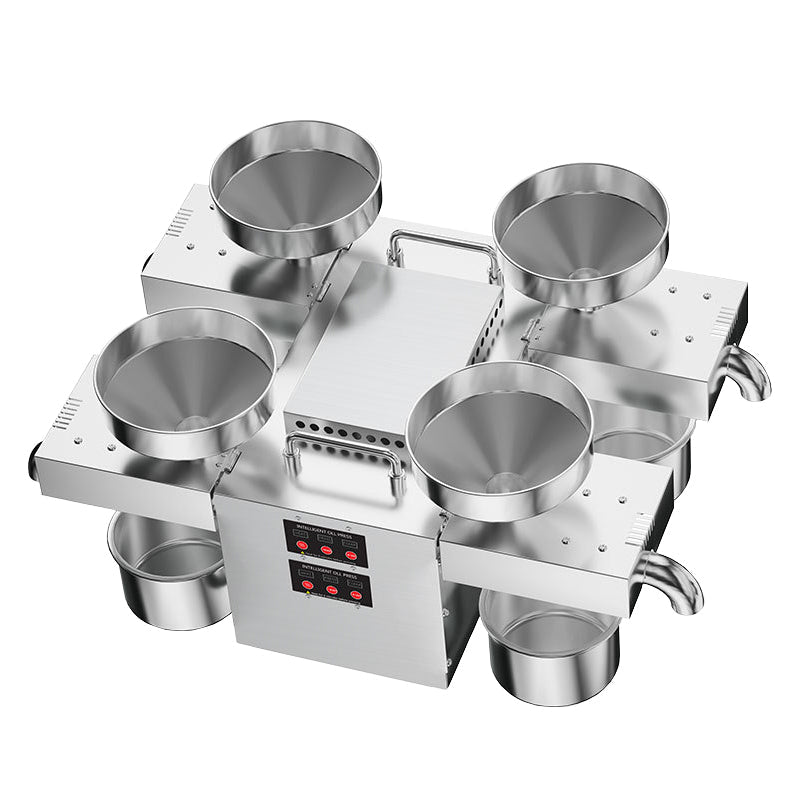

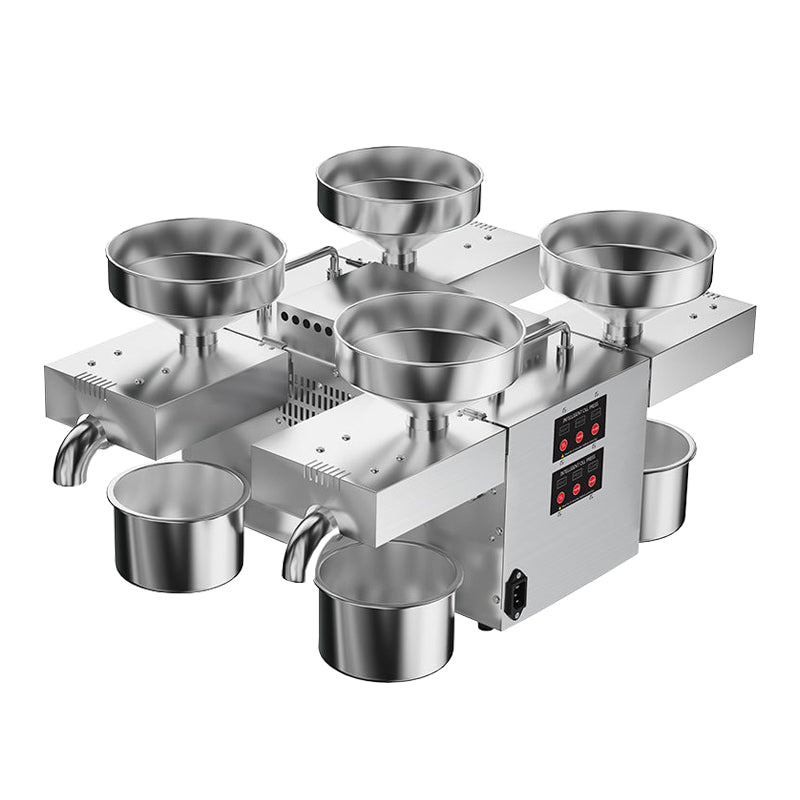

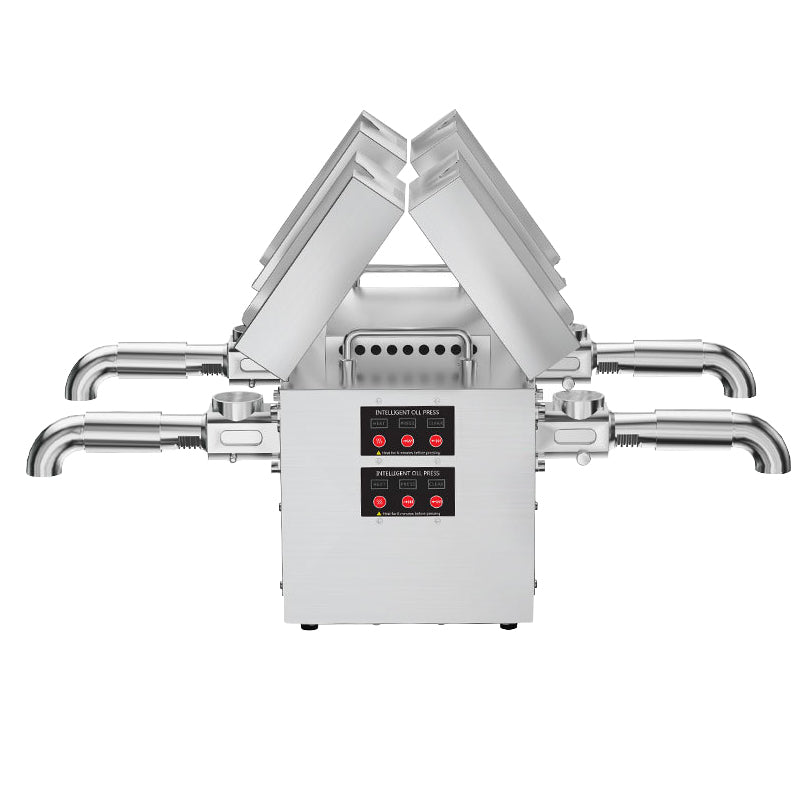

B04 4-Head Screw Oil Press for Peanuts & Sesame (Stainless Steel)

$1,099.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model B-04

Plug 220v50hz(European plug） 220v50hz(USA plug） 110V60hz(European plug） 110V60hz(USA plug)

By express to door About 7-14 days (Excluding tariffs） Ocean+Express US (20-30 days) Truck+Express EU (40-50 days)

Quick Answer: The CECLE B04 is a 4-Head Screw Oil Press with an hourly raw material throughput of 12 – 25 kg/h (approx. 26–55 lbs/h, varies by oilseed), engineered for stable, repeatable commercial-scale production.

CECLE B04 vs. Traditional / Generic Alternative

Where the CECLE B04 stands out against manual or generic 4-head screw oil press — measured on the dimensions buyers care about most.

Working Capacity & Batch Size

CECLE B04Hourly Raw Material Throughput: 12 – 25 kg/h (Approx. 26–55 lbs/h, varies by oilseed)

Bench-Scale Batch SizeRated for a handful of pieces per cycle, so a full production day needs repeated passes and extra hands to keep up.

Power & Drive Rating

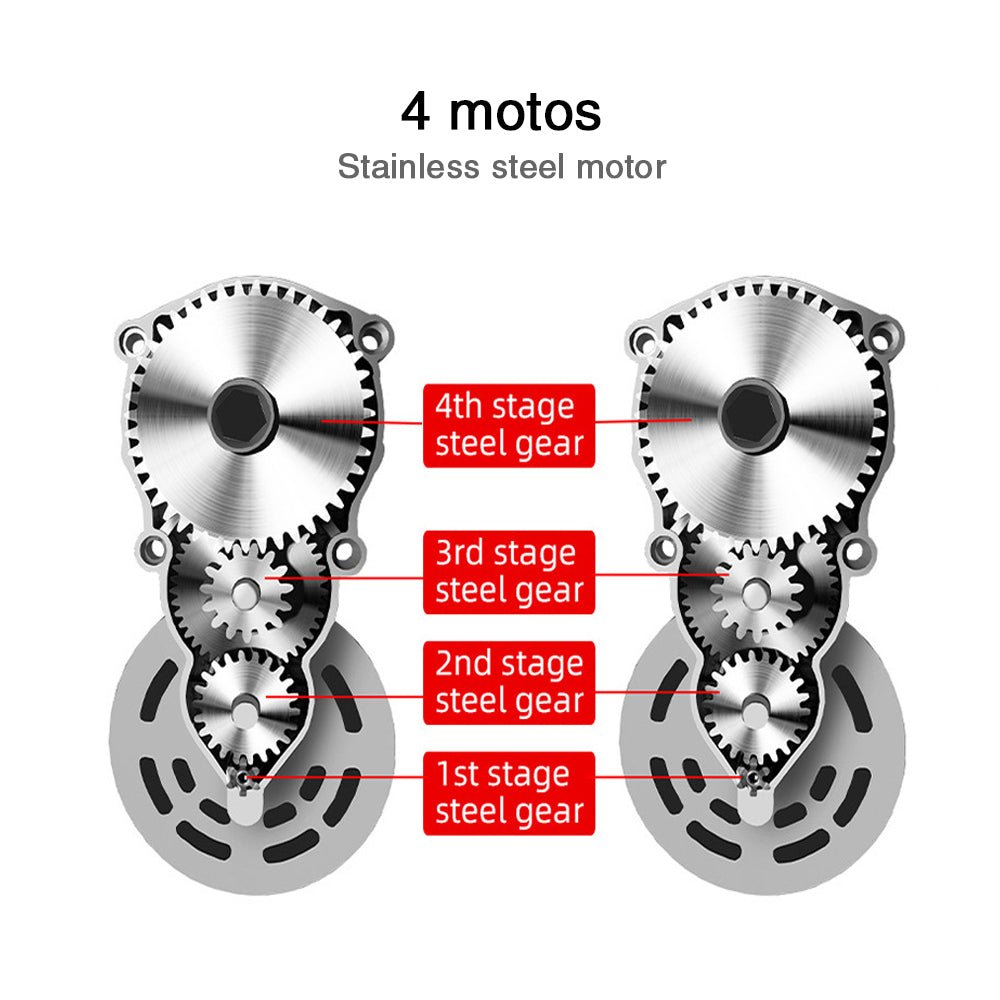

CECLE B04Motor Drive Rated Power: 0.3 kW (Per Channel) / 1.2 kW (Combined 4-Channel Drive)

Unrated Wiring & Oversized LoadNo earthing or overload protection for continuous shifts; leads and terminals run hot at peak draw, and the motor bogs down under load.

Footprint & Working Envelope

CECLE B04Overall Machine Dimensions (L×W×H): 560 × 390 × 300 mm (Approx. 22.0″ × 15.3″ × 11.8″)

Bench-Scale EnvelopeBuilt around one small working envelope, so anything larger than the sample has to be split across several passes or handed off to an outside shop.

Chassis Mass & Stability

CECLE B04Equipment Net Weight (NW): Approx. 23.5 kg (51.8 lbs)

Light Sheet-Metal FrameToo little mass to absorb recoil and vibration, so the unit creeps across the bench and fasteners work loose within weeks.

Technical Specifications

Technical Parameters	B04 Commercial & Household Portable 4-Head Oil Press
Model	B04
Rated Operating Voltage	110V / 220V (50/60Hz)
Motor Drive Rated Power	0.3 kW (Per Channel) / 1.2 kW (Combined 4-Channel Drive)
Hourly Raw Material Throughput	12 – 25 kg/h (Approx. 26–55 lbs/h, varies by oilseed)
Pressing Architecture	4-Channel Progressive Helical Compression (Cold / Hot Dual Mode)
Physical Oil Extraction Yield	42% – 65% (Peanuts: 45–52%, Roasted Sesame: 50–55%)
Overall Machine Dimensions (L×W×H)	560 × 390 × 300 mm (Approx. 22.0″ × 15.3″ × 11.8″)
Equipment Net Weight (NW)	Approx. 23.5 kg (51.8 lbs)
Packaging Dimensions / Gross Weight	620 × 450 × 280 mm / Approx. 26.0 kg (57.3 lbs)

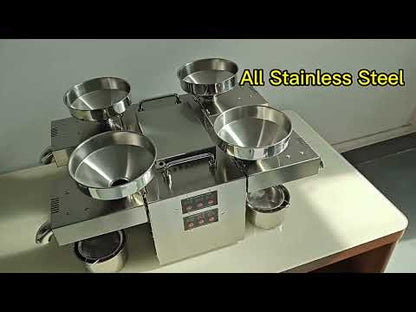

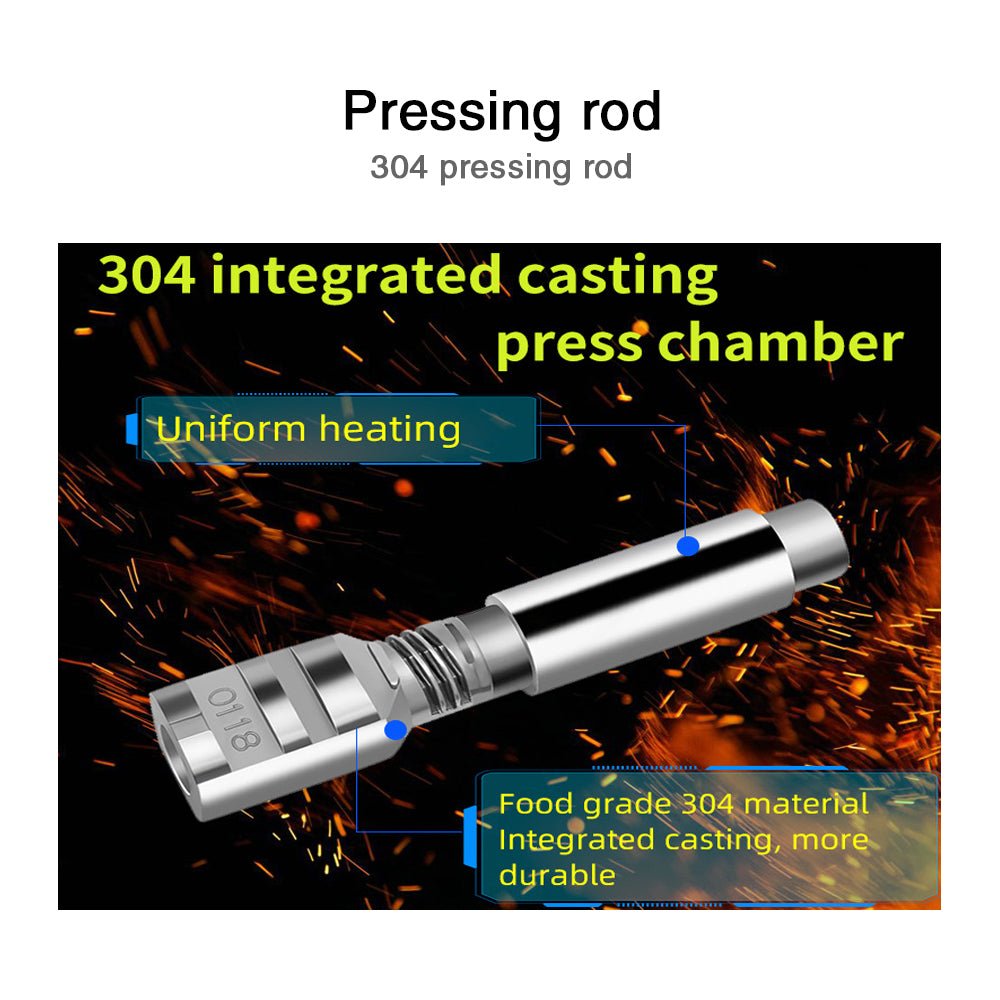

Chassis & Component Metallurgy	Food-grade SUS Stainless Steel casing + High-frequency quenched alloy screws/barrels
Compatible Oilseed Varieties	Peanut kernels, black/white sesame, sunflower seeds, walnut kernels, flaxseed, rapeseed, dried copra, pitted palm, pitted olive, pumpkin seed, almond, soybean
Global Logistics Solutions	International Air Express Door-to-Door (7–14 Days) / Ocean Freight DDP to Door (45–55 Days)

Pre-installation requirements: Rated Operating Voltage: 110V / 220V (50/60Hz); Motor Drive Rated Power: 0.3 kW (Per Channel) / 1.2 kW (Combined 4-Channel Drive); Overall Machine Dimensions (L×W×H): 560 × 390 × 300 mm (Approx. 22.0″ × 15.3″ × 11.8″); Equipment Net Weight (Nw): Approx. 23.5 kg (51.8 lbs); Packaging Dimensions / Gross Weight: 620 × 450 × 280 mm / Approx. 26.0 kg (57.3 lbs).

Compatible Applications & Materials

industrial products — primary target products for this 4-Head Screw Oil Press line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

To ensure balanced extraction across all four channels, prolong alloy screw working life, and prevent barrel clogging, strictly adhere to the following protocol:

Engineering FAQ

What is the primary operational advantage of a 4-head press over a single-head machine?
A: The core advantage is delivering commercial-scale throughput within a compact, countertop-friendly footprint : Multiplied Hourly Throughput : While single-head units extract only 3–5 kg per hour, Model B04's four parallel channels process 12–25 kg per hour—a 4x to 5x increase in operational efficiency; Accessible Household Power : High output without demanding 380V industrial three-phase power; it runs on standard single-phase 110V or 220V outlets with a total draw of just 1.2 kW; Space-Saving Portability : Measuring just 56 × 39 cm and weighing 23.5 kg, it eliminates the need for massive factory floor space or permanent structural tables.

Why does fresh-pressed oil appear slightly hazy or cloudy? Is an expensive centrifugal filter required?
A: No expensive commercial filter is needed. Fresh, unrefined virgin oil naturally carries micro-particles of plant fiber and natural phospholipids immediately after extraction. Simply pass the oil through the included fine-mesh screen into a clean container and let it settle in a cool, dark location for 12 to 24 hours . Gravitational settling precipitates all botanical fines to the bottom, leaving crystal-clear, aromatic virgin oil on top.

When all 4 channels run concurrently, can a single clogged channel burn out the motor?
A: No. The B04 power control system includes integrated thermal overload protection. The drive channels feature isolated dynamic load management. If foreign material causes a channel to stall, the motor protection safeguards against thermal damage. Operators can easily clear feed obstructions using the dedicated one-touch "Reverse" function.

What power supply does the B04 require?
A: The B04 runs on 110V / 220V (50/60Hz) Rated Operating Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the B04?
A: Beyond the rated 110V / 220V (50/60Hz) Rated Operating Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the B04 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
