CECLE Machine

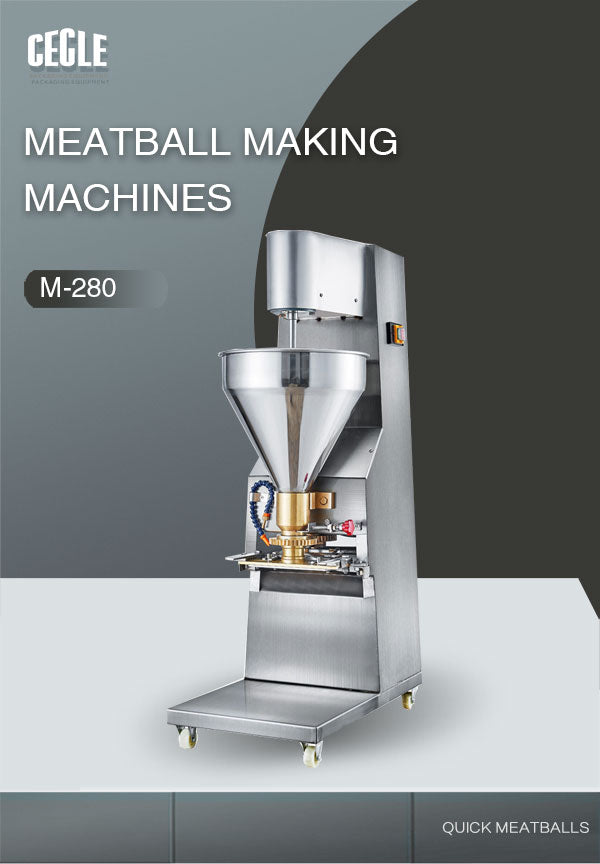

Commercial Automatic Meatball and Fish Ball Making Machine

$1,950.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model M-280

Meat ball size 16/18/22/26mm

Shipping method By sea to door about (45-60days)

Quick Answer: The CECLE Craftsmanship & Engineering Highlights.

CECLE vs. Traditional / Generic Alternative

Where the CECLE stands out against manual or generic meatball forming machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE The CECLE Meatball Forming Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE Rated 200 – 300 kg/h (Approx. 200–300 pieces/min) Production Capacity: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE Purpose-Built Motor Power: 1.1 kW / 2.2 kW (Pure Copper High-Torque Motor) drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE Industrial-Reinforced Frame: Approx. 71 kg – 120 kg (Heavy-duty anti-vibration chassis) Net Weight chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<40 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Technical Parameter	Specification / Technical Details
Model	M-160 / SX-120 Commercial Automatic Meatball Forming Machine
Motor Power	1.1 kW / 2.2 kW (Pure Copper High-Torque Motor)
Operating Voltage	220V / 110V / 380V (Configurable with regional industrial plugs)
Production Capacity	200 – 300 kg/h (Approx. 200–300 pieces/min)
Forming Mold Diameters	Standard/Optional: 16 / 18 / 22 / 26 mm (Large-size variant: 40 / 45 / 50 / 60 mm)
Dimensions (L × W × H)	Approx. 38 × 68 × 112 cm (High-power chassis: 44 × 78 × 160 cm)
Net Weight	Approx. 71 kg – 120 kg (Heavy-duty anti-vibration chassis)
Construction Material	Food-Grade Stainless Steel Body / Wear-Resistant Brass Mold / Alloy Cutters
Mobility System	4 Heavy-Duty Industrial Locking Swivel Casters + Waterproof Switch Controls
Compatible Products	Beef Balls, Pork Balls, Fish Balls, Chicken Balls, Chaozhou Meatballs, Squid Balls, etc.

Pre-installation requirements: Motor Power: 1.1 kW / 2.2 kW (Pure Copper High-Torque Motor); Net Weight: Appro × . 71 kg – 120 kg (Heavy-duty anti-vibration chassis).

Compatible Applications & Materials

industrial products — primary target products for this Meatball Forming Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

To maintain consistent forming quality, operational longevity, and operator safety, adhere strictly to the following procedures:

Engineering FAQ

Can the meatball diameter be adjusted? Is mold changeover difficult?
A: Yes, meatball diameter is adjusted by swapping the quick-change mold core. The machine accommodates multiple standard die diameters (16 mm, 18 mm, 22 mm, 26 mm, or 40–60 mm on large models). Built with a quick-release collar mechanism, operators can change out the mold set in 3–5 minutes by loosening the retaining collar and sliding the module in or out.

How consistent is the sphericity and texture? Can it handle paste mixed with vegetable bits (water chestnuts, mushrooms)?
A: Sphericity and texture are consistent and repeatable. The variable-pitch auger compresses the paste to remove internal voids, and the reciprocating blade shears clean edges that settle into round spheres upon entering the water bath. As long as vegetable bits or mushroom dices are smaller than the die aperture and free of hard bones or pits, the machine runs smoothly without clogging.

Is the machine easy to clean? Will meat residue build up and cause odor issues?
A: Daily cleaning is simple and fast. The hopper, feed tube, extrusion auger, and mold cutting modules are designed for tool-free disassembly. Operators can dismantle the food-contact path in a few minutes and wash components in a standard pot sink, leaving no blind hygiene corners.

What power supply does the require?
A: The runs on 1.1 kW / 2.2 kW (Pure Copper High-Torque Motor) Motor Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What routine maintenance keeps the stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
