VC-10B Vacuum Capping Machine for Glass Jars & Bottles (Pneumatic Drive)

$4,699.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model VC-10B VC-110

Shipping method free shipping by express(7-10 days)

Place of shipment shipping from China

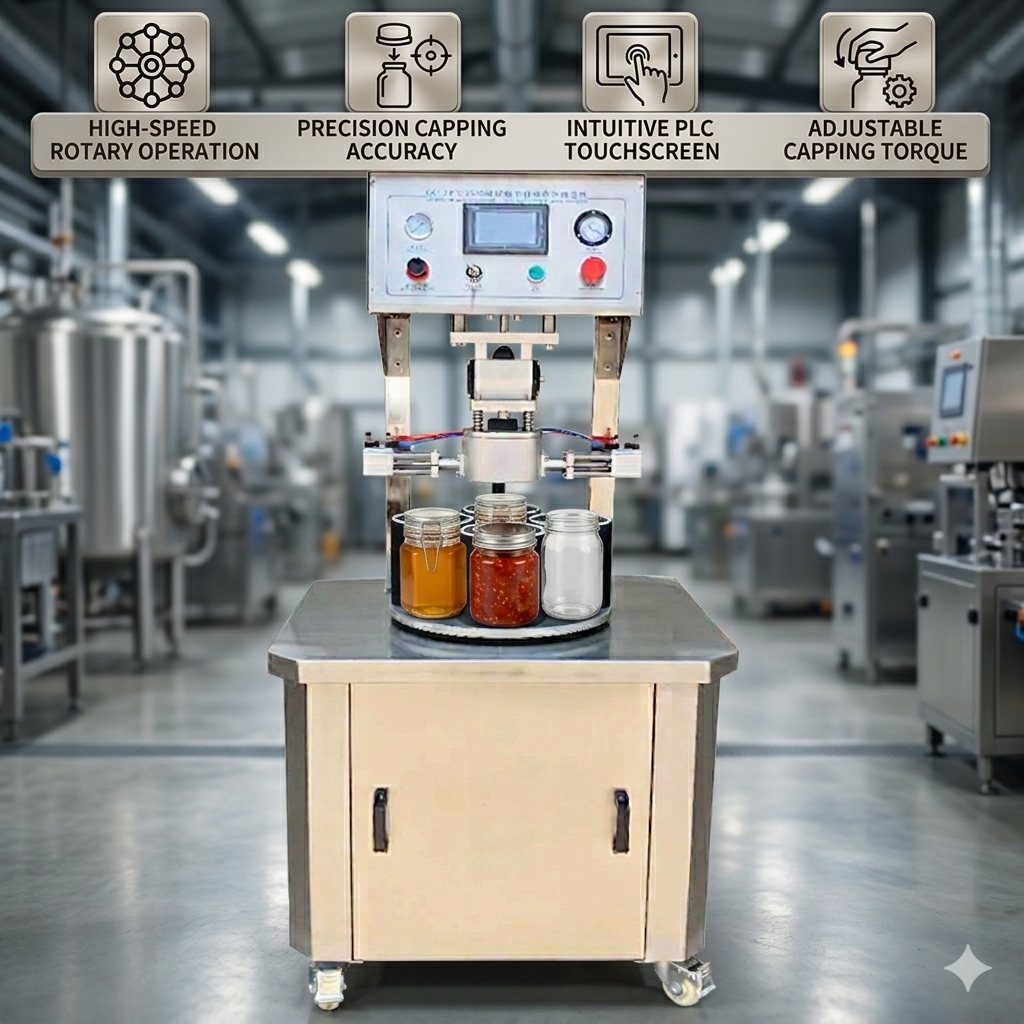

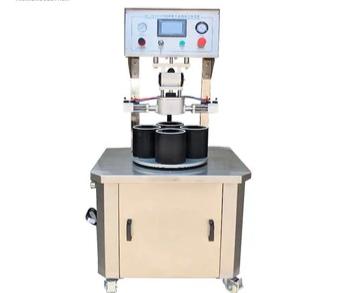

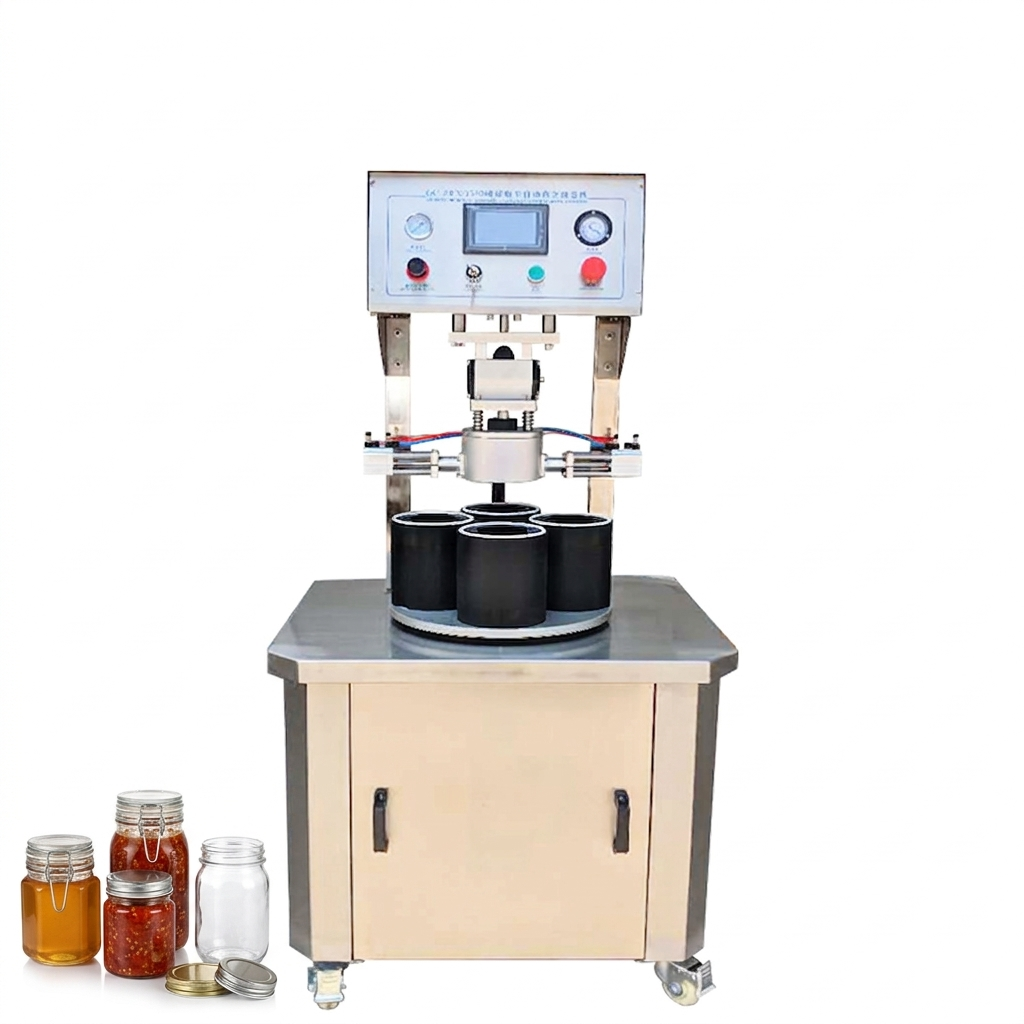

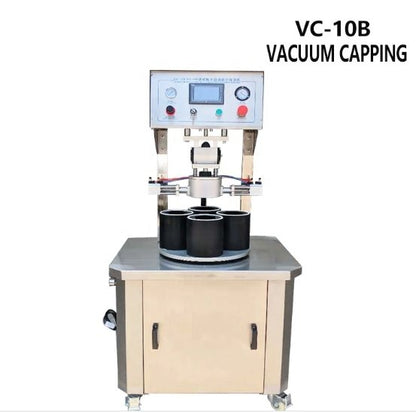

Quick Answer: The CECLE VC-10B is a high-efficiency semi-automatic vacuum capping machine designed for glass jars and bottles.

CECLE VC-10B vs. Traditional / Generic Alternative

Where the CECLE VC-10B stands out against manual or generic vacuum capping machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE VC-10BMechatronic & Pneumatic Integration : Compact and reasonable structure with high space utilization efficiency

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Chassis Rigidity & Vibration Resistance

CECLE VC-10BHigh Stability : Key pneumatic and electrical components are from world-renowned brands, ensuring stable performance, high reliability, and low failure rate

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Vacuum Flow & Adhesion

CECLE VC-10BExcellent Vacuuming : Vacuum degree reaches up to 0.08 Mpa, ensuring food safety

Weak Vacuum SourceInsufficient suction leaves film lifted, bubbles trapped and seals loose under load.

Sealing / Transfer Quality

CECLE VC-10BWide Applicability : Adjustable capping torque ranging from 5 to 25 N.M, adapting to various cap specifications

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Technical Specifications

Technical Items	Specifications
Model	VC-10B
Power Supply	AC 110–220V / 50–60Hz
Power	≤ 1 kW (including vacuum pump)
Capping Speed	600–800 bottles/hour (bots/h)
Vacuum Degree	0.08 Mpa
Capping Torsion	5–25 N.M (adjustable)
Air Consumption	0.15 m³/min, 0.7 Mpa
Machine Size	750 * 700 * 1350 mm (L W H)
Automatic Level	Semi-automatic

Pre-installation requirements: Power Supply: AC 110–220V / 50–60Hz; Power: ≤ 1 kW (including vacuum pump). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Vacuum Capping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

Does operating this machine require an additional air compressor (air pump)?
A: Yes, it does. The machine relies on pneumatic control for operation and must be connected to an external air compressor. It is recommended to use an air compressor capable of delivering 0.7 Mpa pressure with a displacement of at least 0.15 m³/min to ensure stable machine performance.

How long is the warranty period?
A: The entire machine comes with a 1-year warranty. During the warranty period, damaged parts under normal operation according to the manual will be repaired or replaced free of charge (customer covers shipping costs).

How is technical support provided after the warranty period?
A: We provide lifetime maintenance support and service.

Is on-site service available?
A: If an engineer is required for on-site guidance, the customer will need to cover round-trip travel expenses and accommodation.
