Can accessories be interchanged among the three models?

Accessories within the maximum bag width of a specific model can be shared; exceeding the maximum length requires model-specific configuration parts.

Is operation difficult, and is training required?

Featuring a touch screen interface, this is an automated bag-making system. Operators can start working independently after receiving manufacturer technical training.

1 4

CECLE Machine

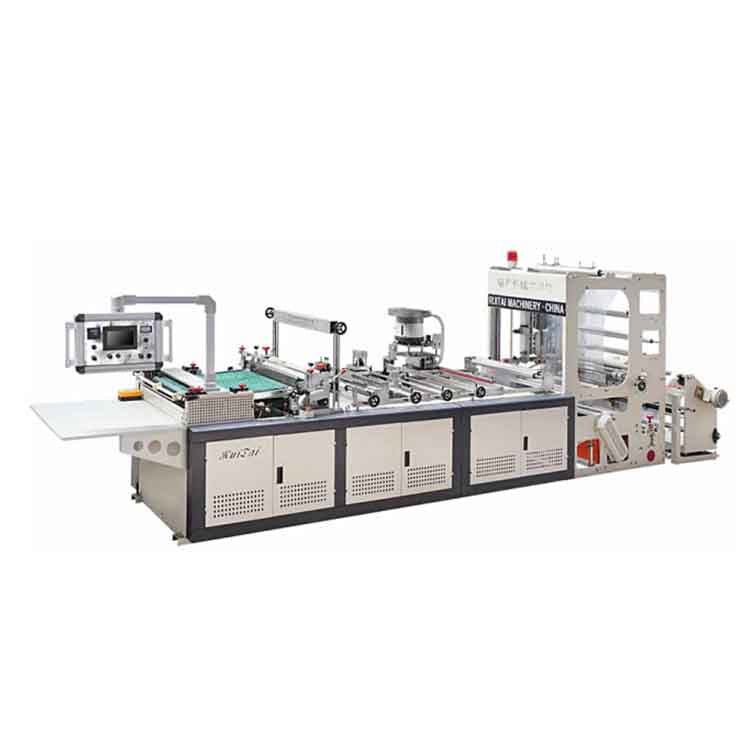

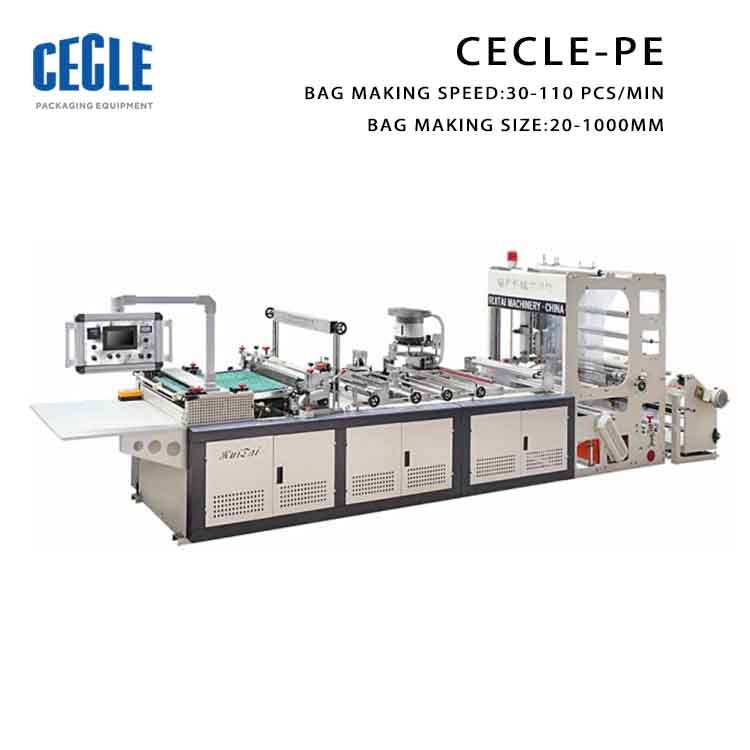

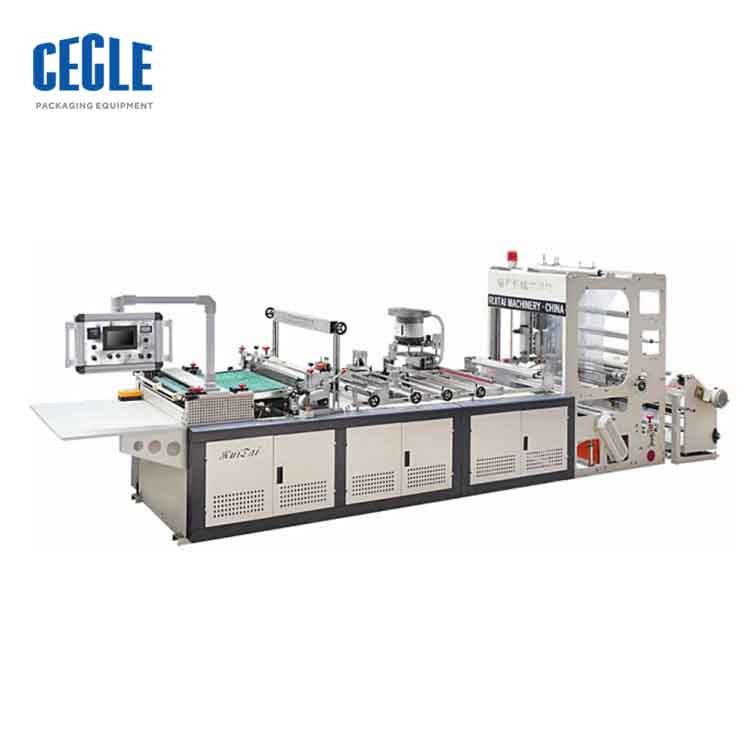

PE800 / PE900 / PE1000 Automatic High-Frequency Zipper Bag Making Machine

$29,580.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model PE800 PE900 PE1000

Shipping method By sea to port By sea to door without tax

Shipping from China

Download Product PDF

Core Abstract: PE Series High-Frequency Zipper Bag Machine

The PE800, PE900, and PE1000 series are fully automatic high-frequency zipper bag making machines engineered for producing high-quality PE and PVC self-sealing zipper bags. Perfect for packaging manufacturers and garment accessory suppliers, these machines feature advanced PLC touch-screen controls, servo-driven feeding, and automated zipper feeding and thermal welding. Delivering stable output speeds of 30 to 110 pieces per minute with exceptional seal integrity and precise photoelectric tracking, they provide an efficient, customizable solution for garment storage and retail packaging.

📖 Need comprehensive technical guidelines or wiring instructions? Read our official PE Series Technical Documentation & Manual.

PE800 PE900 PE1000 Automatic High-Frequency Zipper Bag Making Machine overview

1. Product Overview & Model Selection

The PE series is available in three high-performance models classified by their bag length capacity:

PE800: The standard mainstream model, ideal for conventional PE/PVC zipper bag production.
PE900: Extends the maximum bag length to broaden product specifications.
PE1000: Designed for extra-long zipper bags, perfect for large storage and oversized packaging bags.

2. Technical Parameters Comparison

Parameter	PE800	PE900	PE1000
Bag Width	20‑1000 mm
Max Bag Length	690 mm	790 mm	890 mm
Working Speed	30‑110 Pcs/min	30‑105 Pcs/min	30‑100 Pcs/min
Applicable Materials	PE, PVC plastic films
Control System	PLC + Touch screen, servo feeding, photoelectric tracking, magnetic powder tension control

3. Key Advantages

High-Frequency Thermal Welding: Ensures firm bonding between the zipper and bag body, smooth zipper opening/closing, and superior seal integrity.
Automated Zipper Feeding: Integrated automatic zipper feeding and thermal welding eliminates manual pre-application, saving substantial labor costs.
Servo-Driven Feeding & Photoelectric Tracking: Delivers precise positioning for printed bags and stable dimensions.
Tension Unwinding System: Magnetic powder tension control ensures smooth material feeding and minimizes film stretching distortion.

4. Frequently Asked Questions (FAQs)

Q1: What voltage does the equipment require?
A1: Standard 3-phase 380V, supporting 50Hz/60Hz, with custom voltage available upon request.

Q2: Can it produce printed colorful zipper bags?
A2: Yes. Enable photoelectric color mark tracking and calibrate the marks for stable printed bag production. For more operational guides, visit our PE Series Technical Documentation.

Q3: Are wearing parts covered under warranty?
A3: The whole machine carries a 1-year warranty; thermal welding blades, cutting knives, and rubber rollers are excluded.

Q4: Is a matching air compressor necessary?
A4: Yes, pneumatic sealing and punching mechanisms require an external air compressor supplied by the customer.
