BS-2037 Desktop Auto-Slide Pneumatic Blister Sealing Machine | Heat Sealer for PVC/PET & Tyvek
BS-2037 Desktop Auto-Slide Pneumatic Blister Sealing Machine | Heat Sealer for PVC/PET & Tyvek
Couldn't load pickup availability
Work Smarter, Not Harder: The Auto-Slide Packaging Upgrade.

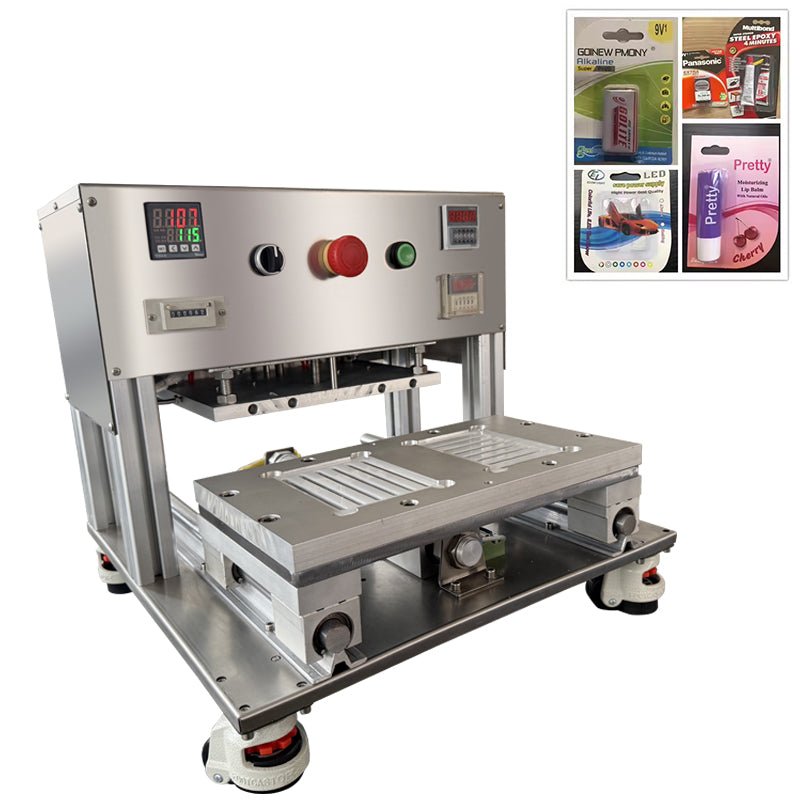

The BS-2037 Desktop Auto-slide Pneumatic Blister Sealing Machine is a highly efficient, semi-automatic packaging solution tailored for small to medium-sized packaging factories and processing plants. Unlike traditional manual push-pull models, the BS-2037 features a fully automatic sliding table and a robust pneumatic pressing cylinder. This design significantly reduces operator fatigue while guaranteeing uniform, firm, and flawlessly flat sealing edges for PVC/PET blisters and medical-grade Tyvek film.
➔ View the BS-2037 Official Technical Documentation Here.

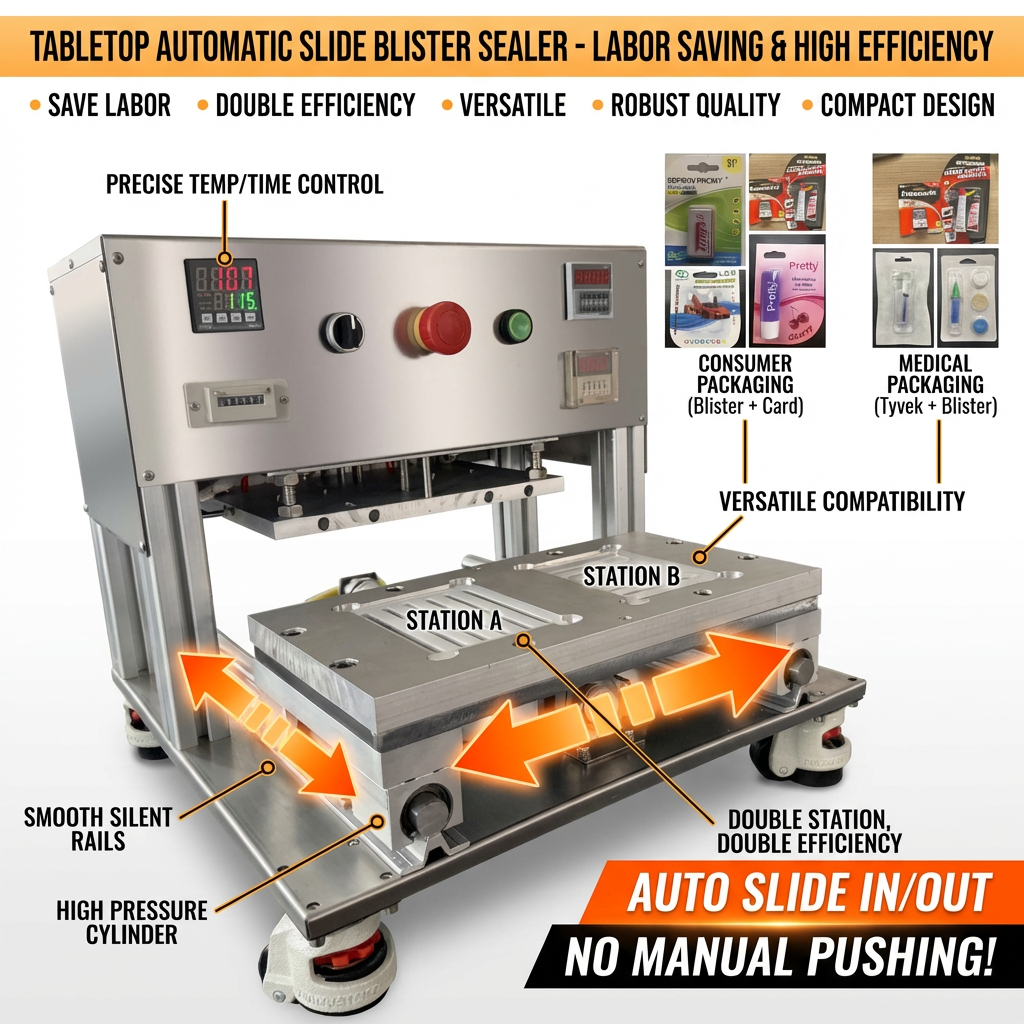

1. Core Advantages of the BS-2037 Auto-Slide System
- Fully Automatic Sliding Table: The workbench automatically moves in and out for the sealing process. Zero manual push-pull is required, drastically reducing labor intensity and boosting output to 15-20 pcs/min.
- Heavy-Duty Pneumatic Cylinder: Delivers highly stable and uniform sealing pressure (0.6–0.8 Mpa), ensuring blister packs and paper cards are firmly bonded without cracking or peeling.
- Dual-Station Efficiency: Features a generous 200×370 mm sealing platform that can accommodate custom multi-cavity molds, allowing you to seal multiple products simultaneously.
- Medical & Commercial Grade Compatibility: Equipped with a precise digital temperature controller, it seamlessly handles standard PVC/PET cards as well as medical-grade Tyvek films.
- Flexible Mobility: Built with a durable stainless-steel body and universal casters, it serves perfectly as a desktop unit or a standalone floor machine that can be easily moved around your workshop.
2. Technical Specifications
| Model | BS-2037 |
|---|---|
| Voltage | 110V / 220V (50Hz / 60Hz) |
| Effective Sealing Area | 200 × 370 mm (7.87 × 14.57 inch) |
| Working Speed | 15 - 20 pcs/min |
| Working Air Pressure | 0.6–0.8 Mpa (External Air Compressor Required) |
| Total Power | 1.8 KW |
| Machine Dimensions | 600 × 500 × 550 mm (23.62 × 19.69 × 21.65 inch) |
| Net Weight | 75 KG (165.35 lbs) |
3. How It Works (Semi-Automatic Cycle)
- Manually load products into PVC/PET blisters at the external loading station, then cover with a paper card or Tyvek film.
- Start the machine; the workbench automatically slides into the internal heating station.
- The pneumatic cylinder automatically presses down to apply high-temperature heat, bonding the materials firmly.
- Once the timer finishes, the cylinder lifts, and the workbench automatically slides out.
- Manually remove the finished products, reload the materials, and repeat the highly efficient cycle.

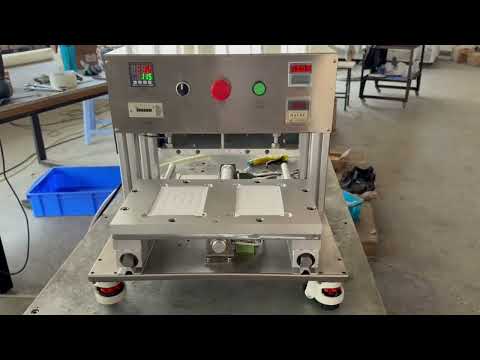

4. See the Auto-Slide Efficiency in Action
5. Frequently Asked Questions (FAQs)
Q1: Does the machine need an external air compressor?
A1: Yes. The BS-2037 adopts a pneumatic pressing structure to ensure a perfect seal. It must be equipped with a 0.6~0.8MPa external air compressor for normal operation.
Q2: Is the workbench automatic or manual push-pull?
A2: Unlike basic desktop models, the BS-2037 features a fully automatic sliding table design. The workbench moves in and out automatically, requiring zero manual dragging.
Q3: Are the sealing molds included as standard?
A3: No, molds are not included in the standard machine price. Because product shapes vary greatly, molds must be custom-made according to your specific blister and card dimensions.
Q4: Can this machine seal medical-grade Tyvek?
A4: Absolutely. The adjustable digital temperature control panel supports the heat sealing of Tyvek film to blisters, making it highly suitable for packaging medical small parts.
Looking for custom mold solutions or further technical support? Check our Online Documentation or contact our sales team directly.
