BS-2030 Desktop Pneumatic Blister Sealing Machine | Heat Sealer for PVC/PET & Paper Cards
BS-2030 Desktop Pneumatic Blister Sealing Machine | Heat Sealer for PVC/PET & Paper Cards
Couldn't load pickup availability
Professional-Grade Packaging in a Space-Saving Desktop Design.

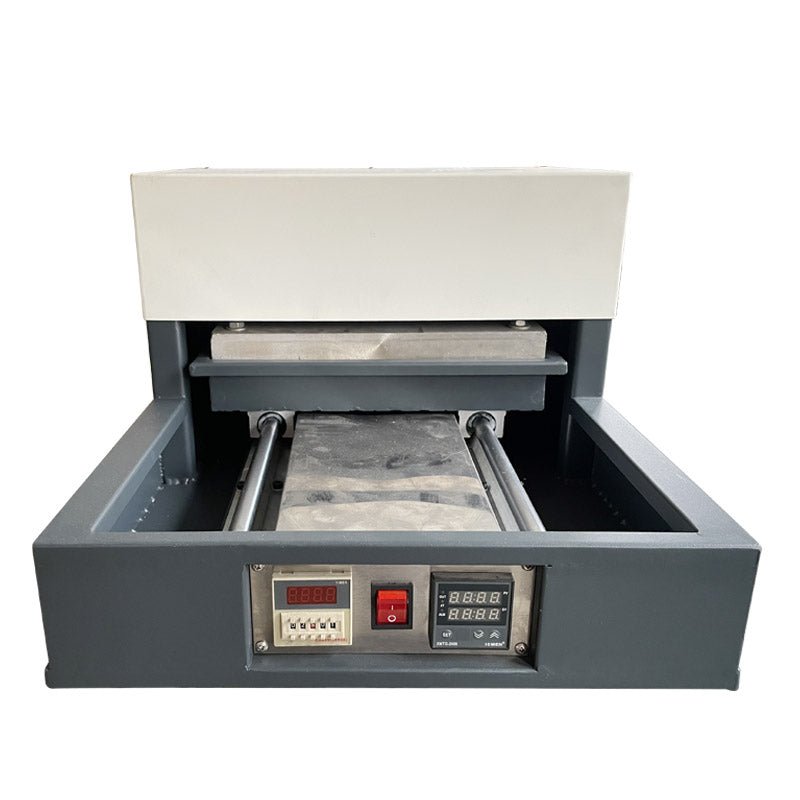

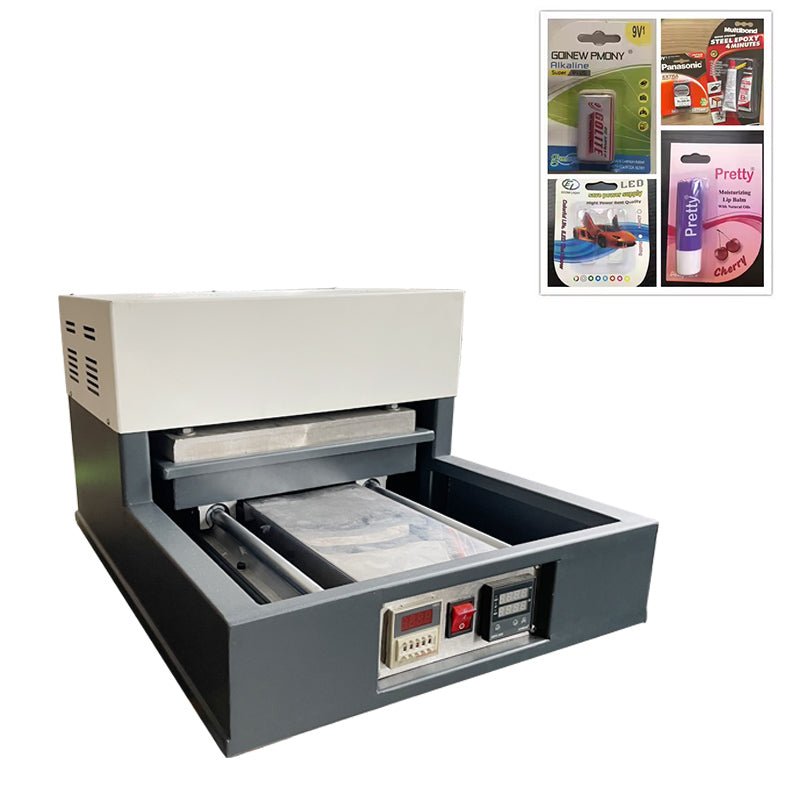

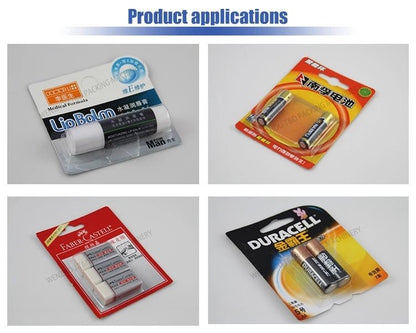

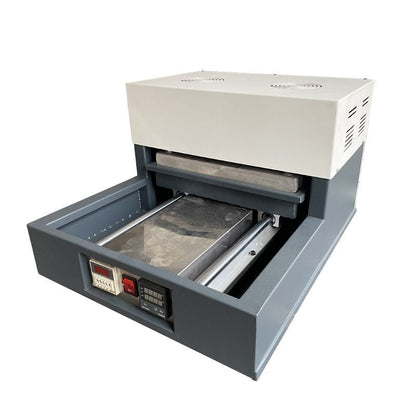

The BS-2030 Desktop Pneumatic Blister Sealing Machine is an efficient, compact heat sealer specifically engineered for seamlessly bonding PVC/PET blister packs to paper cards. It is the perfect, cost-effective packaging solution for small to medium-sized processing plants, workshops, and sample rooms across the electronics, hardware, daily necessities, and beauty industries.
➔ Access the official BS-2030 Technical Documentation here.
1. Why Choose the BS-2030 Desktop Sealer?
- Uniform Pneumatic Pressure: Powered by a robust pneumatic control system (0.6–0.8 Mpa), it guarantees uniform sealing pressure and superior, flat edge finishes that completely outperform manual hand-press models.

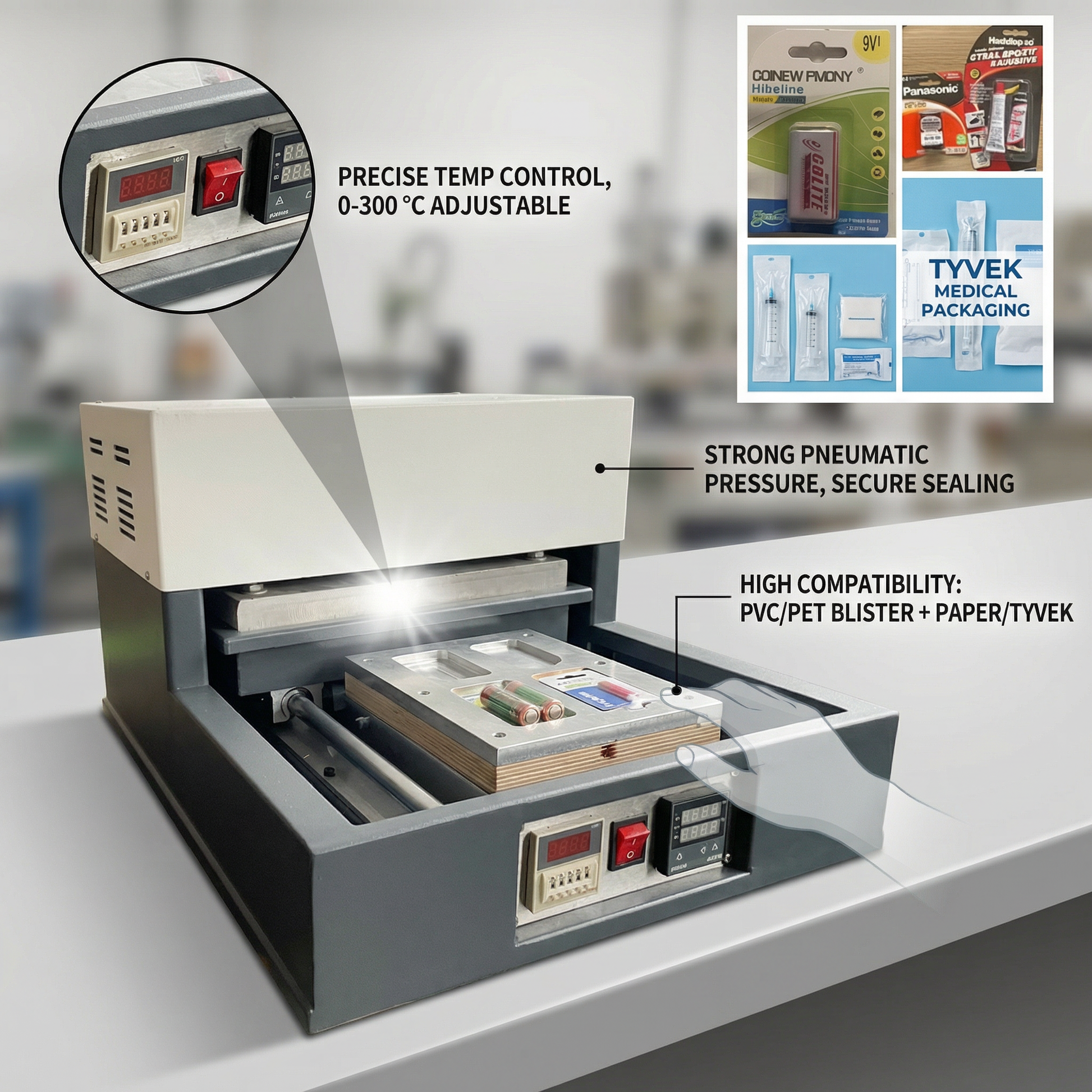

- Precise Digital Temperature Control: Easily adjust and lock in the exact temperature required for different blister materials (PVC, PET) to prevent melting or weak seals.
- Safe & Easy Push-Pull Operation: The manual push-pull mold plate ensures safe operation, keeping hands away from the heating zone during the sealing process.
- Compact & Freight-Friendly: Weighing only 35 KG, its tabletop design saves valuable workspace and significantly reduces express or air freight costs.
- Quick Mold Changeover: Ideal for small-batch, multi-variety packaging production where frequent mold changes for different specifications are required.
2. Technical Specifications
| Model | BS-2030 |
|---|---|
| Voltage | 110V / 220V (50Hz / 60Hz) |
| Effective Sealing Area | 200 × 300 mm (7.87 × 11.81 inch) |
| Working Air Pressure | 0.6–0.8 Mpa (External Air Compressor Required) |
| Working Speed | 10-15 pcs/min |
| Total Power | 1.8 KW |
| Net Weight | 35 KG (77.16 lbs) |
3. Simple 5-Step Operation Process
- Manually place the product into the plastic blister pack.
- Put the blister pack with the product into the customized mold plate and cover it with the paper card.
- Manually push the mold plate into the sealing station.
- The machine automatically presses down pneumatically to complete the heat sealing (based on preset timer).
- After the seal is complete, pull out the mold plate manually and remove the perfectly packaged product.

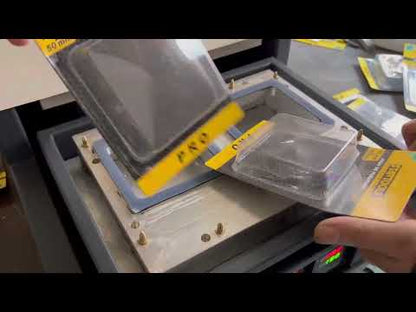

4. Operation Demonstration
5. Frequently Asked Questions (FAQs)
Q1: Does the machine require an air compressor?
A1: Yes. Because this is a pneumatic machine designed to provide professional-grade, uniform pressure, it must be connected to an external air compressor providing 0.6–0.8MPa to function.
Q2: Is the sealing mold included with the machine?
A2: No, the mold is not included in the standard machine price. Because blister shapes vary, molds must be customized separately based on your specific product dimensions.
Q3: Is the temperature adjustable for different materials?
A3: Yes, the machine features a digital temperature control panel, allowing you to easily adjust the heat for various materials, including PVC and PET.
Q4: Is this suitable for mass production lines?
A4: The BS-2030 is ideal for small-batch, multi-variety production, sample rooms, or small workshops (yielding 10-15 pcs/min). If you require continuous, high-volume mass production without manual pushing, we highly recommend viewing our Rotary Multi-Station Series.
For complete technical specifications, troubleshooting, and maintenance manuals, please visit our BS-2030 Documentation Center.
