Blister Packing & Cutting Machine for Tablets, Capsules & Pills | Manual, Electric & Pneumatic
Blister Packing & Cutting Machine for Tablets, Capsules & Pills | Manual, Electric & Pneumatic
Couldn't load pickup availability
Small-Batch Blister Packing & Cutting Machine Series | Manual, Electric, Pneumatic & Vertical Solutions for Tablets & Capsules
The Professional Small-Batch Blister Packaging Solution
Are you looking for a compact, efficient way to pack tablets, capsules, or small hardware? Our 180 Series Blister Machines offer five distinct solutions—from entry-level manual operation to fully automated vertical PLC systems. Whether you are a laboratory, a pharmacy, or a small factory, we have the right fit for your production needs.
📖 Technical Documentation:
For detailed installation guides, maintenance manuals, and troubleshooting, please visit our Blister Machine Series Technical Index.
🎬 Watch the Machines in Action
- Electric Sealing (ETBP-180): Watch Video
- Pneumatic Sealing (TBP-180): Watch Video
- Manual Sealing (MTBP-180): Watch Video
- Precision Cutting (ETBPC-180): Watch Video
- Photoelectric Control (DP-180): Watch Demo Video
[Section 1: Quick Selection Guide]
| Model | Drive Type | Air Compressor Req. | Best For | Max Area |
|---|---|---|---|---|
| MTBP-180 | Manual Lever | No | R&D, Small Labs | 140x180mm |
| TBP-180 | Pneumatic | Yes (6-8 bar) | Small Factories | 140x180mm |
| ETBP-180 | Electric Motor | No | High Efficiency | 140x180mm |
| DP-180 | Vertical Pneumatic | Yes (PLC Control) | Pro Sealing + Coding | 140x180mm |
| ETBPC-180 | Cutting Machine | No (Electric) | Edge Trimming | 140x180mm |
[Section 2: Deep Dive into Models]

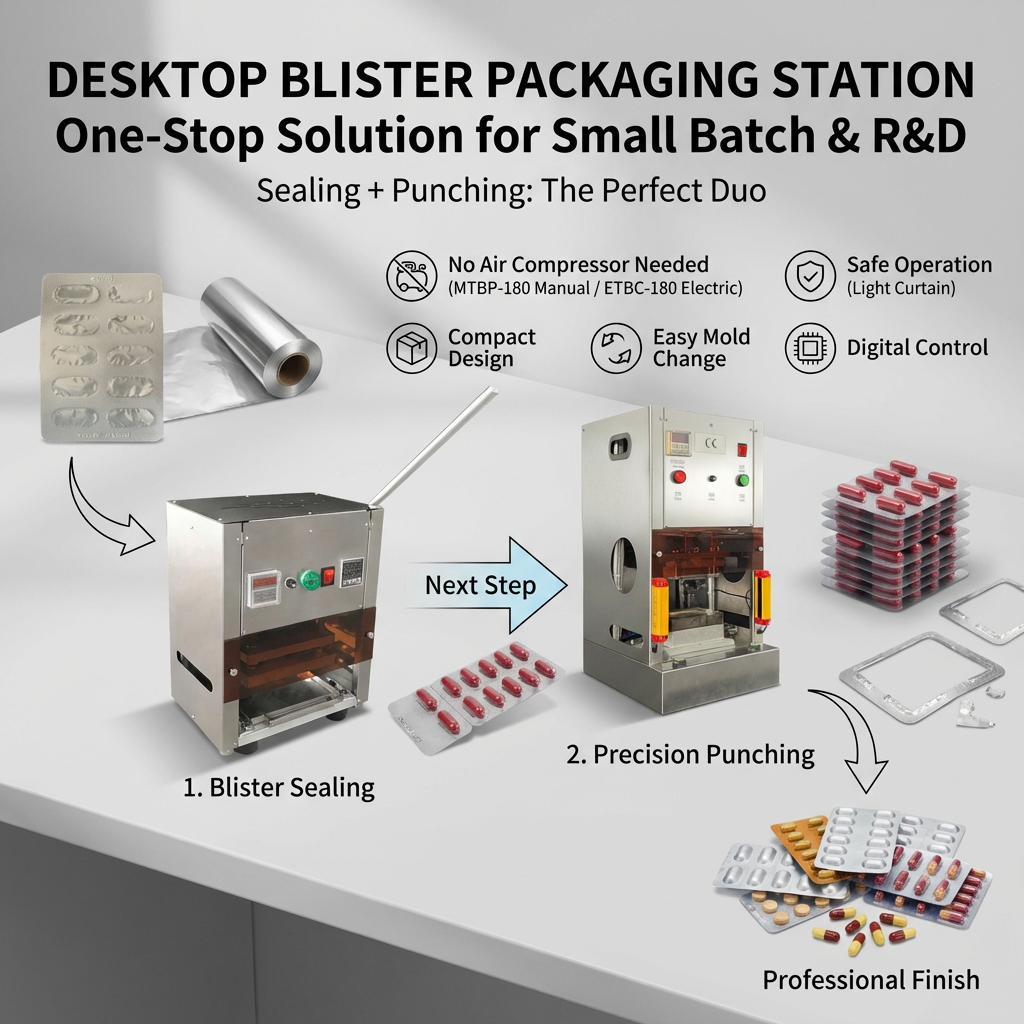

1. MTBP-180 Manual Blister Machine
The most cost-effective solution.
Key Advantage: Plug and play, manual lever control, no air compressor needed.
Ideal for: Beginners and low-volume trials.
2. TBP-180 Desktop Pneumatic Machine
Consistent pressure, effortless operation.
Key Advantage: Cylinder-driven for uniform sealing quality.
Requirement: Needs an external air compressor.

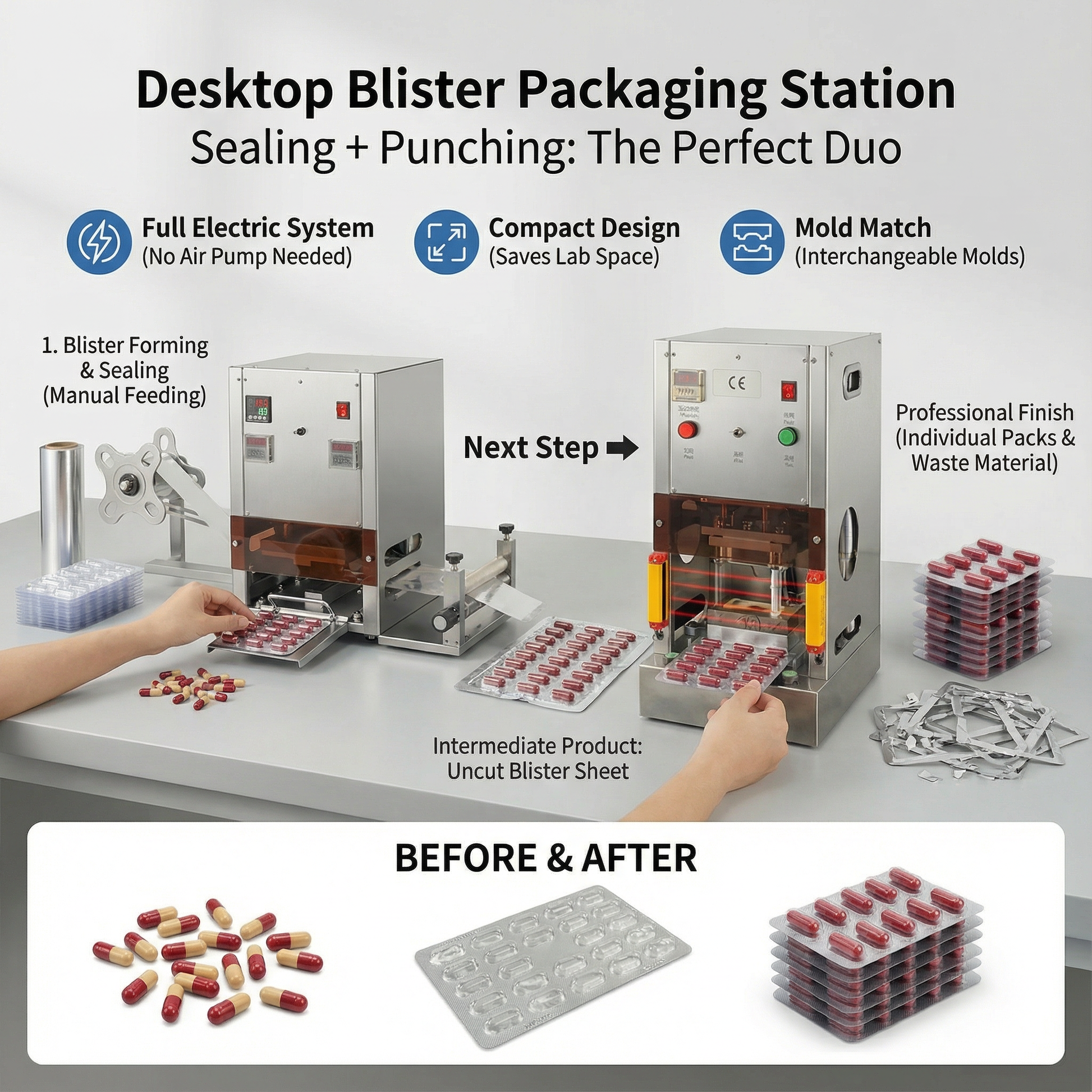

3. ETBP-180 Desktop Electric Machine
Auto-foil feeding, No air needed.
Key Advantage: Fully electric, features automatic foil unwinding/rewinding.
Ideal for: Customers who want automation without the noise of a compressor.

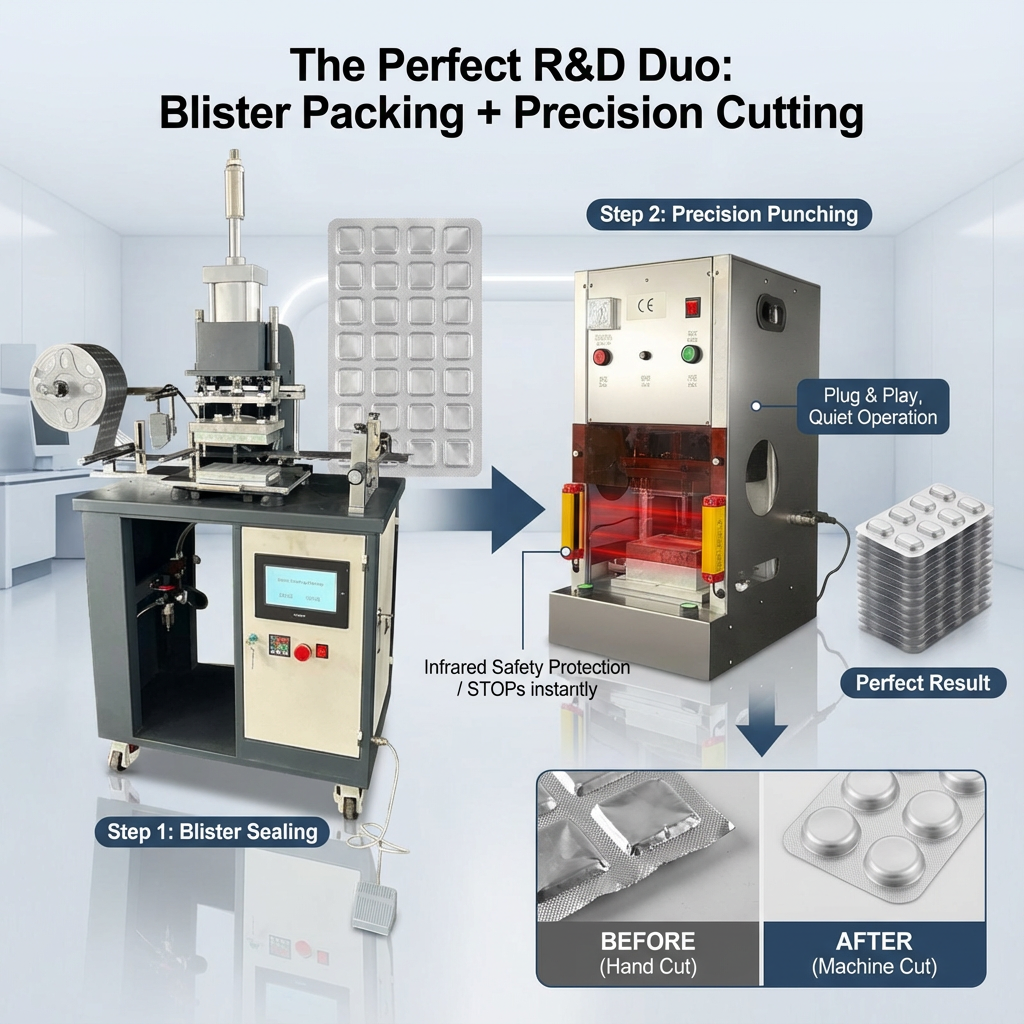

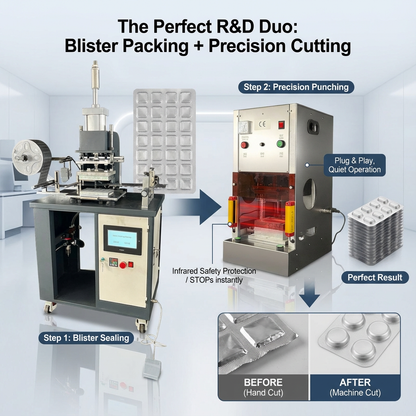

4. DP-180 Vertical Pro Blister Machine
PLC Touchscreen & Photoelectric Tracking.
Key Advantage: High precision, supports printed foil registration (eye-mark), and integrated date coding.

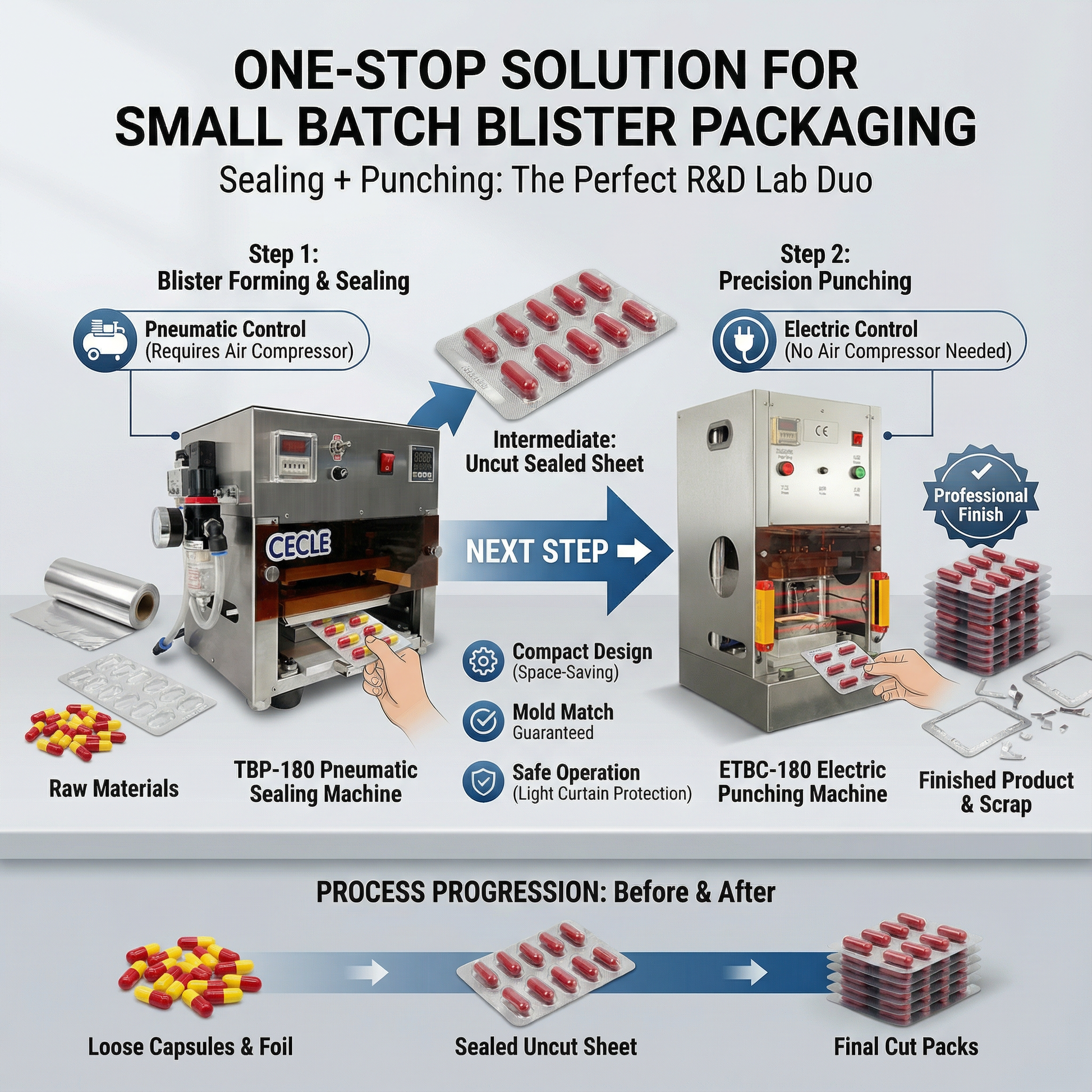

5. ETBPC-180 Blister Cutting & Punching Machine
The Perfect Companion.
Function: Automatically trims excess foil and burrs to produce clean, professional-looking "store-bought" blister packs.
[Section 3: Customization & Service]
Custom Molds: We customize every mold based on your specific blister size and capsule/tablet shape. (Requires 6-8 samples).
Global Compatibility: Available in 110V/220V, 50/60Hz.
[Section 4: Technical Specifications]
Comparison Table: Blister Packing & Cutting Machines
| Feature | MTBP-180 (Manual) | TBP-180 (Pneumatic) | ETBP-180 (Electric) | DP-180 (Vertical Pro) | ETBPC-180 (Cutter) |
|---|---|---|---|---|---|
| Function | Sealing | Sealing | Sealing | Sealing + Coding | Edge Trimming |
| Driving Mode | Manual Lever | Pneumatic | Fully Electric | Pneumatic (PLC) | Electric |
| Air Compressor Req. | NO | YES (6-8 bar) | NO | YES (6-8 bar) | NO |
| Max Area | 140 × 180 mm (5.5 × 7.1 inch) | ||||
| Speed | 6-10 pcs/min | 6-10 pcs/min | 10-15 pcs/min | 10-15 pcs/min | 12-18 times/min |
| Key Highlights | Desktop, Lowest Cost, No air needed | Uniform Pressure, Labor saving | Auto-foil rewinding, Plug & Play | PLC Touchscreen, Eye-mark Tracking | Precise burr-free cutting |
| Power | 500W | 500W | 1000W | 1000W | 1500W |
| Machine Weight | 30 KG | 25 KG | 55 KG | 150 KG | 75 KG |
*All models support customized molds and 110V/220V voltage options.
[Section 5: FAQ]
Q: Which machine should I choose if I don't have an air compressor?
A: We recommend the MTBP-180 (Manual) or the ETBP-180 (Electric). Both are plug-and-play.
Q: Can I use printed aluminum foil with my logo?
A: For printed foil, the DP-180 is the best choice as it features a photoelectric sensor for accurate pattern alignment.
Q: How do I get a custom mold?
A: After ordering, you need to send us 6-8 samples of your PVC blisters. We will CNC-machine the mold to match perfectly.
👉 Click to Purchase The Aluminum foil
👉 Click to Purchase The PVC Blister
