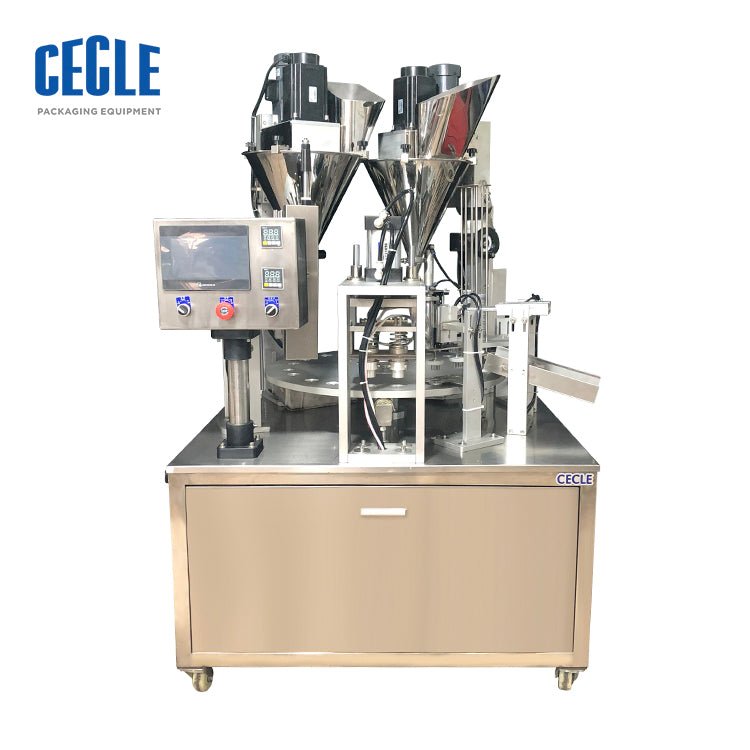

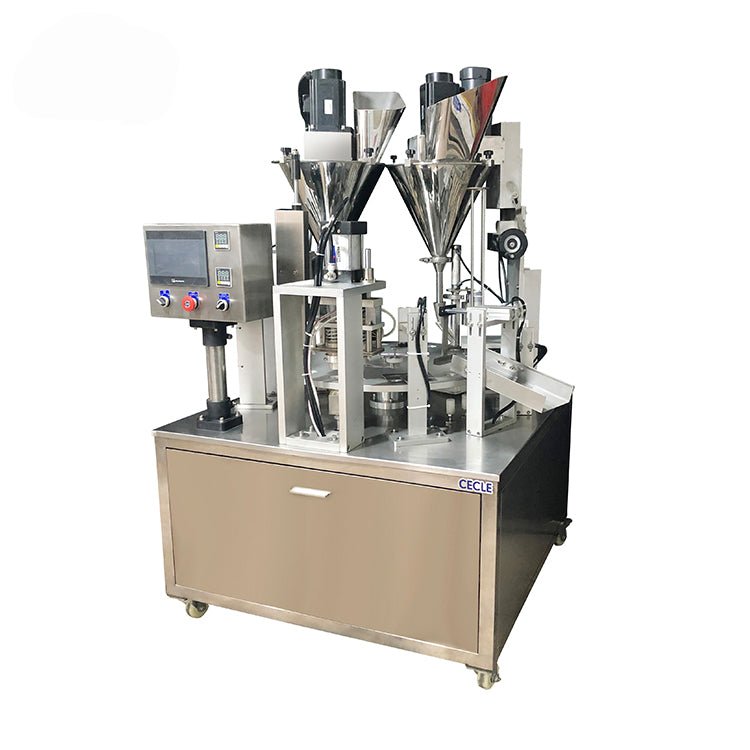

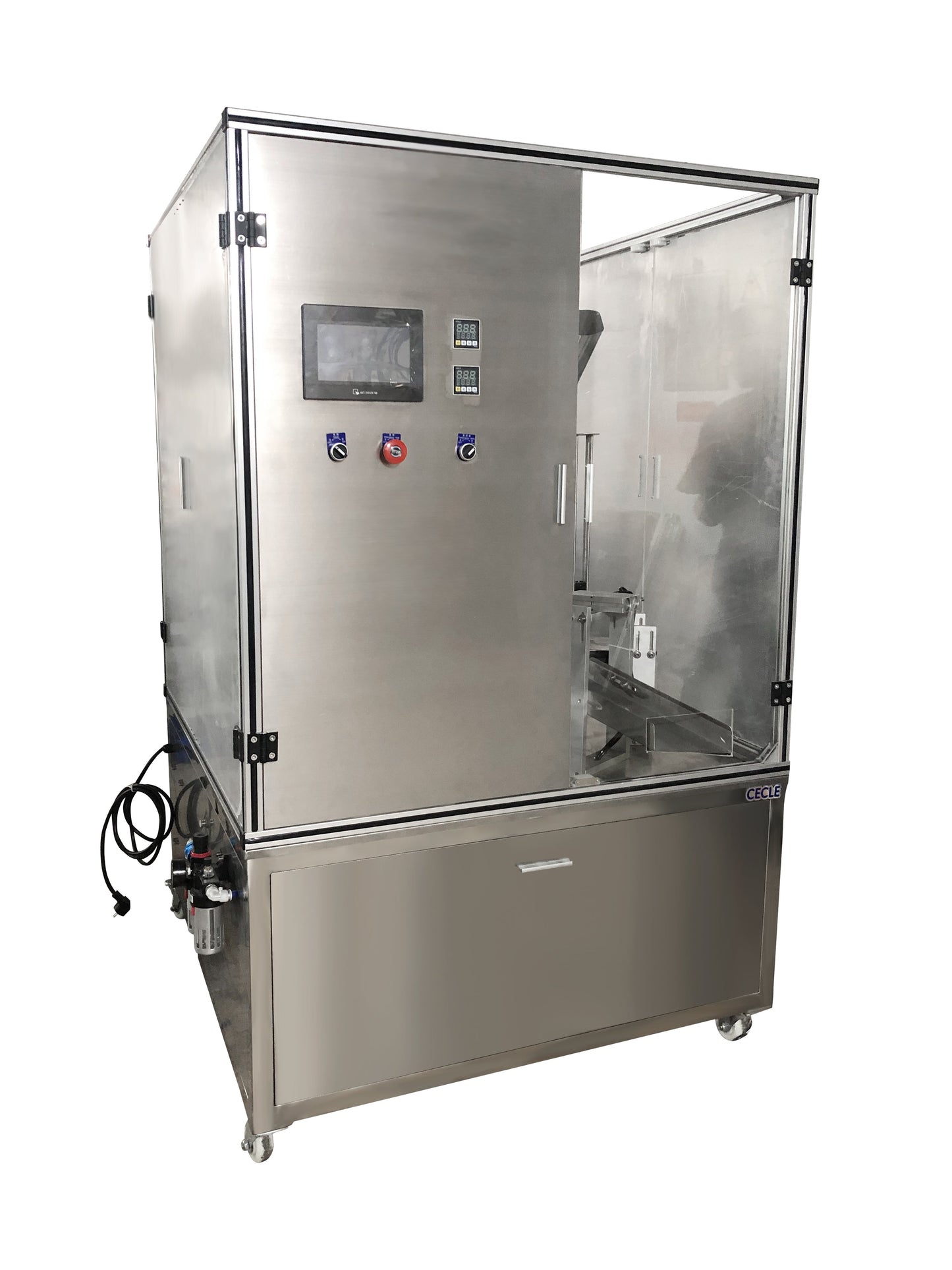

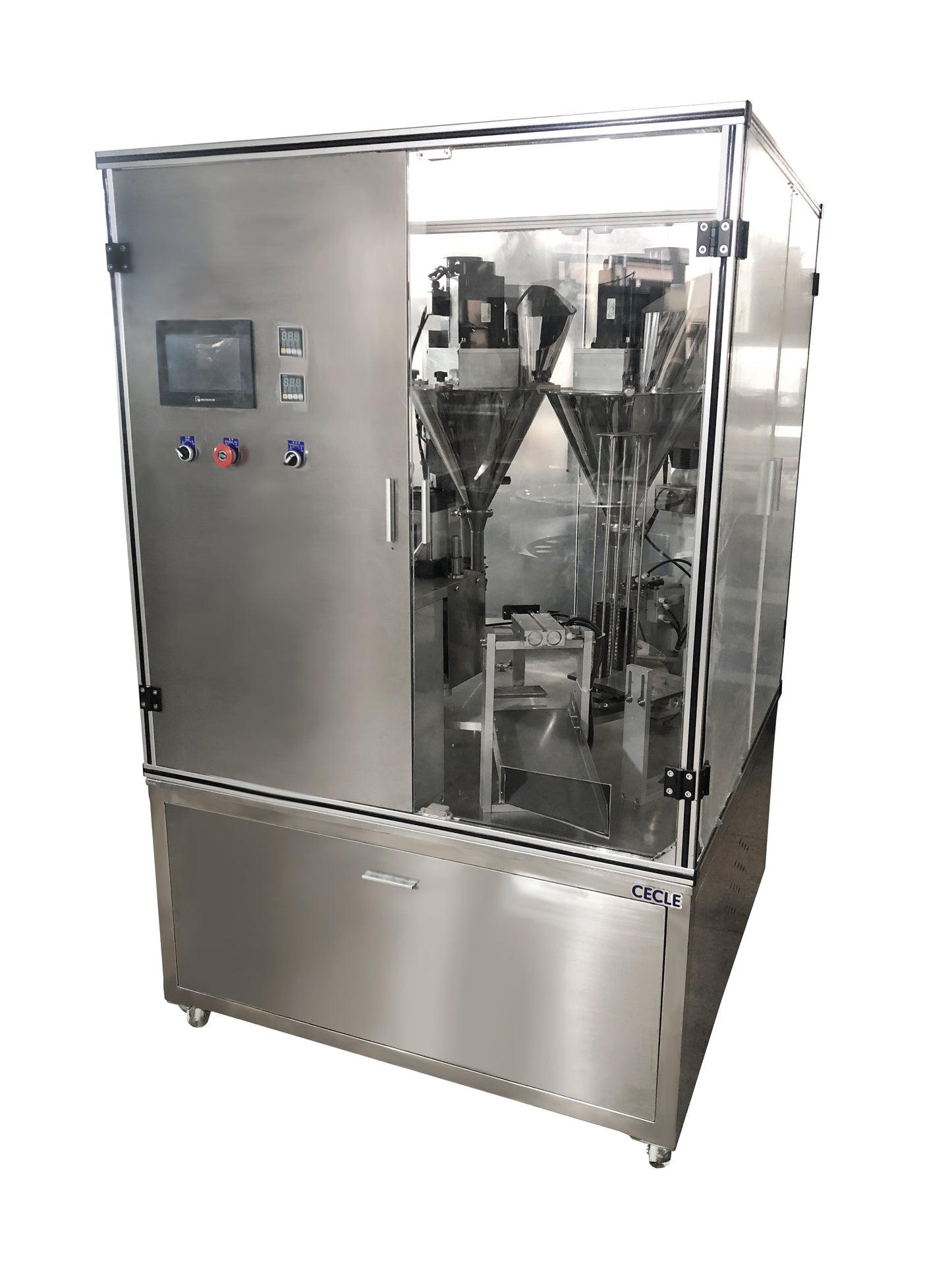

Automatic Tea Cup Filling And Sealing Machine , High Speed Cup Packaging Machine For Herbs
Automatic Tea Cup Filling And Sealing Machine , High Speed Cup Packaging Machine For Herbs
Automatic Tea Cup Filling And Sealing Machine , High Speed Cup Packaging Machine For Herbs
This series of machines is specially used for filling and sealing various liquid, powder and granule products such as coffee powder, yugurt, hummus, tea and etc. The machine can be automatically and accurately quantified, and the function of vacuuming and nitrogen filling, PLC touch screen control system, etc. can be added according to customer needs.
Workflow: automatic cup drop--automatic weighing filling--automatic compaction--automatic cleaning of the edge of the cup--filling with nitrogen--automatic taking and placing of film--automatic heat sealing--automatic cup ejection.
Model: |
CF-1 |
CF-2 |
Packaging Speed: |
500-600pcs/hour |
1000-1200pcs/hour |
Filling Range: |
Customsized |
Customsized |
Power: |
1.2kw |
1.5kw |
Air Consumption: |
0.5 m3 /min |
0.5 m3 /min |
Voltage: |
110/220V 50-60hz |
110/220V 50-60hz |
Packing Dimension: |
122*122*184cm |
122*122*184cm |
Weight: |
350kgs |
400kgs |
