ABL-220 Automatic Vertical Pouch & Bag Labeling Machine with Paging System - Advanced Industrial Solution

The ABL-220 Automatic Vertical Pouch & Bag Labeling Machine with Paging System is an advanced industrial solution engineered for the high-precision labeling of pre-made pouches, stand-up bags, zipper bags, and folded cartons. Ideal for the food, daily chemical, and pharmaceutical industries as well as e-commerce fulfillment centers, this machine features an integrated high-efficiency friction paging system that automatically separates and feeds stacked materials at speeds of 30 to 60 pieces per minute with a high labeling accuracy within plus or minus 1 mm.

I. Product Overview & Use Scenarios

Widely applicable for various pre-made packaging bags such as stand-up pouches and zipper bags, folded cartons, envelopes, and various flat packaging items. It serves as an ideal tool for food, daily chemical, and pharmaceutical industries, as well as e-commerce logistics centers to enhance automated assembly efficiency by integrating an efficient friction paging system for automatic separation and single-piece conveyance.

II. Core Advantages

• High-Efficiency Automatic Paging: Equipped with a professional paging mechanism that automatically separates and sequentially feeds stacked bags or cartons to the labeling position, completely replacing tedious manual placement.

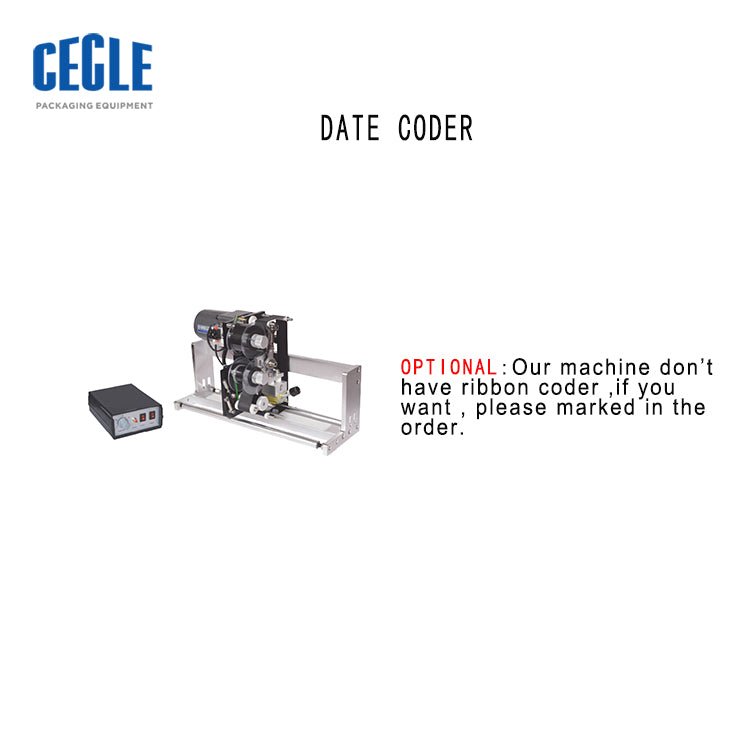

• Highly Customizable Options: Supports dedicated transparent label sensors to precisely recognize clear film materials and optional ribbon coders for simultaneous date or batch printing.
• Precise Labeling Technology: Adopts a high-precision labeling control system to ensure labels are accurately affixed to preset positions on bags or cartons without bubbles or misalignment.
• Broad Compatibility: Suitable not only for various plastic bags, but also for folded cartons, offering exceptional packaging versatility.
• Stable & Reliable: Built with wear-resistant materials and industrial-grade control systems, maintaining high-intensity, continuous, and stable operation.

III. Technical Specifications

IV. Workflow

1. Automatic Paging: Place stacked bags or cartons into the paging machine inlet; they are automatically separated and fed sequentially onto the conveyor belt.
2. Sensor Trigger: Sensors precisely capture the material entry position and trigger the labeling command.
3. Label Peeling & Coding: The labeling head peels the label while the ribbon coder simultaneously prints production information directly onto the film surface.
4. Pressing Application: Pressure devices smoothly apply and secure the label onto the surface of the bag or carton.
5. Finished Product Output: Labeled items automatically enter the collection area, completing the automated packaging loop.

V. Frequently Asked Questions (FAQ)

Q: Can this machine handle very thin plastic bags?
A: Yes. Our paging mechanism is precision-designed to effectively separate lightweight and thin materials, ensuring accurate entry into the labeling station.

Q: Is the printing from the coder durable?
A: Extremely durable. Ribbon coding utilizes thermal transfer technology, resulting in clear, smear-resistant text that perfectly meets retail packaging requirements.
