TD-198 Round Pearl Setting Machine for Garments & Leather Bags (Pneumatic Drive)

$2,299.00 USD

~~$1,499.00 USD~~ $2,299.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

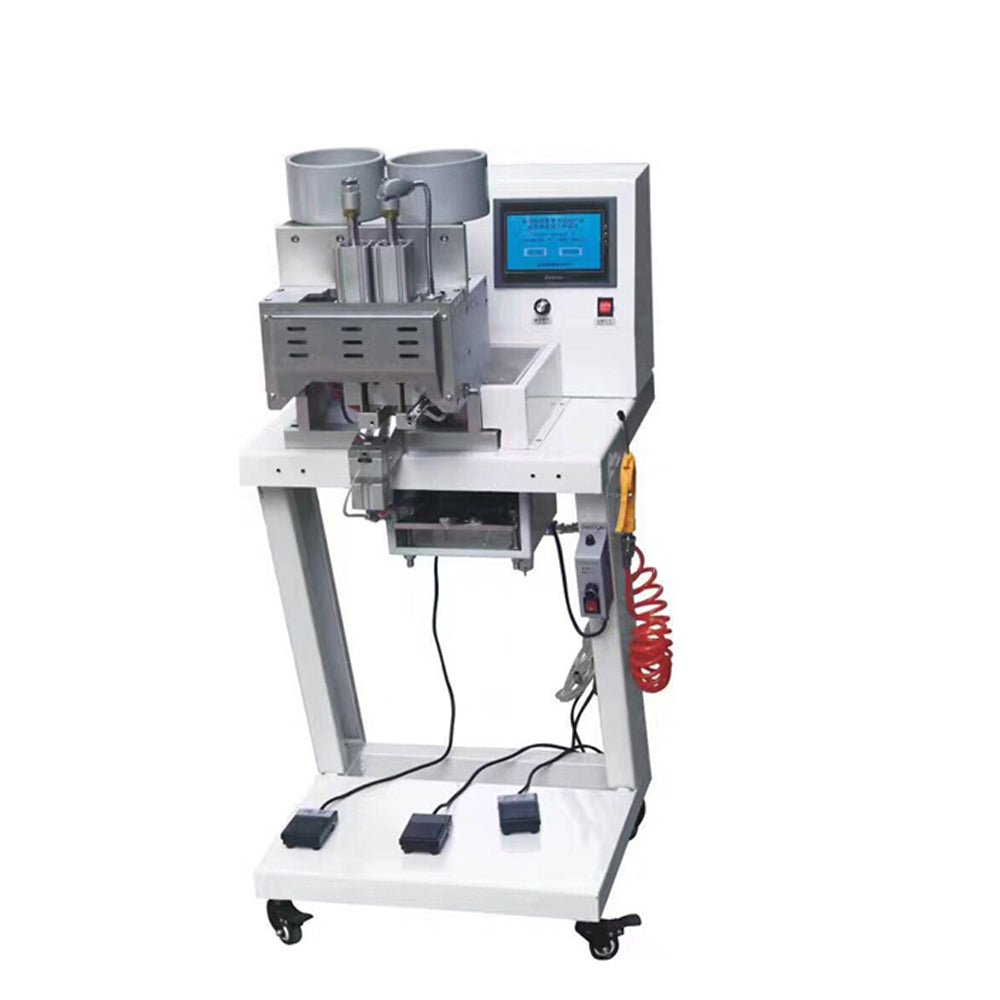

Model TD-198 (Single Head) TD-198D (Double Head)

Shipping Method Shipping by sea+truck deliever to your door(30-45days)

Quick Answer: The CECLE TD-198 Single Head Round Pearl Setting Machine is an advanced and highly efficient pneumatic beading device specifically designed for precisely attaching standard round pearls to clothing, shoes, hats, and leather goods.

CECLE TD-198 vs. Traditional / Generic Alternative

Where CECLE TD-198 stands out against generic round pearl setting machines — measured on the dimensions buyers care about most.

Nailing Speed

CECLE TD-198Automatic four-prong nail feed and a vibratory pearl bowl reach 150-180 pieces per minute, so output stops tracking how fast the operator can load.

AlternativeHand-fed nails and pearls cap the pace at the operator's rhythm, and it drifts down across a long shift.

Dual-Cylinder Pressing

CECLE TD-198The upper cylinder presses down while the lower one lifts, driving the nail up through the fabric with even force and no bruising on thin material.

AlternativeSingle-direction pressing buckles thin fabric and leaves the pearl standing proud of the surface instead of seated in it.

Pearl Size Coverage

CECLE TD-198Standard molds suit 5, 6, 8 and 10 mm round pearls, and swapping molds extends the range to 4-12 mm.

AlternativeA fixed cavity takes one diameter, so a mixed order needs extra heads or hand finishing.

Operator Control

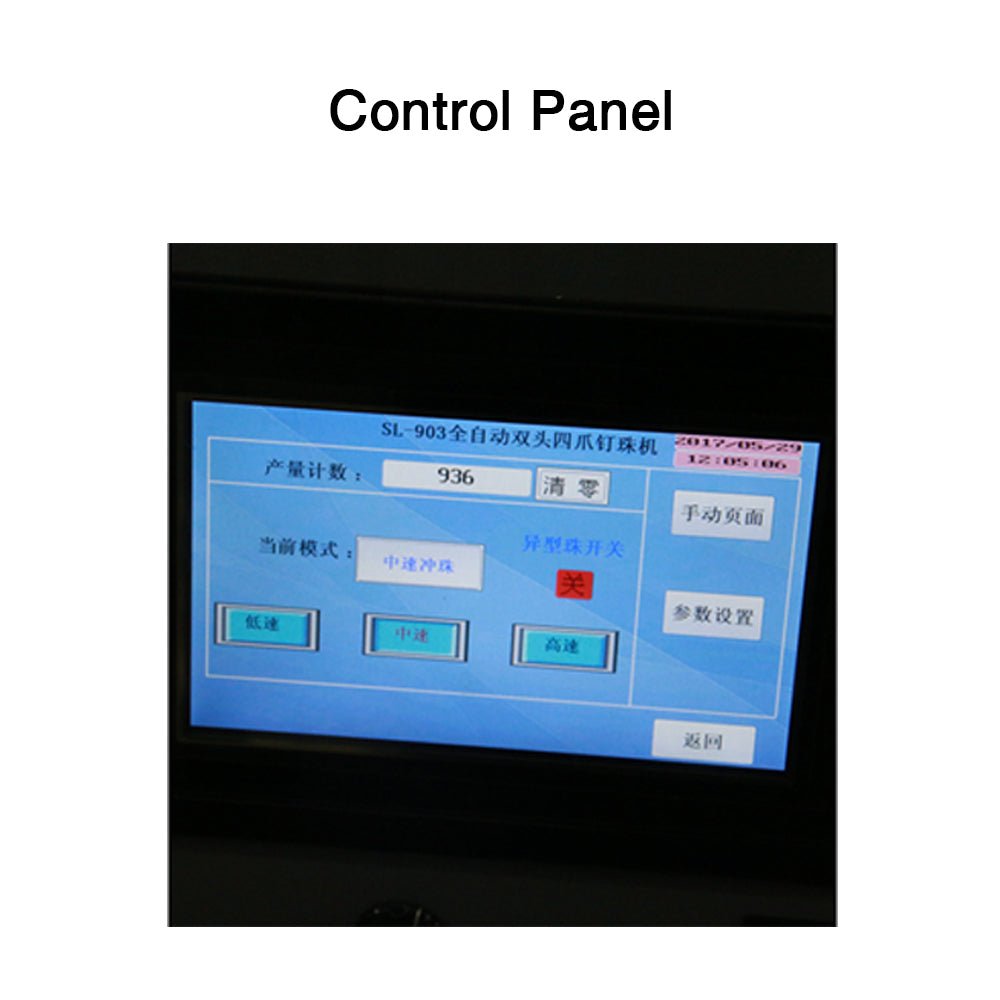

CECLE TD-198The touch screen sets pressing time and counts pieces, with separate pedals for pearl positioning and bottom-mold pressing, so a new operator is productive within a shift.

AlternativeMechanical cams and a single pedal force the operator to coordinate both hands with one foot, and every changeover needs a spanner.

Technical Specifications

Item	Details

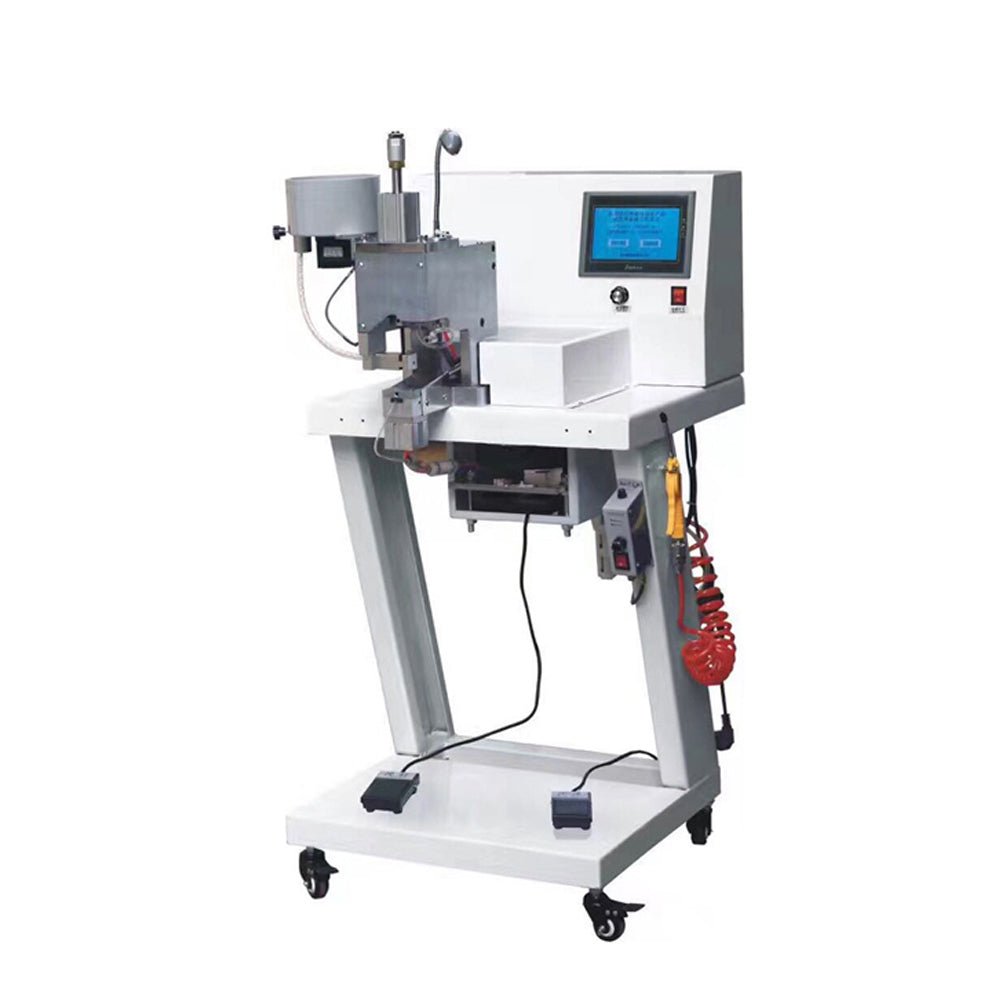

Product Name	Single Head Round Pearl Setting Machine
Model	TD-198
Application	Used for precision pneumatic nailing of round pearls on clothing, shoes, hats, leather bags, fabrics, home textiles, and handicrafts.
Applicable Bead Shape	Standard Round Pearl
Operation Mode	Smart touch screen setting, Dual foot pedal control
Applicable Industries	Garment manufacturers, shoe & bag processing, foreign trade custom clothing workshops, handbag & home textile producers.

Parameter	Specification
Model	TD-198
Voltage	220V / 110V (50~60Hz)
Beading Type	Single Head
Applicable Bead Shape	Standard Round Pearl
Applicable Size	4mm, 5mm, 6mm, 8mm, 10mm, 12mm (Standard suits 5, 6, 8, 10mm)
Power	500W (0.67HP)

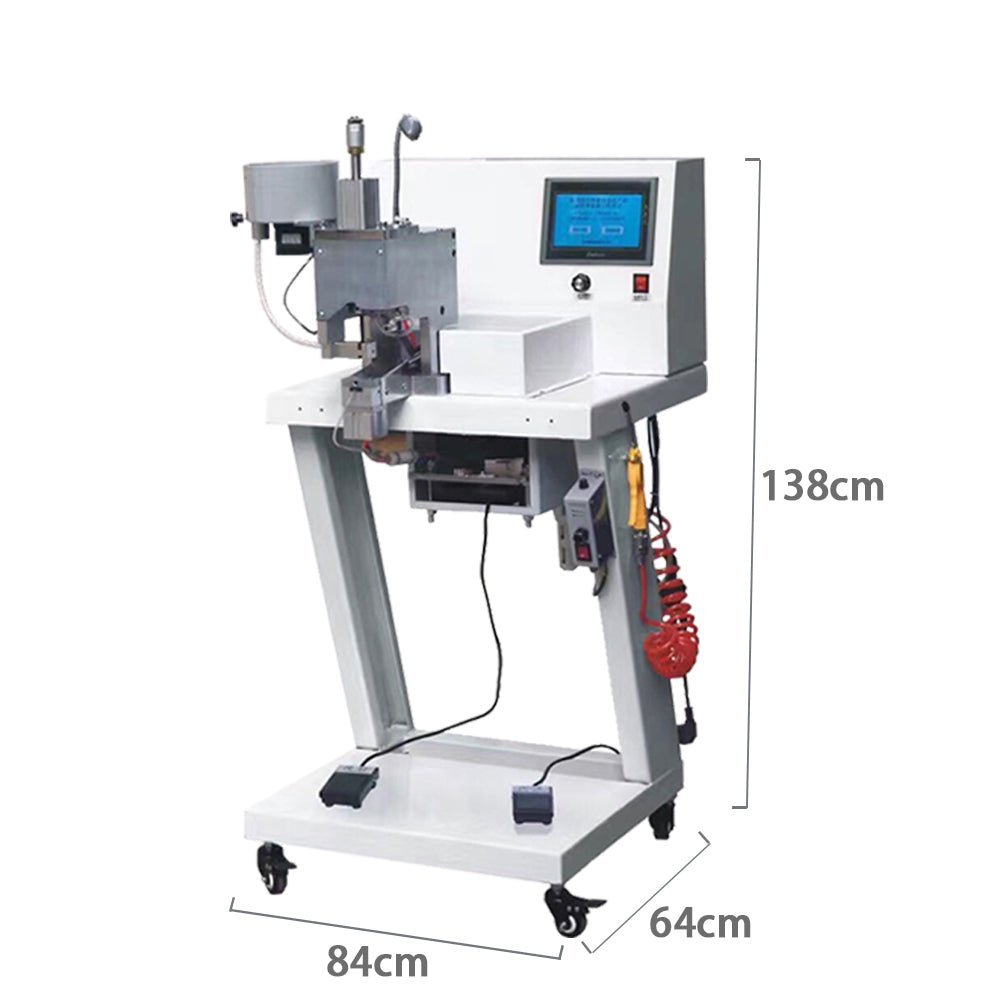

Machine Dimensions	80 * 70 * 130 cm / 31.49" * 27.55" * 51.18" (Physical height approx. 138cm)
Machine Weight	110 KG (242.5 lb)

Pre-installation requirements: Voltage: 220V / 110V (50~60Hz); Power: 500W (0.67HP); Machine Dimensions: 80 × 70 × 130 cm / 31.49" * 27.55" * 51.18" (Physical height approx. 138cm); Machine Weight: 110 KG (242.5 lb). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

Garments & Leather Bags — primary target products for this Round Pearl Setting Machine line
Applicable Size: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm (Standard suits 5, 6, 8, 10mm)

Standard Operating Procedure (SOP)

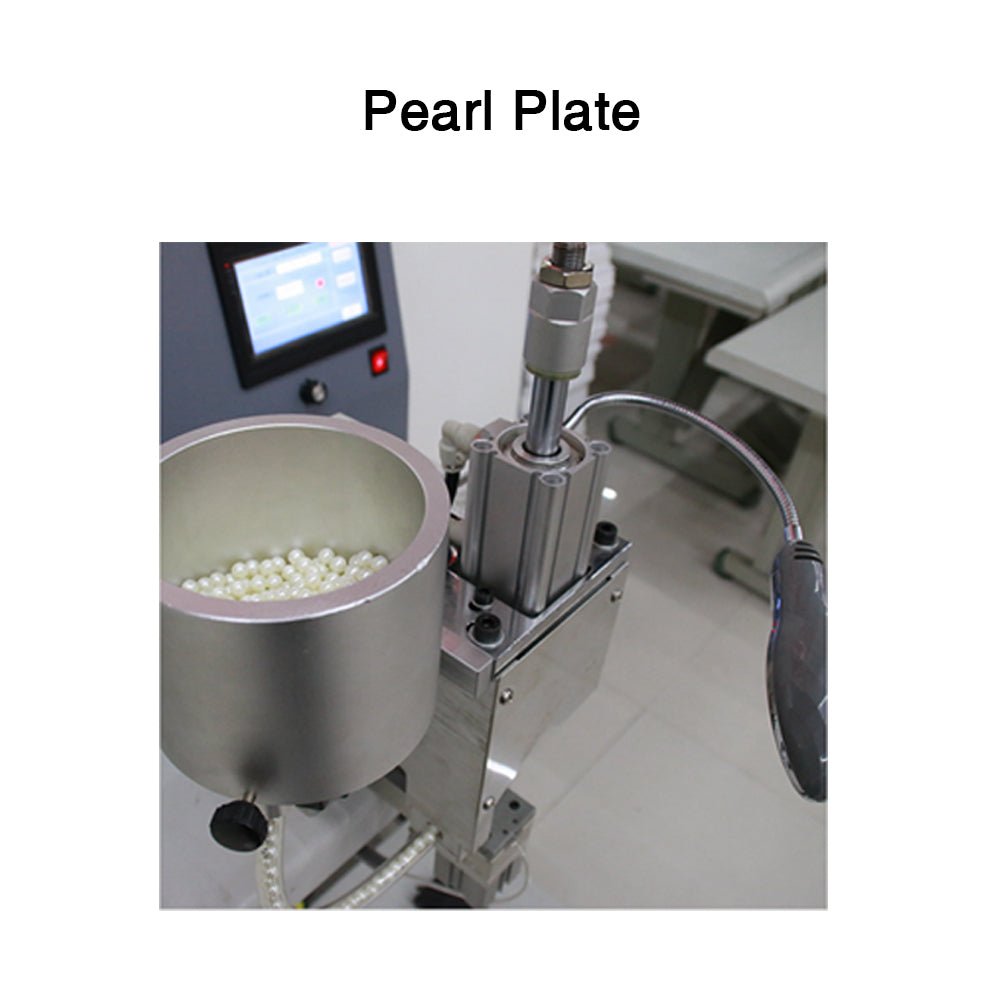

Loading & Machine Prep: Pour the corresponding round pearls into the upper Plastic Pearl Tank, pour the four-prong nails into the vibratory hopper, plug in the power, and turn on the main switch
Fabric Positioning: Use the infrared positioning device to align the exact spot on the clothing or bag, laying it flat between the upper and lower molds
Pedal Positioning: Step on the pearl positioning pedal
the upper guide rail will feed a pearl and a nail to the working station
Pneumatic Nailing: Step on the pressing pedal
the cylinder automatically drives the four-prong nail from the bottom up through the fabric, securely locking the round pearl to complete one cycle.

Engineering FAQ

Do I need to provide my own air compressor for this machine?
A: Yes. Because the machine relies on a high-pressure cylinder to provide the pressing power, it requires an external stable air source with a working pressure of 0.5~0.6MPa. We recommend customers equip a small silent air compressor.

Is it easy to change molds? Can one person operate it independently?
A: Changing molds is very simple. Just loosen the fixing screws, and you can finish replacing the upper and lower molds in 1-2 minutes. A single person can independently debug it.

Do round pearls jam often on the track?
A: The machine is equipped with a variable-frequency vibratory bowl sorting mechanism specifically designed to sort spherical pearls. As long as you use standard pearls without obvious burrs, jamming rarely occurs.

What power supply does the TD-198 require?
A: The TD-198 runs on 220V / 110V (50~60Hz). Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

Does the TD-198 need an external air compressor?
A: Yes. The TD-198 is pneumatically driven and needs a stable external air supply at the rated pressure. Size the compressor for continuous duty so pressure holds through a full shift; a compressor that cycles on and off shows up as inconsistent penetration.

What routine maintenance keeps the TD-198 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
