AL-H220 Automatic Horizontal Round Bottle & Tube Labeling Machine - Advanced Industrial Solution

The AL-H220 Automatic Horizontal Round Bottle & Tube Labeling Machine is an advanced industrial packaging solution specifically engineered for unstable cylindrical products that cannot stand steadily on standard conveyors, such as medical vials, ampoules, oral liquid bottles, lipstick tubes, and crayons. Ideal for the pharmaceutical, cosmetic, and stationery industries, this specialized horizontal system offers flexible throughput options ranging from a standard 60 to 150 pieces per minute to an optional high-speed 150 to 300 pieces per minute configuration, maintaining precise accuracy within plus or minus 1 mm.

I. Product Overview & Use Scenarios

Widely applicable in pharmaceutical, cosmetic, and stationery manufacturing lines for small, narrow, or rolling items that cannot maintain a stable upright position on conventional conveyors, including medical vials, ampoules, oral liquid bottles, test tubes, lipstick tubes, and crayons. It utilizes a specialized horizontal rolling transport mechanism to stably feed, align, and apply labels smoothly, completely eliminating tipping or jamming.

II. Core Advantages

• Horizontal Design for Unstable Products: Purpose-built for small round tubes, vials, and ampoules that are too narrow or top-heavy to stand steadily for vertical labeling.

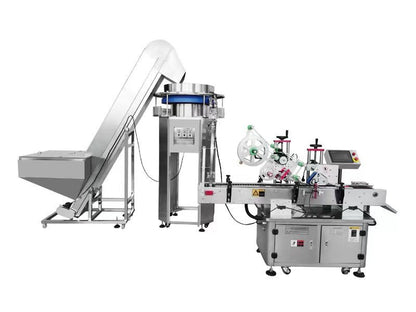

• Flexible High-Speed Feeding Options: Choose between the standard automatic feeder (60-150 pcs/min) or the high-capacity elevator and centrifugal pump setup (150-300 pcs/min) for high-demand production lines.
• Tailored Product Customization: Feeding mechanisms and unscrambling devices are custom-engineered around the exact geometry and dimensions of your specific products.
• High-Customization Upgrades: Supports dedicated transparent label sensors for clear films and ribbon coders for thermal transfer date and batch printing.

III. Technical Specifications

IV. Workflow

1. Bulk Feed & Sorting: Products are loaded into the standard automatic feeder or the optional elevator and centrifugal pump system for smooth orientation.
2. Horizontal Transport: The rolling conveyor system holds and rotates the cylindrical items smoothly along the horizontal plane.
3. Label Peeling & Coding: Sensors trigger label dispensing while the optional ribbon coder prints batch data onto the label in real-time.
4. Rolling Application: The label is firmly and evenly rolled onto the horizontal surface of the moving cylinder, eliminating air bubbles and wrinkles.
5. Finished Output: Labeled items are automatically discharged to the collection area.

V. Frequently Asked Questions (FAQ)

Q: Why do I need a horizontal machine instead of a standard vertical labeling machine?
A: Products like ampoules, small vials, and crayons are too narrow or round to stand steadily on a vertical conveyor belt. The horizontal design rolls them sideways, ensuring complete stability and flawless label adhesion.

Q: What is the speed difference between standard and high-speed feeding configurations?
A: The standard automatic feeding device delivers 60 to 150 pieces per minute. For high-volume production, our customized elevator and centrifugal pump feeder setup achieves 150 to 300 pieces per minute.

For deeper technical manuals and schematics, please visit our technical documentation portal.
