How long is the warranty and what does it cover?

One year on the whole machine, starting from start-up and acceptance in the buyer's factory. Parts are supplied free of charge for quality problems during the warranty period; the customer covers freight from China to the destination. If an engineer visit is required, round-trip travel costs are borne by the customer. Lifetime repair service continues after the warranty expires.

What power and air supply does the customer need to prepare?

Power: 220V 50/60Hz. Air: 0.6–0.8 MPa at 3–4 m³/h. The customer needs to provide an air compressor and a regulated power supply to match.

Are the values in the specification tables final?

The parameters above are for reference only; the actual machine is the standard.

1 4

CECLE packaging machinery

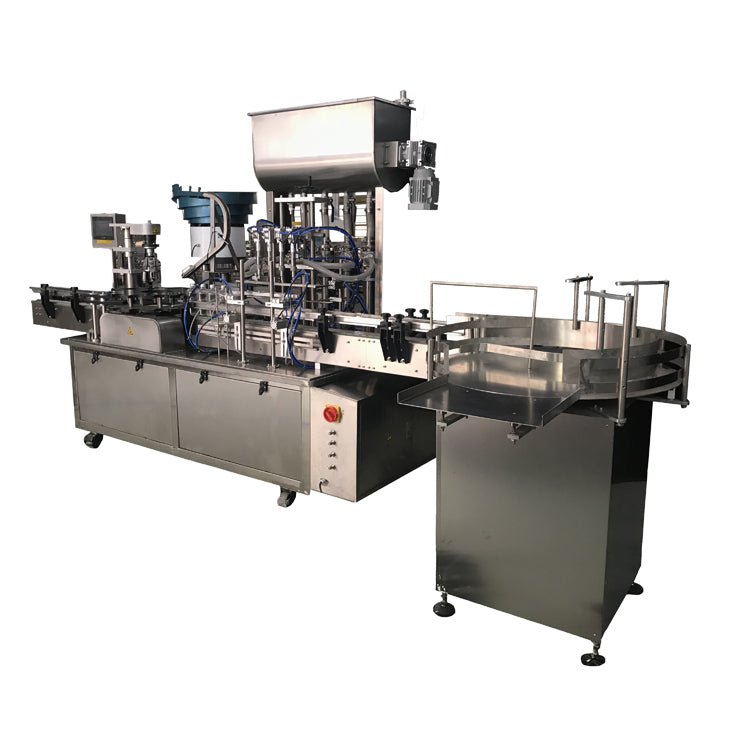

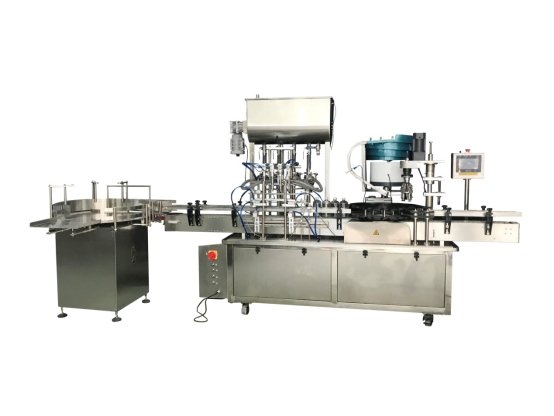

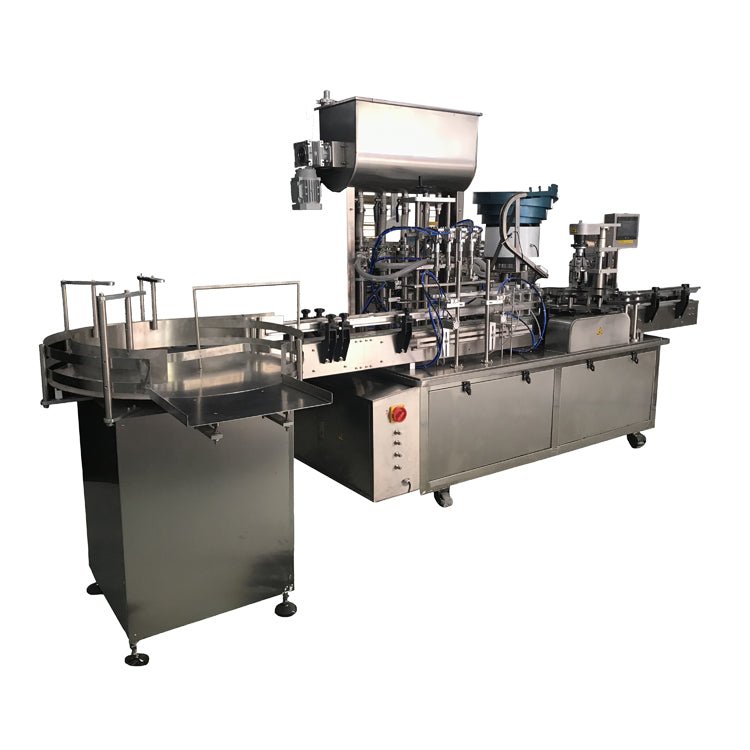

NLA-ALC Series Automatic Bottle Filling Line for Liquid & Paste Bottles

Name: NLA-ALC Series
Brand: CECLE
Price: 21000.0 USD
Availability: InStock

$21,500.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model NLA-ALC-1000 NLA-ALC-500 NLA-ALC-2500 NLA-ALC-5000

Shipping method by sea to port(18-30 days)

Place of shipment shipping from China

Quick Answer: The CECLE NLA-ALC Series is an automatic filling and capping line for aluminum-cap round bottles, built by Wenzhou T&D Packaging Machinery Factory.

CECLE NLA-ALC Series vs. Traditional / Generic Alternative

Where the CECLE NLA-ALC Series stands out against manual or generic automatic bottle filling line — measured on the dimensions buyers care about most.

Vacuum Flow & Adhesion

CECLE NLA-ALC SeriesOne machine for both paste and liquid: the piston filling structure handles high-viscosity pastes and low-viscosity liquids alike.

Weak Vacuum SourceInsufficient suction leaves film lifted, bubbles trapped and seals loose under load.

Operational Mechanism & Drive

CECLE NLA-ALC SeriesReliable control system: Taiwanese-brand PLC with touchscreen; fill volume and speed are set directly on the HMI.

Manual Lever / Foot UnitsOutput depends on operator strength and drifts between shifts; no stable drive control.

Chassis Rigidity & Vibration Resistance

CECLE NLA-ALC SeriesSelectable hygienic grade: stainless steel frame, with 201 stainless steel for the machine body and food-grade 304 stainless steel for product-contact.

Lightweight Sheet Metal (<40 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Output Speed & Throughput

CECLE NLA-ALC SeriesMatched line timing: the bottle distributing machine runs at 30–200 bottles per minute with infinitely variable.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Adaptability & Changeover

CECLE NLA-ALC SeriesSensor-linked intelligence: German SICK photocell sensors monitor the whole process. Missing bottles are neither filled nor capped, cutting rejects and product loss.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Technical Specifications

Item	Detail
Equipment category	Automatic bottle distributing, filling, cap feeding and capping line
English category	Automatic bottle unscrambling, filling, cap feeding and capping line
Product compatibility	Handles both liquid and paste; piston filling

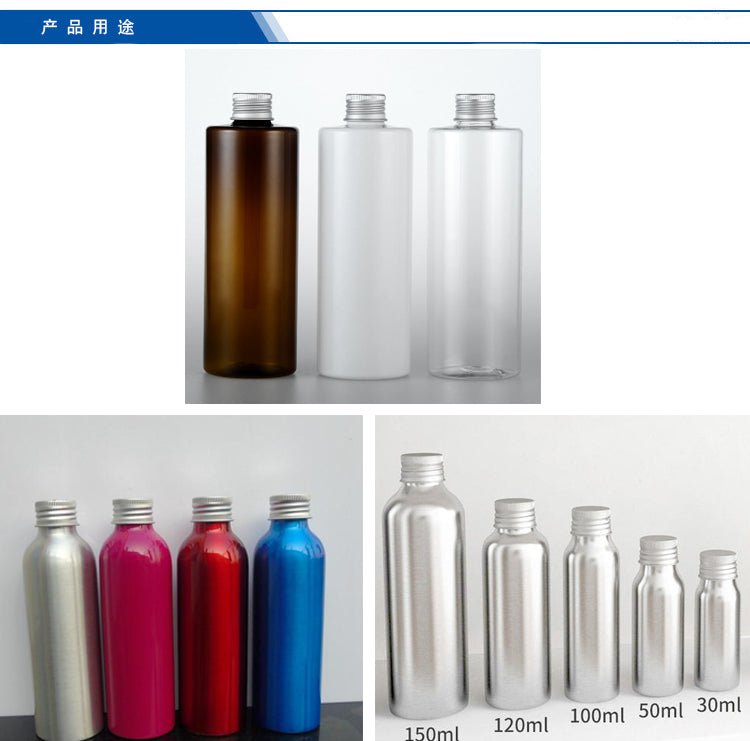

Packaging compatibility	Aluminum-cap round bottles (glass bottles / PET plastic bottles, φ20–φ100mm)
Customization	Special design available on request; machine configuration freely selectable

NO	Name	QTY	Remark
A	FA4-500 4 heads automatic filling machine (50-500ml)	1 set	Piston type, 4 heads and 4 cylinders
B	Automatic feeding and capping machine	1 set	Two capping heads working simultaneously
C	Bottle distributing machine (80cm diameter rotary table)	1 set	80cm table, 100/120cm optional

Parameter	Value
Model	FA4-500
Filling range	50–500ml
Filling heads	4 heads
Filling speed	1,200–1,800 bottles/h
Filling precision	±1%
Air pressure range	0.6–0.8 MPa
Air consumption	3–4 m³/h
Voltage / Power	220V 50/60Hz, 660W
Driving mode	Combined pneumatic and electric drive
Control	PLC + touchscreen (Taiwanese brand)
Pneumatic parts	Airtac
Conveyor	2 meters as standard, specification customizable
Frame	201 stainless steel
Contact parts	Food-grade 304 stainless steel (304 / 316 optional)
Anti-drip	Bottom close positive shut-off nozzles

Parameter	Value
Applicable bottle	Round or square bottle
Desktop diameter	80cm / 100cm / 120cm (80cm on this line)
Product diameters	φ20mm – φ100mm
Product height	20mm – 150mm
Conveying speed	30–200 bottles/min, infinitely variable speed
Voltage	220V
Frequency	50Hz
Power	120W
Weight	60kg
Dimension	990 × 900 × 1040mm

Parameter	Value
Capping heads	Two heads working simultaneously (two screw lids work at the same time)
Applicable caps	Plastic PET bottle caps, glass bottle caps; aluminum screw caps require configuration confirmed against the actual cap type
Cap feeding	Automatic cap placement, synchronized with the filling cycle
Sensor	German SICK photocell sensors, no bottle no action
Capping speed	To be matched with the filling rate of 1,200–1,800 bottles/h

NO	Name	QTY	Remark
A	Glass Cover	1	Optional, dust protection for the filling zone
B	316 stainless steel of contact material parts	/	Upgrade option, for highly corrosive products
C	Semi-auto bottle washer	1	Optional
D	AL-220 automatic round labeling machine	1	Optional
E	PM-168 inkjet printing machine	1	Optional

Item	Detail
Air supply	0.6–0.8 MPa, 3–4 m³/h
Power supply	220V 50/60Hz (bottle distributing machine 120W + filling machine 660W)
Payment term	30% T/T deposit in advance, 70% balance by T/T before shipment
Shipping methods	Ocean shipping
FOB port	Ningbo port
Delivery time	30–45 working days
Packing details	Wooden case, cuboid, convenient for transportation
Warranty time	One year after start-up in the buyer's factory
Validity period	30 days

Station	Action	Role
1. Loading	Operator pours empty bottles onto the bottle distributing machine turntable	Operator
2. Bottle distributing	Turntable sorts and orients round/square bottles, 30–200 bottles/min, infinitely variable speed	Automatic
3. Conveying	Conveyor (2 meters as standard) carries bottles to the filling station; fixing device clamps and locates them	Automatic
4. Filling	Four-head piston filling; fill volume and speed set on the PLC; SICK photocell detection, no bottle no fill	Automatic
5. Cap feeding	Caps are fed and placed in position automatically	Automatic
6. Capping	Two capping heads work simultaneously with consistent torque	Automatic
7. Optional stations	Semi-auto bottle washing then AL-220 round bottle labeling then PM-168 inkjet coding	Automatic
8. Output	Finished bottles discharge to the collection table for manual cartoning	Operator

Model	FA4-100	FA4-200	FA4-500	FA4-1000	FA4-2600	FA4-5000
Filling range	5–100ml	20–200ml	50–500ml	100–1000ml	260–2600ml	500–5000ml
Filling speed	1,200–1,800 bottles/h (shared across the series)
Filling precision	±1% (shared across the series)
Air pressure	0.6–0.8 MPa (shared across the series)
Air consumption	3–4 m³/h (shared across the series)
Voltage / Power	220V 50/60Hz 660W (shared across the series)

Media & Resources

Resource: https://www.youtube.com/watch?v=pi_2_RpU2OE

Pre-installation requirements: Air Pressure Range: 0.6–0.8 MPa; Voltage / Power: 220V 50/60Hz 660W (shared across the series); Air Pressure: 0.6–0.8 MPa (shared across the series); Voltage: 220V; Power: 120W; Net Weight: 60kg (132.3 lb); Dimensions: 990 × 900 × 1040mm; Power Supply: 220V 50/60Hz (bottle distributing machine 120W + filling machine 660W). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Automatic Bottle Filling Line line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Station Action Role
Loading Operator pours empty bottles onto the bottle distributing machine turntable Operator
Bottle distributing Turntable sorts and orients round/square bottles, 30–200 bottles/min, infinitely variable speed Automatic
Conveying Conveyor (2 meters as standard) carries bottles to the filling station
fixing device clamps and locates them Automatic
Filling Four-head piston filling
fill volume and speed set on the PLC

Engineering FAQ

Can the NLA-ALC-500 fill both paste and liquid?
A: Yes. The filling machine uses a piston type filling structure that handles both high-viscosity pastes and low-viscosity liquids. Changeover only requires resetting the fill volume and fill speed on the touchscreen, with no pump change.

What is the output of this line?
A: Filling speed is 1,200–1,800 bottles per hour (shared rating across the FA4 series). The actual rate depends on bottle shape, product viscosity and manual loading speed. The bottle distributing machine conveys at 30–200 bottles per minute with infinitely variable speed, so it can be matched to the filling rate.

How is filling accuracy guaranteed?
A: Filling accuracy is plus or minus 1 percent, guaranteed by the PLC-controlled piston stroke. The nozzles use a bottom close positive shut-off design to prevent stringing and dripping, so no product contaminates the bottle neck and affects capping or labeling.

What material are the product-contact parts?
A: The standard configuration is food-grade 304 stainless steel, with 201 stainless steel for the machine body. Contact parts can be upgraded to 304 or 316 stainless steel. We recommend 316 for highly corrosive products.

Can it handle aluminum caps?
A: Yes. This line is designed for aluminum-cap round bottles (ALC in the model code NLA-ALC-500 stands for Aluminum Cap). The capper handles plastic PET bottle caps, glass bottle caps and similar types, while aluminum screw caps require the customer to send real cap samples so we can confirm the capping chuck and torque configuration .

Can I buy only the filling machine, without the bottle distributing machine and capper?
A: Yes. The machine configuration is freely selectable, and we can supply a single unit to suit your existing line.
