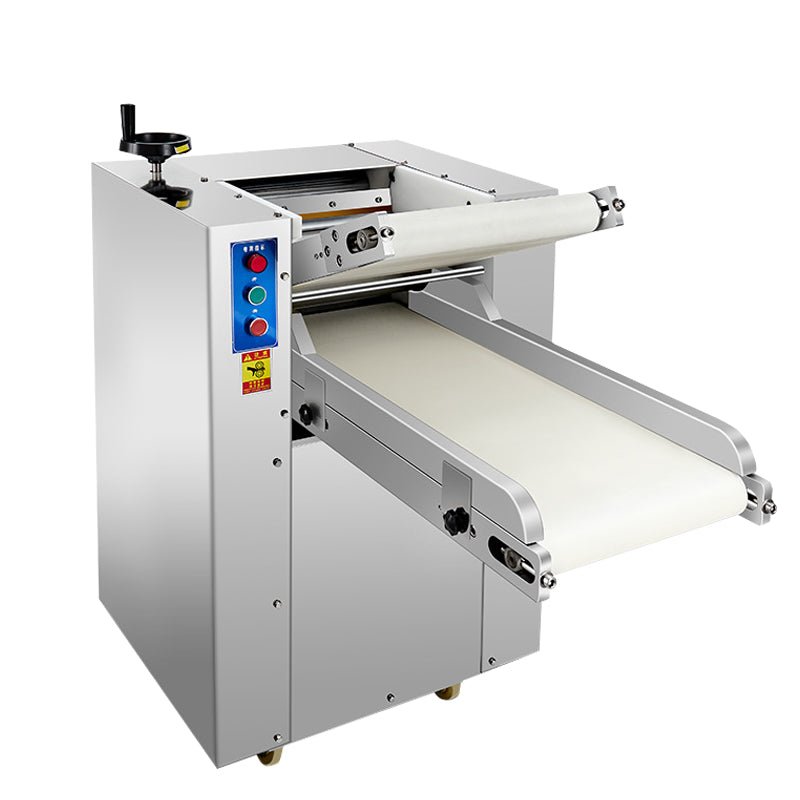

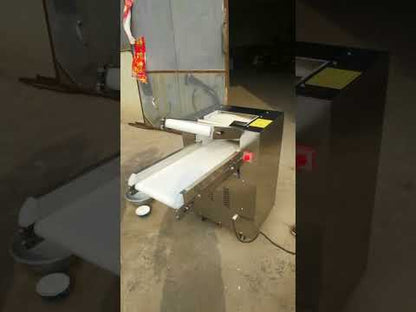

PRE-350/500 Dough Press Machine Machine for Food Processing (Electric Drive)

Name: PRE-350/500
Brand: CECLE
Price: 1550.0 USD
Availability: InStock

$1,650.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model PRE-350(220v) PRE-350(380V) PRE-500（220V） PRE-500(380V

Aterial of the dough pressing roller 304 stainless

Ship methoed By sea to door about 45-50days

Quick Answer: The CECLE PRE-350/500 PRE Series Commercial Heavy-Duty Automatic Dough Pressing Machine (including models PRE-350 and PRE-500) is a high-capacity dough sheeting and kneading system engineered for large-scale.

CECLE PRE-350/500 vs. Traditional / Generic Alternative

Where the CECLE PRE-350/500 stands out against manual or generic press machines machines — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE PRE-350/500For high-capacity commercial kitchens, canteens, and food plants, the PRE Series provides distinct industrial advantages: Handles Large, Stiff Dough Blocks : Where small tabletop sheeters stall or slip, the.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Chassis Rigidity & Vibration Resistance

CECLE PRE-350/500Vibration-Free Heavy-Duty Chassis : With net weights of 150 kg (PRE-350) and 170 kg (PRE-500), the floor-standing frame operates smoothly without shifting or shaking under continuous heavy loads

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and drifting label placement.

Pressure Consistency

CECLE PRE-350/500The CECLE Press Machine Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak adhesion, wrinkled labels or misalignment.

Operational Mechanism & Drive

CECLE PRE-350/500Its drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Features	Standard Small Tabletop Sheeter	PRE Series Heavy-Duty Commercial Press

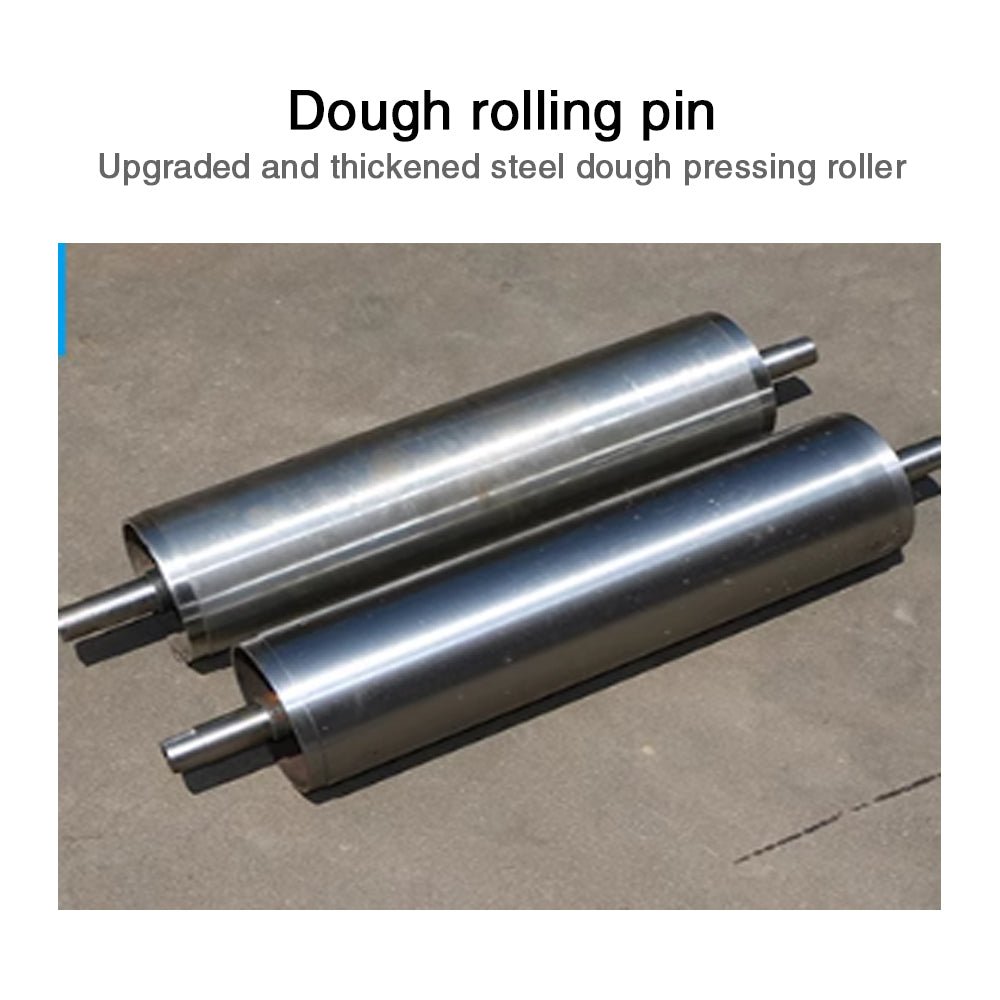

Roller Diameter	60 – 85 mm	114 mm Oversized Solid Alloy Roller
Effective Roller Width	200 – 240 mm	330 mm (PRE-350) / 460 mm (PRE-500)
Adjustable Clearance	0.5 – 5 mm	5 – 20 mm Wide Range (For bulk dough blocks)
Power & Transmission	0.75 – 1.5 kW (Belt / Small Gear)	3.0 kW Industrial Motor + Single Gear Chain
Machine Net Weight	35 – 70 kg	150 kg / 170 kg Reinforced Heavy-Duty Frame
Target Application	Small artisanal shops, noodle diners	Large canteens, bakeries, central kitchens, food plants

Technical Specifications	PRE-350	PRE-500
Model	PRE-350	PRE-500
Width of the Dough Rolling Pin	330 mm	460 mm
Diameter of the Dough Rolling Pin	114 mm	114 mm
Adjustable Clearance	5 – 20 mm	5 – 20 mm

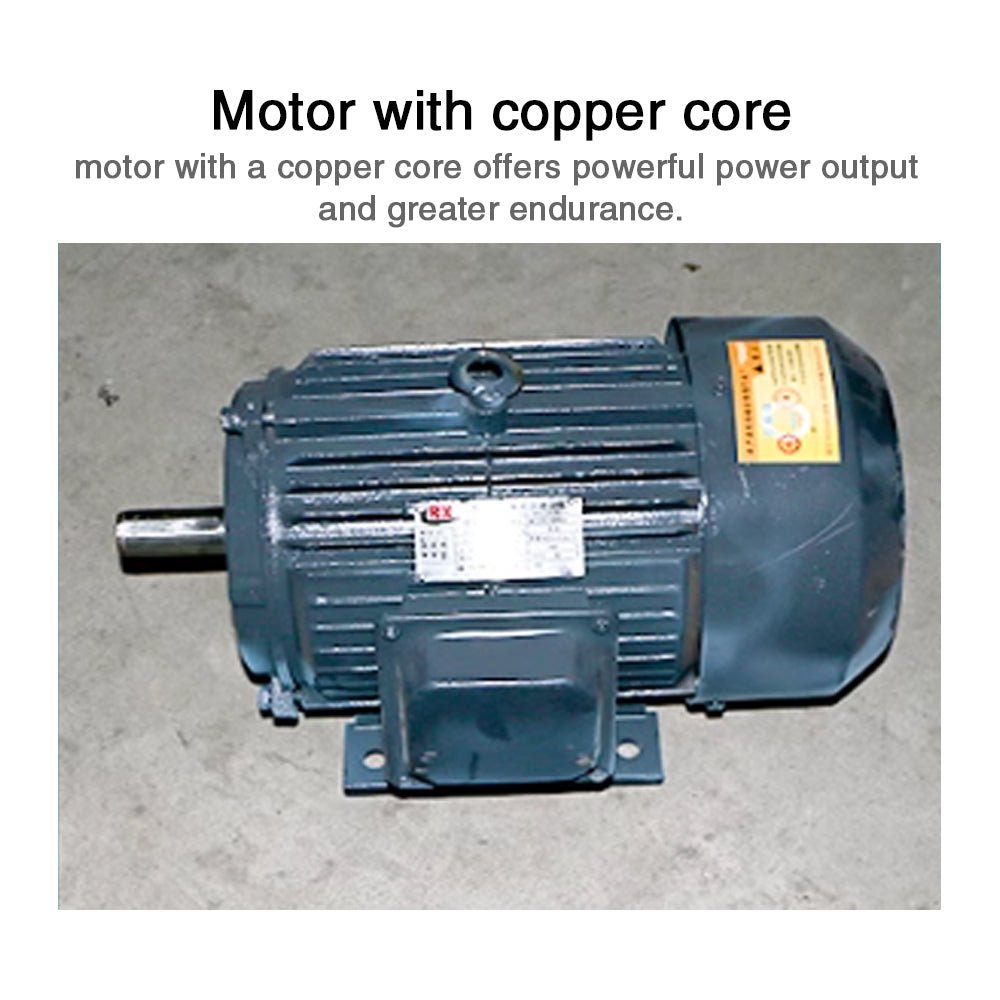

Motor Power	3.0 kW	3.0 kW
Optional Voltage	220V	380V (Customizable)
Machine Weight	150 kg	170 kg
Machine Size	103 × 61 × 103 cm	103 × 75 × 103 cm
Power Sprocket	Single Gear Chain	Single Gear Chain

Compatible Applications & Materials

industrial products — primary target products for this Press Machine Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Below is the standard operating procedure for setup, thickness calibration, dough sheeting, and routine maintenance:
Pre-Operation Inspection &amp
Setup Position the machine on a flat, load-bearing floor and adjust the leveling feet so the unit is completely stable
Verify that the power supply (220V or 380V) is properly grounded and that the safety guard and emergency stop switch function correctly
Inspect the roller surface and receiving trays to ensure they are clean and free of debris

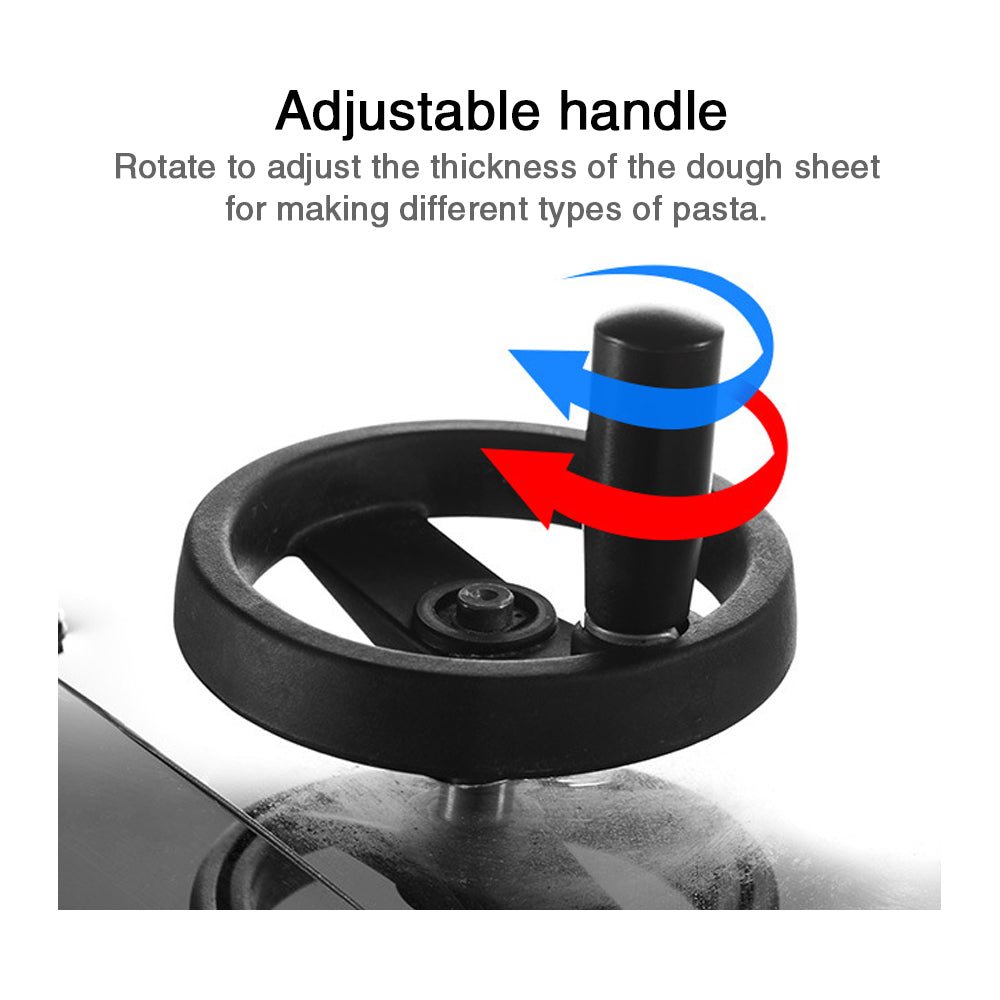

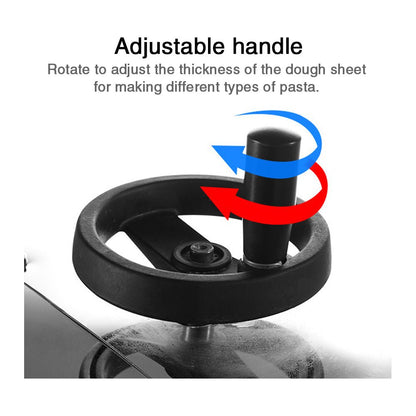

Thickness Clearance Calibration (5–20 mm) Rotate the adjustment handwheel on the side of the machine to set the roller gap according to the graduated indicator
Operating Tip : When starting with a large, unworked dough block, set the clearance to maximum (approx

Engineering FAQ

How do I choose between the PRE-350 and PRE-500 models?
A: Both models share the same 3.0 kW power and 114 mm roller diameter. The primary differences are the sheeting width and voltage : Choose the PRE-350 (330 mm width, 220V) if you have limited kitchen space or only 220V single-phase power. Choose the PRE-500 (460 mm width, 380V) if you operate a high-volume food plant or central kitchen with 380V 3-phase power, as its wider roller accommodates larger dough batches for higher output.

Is the 5–20 mm clearance suitable for making thin dumpling skins or fine noodles directly?
A: The PRE Series is designed as a heavy-duty primary dough sheeter and kneading machine for large dough blocks and thicker dough sheets (5–20 mm) , ideal for buns, steamed bread, flatbreads, and laminated pastries. For ultra-thin 1–2 mm dumpling skins or fine noodles, use the PRE machine for primary kneading and sheeting, then feed the sheet into a downstream precision machine (such as the BD Series or SK-080 wrapper maker) for final forming and cutting.

What are the main advantages of a single gear chain drive over a belt drive?
A: Heavy dough pressing generates substantial mechanical resistance. Belt drives tend to slip, overheat, and stretch or break under these conditions. The PRE Series uses an industrial single gear chain drive with direct sprocket engagement, delivering 100% positive power transfer with zero slippage, ensuring durable operation over years of high-load commercial use.

What routine maintenance keeps the PRE-350/500 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the PRE-350/500 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
