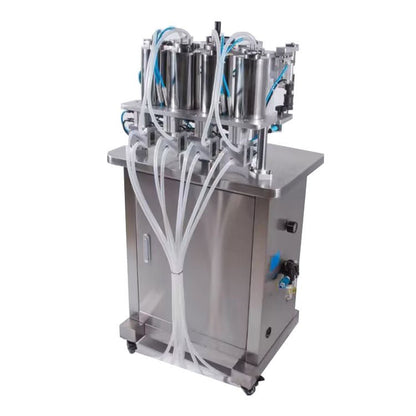

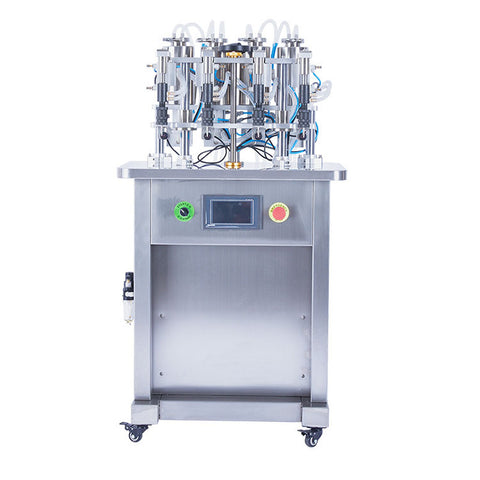

APF-500 Filling Machine for Perfume Bottles (Pneumatic Drive)

$1,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model APF-500

Shipping method by sea to door (25-40 days) by sea to port(18-30 days)

Place of shipment shipping from China

Quick Answer: The CECLE APF-500 model: APF-500 ｜ Product Name: 4 nozzles perfume filling machine Filling Range: 2 ml – unlimited ｜ Filling Nozzles: 4 Control Mode: Full Pneumatic ｜ Filling Speed: 10–45 cycles/min Filling Accuracy:.

CECLE APF-500 vs. Traditional / Generic Alternative

Where the CECLE APF-500 stands out against manual or generic machine — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE APF-500Stable 0.4–0.6 MPa Air Pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Output Speed & Throughput

CECLE APF-500Rated 10–45 cycles/min Filling Speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE APF-500Purpose-Built Air Pressure: 0.4–0.6 MPa drive delivers steady, operator-independent output.

Manual Lever / Foot UnitsOutput depends on operator strength and drifts between shifts; no stable drive control.

Chassis Rigidity & Vibration Resistance

CECLE APF-500Industrial-Reinforced Frame: 40 kg Net Weight (N.W.) chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<30 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Parameter	Specification
Model	APF-500
Filling Range	2 ml – unlimited
Number of Filling Nozzles	4
Filling Speed	10–45 cycles/min
Filling Accuracy	≤ 1%
Max Bottle Diameter	4.5–35 mm
Suitable Bottle Height	≤ 350 mm
Adjustable Liquid Level	15–50 mm
Control Mode	Full Pneumatic

Parameter	Specification
Air Pressure	0.4–0.6 MPa
Air Consumption	0.6–1.1 m³/h
Contact Parts Material	Food-grade 304 stainless steel (316 optional)

Parameter	Specification
Net Weight (N.W.)	40 kg
Gross Weight (G.W.)	54 kg
Packaging Dimension	132 × 73 × 53 cm
Packaging Method	Plywood Case

Media & Resources

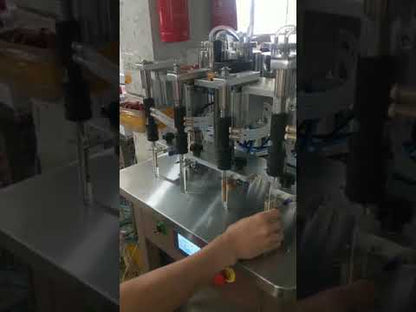

Resource: https://www.youtube.com/watch?v=_xX3wW0RKiI

Pre-installation requirements: Air Pressure: 0.4–0.6 MPa; Net Weight (N.W.): 40 kg (88.2 lb); Gross Weight (G.W.): 54 kg (119.0 lb); Packaging Dimension: 132 × 73 × 53 cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect a stable external air supply at the specified pressure and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

Why is the 10–45 cycles/min Filling Speed rating important for the APF-500?
A: The 10–45 cycles/min Filling Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

Does the APF-500 need an external air compressor?
A: Yes. The APF-500 is pneumatically driven and requires a stable external air supply at the specified pressure. CECLE recommends a compressor sized for continuous duty to hold stable output.

What routine maintenance keeps the APF-500 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the APF-500 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
