Can a cap dropping machine and an aluminum foil induction sealer be added to this line?

Yes. The standard configuration covers three stations: filling, capping and labeling. For less manual cap loading and better sealing, an automatic cap feeding (cap dropping) machine can be added after filling, and an aluminum foil induction sealing machine can be added after capping. Stations are freely selectable to match your requirements.

1 6

CECLE packaging machinery

ADLC-5000 Automatic Desktop Filling Line for Paste & Liquid Bottles

Name: ADLC-5000
Brand: CECLE
Price: 9200.0 USD
Availability: InStock

$9,200.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model ADLC-5000

Shipping method By Sea Shipping+Truck Delivery To Door(25-40 Days After Departure)

Place of shipment shipping from China

Quick Answer: The CECLE ADLC-5000 is an Automatic Desktop Filling Line with a filling speed of 50 bottles/min, engineered for stable, repeatable commercial-scale production.

CECLE ADLC-5000 vs. Traditional / Generic Alternative

Where the CECLE ADLC-5000 stands out against manual or generic automatic desktop filling line — measured on the dimensions buyers care about most.

Working Capacity & Batch Size

CECLE ADLC-5000Filling Range: 30–5000ml

Bench-Scale Batch SizeRated for a handful of pieces per cycle, so a full production day needs repeated passes and extra hands to keep up.

Pressure / Vacuum Stability

CECLE ADLC-5000Air Pressure: 0.6–0.8MPa

Fixed-Setting PumpVacuum or pressure sags as seals wear, so output turns intermittent and product has to be re-run or scrapped.

Cycle Time & Throughput

CECLE ADLC-5000Filling Speed: 50 bottles/min

Operator-Paced CyclingReal output tracks how fast the operator loads, so hourly rates fall well short of the figure quoted on the spec sheet.

Power & Drive Rating

CECLE ADLC-5000Power: 3kW

Unrated Wiring & Oversized LoadNo earthing or overload protection for continuous shifts; leads and terminals run hot at peak draw, and the motor bogs down under load.

Technical Specifications

#	Advantage	Description
1	One machine, both materials	The filling unit switches between liquid and paste materials, so one line covers two product types and halves the investment
2	Desktop compact design, space-saving	All three machines are desktop units on casters; the whole line starts work in about 3㎡, ideal for small workshops or home-based production
3	Integrated line, labor-saving	Filling – capping – labeling flow on one line: only 1–2 operators needed, replacing three separate manual processes
4	Fully adjustable, fast changeover	Filling volume 30–5000ml, bottle diameter 30–120mm, label length 15–314mm — a wide range that supports multiple SKUs
5	Plug and play	Runs on 220V/110V household power plus a standard 0.6–0.8MPa air supply; no dedicated industrial power required, ready to run on arrival
6	Buy single units or the full line	The three machines can work independently or be purchased as a complete line, configured flexibly to match output targets and budget

Parameter	Specification
Line Model	ADLC-5000

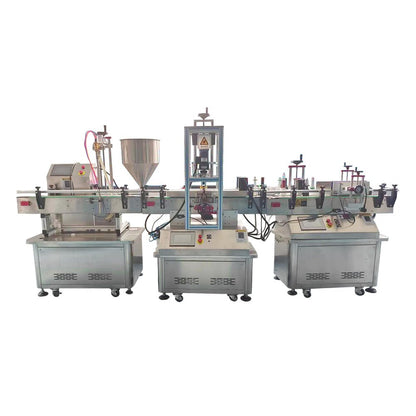

Composition	Filling Machine AD-5000 + Capping Machine AD-50 + Labeling Machine AD-220
Product Type	Liquid / Paste
Filling Range	30–5000ml

Parameter	Specification

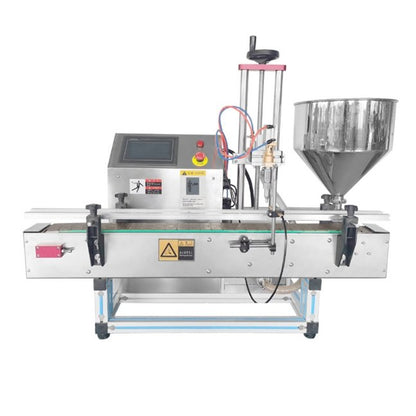

Filling Range	30–5000ml
Filling Speed	50 bottles/min
Filling Accuracy	0.5ml
Voltage	220V / 110V
Power	3kW
Air Pressure	0.6–0.8MPa
Weight	90kg
Dimensions	1270 × 400 × 950mm

Parameter	Specification

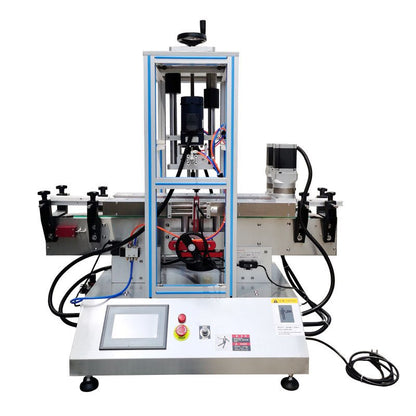

Capping Speed	20–50 times/min
Power	0.85kW
Voltage	AC 220V / 110V, 50/60Hz
Applicable Bottle Diameter	30–120mm
Applicable Cap Diameter	20–50mm
Automatic Grade	Semi Automatic
G.W. / N.W.	150kg
Overall Dimensions	1200 × 600 × 650mm

Parameter	Specification

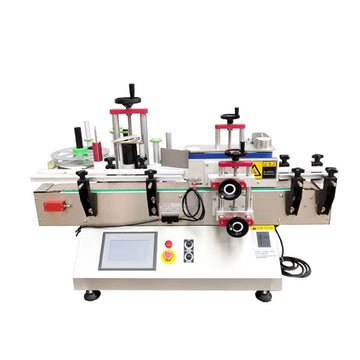

Applicable Bottle Diameter	Ø32–100mm, height 40–350mm
Applicable Label Size	Length 15–314mm × width 10–120mm
Labeling Precision	≤1.0mm
Labeling Speed	30–60 pcs/min
Voltage	110V / 220V, 50–60Hz
Power	900W
Label Roll Inside / Outside Diameter	76mm / ≤300mm
Packaging Dimensions	1320 × 820 × 950mm

Pre-installation requirements: Voltage: 110V / 220V, 50–60Hz; Power: 900W; Air Pressure: 0.6–0.8MPa; Net Weight: 90kg (198.4 lb); Dimensions: 1270 × 400 × 950mm; Overall Dimensions: 1200 × 600 × 650mm; Packaging Dimensions: 1320 × 820 × 950mm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Automatic Desktop Filling Line line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Empty bottles on line │ ▼ ① Filling station (AD-5000) Bottles placed manually → conveyed into the filling station Paste: hopper + piston dosing ─┐ Liquid: self-priming pump / piston dosing ─┴→ dosing 30–5000ml into the bottle │ ▼ ② Capping station (AD-50) Bottle in position → automatic bottle-mouth alignment Constant-torque cap tightening (cap diameter 20–50mm) │ ▼ ③ Labeling station (AD-220) Bottle detected in sync → automatic label feeding, application and smoothing Wrap-around labeling for round bottles, precision ≤1.0mm │ ▼ ④ Off-line bottle collection Bottles removed manually → cartoning / downstream packaging Operating notes:
Start-up sequence: switch on the conveyor and air supply first, then start the filling, capping and labeling stations in order
Changeover procedure: adjust the conveyor guardrail width to the new bottle size → set the filling volume → adjust capping height and torque → adjust the labeling sensor and label web position
Material change procedure: remove the hopper and pipeline → clean → install the assembly for the new material → test-fill 2–3 bottles to calibrate accuracy
Routine maintenance: clean the filling nozzles and pipeline every shift
check belt tension and sensor sensitivity weekly
drain the air service unit regularly

Engineering FAQ

Can this line fill both liquid and paste products?
A: Yes. The AD-5000 filling machine is a liquid-and-paste dual-purpose design; switching products only requires changing the hopper/pump assembly and flushing the pipeline.

What is the output capacity of the ADLC-5000 line?
A: Rated speeds are 50 bottles/min (filling), 20–50 times/min (capping) and 30–60 pcs/min (labeling). The overall line speed depends on bottle size and filling volume, and is usually calculated based on the capping station at 20–50 bottles/min.

What is the minimum and maximum filling volume?
A: The filling range is 30–5000ml, adjustable within the same machine, covering sample bottles up to large-capacity bottles.

My bottle is 28mm in diameter and my cap is 18mm — will it work?
A: The capper accepts bottle diameters of 30–120mm and cap diameters of 20–50mm. Anything outside this range requires custom fixtures. Please provide cap photos or samples for confirmation before ordering.

What label sizes does the labeling machine support?
A: Labels from 15–314mm long and 10–120mm wide, applied on bottles with a diameter of 32–100mm and height of 40–350mm. Label rolls use a 76mm core with a maximum outer diameter of 300mm — please confirm your label specification before ordering.

What power supply and air source are required?
A: The line runs on standard 220V/110V single-phase power (0.85–3kW per machine). The filling machine also needs a conventional 0.6–0.8MPa air compressor; no industrial three-phase power is required.
