CECLE Machine

FK-17 Fish Killing Machine for Food Processing (Automatic)

$4,500.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model FK-17

Fish killing methods Open belly Open back

Shipping method By sea to door about (25-35 days)

Quick Answer: The CECLE FK-17 engineering & Manufacturing Highlights.

CECLE FK-17 vs. Traditional / Generic Alternative

Where the CECLE FK-17 stands out against manual or generic fish killing machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE FK-17The CECLE Fish Killing Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE FK-17It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE FK-17Its drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE FK-17The frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Target Fish Species	Typical Weight Range	Recommended Model	Blade Depth Setting Guideline	Target Culinary Use & Result
Grass Carp / Common Carp	1.0 kg – 3.5 kg	Open Back	Deep cut into spine, split even	Butterfly opening, spine intact; charcoal grilled fish
Snakehead (Channa)	0.8 kg – 2.0 kg	Open Belly	Mid-level cut through belly wall	Uniform belly incision; fast transfer to fillet slicing
Tilapia (St. Peter Fish)	0.5 kg – 1.5 kg	Open Back	Mid-to-high precision depth	Symmetrical bone split, taut skin; export frozen whole
Sea Bass / Barramundi	0.5 kg – 1.2 kg	Open Belly	Shallow cut on midline	Preserves swim bladder; easy blood rinse for steaming
Bream / Mud Carp	0.5 kg – 1.0 kg	Back or Belly	Mid-low continuous infeed	8-second cycle, clean cut without bone fragments

Technical Parameter	FK-17 (Precision Open Back)	FK-17 (Precision Open Belly)
Primary Slitting Function	Spine/Dorsal Cut (Intact Gallbladder)	Belly/Ventral Cut (Intact Gallbladder)
Processing Speed	Approx. 7 fish / min (~8–9 sec/fish)	Approx. 7 fish / min (~8–9 sec/fish)
Applicable Fish Weight	0.5 to 4.0 kg (1–4 kg / 2–9 lbs)	0.5 to 4.0 kg (1–4 kg / 2–9 lbs)
Rated Motor Power	1.5 kW (Industrial Pure Copper Motor)	1.5 kW (Industrial Pure Copper Motor)
Rated Operating Voltage	220V 1-Phase / 380V 3-Phase (50/60Hz)	220V 1-Phase / 380V 3-Phase (50/60Hz)
Machine Net Weight (NW)	150 KG (330 lbs) (Solid Stable Frame)	150 KG (330 lbs) (Solid Stable Frame)
Overall Dimensions (L×W×H)	600 × 600 × 950 mm (23.6″×23.6″×37.4″)	600 × 600 × 950 mm (23.6″×23.6″×37.4″)
Equipment Floor Footprint	Only 0.36 m² , ultra-compact	Only 0.36 m² , ultra-compact

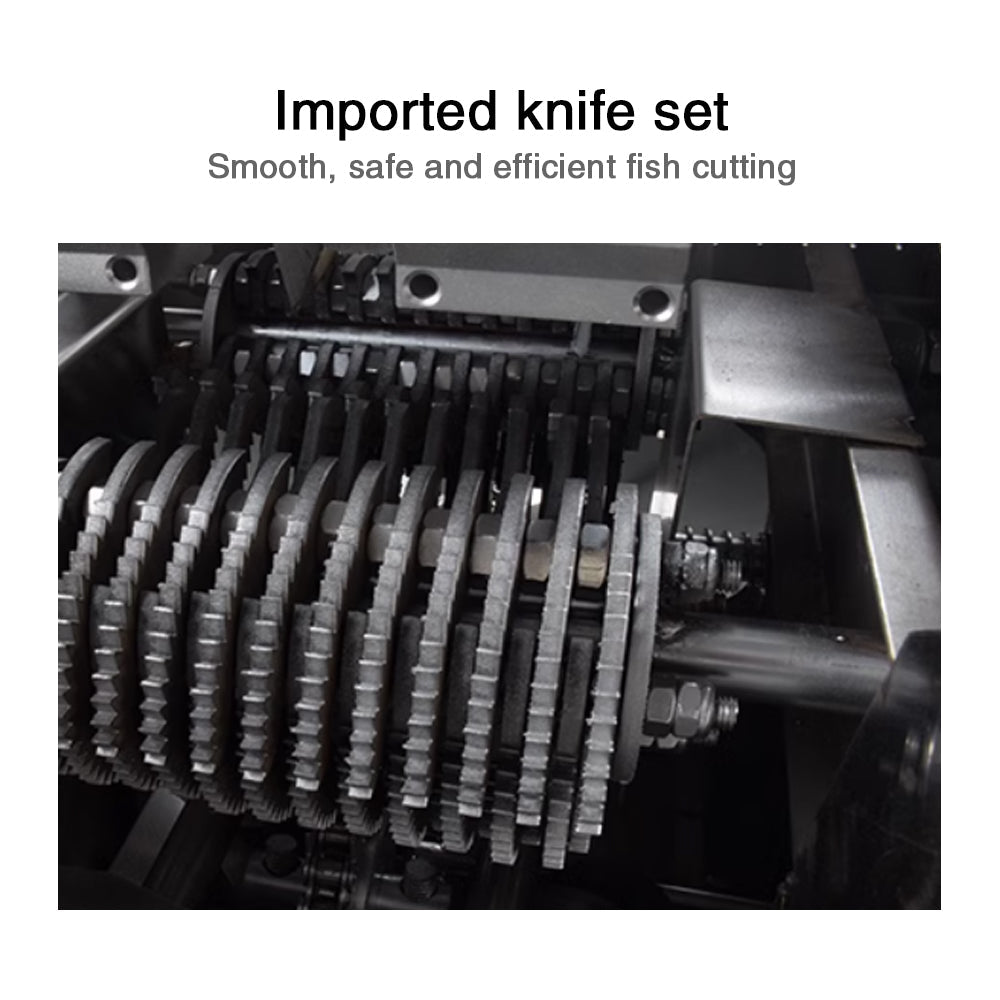

Circular Blade Material	Cryogenic High-Chromium Alloy Tool Steel	Cryogenic High-Chromium Alloy Tool Steel
Chassis & Body Housing	Heavy-Gauge Food-Grade SUS304 Stainless	Heavy-Gauge Food-Grade SUS304 Stainless
Waterproof & Safety Grade	IPX6 Washdown-Proof + Emergency E-Stop	IPX6 Washdown-Proof + Emergency E-Stop
Standard Delivery Method	DDP Sea Freight to Door (~25–35 days)	DDP Sea Freight to Door (~25–35 days)

Compatible Applications & Materials

industrial products — primary target products for this Fish Killing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What is the mechanical difference between the Open Back and Open Belly models? Can one machine do both?
A: The internal positioning clamps and blade entry travel paths are geometrically distinct: Open Back Model : The infeed guide contours specifically along the fish's dorsal arch to ensure deep slicing along the spine without penetrating the belly wall; Open Belly Model : The internal clamp centers the flanks to slice precisely along the ventral midline; Buying Advice : Spine bone resistance and belly membrane textures differ significantly. To ensure maximum cutting precision and zero burst gallbladders, the internal geometry is factory-locked. We recommend choosing either the dedicated Open Back or Open Belly model based on your menu before placing your order .

Will the blade rupture the gallbladder and leave the meat tasting bitter?
A: No. The standout feature of the FK-17 is its micrometer-calibrated guide rails. The rotary blade slices strictly along the spinal axis, while resilient internal deflectors gently nudge the viscera and gallbladder sac aside, maintaining a gallbladder rupture rate well below 0.1% .

How should I choose between the FK-17 (Vertical Cabinet) and FFK-18 (Conveyor Belt)?
A: Base your choice on kitchen footprint and required daily volume : Choose FK-17 (Vertical Cabinet) : Footprint is only 60 × 60 cm with an output of 7 fish/min. Ideal for compact restaurant kitchens, hotel culinary lines, and supermarket prep rooms needing heavy-duty, clean, enclosed operation; Choose FFK-18 (Conveyor Belt) : Measures 1.6 m in length with an output of up to 3 fish/second. Built for large-scale wholesale fish processing plants and centralized prep commissaries.

What routine maintenance keeps the FK-17 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the FK-17 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
