TD-2M Automatic Dual-Head Linear Weigher Filling Machine | Granule & Powder Dispenser

Core Abstract: The TD-2M Automatic Dual-Head Linear Weigher is a highly cost-effective, entry-level automatic weighing and filling machine designed for small to medium-scale food and agricultural packaging. Ideal for granules, slices, and regular-shaped products like sugar, rice, seeds, and seasoning powders, it utilizes two alternating weighing heads to balance speed and accuracy (1-2g precision at 30 drops/min). Equipped with a brand-new modular control system and stepless vibrating feeding, it ensures smooth operation without damaging materials. For comprehensive technical specifications, wiring diagrams, and calibration manuals, please visit our official TD-2M Dual-Head Linear Weigher Technical Documentation.

1. Product Overview

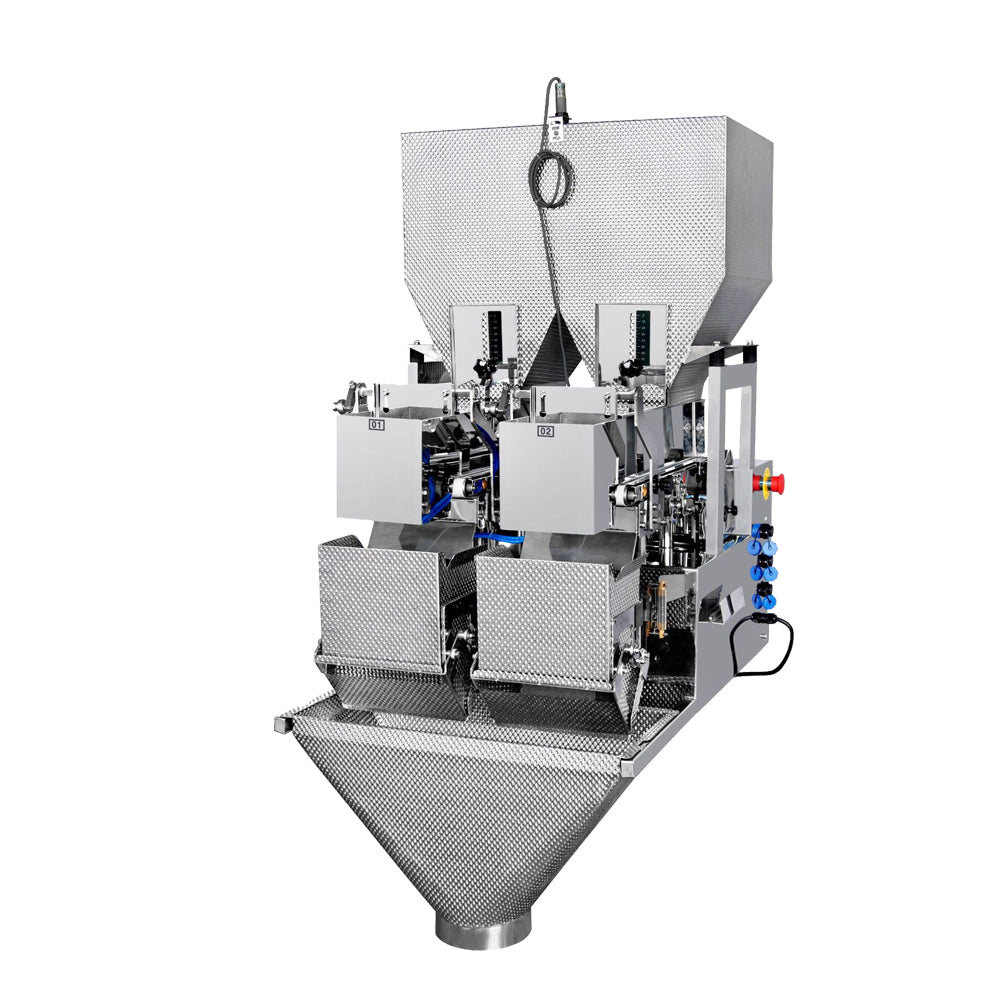

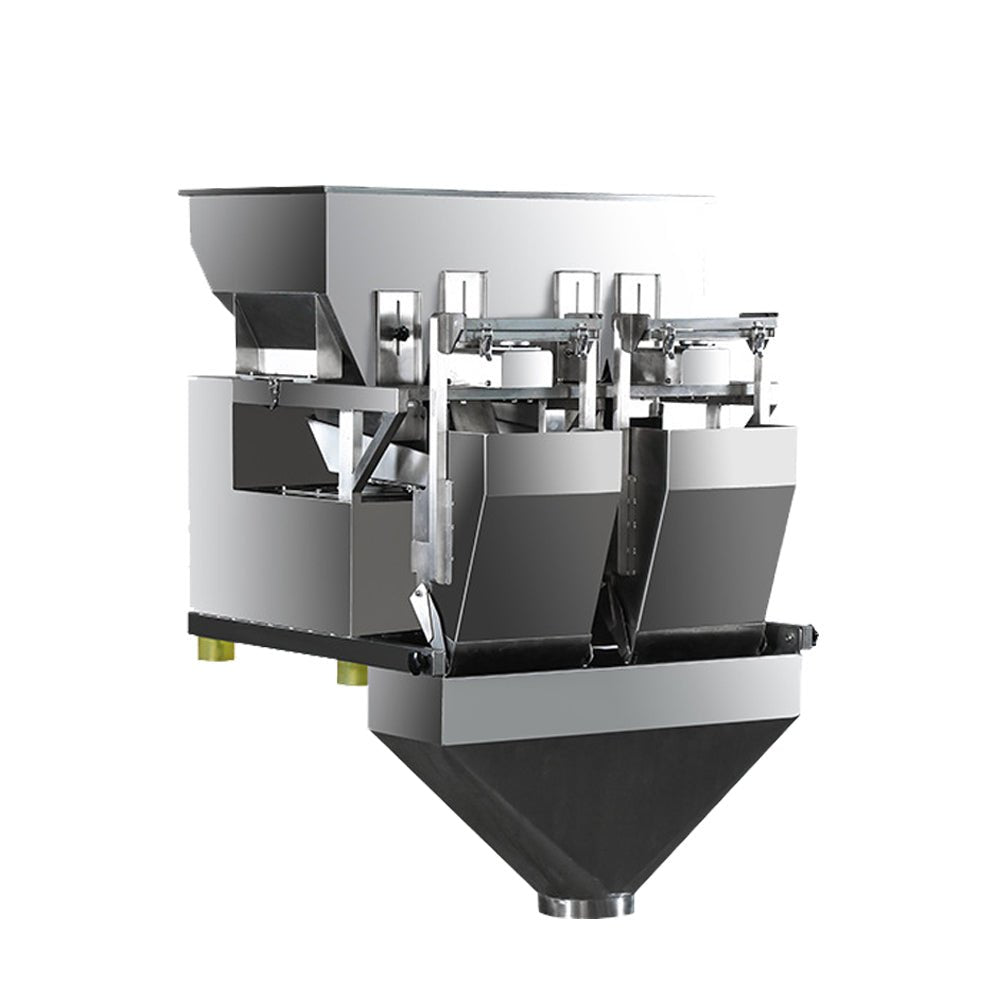

The TD-2M is a dual-head linear scale suitable for the automatic quantitative weighing of granules and regular-shaped materials for small to medium production capacities. It is widely applicable to sliced, rolled, or regular-shaped products such as sugar, salt, seeds, rice, sesame, MSG, milk powder, coffee, and seasoning powders. For a complete list of compatible materials and use cases, check our TD-2M Product Overview Guide.

2. Core Advantages

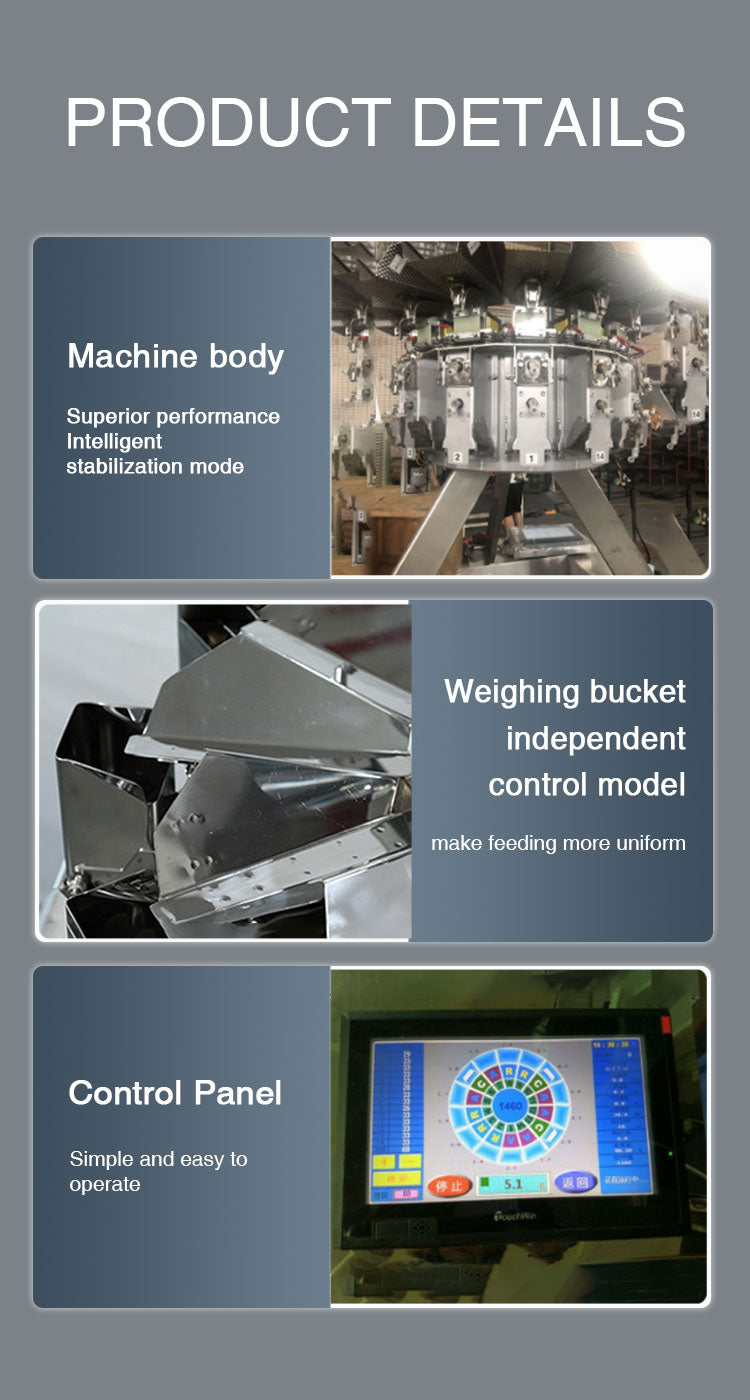

1. Brand New Modular Control System: Fast response, stable operation, and a modular design that makes future maintenance extremely convenient.
2. Stepless Vibrating Feeding System: Ensures smooth material flow without causing any damage to the product.
3. Mixed Batching Function: Supports parameter settings to complete the mixed weighing of different materials in a single discharge.
4. Flexible Parameter Adjustment: Users can freely adjust running parameters on the control screen according to production needs.
5. High Cost-Performance: Perfectly balances speed and cost, making it ideal for small and medium-sized packaging enterprises.

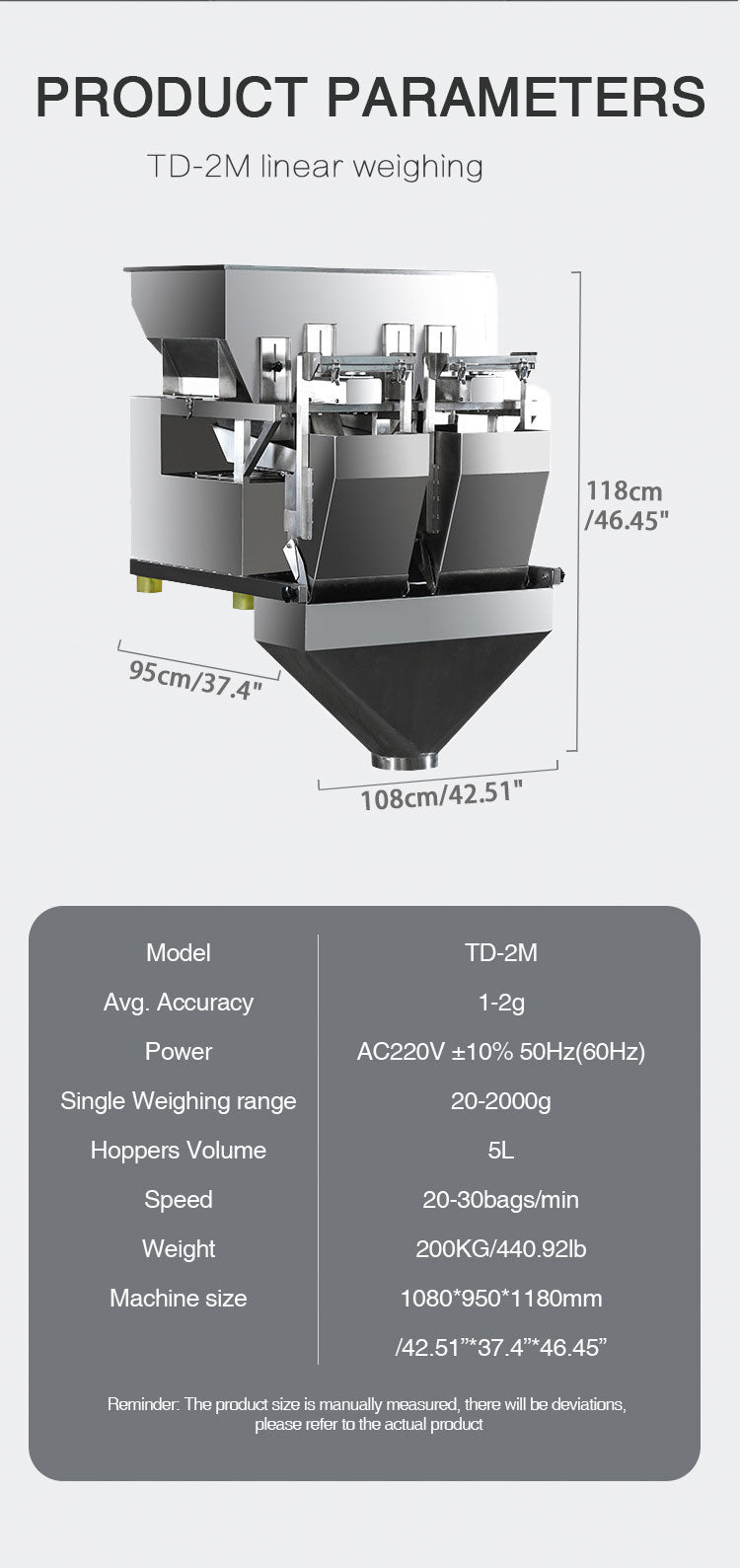

3. Technical Parameters

For complete dimension blueprints and power requirements, please consult our Technical Parameters Documentation.

• Model: TD-2M
• Voltage: AC220V ±10% 50Hz(60Hz)
• Single Weighing Range: 20-2000 g
• Average Precision: 1~2 g
• Packing/Weighing Speed: 30 times/min
• Power: 1200 W

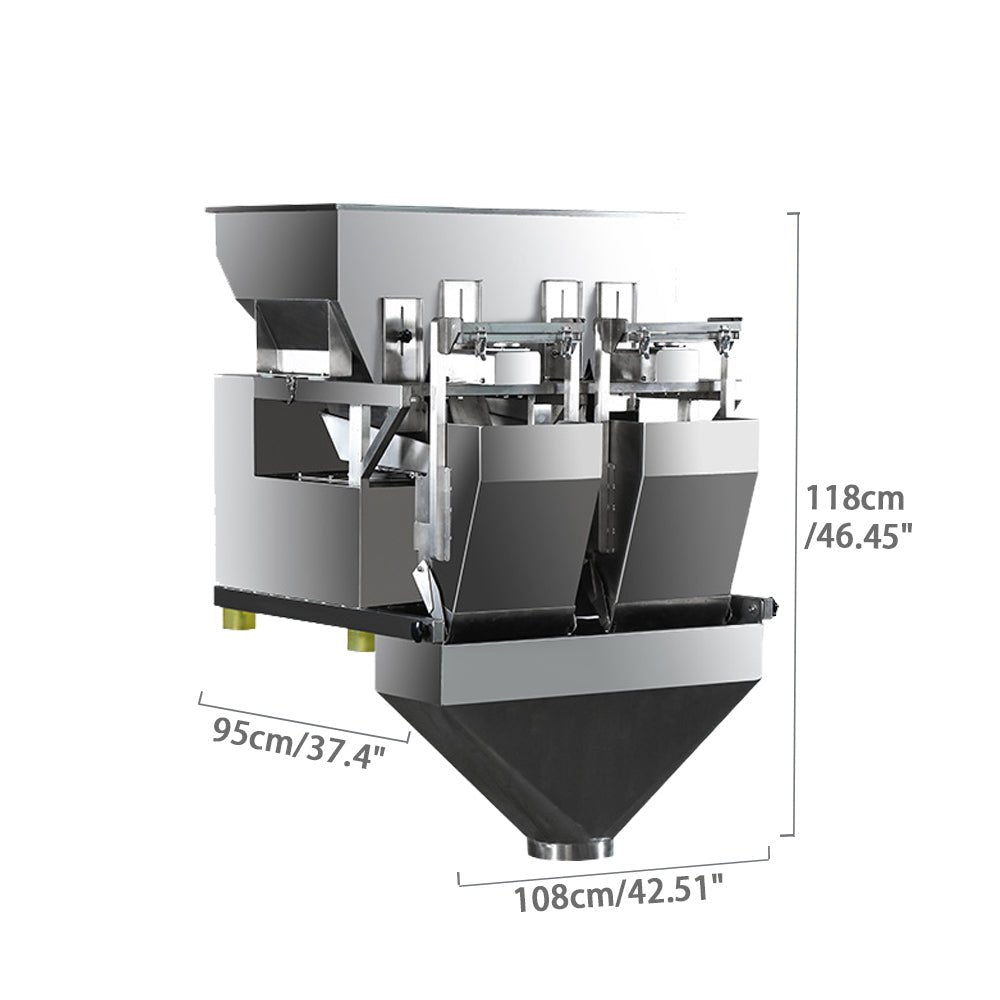

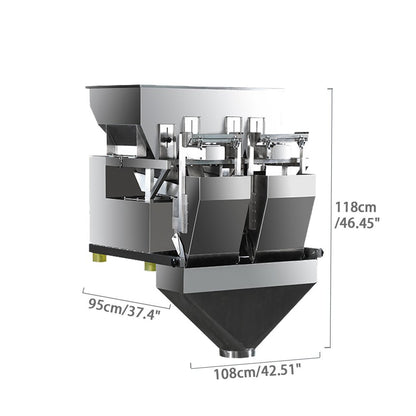

• Machine Dimensions: 108×95×118 cm
• Machine Weight: 200 KG

4. Operation Process

To view best practices for setup and calibration, visit the TD-2M Operation Process Guide.

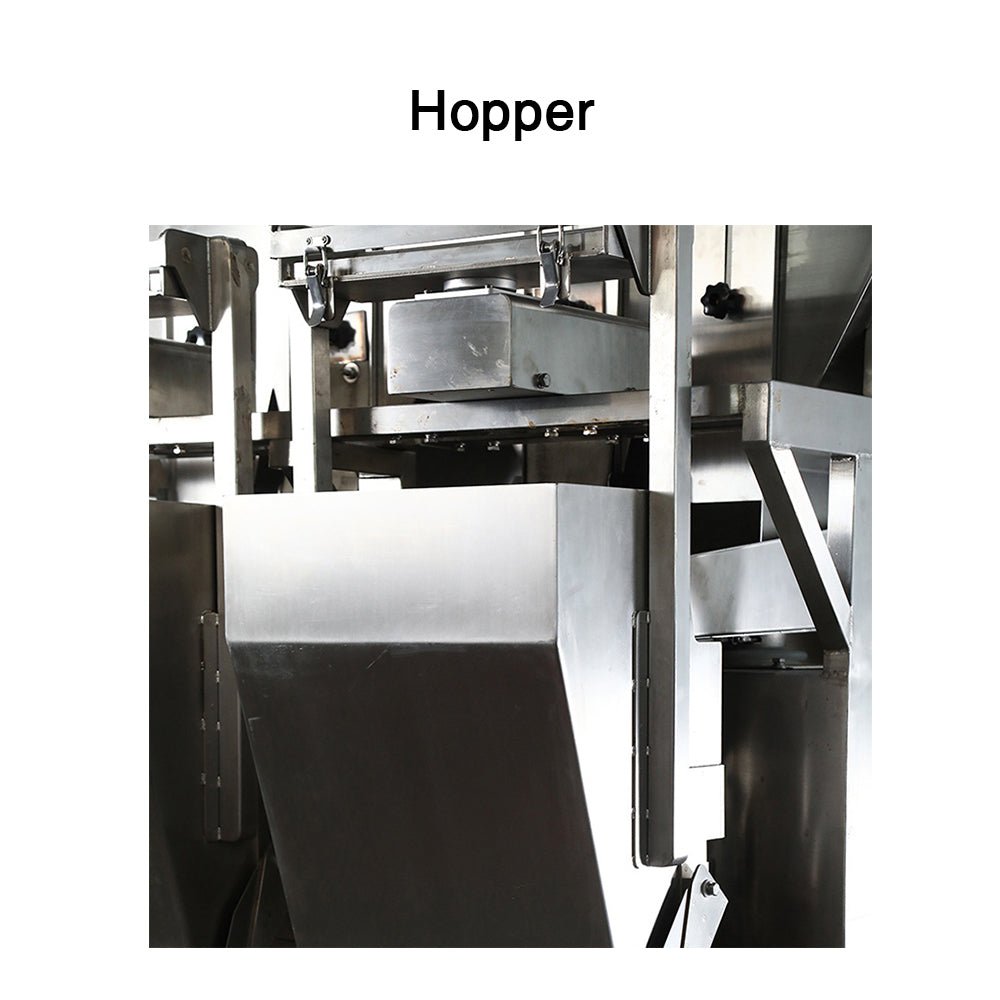

• Step 1: Load the material to be weighed into the top storage hopper.
• Step 2: Set target weight and vibration feeding intensity on the touch screen.
• Step 3: The machine starts; the two weighing hoppers alternately feed and weigh via stepless vibration.
• Step 4: The control system calculates in real-time, stopping vibration once the preset weight is reached.

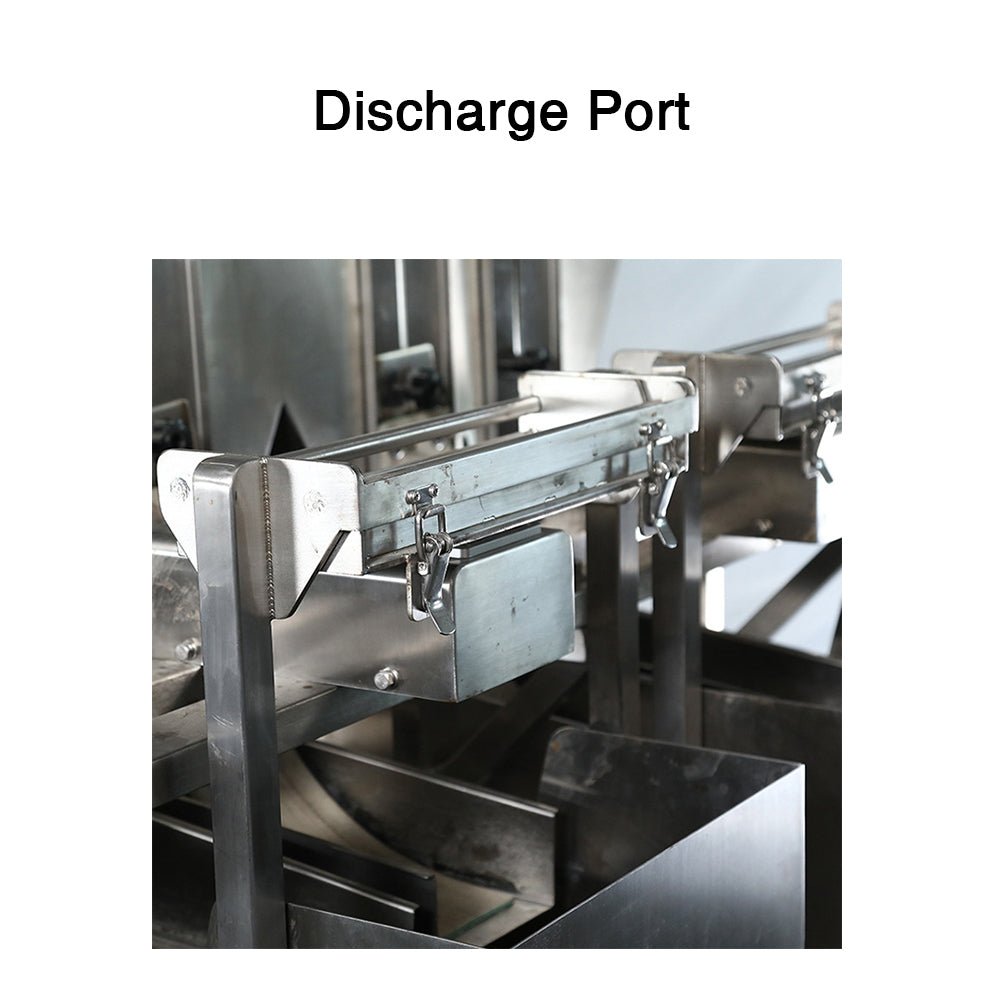

• Step 5: Place a bag under the outlet (or connect to an auto-packer) to release the material and loop into the next cycle.

5. Frequently Asked Questions (FAQ)

Explore more support resources on our FAQ & Sales Support Page.

Q1: Can this machine weigh powders?

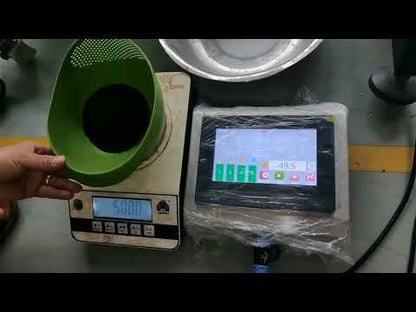

A: It is suitable for granules, small chunks with good flowability (like rice, sugar, beans), and some free-flowing coarse powders. For ultra-fine and dusty powders, a screw (auger) metering machine is recommended.

Q2: How is the weighing precision?

A: The average precision is around 1-2g (depending on the unit size and flowability of the material).

Q3: How long is the warranty?

A: The whole machine has a 1-year warranty (excluding wearing parts), with lifetime maintenance.

Q4: What services do you provide?

A: We offer online technical support, video debugging guidance, and free spare parts service during the warranty period.

6. Watch Operation Video

Watch how the dual head linear weigher operates: YouTube Video Link
