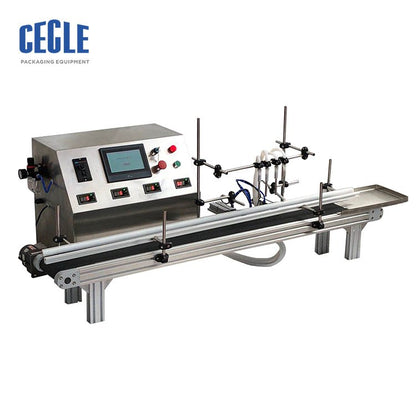

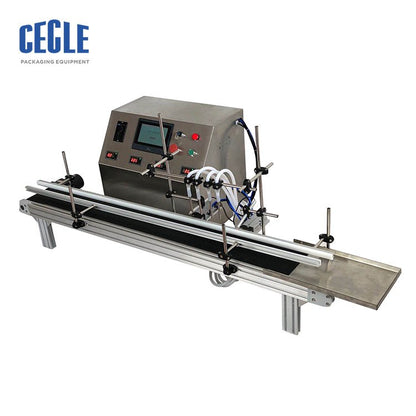

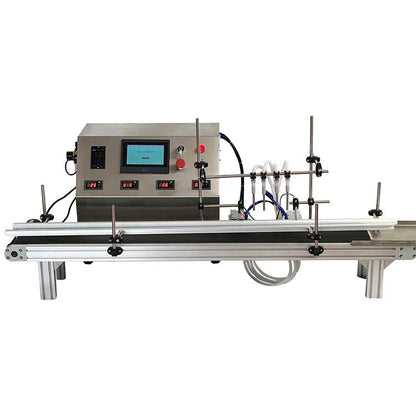

AL4-5000 Filling Nozzles Drive Digital Machine for Perfume Bottles (Pneumatic Drive)

Name: AL4-5000
Brand: CECLE
Price: 2999.0 USD
Availability: InStock

$2,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size AL4-5000

Shipping method By sea to port(20-30days) By sea to door with tax(25-40days)

Quick Answer: The CECLE AL4-5000 liquid Filling Machine Model : AL4-5000 Supplier : Wenzhou T&D Packaging Machinery.

CECLE AL4-5000 vs. Traditional / Generic Alternative

Where the CECLE AL4-5000 stands out against manual or generic digital machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE AL4-5000Explosion-Proof & Safe (No Electricity Needed for Pneumatic Operations) : Equipped with Airtac pneumatic components and full pneumatic drive. It can operate without power supply, offering high safety.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Adaptability & Changeover

CECLE AL4-5000High-Temperature Food-Grade Seals : Silicone O-rings withstand temperatures up to 200℃ and meet food safety standards. Optional silicone or rubber seals; rubber seals are suitable for corrosive products.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE AL4-5000The CECLE Digital Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE AL4-5000Rated 1–100 times/min Filling Speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Parameter	Specification
Model	AL4-5000
Filling Range	5–5000 ml
Filling Nozzle	4 nozzles (Single-head / Double-head optional)
Filling Speed	1–100 times/min
Filling Accuracy	≤1%
Automatic Grade	Automatic (Switchable to semi-automatic)
Drive Type	Full Pneumatic Drive (External air compressor required, no electricity needed for pneumatic control)
Nozzle Diameter	3–12 mm (Optional)
Seal Ring	Silicone O-ring (Resistant to 200℃) / Rubber seal ring (Anti-corrosion)
G.W. / N.W.	200 kg
Packaging Dimension	165 × 80 × 65 cm

Media & Resources

Workflow Video: https://www.youtube.com/watch?v=OGt9DbZ70Ns

Pre-installation requirements: Packaging Dimension: 165 × 80 × 65 cm.

Compatible Applications & Materials

industrial products — primary target products for this Digital Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

flowchart LR A[Connect Air Compressor&lt
Supply Compressed Air] --&gt
B[Set Filling Volume &amp
Speed] B --&gt
C{Select Operation Mode} C --&gt
|Semi-Automatic| D[Step on Foot Pedal&lt
Start Filling] C --&gt

Engineering FAQ

Why is the 1–100 times/min Filling Speed rating important for the AL4-5000?
A: The 1–100 times/min Filling Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What routine maintenance keeps the AL4-5000 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the AL4-5000 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
