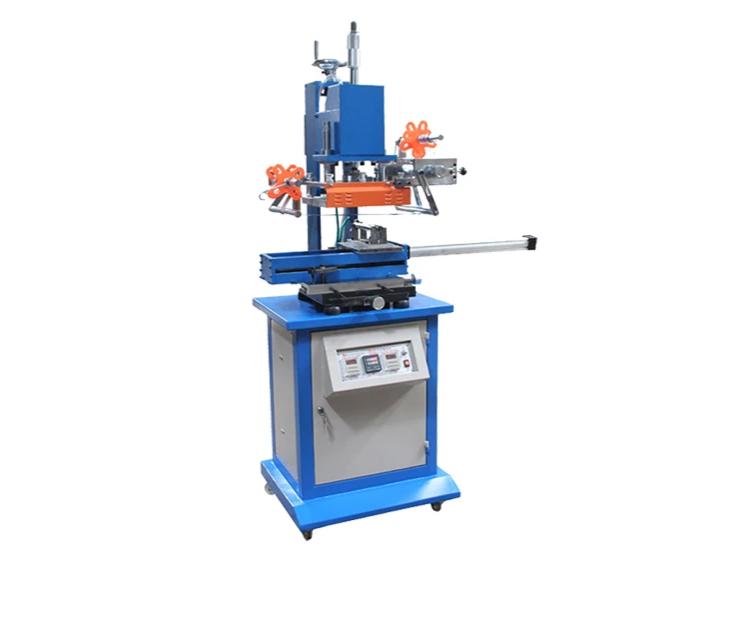

AGP-210 Round Surface Stamping Adjustable Drive Machine for Caps (Pneumatic Drive)

AGP-210 Round Surface Stamping Adjustable Drive Machine for Caps (Pneumatic Drive)

$2,100.00 USD
$2,100.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping Method
Shipping From
Quick Answer: The CECLE AGP-210 flat and Round Dual-Use Semi-Automatic Hot Foil Stamping Machine (Model: AGP-S-210) is a versatile pneumatic stamping system engineered specifically for both curved/round surfaces.

CECLE AGP-210 vs. Traditional / Generic Alternative

Where the CECLE AGP-210 stands out against manual or generic machine — measured on the dimensions buyers care about most.

Adaptability & Changeover
CECLE AGP-210Versatile Flat & Round Dual-Use Capability : Seamlessly switches between flat and curved surface stamping, maximizing machine utility and saving workshop space and equipment costs. Custom Circular Molds for.
Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.
Pressure Consistency
CECLE AGP-210Reliable Pneumatic Precision : Driven by stable pneumatic control (requiring 0.6–0.8mpa air pressure) with a 0.4T maximum pressure, delivering uniform stamping force and crisp impressions. Easy Setup &.
Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.
Output Speed & Throughput
CECLE AGP-210Rated 10–20 times/min Speed: Built for steady commercial output with minimal idle time.
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Operational Mechanism & Drive
CECLE AGP-210Purpose-Built Voltage: 2 kW drive delivers steady, operator-independent output.
Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Parameter Name Specification
Model AGP-S-210
Heating plate size 210mm × 260mm
Pressure 0.4T
Speed 10–20 times/min
Voltage 2 kW
Power 110/220V 50–60Hz single phase
Applicable material Hot stamping foil
Hot stamping products Flat and Round Products
Air pressure 0.6–0.8 mpa
Control mode Pneumatic
G.W./N.W. 130 kg

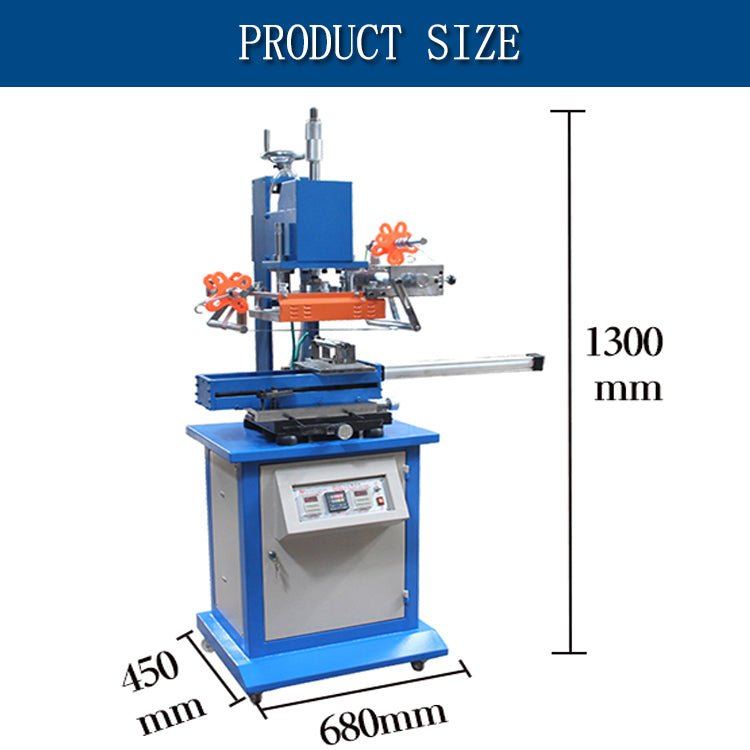

Packaging dimension 570 × 460 × 1600 mm
Automatic grade Semi-auto

Pre-installation requirements: Voltage: 2 kW; Power: 110/220V 50–60Hz single phase; Air Pressure: 0.6–0.8 mpa; Packaging Dimension: 570 × 460 × 1600 mm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

  • industrial products — primary target products for this Machine line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Power Connection : Connect the machine to an external air compressor (supplying 0.6–0.8mpa air pressure) and plug into the 110V/220V power source
  2. Foil Setup : Mount the hot stamping die onto the heating plate and thread the hot stamping foil through the feeding path
  3. Mode Configuration (Flat or Round) : For Round Stamping : Install the custom circular mold designed for your cylindrical product (e.g., mug or bottle)
  4. For Flat Stamping : Remove the circular mold and fixture to use the standard flat working surface
  5. Parameter Adjustment : Adjust the heating plate descent distance and set the operating temperature and stamping time according to your material
  6. Stamping Operation : Place the product onto the mold/worktable, trigger the pneumatic control to execute the stamp, and retrieve the finished item.

Engineering FAQ

How does the machine switch between flat and round stamping?
A: For round surface stamping, you install a custom circular mold matching your product. For flat stamping, simply remove the circular mold and fixture, and you are ready to stamp flat items.

Can the pressing distance of the heating plate be adjusted?
A: Yes, the machine allows you to easily adjust the heating plate descent distance to accommodate different product sizes and heights.

What preparations are needed after receiving the machine?
A: Upon receiving the machine, you need to connect it to an external air compressor (0.6–0.8mpa), install your hot stamping die, thread the hot stamping foil, and connect the power supply before operation.

What does the 0.4T Pressure requirement mean for the AGP-210?
A: The 0.4T Pressure is the working condition needed for consistent, repeatable results. Operators must supply a stable source at this level; fluctuations cause defects.

What peripheral equipment should be prepared for the AGP-210?
A: Beyond the rated 2 kW Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the AGP-210 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — AGP-210
