CECLE packaging machinery

AF3-1600A Three-Head Aerosol Filling Machine for Industrial Products (Automatic)

AF3-1600A Three-Head Aerosol Filling Machine for Industrial Products (Automatic)

Regular price $5,999.00 USD
Regular price Sale price $5,999.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping method
Place of shipment
Quantity
Quick Answer: The CECLE AF3-1600A is a semi-automatic three-head aerosol filling machine that combines liquid filling, crimping, and gas charging into a single machine frame.

CECLE AF3-1600A vs. Traditional / Generic Alternative

Where the CECLE AF3-1600A stands out against manual or generic three-head aerosol filling machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance
CECLE AF3-1600AThree stations in one machine: Liquid filling, crimping and gas charging are integrated into a single frame — a small footprint and fast.
Lightweight Sheet Metal (<480 kg)Prone to chassis flex, frame warping over time, and seal leakage.
Output Speed & Throughput
CECLE AF3-1600AProven crimping technology: The crimping unit draws extensively on the structural design of Pamasol (Switzerland) filling machines.
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Sealing / Transfer Quality
CECLE AF3-1600AReliable key components: Seals are supplied by Hansheng Sealing Technology Co., Ltd. (Taiwan); cylinders are AirTAC brand, giving a clean, modern appearance
Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.
Vacuum Flow & Adhesion
CECLE AF3-1600ABooster pump included: The added booster pump keeps the air supply stable, making production more consistent and safer
Weak 8–10 m³/h PumpsInsufficient suction leads to loose packaging, trapped air pockets, and poor display aesthetics.

Technical Specifications

Function Description
Liquid filling Volumetric liquid filling; contact parts in 316L stainless steel with PTFE seals, compatible with corrosive liquids
Crimping Internal expansion crimping of 1-inch aerosol valves; guided crimping head for fast, reliable and consistent crimping
Gas charging Volumetric propellant gas charging, accuracy plus or minus 2 percent (±2%)
Booster air supply Matched booster pump keeps production running more stably and safely
Parameter Specification
Production Speed 100–300 cans/hour (single machine)
Liquid Filling Volume 40–500 ml
Gas Filling Volume 40–500 ml
Liquid Filling Accuracy ±2%
Gas Charging Accuracy ±2%
Compressed Air Pressure 0.65–1.0 MPa
Air Consumption 0.8 m³/min
Can Diameter 35–65 mm (customizable)
Can Height 70–330 mm (customizable)
Applicable Valve 1 inch / 1" (25.4 mm), internal expansion crimping
Main Machine Size / Weight 970 × 510 × 1500 mm, approx. 180 kg
Booster Pump Size / Weight 360 × 320 × 750 mm, approx. 30 kg

Media & Resources

Resource:

Pre-installation requirements: Compressed Air Pressure: 0.65–1.0 MPa; Main Machine Size / Weight: 970 × 510 × 1500 mm, approx. 180 kg; Booster Pump Size / Weight: 360 × 320 × 750 mm, approx. 30 kg. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

  • industrial products — primary target products for this Three-Head Aerosol Filling Machine line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

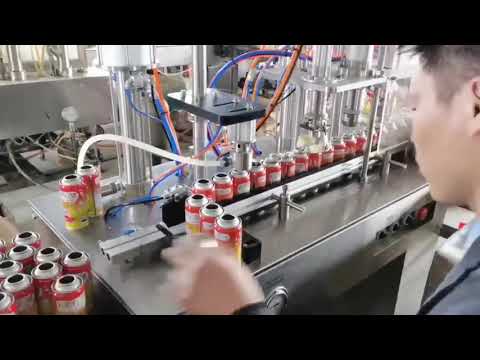

  1. Semi-automatic operation sequence (cans loaded manually, three stations working in sequence): Load empty can manually ↓ (1) Liquid filling station — volumetric liquid filling (40-500 ml, accuracy ±2%) ↓ (2) Crimping station — clamping cylinder clamps the 1&quot

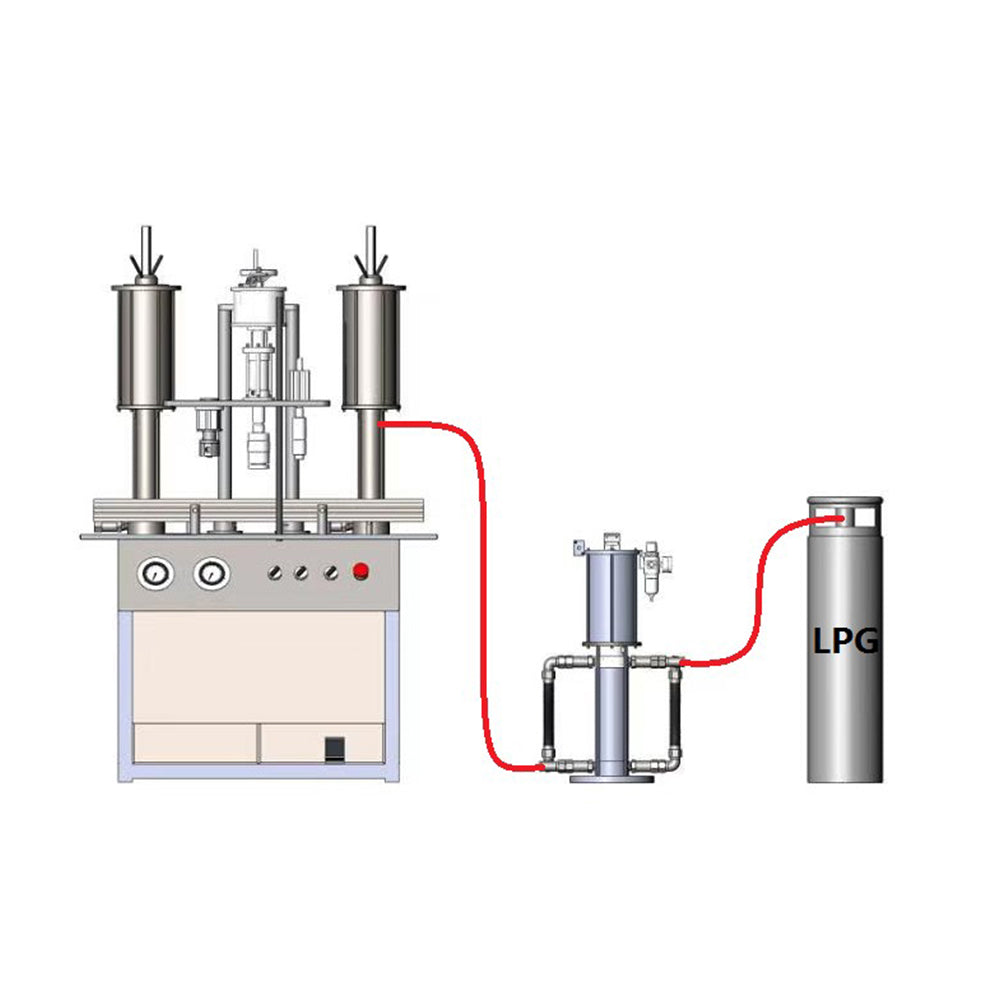

  2. aerosol valve → crimping cylinder performs internal expansion crimping ↓ (3) Gas charging station — volumetric propellant charging (40-500 ml, accuracy ±2%) ↓ Remove finished can manually Air circuit: LPG / compressed air supply → booster pump (360 × 320 × 750 mm) → each station of the machine
  3. The booster pump keeps the supply pressure stable, making production smoother and safer.

Engineering FAQ

Can this machine complete liquid filling, crimping and gas charging in one pass?
A: Yes. The AF3-1600A is a three-station integrated design: cans are loaded and unloaded manually, and liquid filling → crimping → gas charging are completed in sequence on the same machine, supported by the booster pump.

Which can types and valves is it suitable for?
A: Tinplate and aluminium aerosol cans with the international standard 1-inch (25.4 mm) can opening, can diameters of 35–65 mm and can heights of 70–330 mm. Sizes are customisable.

Can it fill corrosive liquids (such as certain cleaners and maintenance agents)?
A: Yes. Liquid contact parts are made of 316L stainless steel with PTFE seals, handling different liquids including corrosive ones.

What production scale is it suitable for?
A: Output is 100–300 cans per hour per machine, ideal for small and medium batches with a wide product mix. For higher output, upgrade to a fully automatic multi-head model.

How is crimp quality ensured?
A: The crimping head uses guided crimping (drawing on Pamasol structural design) with a twin-cylinder structure: the clamping cylinder clamps the valve first, then the crimping cylinder completes the internal expansion crimp — fast and reliable.

What are the air supply requirements?
A: Compressed air pressure of 0.65–1.0 MPa and air consumption of approximately 0.8 m³/min; the machine is supplied with a booster pump for a stable air supply.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — AF3-1600A
