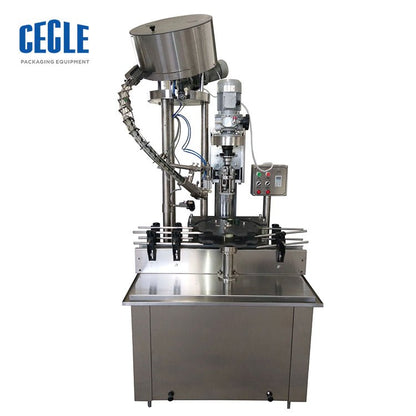

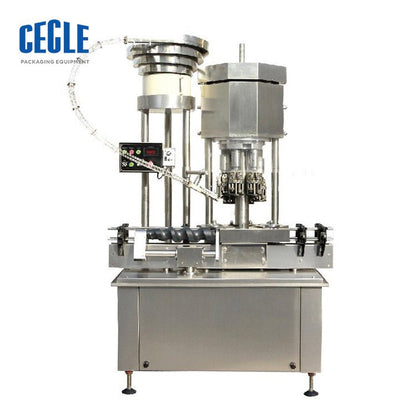

ADK Aluminum Automatic Capping Machine for Glass Bottles

Name: ADK
Brand: CECLE
Price: 17800.0 USD
Availability: InStock

$17,800.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model ADK

Shipping method by sea to port(18-30 days)

Place of shipment shipping from China

Quick Answer: The CECLE ADK is a high-efficiency, fully automatic inline capping machine designed for universal sealing of plastic threaded caps, pilfer-proof aluminum caps, and metal screw caps across.

CECLE ADK vs. Traditional / Generic Alternative

Where the CECLE ADK stands out against manual or generic automatic capping machines — measured on the dimensions buyers care about most.

Adaptability & Changeover

CECLE ADKFull Material Compatibility : The precision-engineered capping head adapts to both rigid aluminum caps and flexible plastic caps . It applies even torque without damaging caps or leaving scratches

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Sealing / Transfer Quality

CECLE ADKSmart Control System : Equipped with a high-performance Taiwan-brand PLC and digital touchscreen. Parameters can be fine-tuned for different cap materials to ensure airtight sealing

Uncontrolled Contact ConditionsEdges wrinkle and labels drift because feed speed and label peel are not synchronized.

Operational Mechanism & Drive

CECLE ADKSensor-Driven Precision Operation : Features German SICK photoelectric sensors to achieve "No Bottle, No Cap Feeding/No Capping," effectively reducing aluminum cap deformation and plastic cap waste

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE ADKDurable High-Quality Frame : Full stainless steel frame (body built with 201 stainless steel), rust-proof and corrosion-resistant, meeting industrial hygiene standards

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and drifting label placement.

Output Speed & Throughput

CECLE ADKCustomizable Design : Standard configuration includes 6 capping heads, supporting dual capping heads operating simultaneously for high efficiency and easy adjustment. The number of capping heads (single-head.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Technical Specifications

Parameter Category	Specifications	Parameter Category	Specifications
Model	ADK	Cap Diameter	20–40 mm
Cap Material	Aluminum & Plastic Caps (Universal)	Bottle Height	100–450 mm
Production Speed	45–60 cycles/min	Motor Power	750W
Operating Voltage	220V/110V 50/60Hz	Air Pressure	0.4–0.6 MPa
Control Mode	PLC Touchscreen + Electrical Control	Capping Heads	6 Heads (Customizable)
Machine Weight (G.W.)	850 kg	Conveyor Length	2 meters (Customizable)
Automation Level	Fully Automatic	Packaging Type	Export-Grade Fumigation-Free Wooden Box

Compatible Applications & Materials

industrial products — primary target products for this Automatic Capping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Automatic Bottle Feeding : Bottles smoothly enter the workstation via the 2-meter stainless steel conveyor belt
Material Sensing : German SICK sensors accurately identify bottle positions to prevent misfires
Precise Cap Placement : Guides aluminum or plastic caps to ensure they are placed upright on the bottle mouth
Synchronous Capping : Dual capping heads move down vertically at the same time to secure the caps according to the preset torque
Finished Product Discharge : After capping is complete, the positioning mechanism releases, and finished products move along the conveyor to the next packaging process.

Engineering FAQ

Do I need to replace the entire capping head when switching between aluminum and plastic caps?
A: Usually no. You only need to fine-tune the downpressure and torque of the capping head based on the hardness of the cap. The switching process is quick and simple.

Will it scratch colored plastic caps or painted aluminum caps?
A: The capping components feature a wear-resistant, torque-controlled design that effectively protects the surface coating from being scratched.

What is the warranty and after-sales support?
A: We provide a 1-year warranty. Non-human damaged parts are replaced for free during the warranty period (shipping costs borne by the buyer). Lifetime online technical support and maintenance services are also provided.

What routine maintenance keeps the ADK stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the ADK handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
