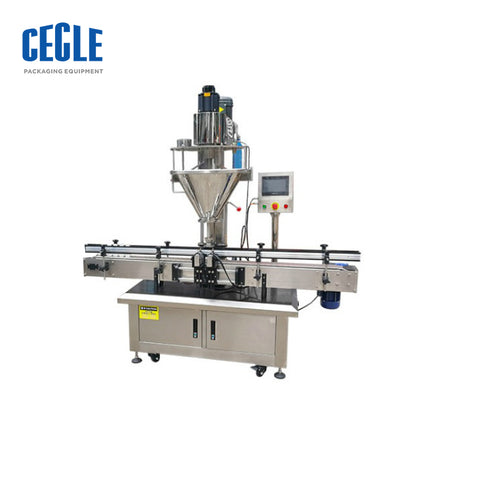

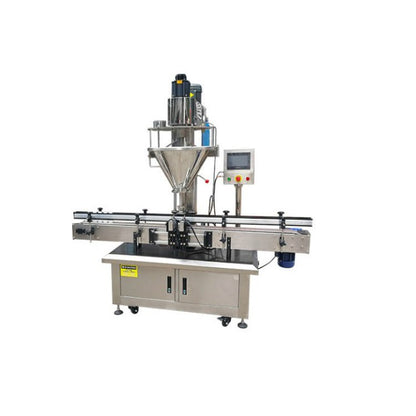

ADF-500 Powder Filling Machine for Powder (Electric Drive)

$6,800.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model ADF-500 ADF-500B

Place of shipment shipping from China

Shipping method By sea to port(18-30 days) By sea to door with tax(25-40 days)

Quick Answer: The CECLE ADF-500 product Name: Automatic Powder Filling Machine Model: ADF-500 Category: Powder Filling Machine / Auger Dosing Filler Supplier: Wenzhou T&D Packing Machinery.

CECLE ADF-500 vs. Traditional / Generic Alternative

Where the CECLE ADF-500 stands out against manual or generic powder filling machines — measured on the dimensions buyers care about most.

Forming Area & Batch Capacity

CECLE ADF-500Integrated control platform — combines stepper motor control technology, electronic weighing technology, and microcomputer control in a single packaging unit

Restricted Table (<150 × 80 mm)Limits packaging to single small items, cutting hourly throughput by over 40%.

Operational Mechanism & Drive

CECLE ADF-500High accuracy with self-correction — errors caused by changes in material proportion and material level are automatically tracked and corrected, keeping filling accuracy within 1%

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Adaptability & Changeover

CECLE ADF-500Wide, adjustable filling range — 5 g to 5000 g on one machine

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Chassis Rigidity & Vibration Resistance

CECLE ADF-500weight is set from the keyboard and adjusted continuously, with screw swaps covering different specifications

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Output Speed & Throughput

CECLE ADF-500High throughput — up to 1800–4000 fills per hour for production-scale powder packing

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Specification	Value & Unit
Filling Range	5 g – 5000 g
Filling Speed	1800 – 4000 times/h
Filling Accuracy	Within 1%
Voltage	AC380V
Power	1200 W
G.W. / N.W.	400 kg (881.8 lb)
Packaging Dimension	220 × 110 × 95 cm
Moq	1 set
Payment Term	T/T (100%)
Delivery Time	Within 7 days

Pre-installation requirements: Voltage: AC380V; Power: 1200 W; Packaging Dimension: 220 × 110 × 95 cm.

Compatible Applications & Materials

industrial products — primary target products for this Powder Filling Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

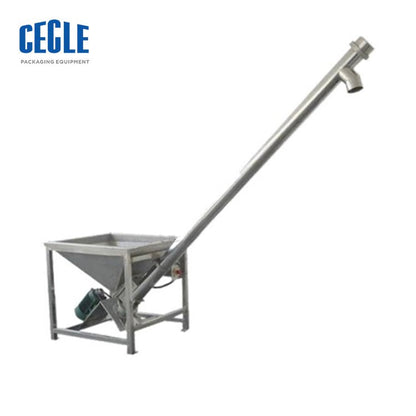

Material feeding — powder is fed to the hopper (manually, or automatically via the optional spiral feeder with photoelectric level control)
Dosing setup — the operator sets the target weight on the keyboard
the microcomputer control system drives the stepper motor and auger (blanking screw)
Auger filling — spiral feeding control with photoelectric sensor measurement dispenses the set quantity of powder into the container (bag, can, or bottle)
Weighing &amp
auto correction — electronic weighing technology verifies each fill
errors caused by material proportion or material level changes are automatically tracked and corrected

Engineering FAQ

Why is the 1800 – 4000 times/h Filling speed rating important for the ADF-500?
A: The 1800 – 4000 times/h Filling speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the ADF-500?
A: Beyond the rated AC380V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the ADF-500 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the ADF-500 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
