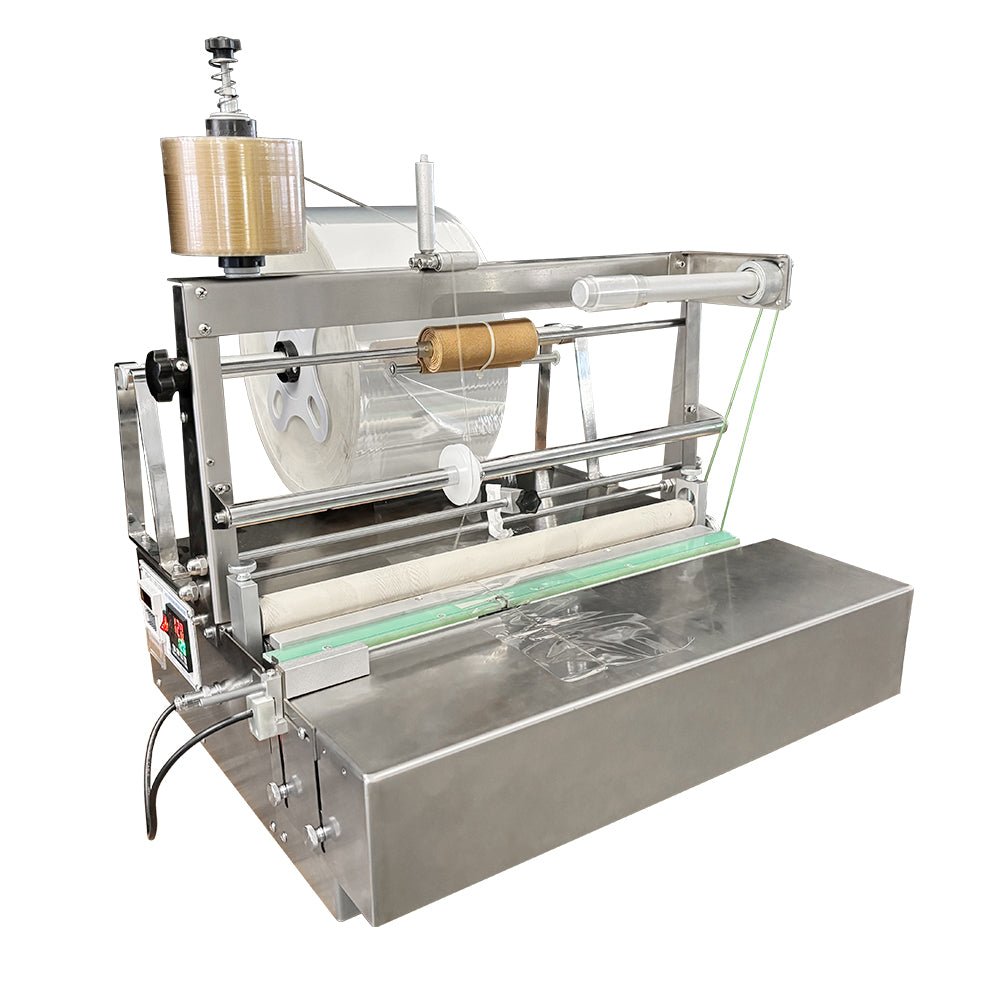

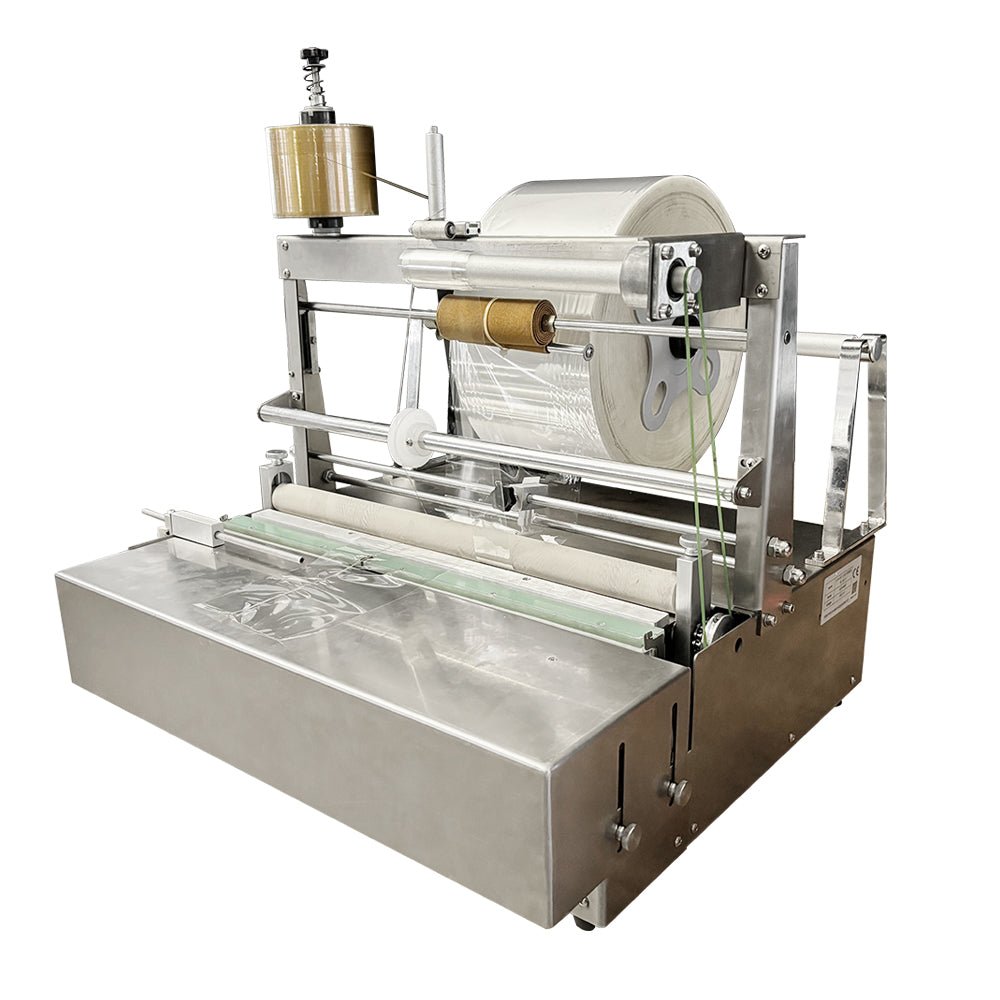

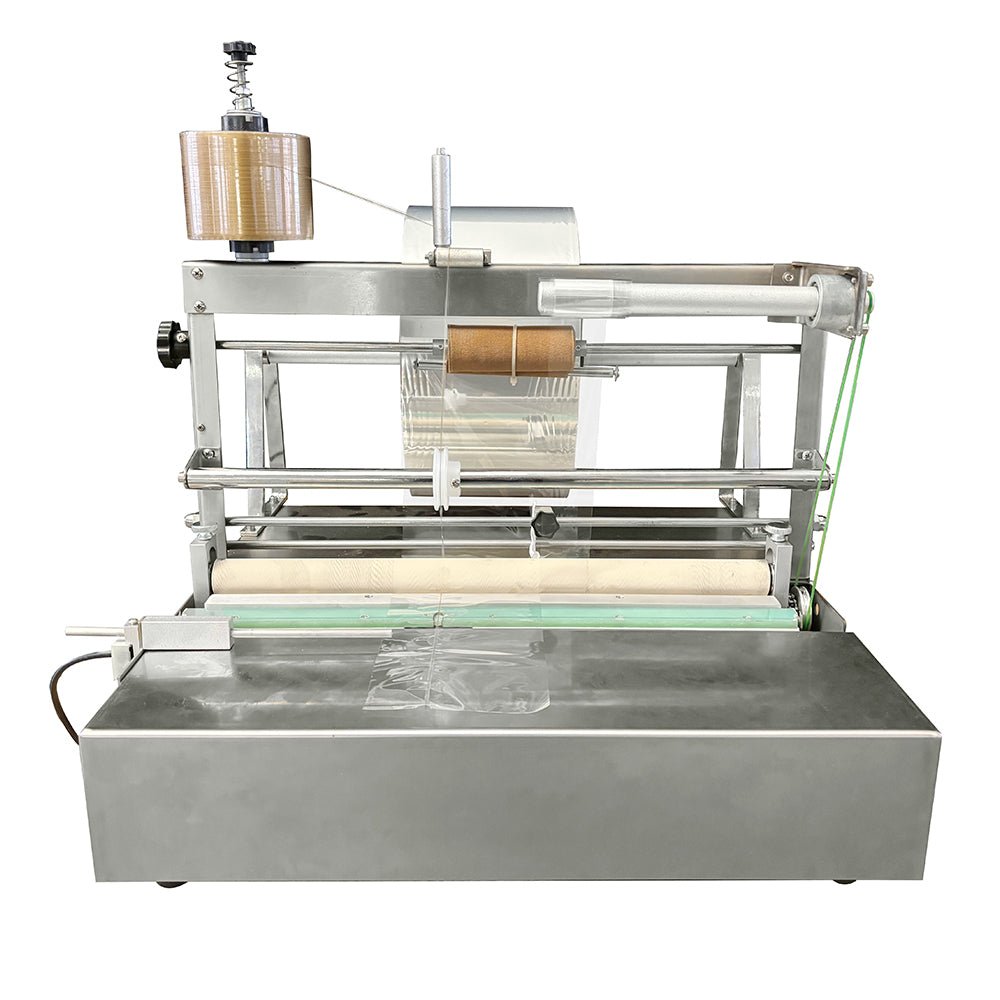

ACW-88AT Over Cellophane Wrapping Machine for Perfume Boxes (Pneumatic Drive)

Name: ACW-88AT
Brand: CECLE
Price: 2249.0 USD
Availability: InStock

$2,249.00 USD

~~$2,250.00 USD~~ $2,249.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model ACW-88AT

Shipping method By express to door

Quick Answer: The CECLE ACW-88AT aCW-88A is a professional desktop semi-automatic cellophane overwrapping machine designed for rigid square boxes in the cosmetics, pharmaceutical, and food industries.

CECLE ACW-88AT vs. Traditional / Generic Alternative

Where the CECLE ACW-88AT stands out against manual or generic cellophane wrapping machines — measured on the dimensions buyers care about most.

Thermal Response & Heating System

CECLE ACW-88ATPrecise Film Cutting : Features Hot wire cutting , ensuring fast response and neat cuts

Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.

Adaptability & Changeover

CECLE ACW-88ATMulti-functional Adjustment : Includes a built-in film width adjustment blade and a support plate height adjustment device to flexibly adapt to various specifications

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Precision & Consistency

CECLE ACW-88ATUser-Friendly Operation : Controlled by light touch switches, with a structural design that is easy to maintain and clean daily

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Sealing / Transfer Quality

CECLE ACW-88ATFlexible Matching : Can be flexibly paired with manual or pneumatic film folding components according to production capacity requirements

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Technical Specifications

Specification	Value & Unit
Max Width Roll Film	40cm (15.7 in)
Speed	15~20 times/min
Net Weight	35kg (77.2 lb)
Voltage	220V 50~60Hz
Power	1.5 kW

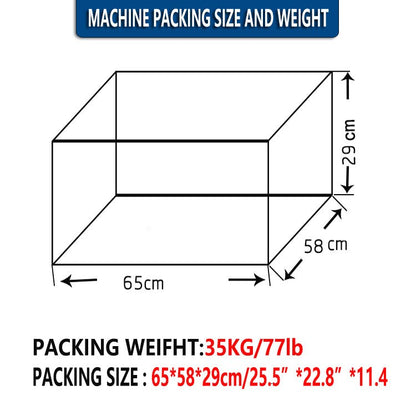

Machine Dimension	64 × 56 × 29cm

Pre-installation requirements: Net Weight: 35kg (77.2 lb); Voltage: 220V 50~60Hz; Power: 1.5 kW; Machine Dimension: 64 × 56 × 29cm.

Compatible Applications & Materials

industrial products — primary target products for this Cellophane Wrapping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Preparation Stage : Install the BOPP film and adjust the position of the adjustment blade according to the box size
Preheating Stage : Turn on the power and wait for the heating plate to reach the set temperature
Film Cutting &amp

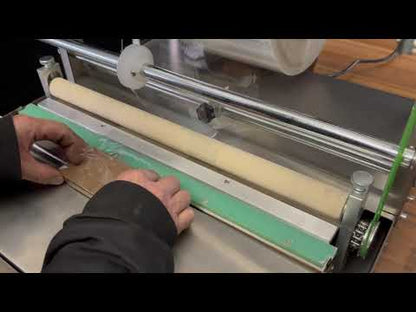

Wrapping : Perform film cutting via the ACW-88A and wrap the film around the product

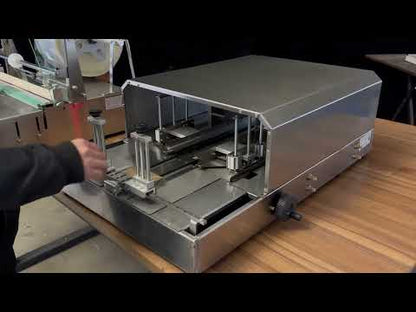

Sealing (Core Step) : Use the A3DP-88 (pneumatic) or 3DP-88 (manual) folding machine to fold and final heat-seal both ends of the product
Finished Product Collection : Packaging is complete, and the final product features a tight, transparent film appearance.

Engineering FAQ

Why is the 15~20 times/min Speed rating important for the ACW-88AT?
A: The 15~20 times/min Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the ACW-88AT?
A: Beyond the rated 220V 50~60Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the ACW-88AT stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the ACW-88AT handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
