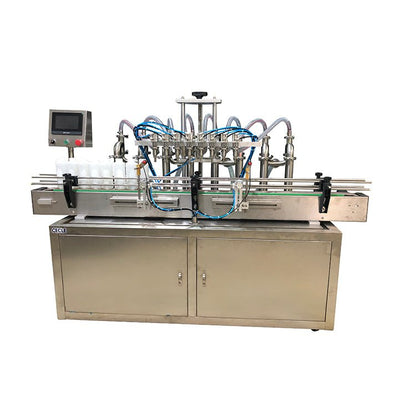

A8 Heads Filling Bottle Machine for Liquids (Pneumatic Drive)

$7,899.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size A8-100 A8-500 A8-1000 A8-2500 A8-5000

Shipping method shipping by sea to door(25-40 days)

Place of shipment shipping from China

Quick Answer: The CECLE A8 Series.

CECLE A8 vs. Traditional / Generic Alternative

Where the CECLE A8 stands out against manual or generic machine — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE A8Highest Throughput, Same Precision : 8 synchronized piston filling heads deliver 1200–1800 bottles/h while keeping filling error within ±1% — the most productive model in the A Series

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Precision & Consistency

CECLE A8High-Precision Control : Taiwan-brand PLC combined with touchscreen control and piston-type dosing keeps filling error within ±1%

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Chassis Rigidity & Vibration Resistance

CECLE A8Stable Core Components : Taiwan Airtac pneumatic components and German SICK photoelectric sensors ensure stable operation under long-term, high-frequency workloads

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Adaptability & Changeover

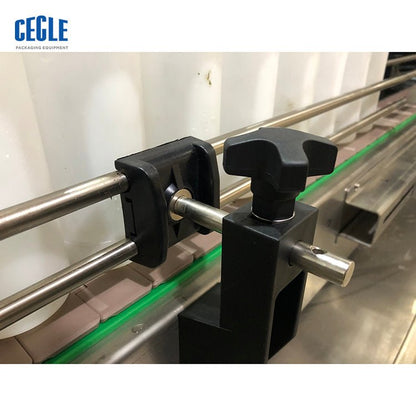

CECLE A8High Compatibility : Filling head count (2/4/6/8 heads, etc.), filling range, and conveyor length (standard 2 m) can all be customized to individual customer requirements

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Technical Specifications

Parameter	Specification
Filling Heads	8 heads (2/4/6/8 heads customizable)
Filling Accuracy	≤ ±1%
Filling Speed	1200–1800 bottles/h
Rated Power	660 W
Rated Voltage	220 V 50/60 Hz
Working Air Pressure	0.6–0.8 MPa, 400 L/min
Control System	Taiwan-Brand PLC + Touchscreen
Pneumatic Components	Airtac (Taiwan)
Photoelectric Sensors	SICK (Germany)
Material	201 Stainless Steel Body, Food-Grade 304 Contact Parts (304/316 Optional)
Conveyor	Standard 2 m, length customizable
Packaging Dimension	140 × 120 × 250 cm
Certification	CE

Shared across models: Filling Speed: 1200–1800 bottles/h

Model	Filling Range	Machine Weight
A8-100	10–100 ml	500 kg
A8-300	30–300 ml	600 kg
A8-500	50–500 ml	600 kg
A8-1000	100–1000 ml	600 kg
A8-2500	250–2500 ml	600 kg
A8-5000	500–5000 ml	600 kg

Media & Resources

Product Demo Video: https://www.youtube.com/watch?v=snALjSKHC5g

Pre-installation requirements: Rated Power: 660 W; Rated Voltage: 220 V 50/60 Hz; Working Air Pressure: 0.6–0.8 MPa, 400 L/min; Packaging Dimension: 140 × 120 × 250 cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Bottle Feeding : Empty bottles are automatically conveyed into the machine
Counting &amp

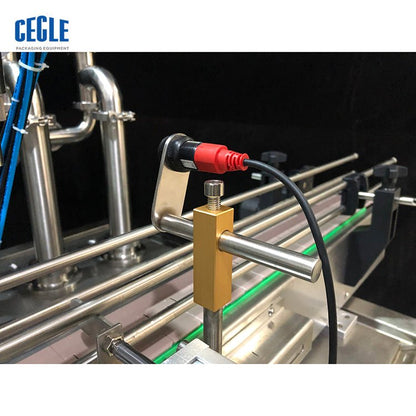

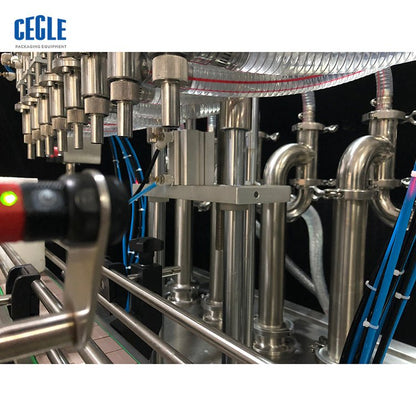

Positioning : The inlet SICK photoelectric sensor counts bottles
once 8 bottles are reached, the bottle stop cylinder extends for precise positioning

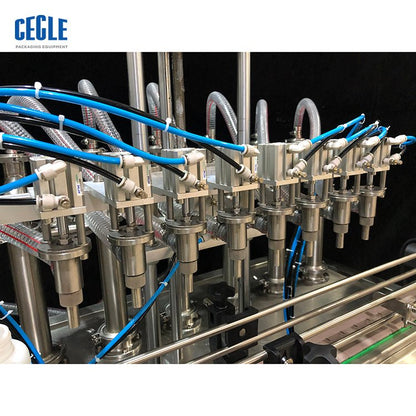

Filling : The filling heads descend and the pistons push material, achieving synchronized 8-head high-precision filling
Anti-Drip Handling : When filling ends, the bottom cut-off positive shutoff valve closes and the heads rise, ensuring zero dripping
Bottle Discharge : The stop cylinder retracts and the filled bottles move on to the capping/labeling process.

Engineering FAQ

Why is the 1200–1800 bottles/h Filling Speed rating important for the A8?
A: The 1200–1800 bottles/h Filling Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the A8?
A: Beyond the rated 220 V 50/60 Hz Rated Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the A8 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the A8 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
