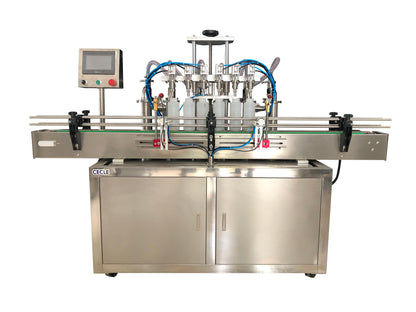

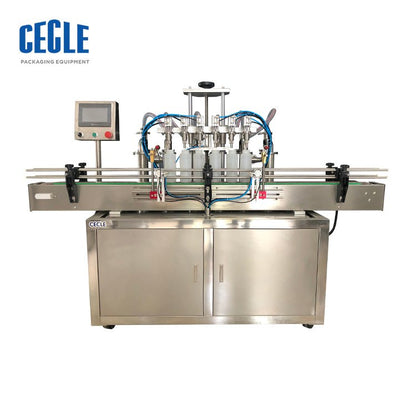

A6-5-500/0ML-SIX Heads Filling Machine for Liquids (Pneumatic Drive)

Name: A6-5-500/0ML-SIX
Brand: CECLE
Price: 6299.0 USD
Availability: InStock

$6,299.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size A6-100 A6-500 A6-1000 A6-2500 A6-5000

Shipping method shipping by sea to door(25-40 days)

Place of shipment shipping from China

Quick Answer: The CECLE A6-5-500/0ML-SIX a6 Series.

CECLE A6-5-500/0ML-SIX vs. Traditional / Generic Alternative

Where the CECLE A6-5-500/0ML-SIX stands out against manual or generic machine — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE A6-5-500/0ML-SIXHigher Throughput, Same Precision : 6 synchronized piston filling heads deliver up to 50% more output than the A4 4-head Series, while keeping filling error within ≤±1% — ideal for growing production lines

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Precision & Consistency

CECLE A6-5-500/0ML-SIXHigh-Precision Control : Taiwan-brand PLC combined with touchscreen control and piston-type dosing keeps filling error within ≤±1%

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Chassis Rigidity & Vibration Resistance

CECLE A6-5-500/0ML-SIXStable Core Components : Taiwan Airtac pneumatic components and German SICK photoelectric sensors ensure stable operation under long-term, high-frequency workloads

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Adaptability & Changeover

CECLE A6-5-500/0ML-SIXHigh Compatibility : Filling head count (2/4/6/8 heads, etc.), filling range, and conveyor length can all be customized to individual customer requirements

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Technical Specifications

Parameter	Specification
Filling Heads	6 heads (2/4/6/8 heads customizable)
Filling Accuracy	≤ ±1%
Rated Power	750–900 W
Rated Voltage	220 V 50/60 Hz
Working Air Pressure	0.6–0.8 MPa
Air Consumption	450–550 L/min
Control System	Taiwan-Brand PLC + Touchscreen
Pneumatic Components	Airtac (Taiwan)
Photoelectric Sensors	SICK (Germany)
Material	201/304 Stainless Steel Body, Food-Grade 304 Contact Parts (316L / Teflon Coating Customizable)
Packaging Dimension	160 × 130 × 220 cm
Certification	CE (Certificate No: B-S15047199)

Model	Filling Range	Filling Speed	Max Output	Machine Weight
A6-100	10–100 ml	10–40 cycles/min	up to 240 bottles/min	400 kg
A6-300	30–300 ml	10–40 cycles/min	up to 240 bottles/min	400 kg
A6-500	50–500 ml	10–40 cycles/min	up to 240 bottles/min	400 kg
A6-1000	100–1000 ml	10–40 cycles/min	up to 240 bottles/min	410 kg
A6-2500	250–2500 ml	10–30 cycles/min	up to 180 bottles/min	480 kg
A6-5000	500–5000 ml	10–40 cycles/min	up to 240 bottles/min	480 kg

Media & Resources

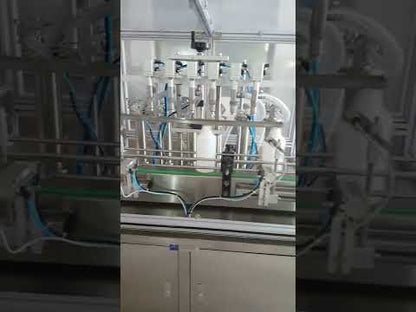

Product Demo Video: https://www.youtube.com/watch?v=L4uHQNWl77M

Pre-installation requirements: Rated Power: 750–900 W; Rated Voltage: 220 V 50/60 Hz; Working Air Pressure: 0.6–0.8 MPa; Packaging Dimension: 160 × 130 × 220 cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

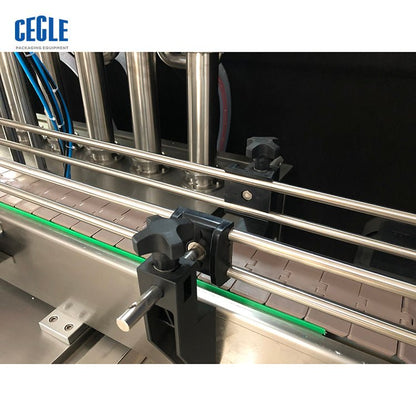

Bottle Feeding : Empty bottles are automatically conveyed into the machine
Counting &amp

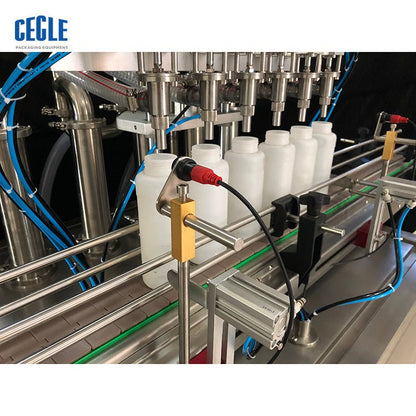

Positioning : The inlet photoelectric sensor counts bottles

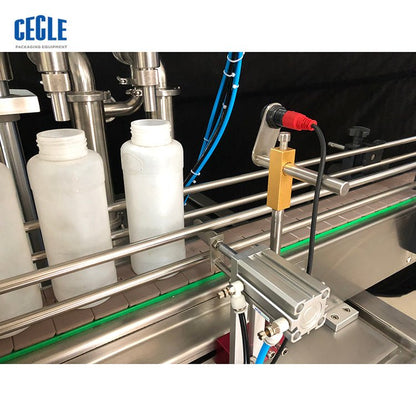

once 6 bottles are reached, the bottle stop cylinder extends for precise positioning

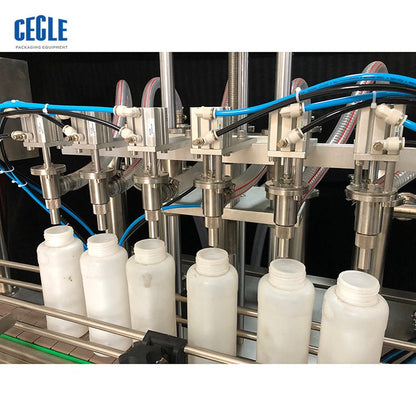

Filling : The filling heads descend and the pistons push material, achieving synchronized 6-head high-precision filling
Anti-Drip Handling : When filling ends, the positive shutoff valve closes and the heads rise, ensuring zero dripping
Bottle Discharge : The stop cylinder retracts and the filled bottles move on to the capping/labeling process.

Engineering FAQ

What power supply does the A6-5-500/0ML-SIX require?
A: The A6-5-500/0ML-SIX runs on 750–900 W Rated Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the A6-5-500/0ML-SIX?
A: Beyond the rated 220 V 50/60 Hz Rated Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the A6-5-500/0ML-SIX stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the A6-5-500/0ML-SIX handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
