CECLE Machine

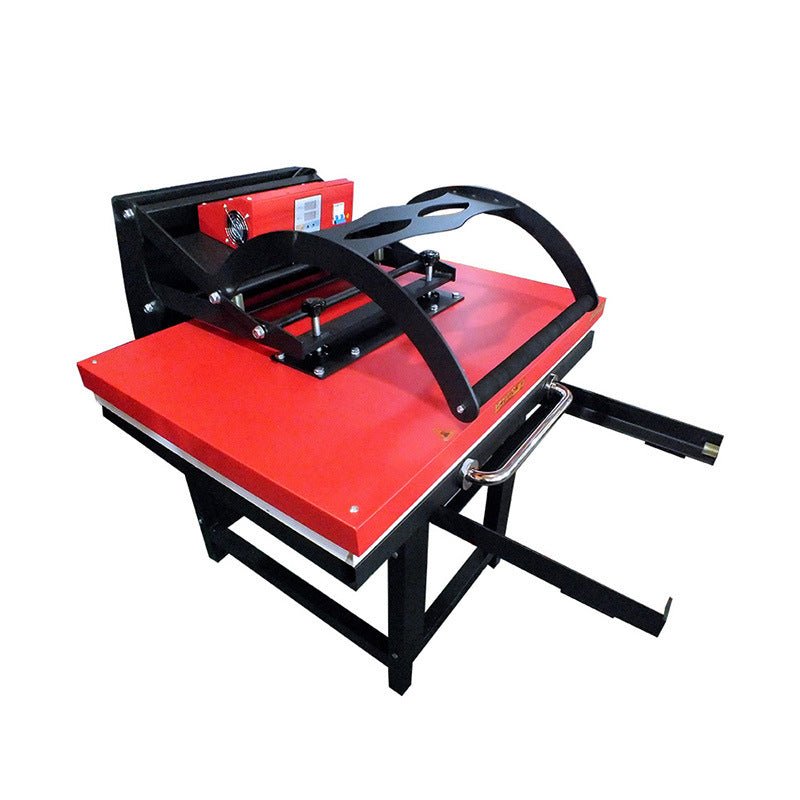

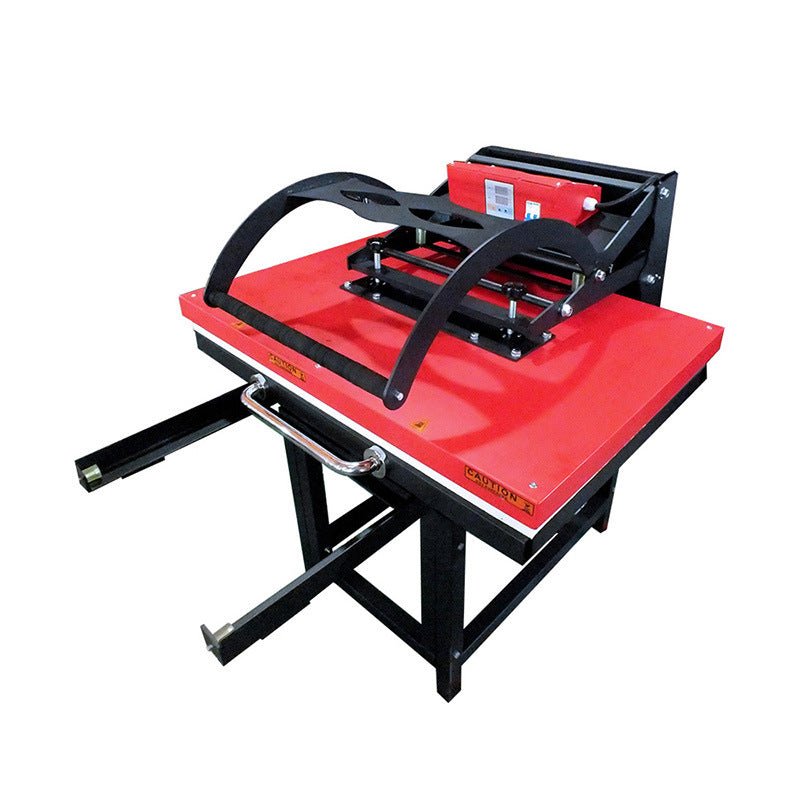

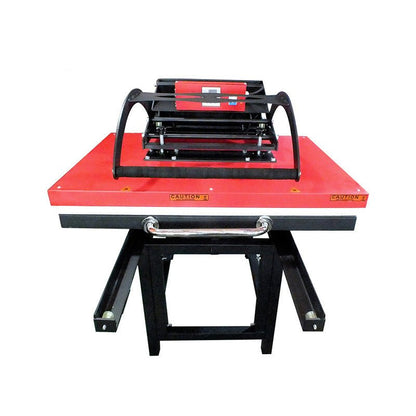

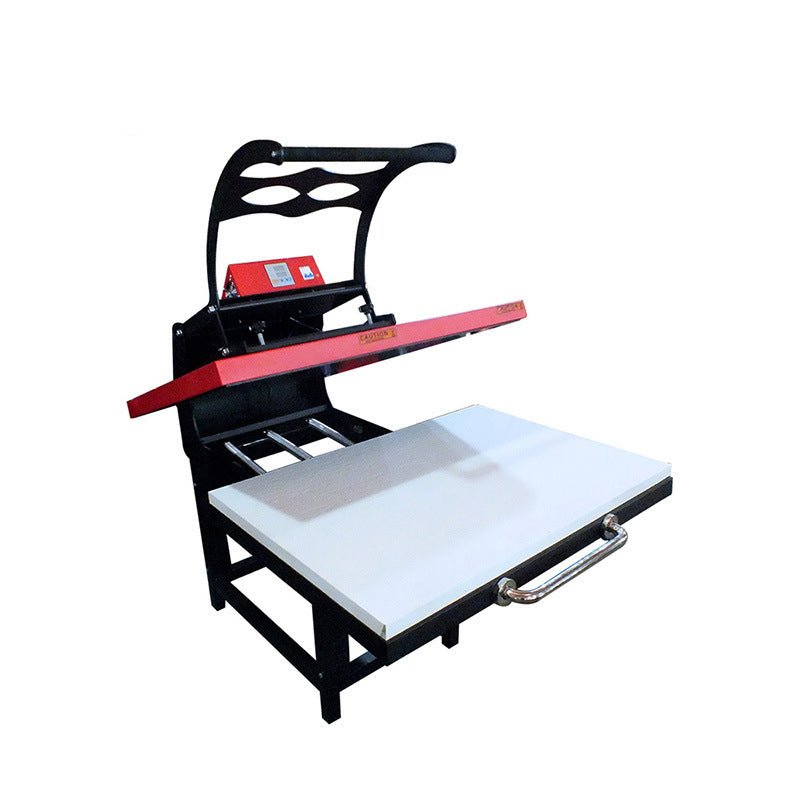

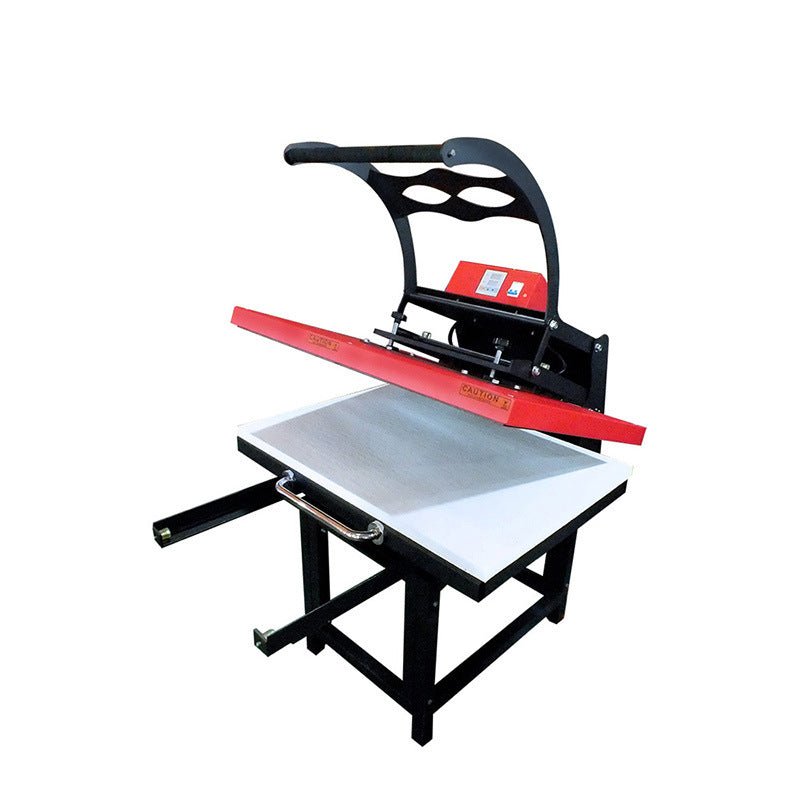

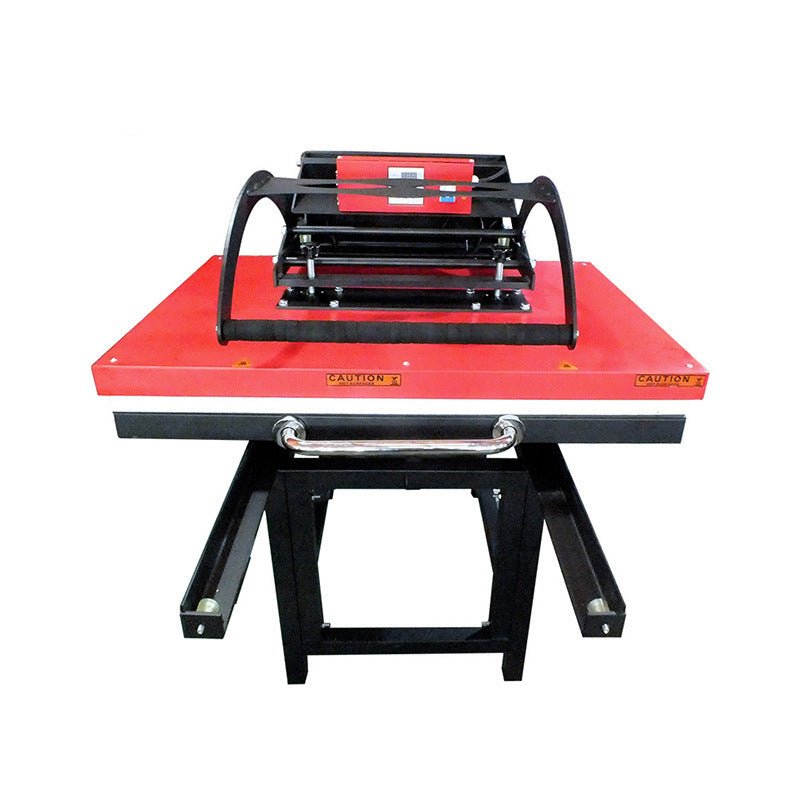

HP-80100 Large Format Slide-Out Heat Press Machine for T-Shirts & Ceramic Tiles (Manual)

Name: HP-80100
Brand: CECLE
Price: 2599.0 USD
Availability: InStock

$2,599.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model HP-80100

Shipping Methd By sea to door(About 35-55 days)

Quick Answer: The CECLE HP-80100 is a manual large-format flat heat press machine with a slide-out lower platen, designed for one-pass transfer of oversized patterns onto T-shirts, metal plates, ceramic tiles, glass.

CECLE HP-80100 vs. Traditional / Generic Alternative

Where the CECLE HP-80100 stands out against manual or generic heat press machines — measured on the dimensions buyers care about most.

Thermal Response & Heating System

CECLE HP-80100Large-Format Processing : The 80×100 cm oversized worktable forms a large-format pattern in one pass, reducing splicing steps and improving the aesthetics of the finished product. Extremely Even Heat &amp.

Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.

Pressure Consistency

CECLE HP-80100The CECLE Heat Press Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE HP-80100It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE HP-80100Purpose-Built Power: 6000W drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Items	Specifications
Model	HP-80100
Heat Platen Size	80×100CM
Power	6000W
Voltage	110V/220V
Temperature Range	0-399°C
Temperature Tolerance	±5℃
Packaging Dimension	142×110×70CM/55.9×43.4×27.6"
Gross Weight	220KG/485LB

Pre-installation requirements: Power: 6000W; Voltage: 110V/220V; Packaging Dimension: 142×110×70CM/55.9×43.4×27.6"; Gross Weight: 220KG/485LB.

Compatible Applications & Materials

industrial products — primary target products for this Heat Press Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Inspection : Check the wiring and the machine
confirm there are no obvious signs such as appearance damage or broken wires
Power-on Preparation : Lift the handle and open the heating plate so the machine is in an open position
Pressure Adjustment : Place the item to be printed on the worktable and test whether the pressure is appropriate
If not, rotate the pressure knob to adjust (clockwise to increase pressure, counterclockwise to decrease pressure)
After adjusting, press the handle down to test whether the pressure is appropriate
Note: Pressure adjustment should be done before placing the transfer product on the worktable

Engineering FAQ

Can this machine be used with 110V voltage in the United States?
A: The default configuration is 220V. We can customize a 110V (North American standard) model for you, equipped with a power plug that complies with the target country's standards.

How do I adjust the pressure?
A: Rotate the pressure knob clockwise to increase pressure and counterclockwise to decrease it. Pressure adjustment should be done before placing the transfer product on the worktable; adjust pressure according to different products.

What power supply does the HP-80100 require?
A: The HP-80100 runs on 6000W Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the HP-80100?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HP-80100 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HP-80100 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
