FA4-500 Automatic Paste & Liquid Filling Line for Cosmetics Plants (Pneumatic Drive)
FA4-500 Automatic Paste & Liquid Filling Line for Cosmetics Plants (Pneumatic Drive)
Couldn't load pickup availability
CECLE FA4-500 vs. Traditional / Generic Alternative
Where CECLE FA4-500 stands out against generic automatic paste & liquid filling lines — measured on the dimensions buyers care about most.
Technical Specifications
| Item | Description |
|---|---|
| Category | Automatic paste and liquid filling line |

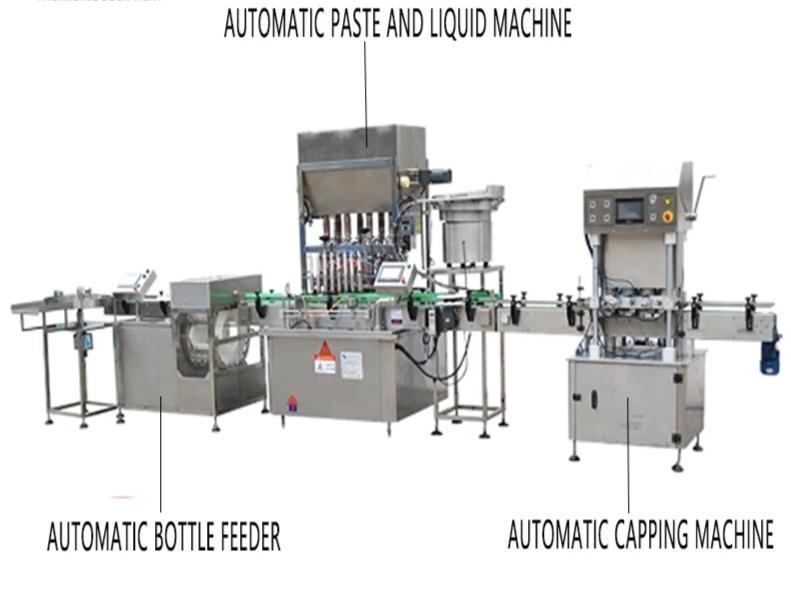

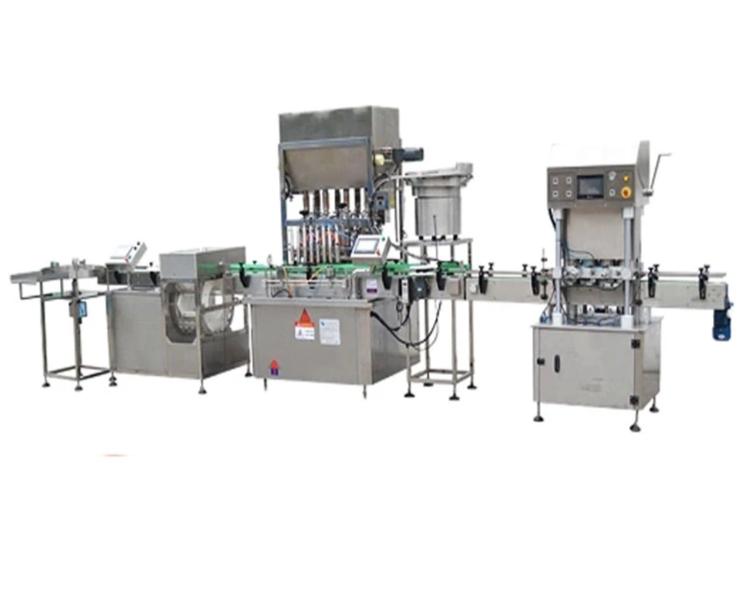

| Model | FA4-500 (line configuration: FA4-500 filling machine + DC1 capping machine + cap feeding machine + conveyor) |
| Filling Range | 50–500 ml |
| Applicable Products | Paste and liquid: creams, serums, personal care products, sauces, pharmaceutical liquids, household chemical products, etc. |
| Applicable Containers | Plastic (PET) bottles, glass bottles, etc. |
| Application Scenarios | Small and medium-sized automated filling workshops in cosmetics, food, pharmaceutical and daily chemical industries |
| Core Functions | Automatic bottle unscrambling / conveying → multi-head piston volumetric filling → automatic cap feeding and placing → automatic capping → finished product output |
| Item | Specification |
|---|---|
| Model | FA4-500 |
| Filling Range | 50–500 ml |
| Filling Heads | 4 heads (2/4/6/8 heads available) |
| Filling Speed | 1200–1800 bottles/h |
| Filling Precision | ±1% |
| Air Pressure | 0.6–0.8 MPa |
| Air Consumption | 3–4 m³/h |
| Voltage | 220 V, 50/60 Hz, 660 W |
| Frame Material | 201 stainless steel; 304 food-grade stainless steel for material-contact parts (316 optional) |
| Conveyor | 2 m as standard, specification customisable |
| Item | Specification |
|---|---|
| Model | DC1 automatic screwing capping machine |
| Working Mode | Two screw lids work at the same time |
| Sensor Control | German SICK photoelectric sensors; no bottle, no operation |
| Applicable Caps | Plastic PET bottle caps, glass bottle caps, etc. |
| No. | Device | Description |
|---|---|---|
| A | Glass Cover Optional | Optional |
| B | 316 Stainless Steel Contact Parts Optional | Optional |
| C | Semi-auto Bottle Washer Optional | Optional |
| D | Bottle Distributing Machine Turntable diameter 80 cm (100/120 cm available); bottle diameter φ20–100 mm; bottle height 20–150 mm; power 120 W; voltage 220 V; frequency 50 Hz; weight 60 kg; dimensions 990×900×1040 mm | Turntable diameter 80 cm (100/120 cm available); bottle diameter φ20–100 mm; bottle height 20–150 mm; power 120 W; voltage 220 V; frequency 50 Hz; weight 60 kg; dimensions 990×900×1040 mm |
| E | PM-168 Inkjet Printing Machine Optional | Optional |
Pre-installation requirements: Air Pressure: 0.6–0.8 MPa; Voltage: 220 V, 50/60 Hz, 660 W. External air compressor (3 HP / 2.2 kW or above) required.
Compatible Applications & Materials
- Cosmetics Plants — primary target products for this Automatic Paste & Liquid Filling Line line
Standard Operating Procedure (SOP)
- Bottle unscrambling (optional bottle distributing machine) → bottle infeed on conveyor → FA4-500 four-head piston filling → automatic cap placing (cap feeding machine) → DC1 automatic capping → (optional PM-168 inkjet coding) → finished product output Bottle infeed : Empty bottles are unscrambled and aligned automatically by the bottle distributing machine (optional) and enter the conveyor

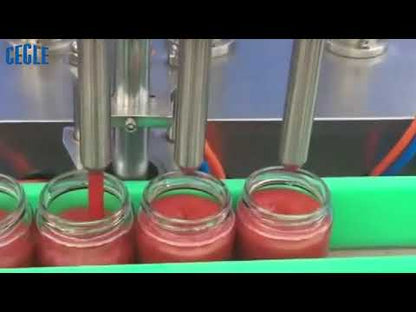

- Filling : German SICK photoelectric sensors detect each bottle, then the four FA4-500 filling heads fill simultaneously by piston metering (50–500 ml)
- bottom close nozzles prevent dripping
- no bottle, no filling
- Cap placing : The cap feeding machine sorts caps automatically and delivers them to the capping station
- Capping : The DC1 machine tightens with two screw lids working at the same time
- SICK sensors ensure no bottle, no operation
Engineering FAQ
Can this line fill both paste and liquid?
A: Yes. The FA4-500 uses piston-type filling with bottom close positive shutoff nozzles, so both pastes (creams, sauces) and liquids (serums, pharmaceutical liquids) can be filled, with ±1% filling accuracy.
What is the hourly capacity?
A: 1200–1800 bottles per hour, depending on bottle type, filling volume and product viscosity.
Can it fill my bottles?
A: It works with common bottle types such as plastic (PET) bottles and glass bottles, and covers a wide range of bottle diameters and heights. We recommend sending bottle and cap samples or drawings so we can confirm compatibility.
Can the voltage be customised?
A: Standard voltage is 220 V 50/60 Hz; it can be customised to local requirements (e.g. 110 V or 380 V).
What about the warranty?
A: The whole machine carries a one-year warranty (counted from start-up in the buyer's factory); free parts are provided for quality problems during the warranty period, and lifetime repair service is available afterwards.
Is there an operation video for the line?
A: Yes — see the operation video and the line working process video in "Media & Materials" below.
Full Documentation & Drawings
Complete technical manual, parameters and engineering drawings: CECLE Docs — FA4-500
