CECLE Machine

HP-3042 3D Vacuum Multifunctional Single-Station Heat Press Machine for Phone Cases & Mugs

$859.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model HP-3042

Shipping method By sea to door(About 35-60 days) By Express（About 7-12 days）

Quick Answer: The CECLE HP-3042 is a multifunctional 3D vacuum heat press machine built for high-efficiency, all-in-one heat transfer onto 3D phone cases, mugs, water bottles, and other irregularly shaped sublimation.

CECLE HP-3042 vs. Traditional / Generic Alternative

Where the CECLE HP-3042 stands out against manual or generic heat press machines — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE HP-304212× High Efficiency vs

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Pressure Consistency

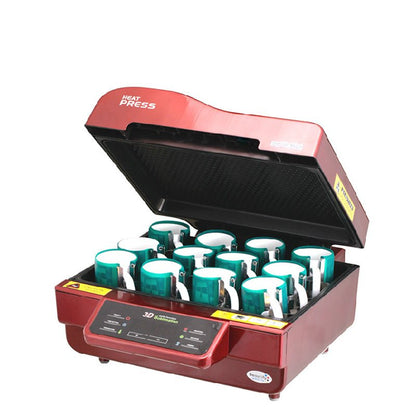

CECLE HP-3042Traditional Mug Presses : The large-format chamber design (300×420×110 mm) can transfer 12 mugs at once (using mugs as an example). Compared with a traditional single-station mug press, efficiency is increased.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Sealing / Transfer Quality

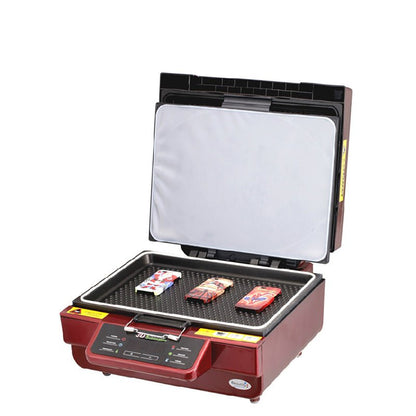

CECLE HP-3042Perfect 3D Edge Transfer : Ordinary flat presses can only print the back of a phone case, leaving white edges on the sides. The HP-3042 uses strong vacuum suction to keep the transfer film tightly against the.

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Thermal Response & Heating System

CECLE HP-3042User-Friendly Operation Interface : Turn on the Power key, load the product, set time and temperature, turn on upper/lower heating, press the "Vacuum" key; once the machine reaches working temperature after.

Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.

Technical Specifications

Items	Specifications
Model	HP-3042
Working Size	30×42×11CM/11.8×16.5×4.3"
Heating Plate Power	1300W
Power	2800W
Voltage	110V/220V
Packaging Dimension	70×64×42CM/27.6×25.2×16.5"
Gross Weight	26KG/57.3LB

Pre-installation requirements: Heating Plate Power: 1300W; Power: 2800W; Voltage: 110V/220V; Packaging Dimension: 70×64×42CM/27.6×25.2×16.5"; Gross Weight: 26KG/57.3LB.

Compatible Applications & Materials

industrial products — primary target products for this Heat Press Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Preheat : Power on, set the temperature and time on the control panel (typically 190℃, 360 seconds), and wait for the machine to heat up
Wrap Pattern : Fix the sublimation-paper pattern onto the blank 3D phone case using high-temperature-resistant tape
Load Chamber : Open the 108° flip-top, place the wrapped and molded phone case into the chamber, and close the lid
Vacuum Transfer : Press the Vacuum key
the machine automatically starts suction and vacuuming, then press the countdown key and the machine automatically begins printing
Unload : When the countdown ends, the machine automatically vents and emits a "beep" alarm
Open the lid, remove the phone case, peel off the paper, and the transfer is complete.

Engineering FAQ

Does this machine come with a built-in vacuum pump? Do I need to buy an air pump separately?
A: No separate purchase needed. Our HP-3042 already has a built-in high-stability vacuum pump inside the machine. You only need to plug it in to use it—no need to connect an external air compressor as with pneumatic heat presses.

Can it wrap ordinary phone cases, or ordinary ceramic mugs?
A: No. All cups and plates must have a "sublimation coating" on the surface for the pattern to transfer; Phone cases must be heat-resistant 3D phone cases with a sublimation coating . If an ordinary cheap phone case is placed in the 190℃ chamber, it will directly melt and deform.

What power supply does the HP-3042 require?
A: The HP-3042 runs on 1300W Heating Plate Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the HP-3042?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HP-3042 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HP-3042 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
