CECLE Machine

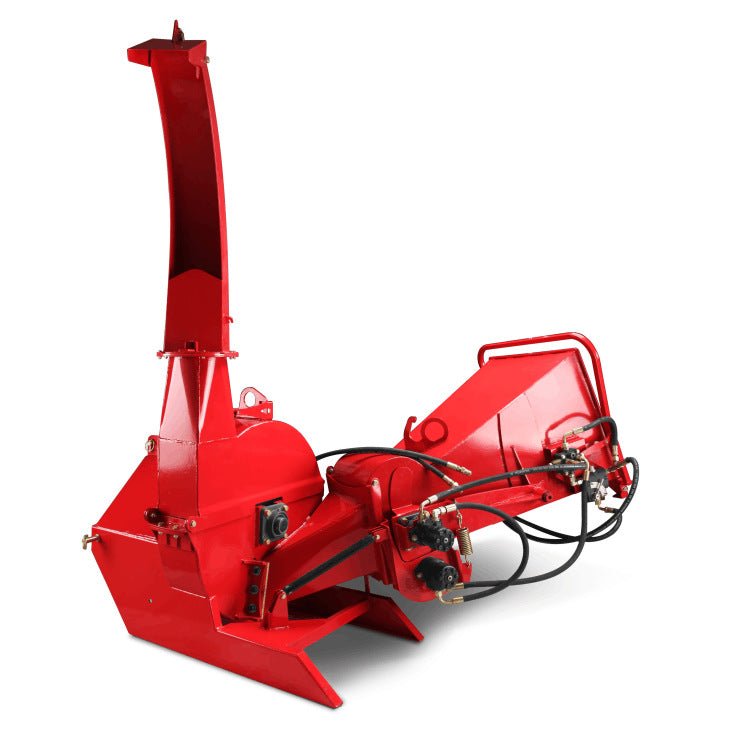

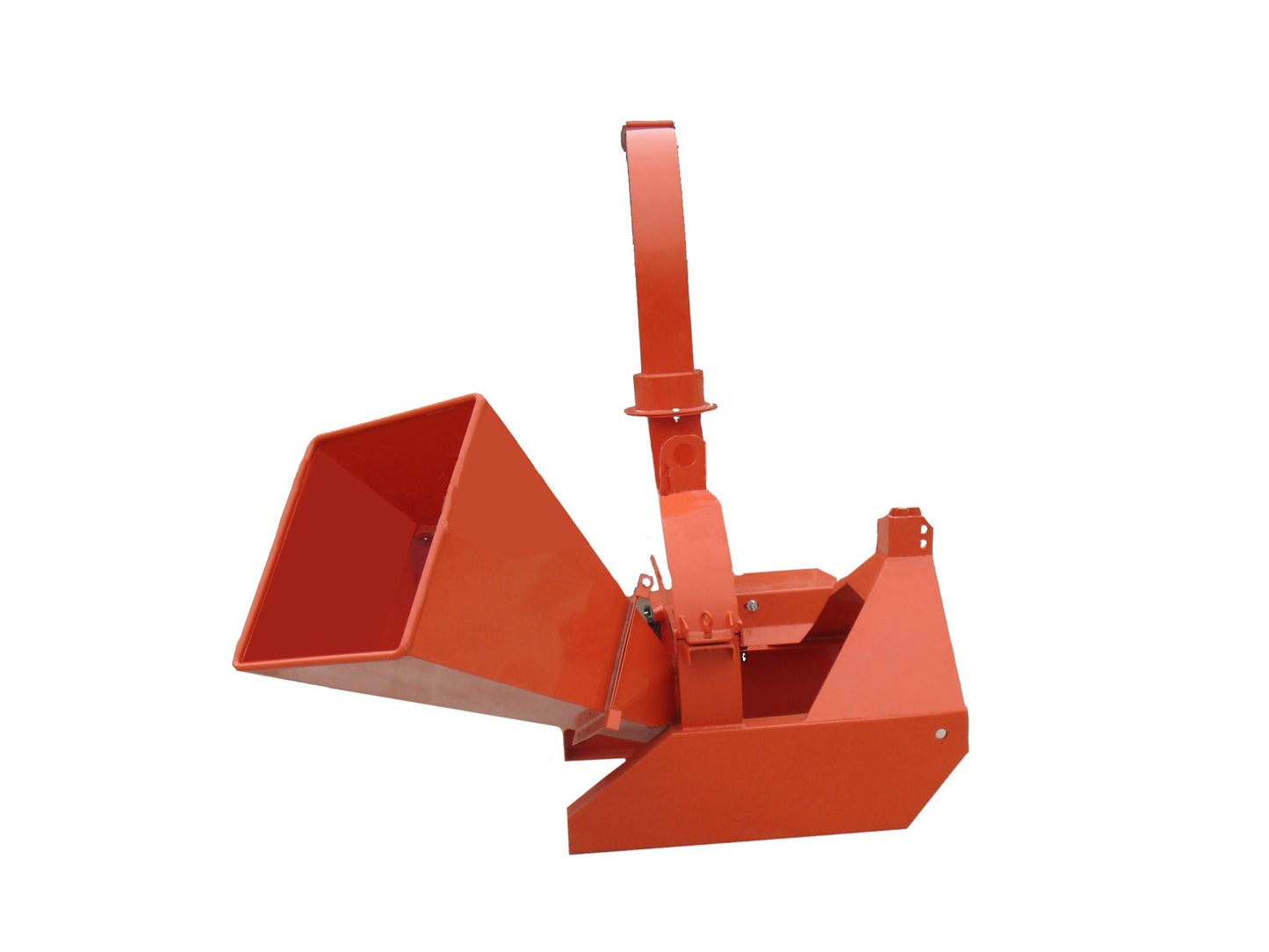

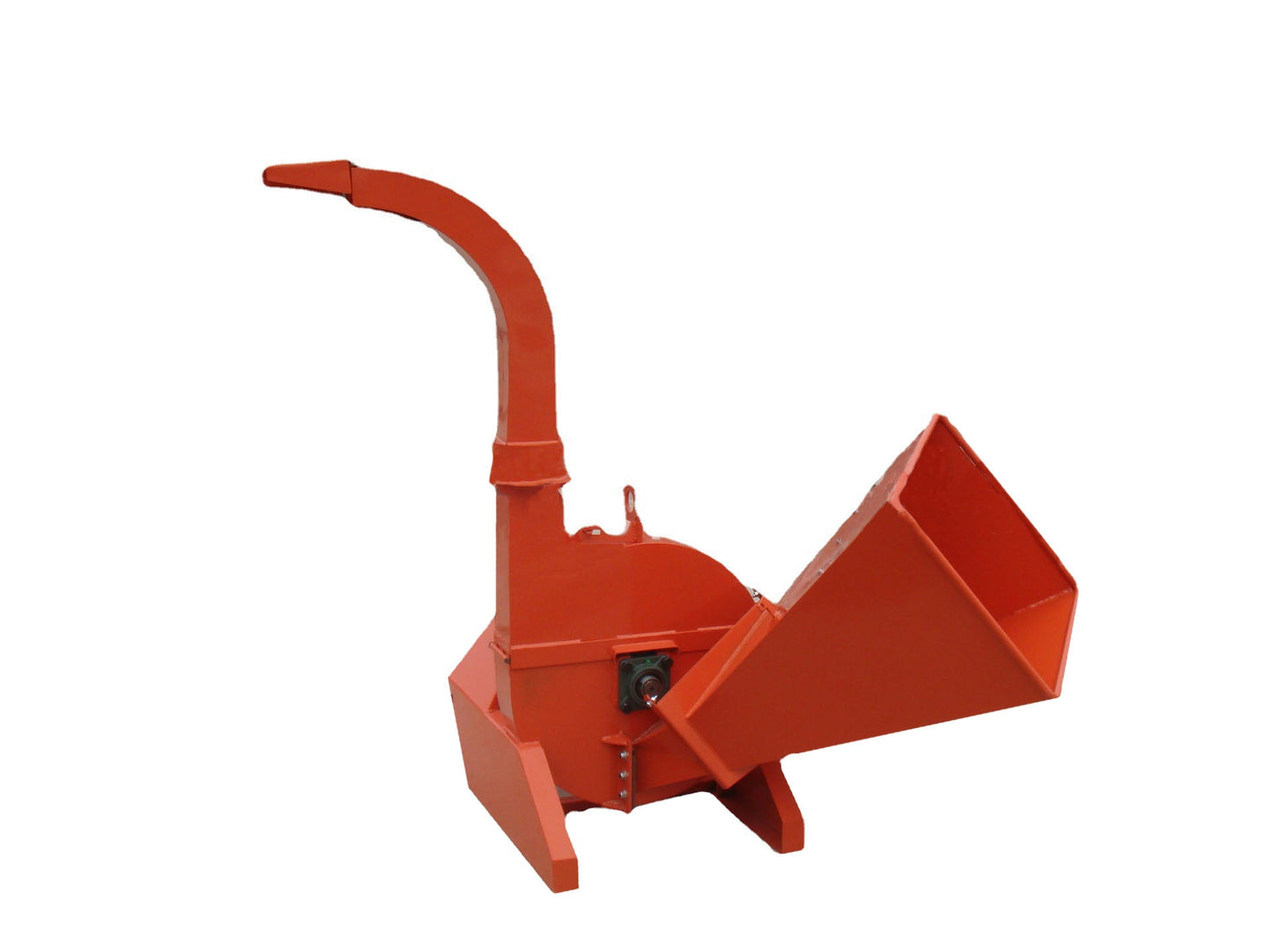

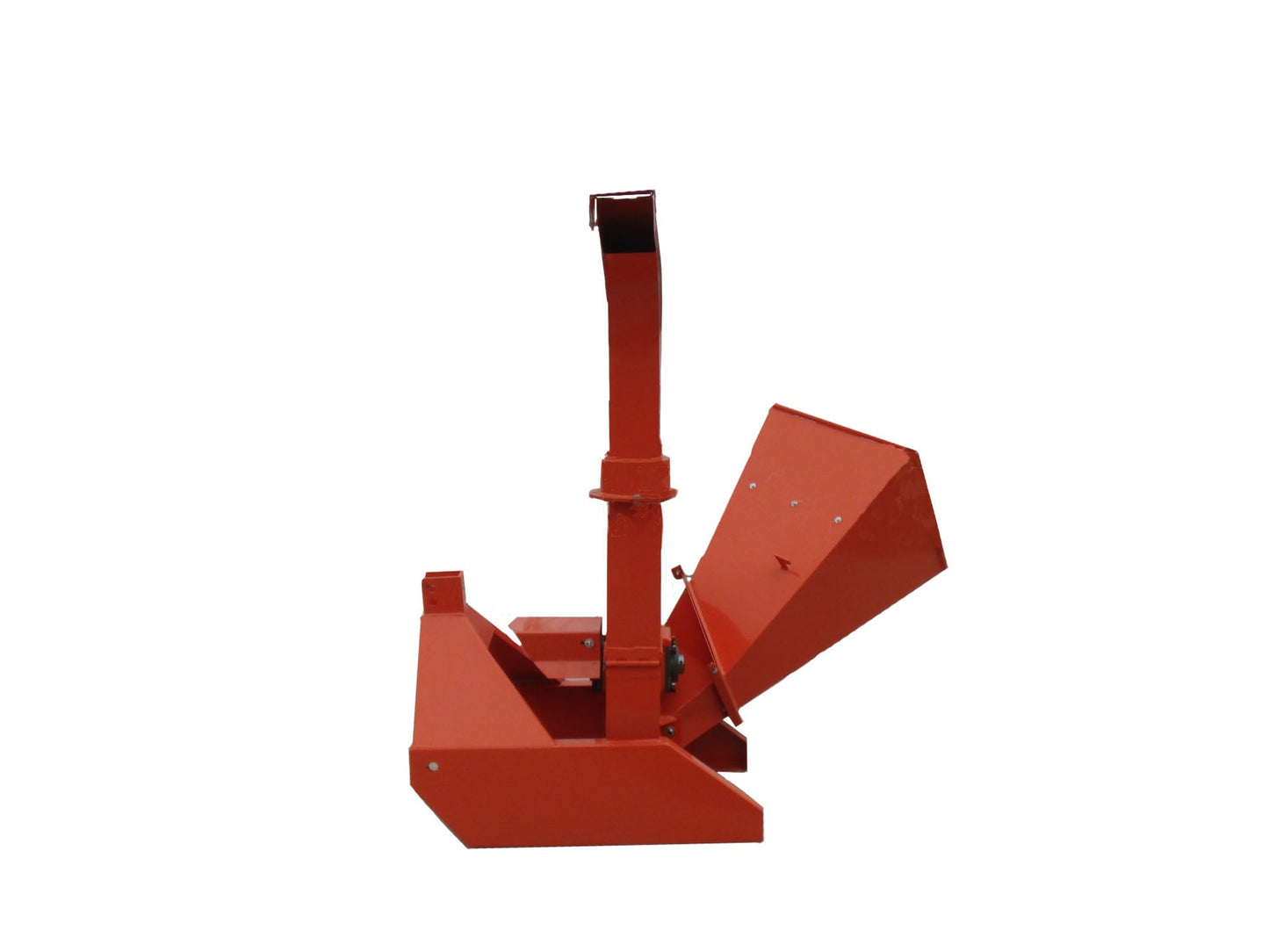

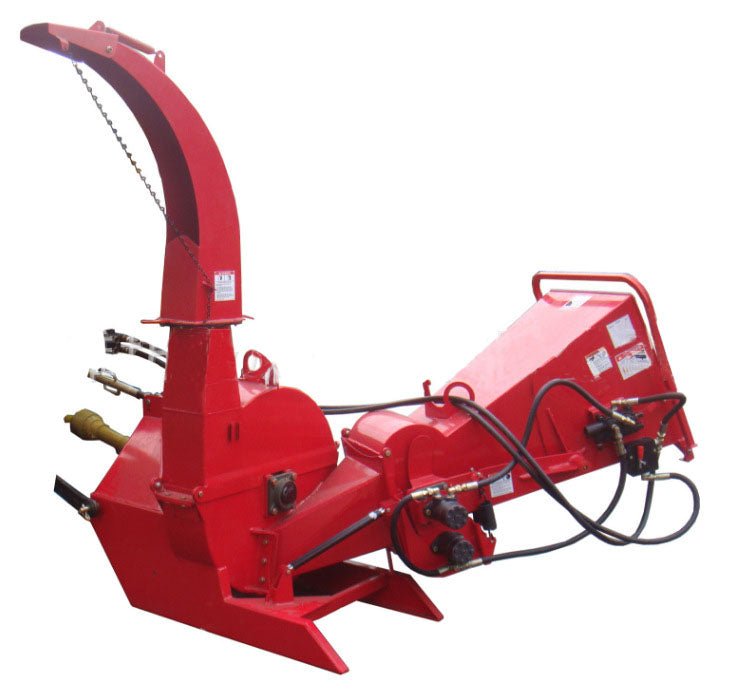

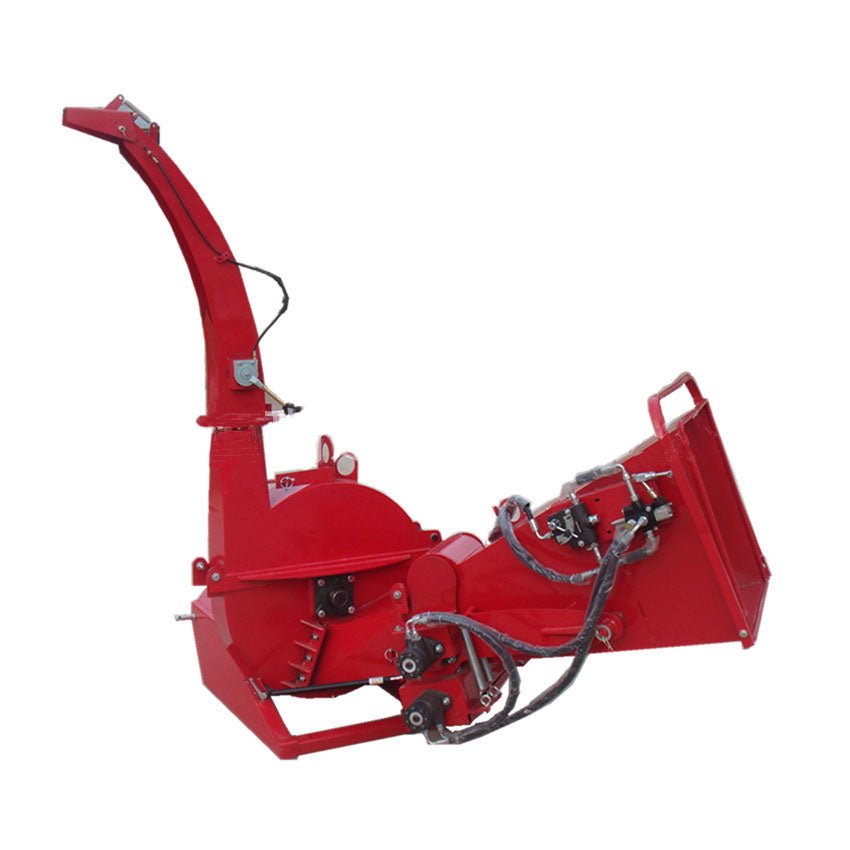

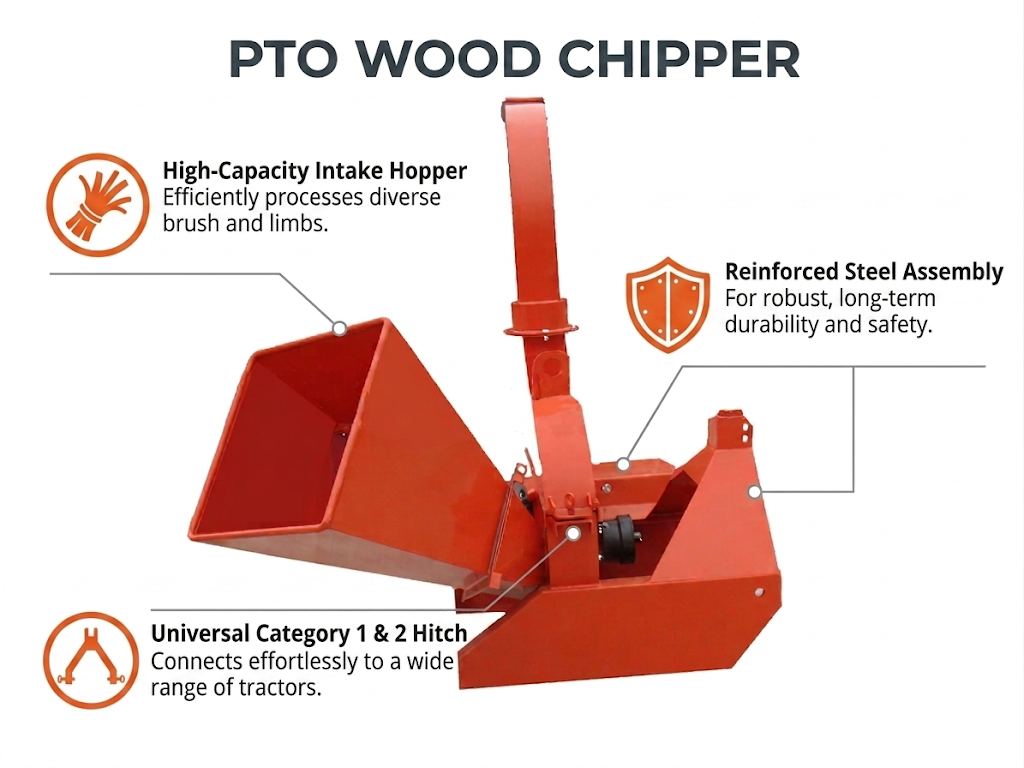

Point Pto Wood Chipper Tractor for Attachment (Hydraulic)

$2,380.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model BX-42S BX-42R BX-62R BX-92R

Shipping Method by sea to door TAX FREE(25-40days)

Quick Answer: The CECLE PTO Wood Chipper is a tractor-mounted attachment that converts branches and brush into reusable wood mulch.

CECLE vs. Traditional / Generic Alternative

Where the CECLE stands out against manual or generic tractor — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

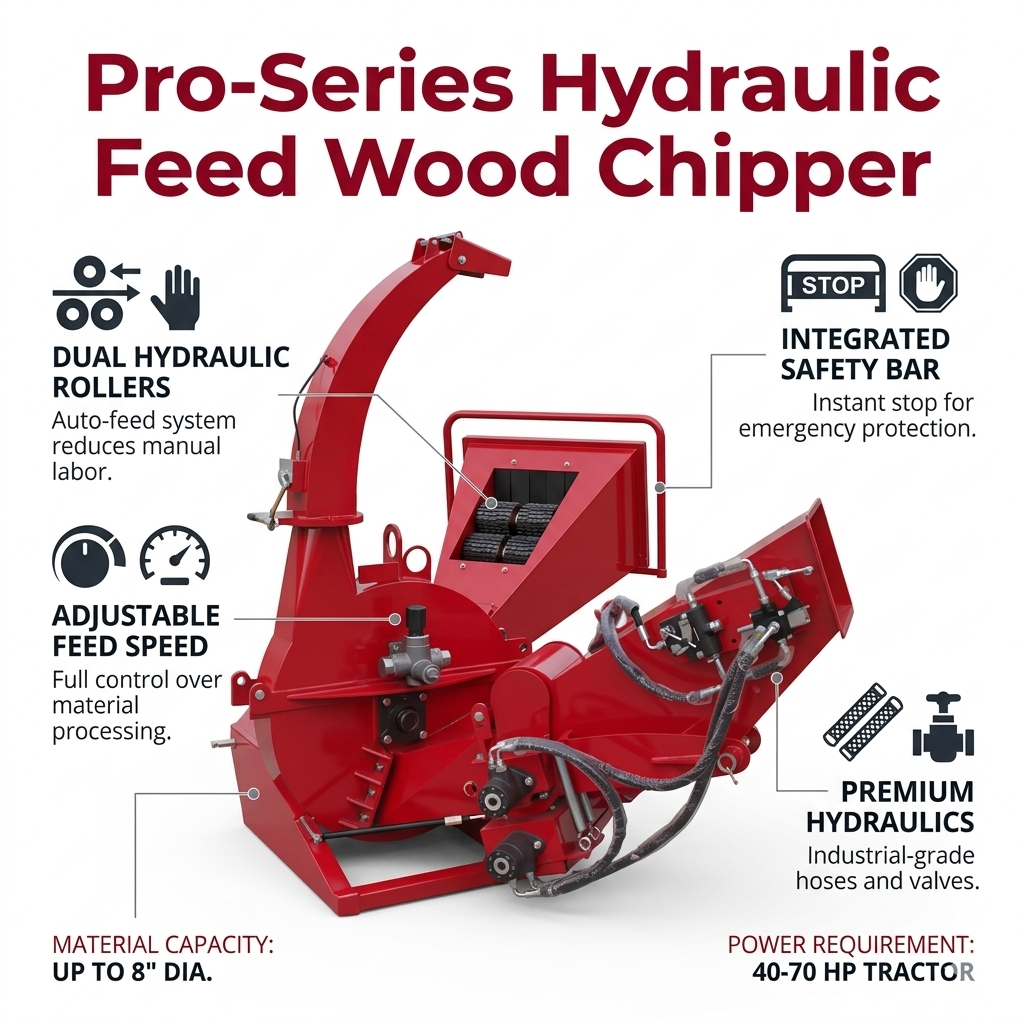

CECLE Hydraulic Feeding System : This is the greatest advantage of this machine. Using hydraulic rollers to automatically pull branches into the crushing chamber, operators do not need to push the material manually.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Output Speed & Throughput

CECLE High Efficiency : Typically equipped with a heavy-duty flywheel and high-strength blades inside, capable of processing larger diameter timber (usually up to 6 inches or 8 inches, depending on the model)

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Pressure Consistency

CECLE The CECLE Tractor holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Chassis Rigidity & Vibration Resistance

CECLE The frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Parameter	BX42S	BX42R	BX62R	BX92R
Product Name	PTO Wood Chipper	PTO Wood Chipper	PTO Wood Chipper	PTO Wood Chipper
Flywheel diameter	630MM	630MM	740MM	940MM
Flywheel thickness	18MM	18MM	25MM	35MM
Flywheel weight	50KG	50KG	80KG	170KG
No. of blades	4	4	4	4
Blades material	65mn	65mn	65mn	Cr12
Blades size	210609mm	210609mm	2406010mm	32010016mm
Feed hoppersize	500*500mm	500*500mm	580*580mm	620*620mm
Exit size	100mm	100mm	150mm	220mm
Package size	11409101260	11409101260	120011002100	130011502150
Package weight	225KG	340KG	538KG	655KG

Compatible Applications & Materials

industrial products — primary target products for this Tractor line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Equipment Connection : Mount the wood chipper to the rear of the tractor using the three-point hitch, and securely install the PTO drive shaft and hydraulic hoses
Safety Inspection : Inspect the feed hopper, blades, flywheel, and hydraulic system to ensure no internal debris remains and safety guards are properly installed
Speed Regulation : Start the tractor and engage the PTO (typically 540r/min or 1000r/min), adjusting the speed of the hydraulic feed roller
Crushing : Feed pruned branches or timber into the wide hopper, where the hydraulic system automatically pulls the wood into the crushing chamber for powerful slicing
Discharge &amp
Shutdown : Accurately spray wood chips into collection vehicles or designated areas via the 360° swivel discharge chute
after operation, disengage feeding, stop the PTO, and then turn off the tractor.

Engineering FAQ

What tractor power rating does this wood chipper require?
A: It generally requires a tractor matching the corresponding horsepower based on the specific model (medium to high horsepower tractors are usually recommended) and delivers stable power through the power take-off (PTO) shaft.

Is manual force required to push branches into the feed opening?
A: No. The unit is equipped with a hydraulic automatic feeding system where hydraulic rollers actively draw branches into the crushing chamber, making operation effortless and secure.

Can the direction of the discharged wood chips be controlled?

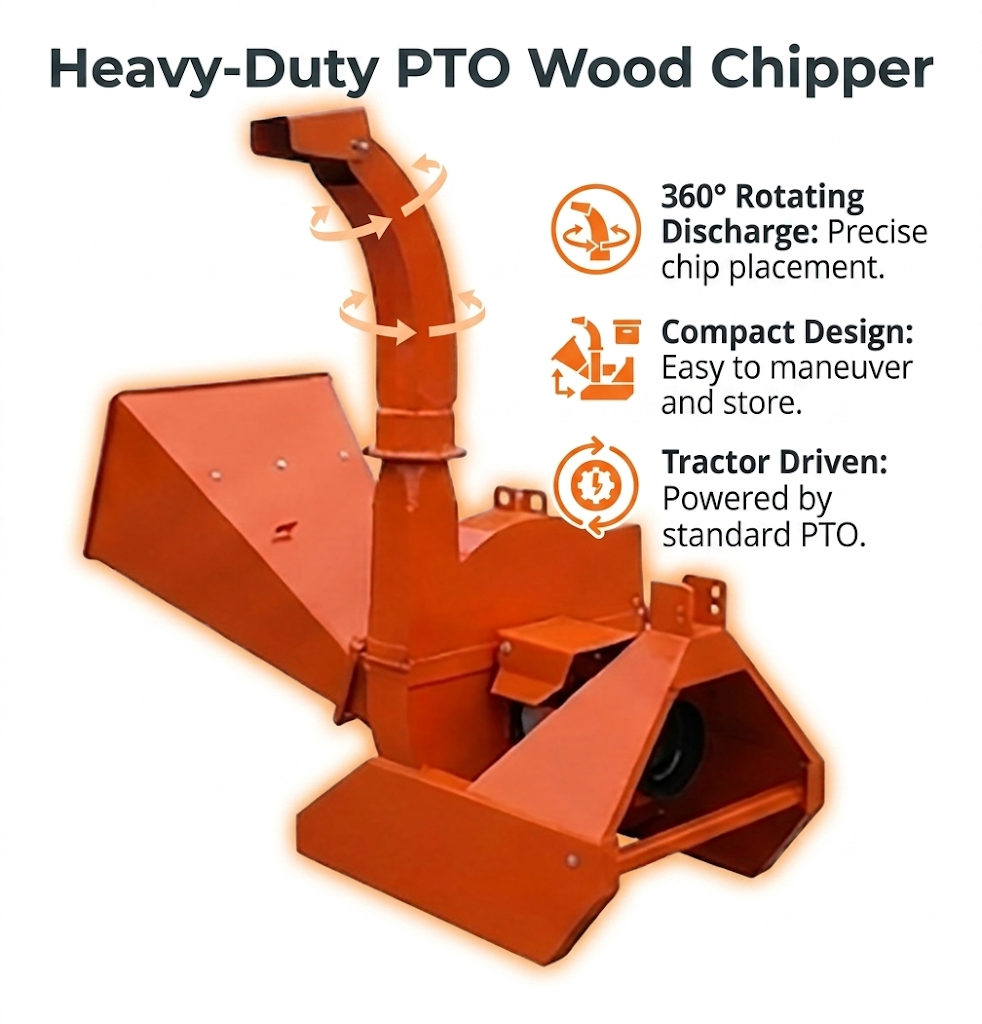

A: Yes. The machine features a 360° swivel high-discharge chute (chimney), allowing you to freely adjust the spraying direction and direct wood chips straight into truck beds or piling locations.

What routine maintenance keeps the stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
